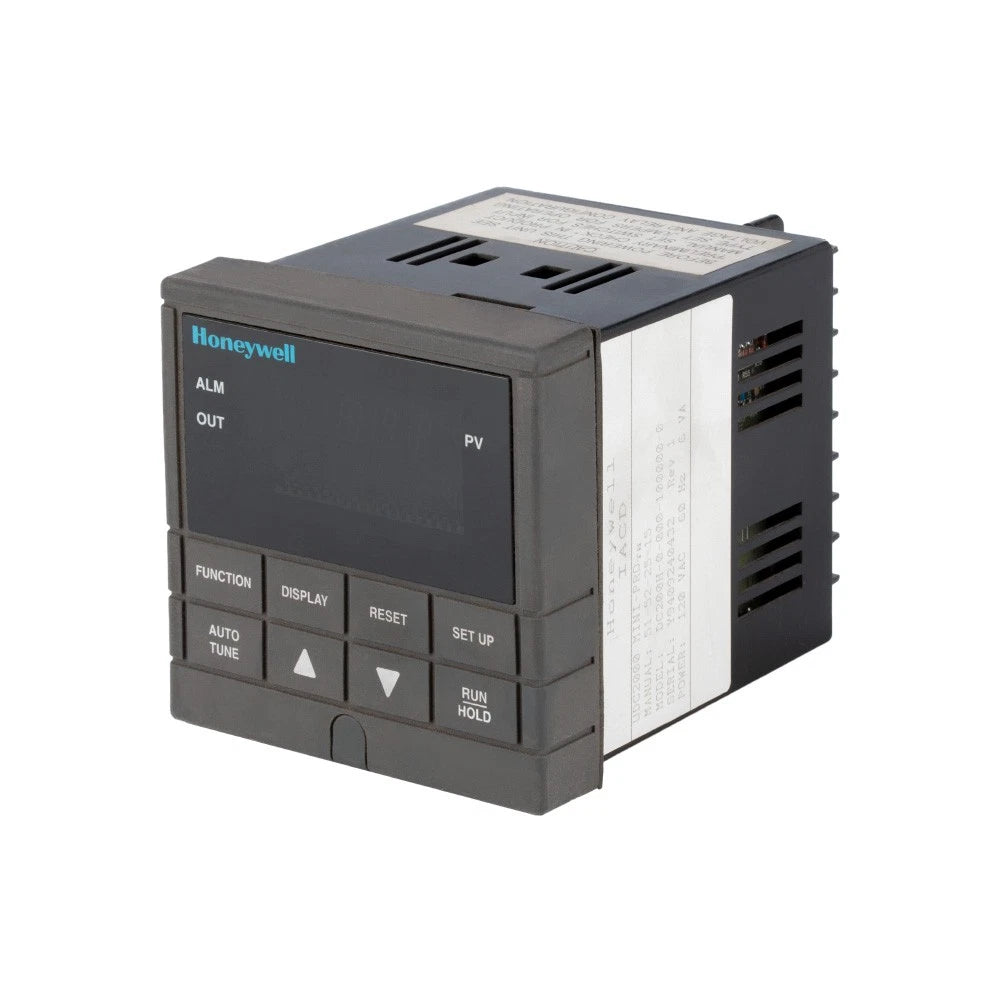

DC200H-0-000-100000-0 | Honeywell High-Limit Temperature Controller 120 VAC
- Regular price
- $1,072.00
- Sale price
- $1,072.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: DC200H-0-000-100000-0
Description
The Honeywell DC200H-0-000-100000-0 is a compact high-limit temperature controller designed for panel-mount applications at 120 VAC, 60 Hz and using approximately 6 VA of power. This discontinued unit supports thermocouple and RTD inputs, providing reliable over-temperature protection in industrial process systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Controls & Indicators |
| Part Number | DC200H-0-000-100000-0 |
| Subcategory | Temperature/Process Control |
| Series | Mini-Pro / UDC2000 |
| Controller Function | High-Limit (Safety) |
| Input Types | Thermocouple, RTD |
| Supply Voltage | 120 VAC |
| Frequency | 60 Hz |
| Power Consumption | 6 VA |
| Display Type | LED numeric display (Mini-Pro standard) |
| Mounting Type | 1/4 DIN panel mount |
| Control Output | Relay (limit trip) |
| Operating Mode | High-limit cutout only |
| Response Type | Fast trip response on limit exceedance |
| Operating Environment | Industrial panel or operator interface |
| Replacement Model | DC2500 Series (functional equivalent) |
| Weight | 2.15 lbs |
Information About DC200H-0-000-100000-0
The DC200H-0-000-100000-0 belongs to Honeywell’s Mini-Pro/UDC2000 family of controllers, developed for applications requiring precise high-limit temperature control rather than full PID regulation. Designed for 1/4 DIN panel mounting, it provides a compact and rugged interface suited for ovens, furnaces, and thermal systems where independent limit protection is critical. This model is powered by a standard 120 VAC, 60 Hz supply, offering dependable operation with minimal power consumption. The unit’s configurable input supports both thermocouple and RTD signals, ensuring compatibility with a wide range of industrial sensors.
Key Features:
- High-Limit Controller: Provides dedicated over-temperature protection for process safety.
- Thermocouple and RTD Compatibility: Accepts a wide range of temperature sensor types for flexible integration.
- Standard Power Operation: Operates at 120 VAC, 60 Hz with low 6 VA power draw for energy efficiency.
- Compact Mini-Pro Design: Fits standard 1/4 DIN panel cutouts for easy installation in operator panels.
- Fast Response Protection: Rapidly detects temperature excursions and initiates safety shutdown.
- Simple Configuration: Designed for straightforward limit setup and adjustment without complex programming.
- Durable Construction: Built for continuous use in industrial environments with reliable performance.
- Discontinued Model with Successor: Replaced by Honeywell’s DC2500 series, maintaining functional compatibility.
- Low Maintenance: No recalibration required for typical high-limit operation scenarios.
The DC200H-0-000-100000-0 delivers dependable protection and control precision for high-temperature industrial equipment.
