DC21-26V | SMC solenoid valve coil, 21–26V DC range, right-angle connector, 2-bolt mounting
- Regular price
- $144.00
- Sale price
- $144.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DC21-26V
Description
The SMC DC21-26V solenoid valve coil provides controlled actuation for pneumatic valves operating within a 21–26V DC supply range. This coil, designed for reliable electrical-to-mechanical switching, supports consistent performance in industrial pneumatic systems. Its compact construction and secure 2-bolt mounting allow dependable integration into existing SMC valve assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SMC |
| Category | Valves |
| Part Number | DC21-26V |
| Subcategory | Solenoid Coils |
| Voltage Range | 21–26V DC |
| Connector Type | Right-angle connector with locking screw |
| Mounting Style | 2-bolt |
| Function | Solenoid valve actuation coil |
| Top Category | Pneumatic and Hydraulic Solutions |
| Weight | 0.14 kg |
| Application | Pneumatic valve control |
| Coil Type | DC-energized electromagnetic coil |
| Manufacturer Status | Discontinued by manufacturer |
Information About DC21-26V

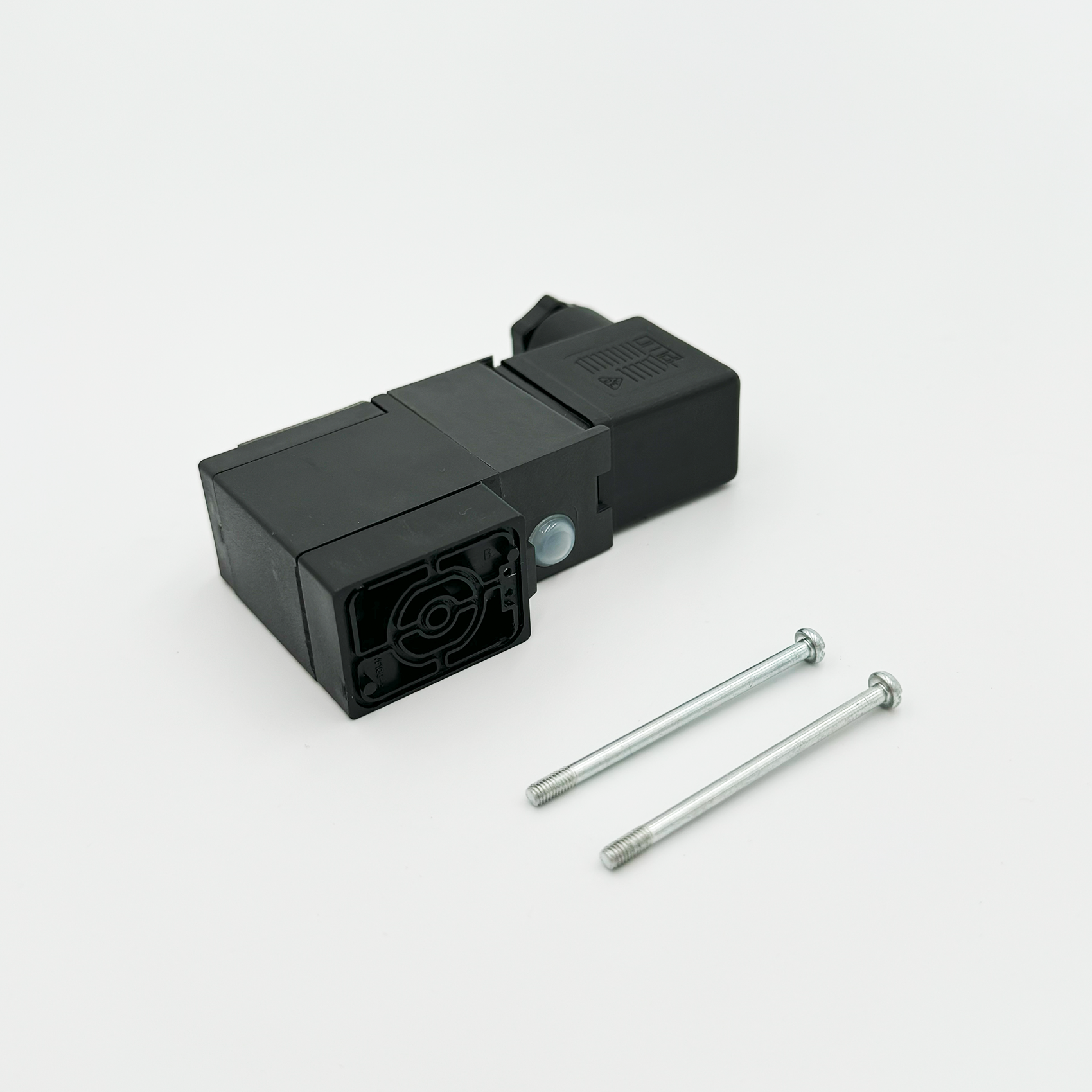

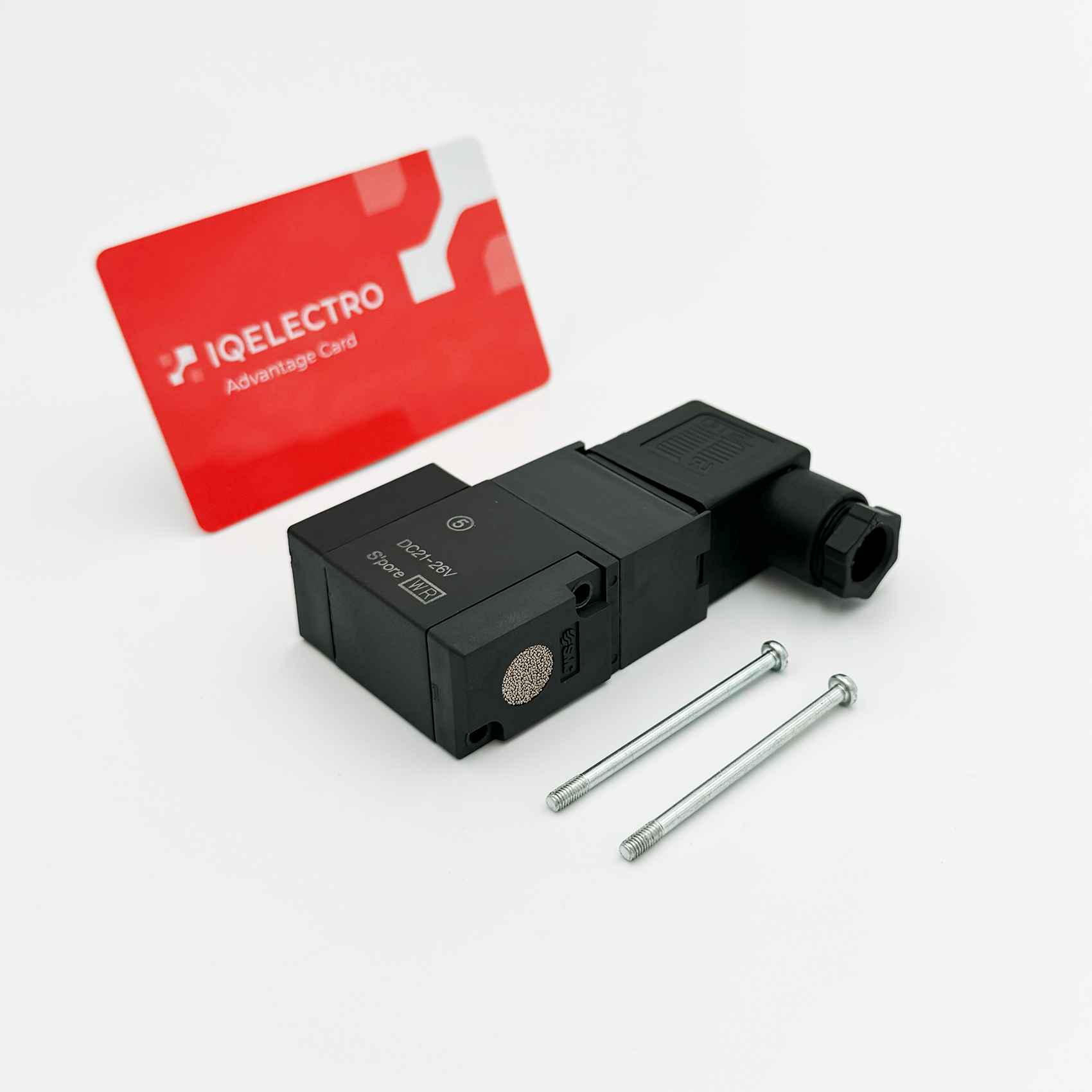

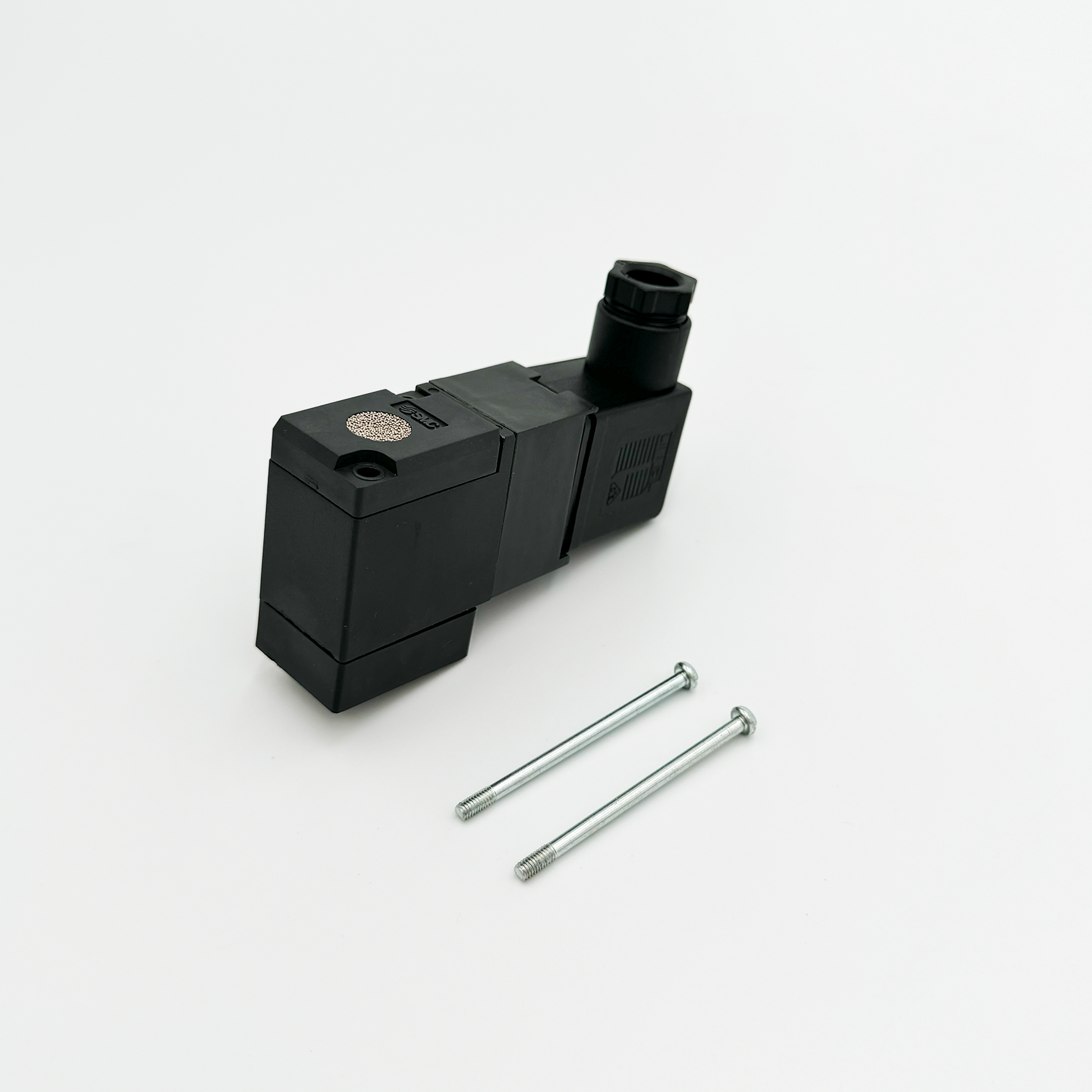

The DC21-26V is a solenoid coil from SMC’s valve accessory lineup, designed to generate the magnetic force required to actuate compatible pneumatic valves. It features a right-angle connector with a locking screw and a sturdy molded housing, providing stable electrical connection and mechanical retention. This coil integrates easily with SMC valve bodies that support its 2-bolt mounting interface and 21–26V DC excitation requirements. Typical applications include automated machinery, pneumatic control panels, and process equipment requiring precise and repeatable valve actuation.
Key Features:
- 21–26V DC Operating Range: Ensures proper magnetic actuation for compatible pneumatic valves.
- Right-Angle Electrical Connector: Provides a compact wiring layout with a locking screw for secure retention.
- 2-Bolt Mounting Design: Allows stable and consistent installation on matching SMC valve bodies.
- Durable Coil Construction: Encapsulated for protection against mechanical and environmental stress.
- Direct Valve Compatibility: Engineered to fit SMC pneumatic valve platforms using the DC-series coil format.
- Efficient Electromagnetic Response: Converts electrical input to mechanical force for precise valve movement.
- Industrial Application Ready: Suitable for manufacturing, automation systems, and general pneumatic control.
The DC21-26V delivers the reliability and precision required for dependable pneumatic solenoid valve control.
