DC230L-EE-00-10-0A00000-00-0 | Honeywell Mini-Pro Universal Digital Temperature Controller, Relay Output
- Regular price
- $1,427.00
- Sale price
- $1,427.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DC230L-EE-00-10-0A00000-00-0
Description

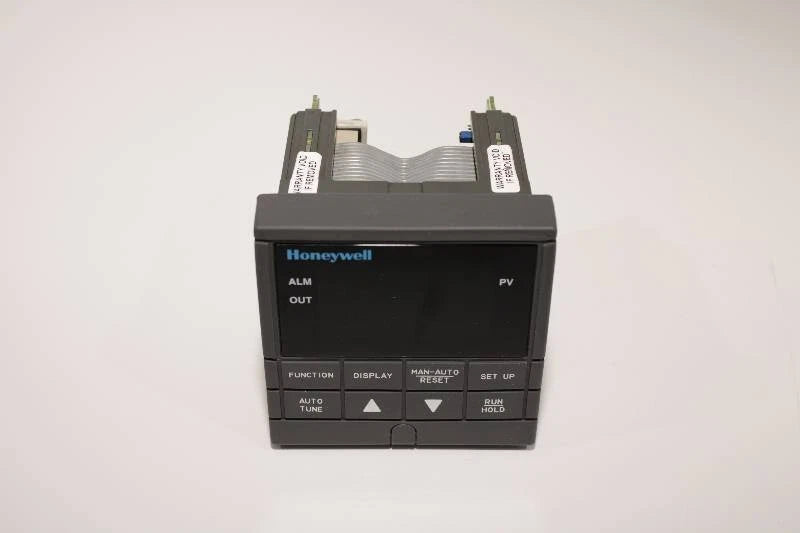

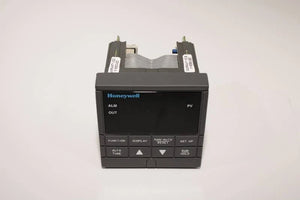

The Honeywell DC230L-EE-00-10-0A00000-00-0 is a ¼‑DIN Mini‑Pro universal digital temperature/process controller. It operates on 90–250 VAC and delivers precise control via a relay output with a single‑display interface. Designed for basic yet reliable loop control in industrial settings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Controls & Indicators |
| Part Number | DC230L-EE-00-10-0A00000-00-0 |
| Subcategory | Temperature/Process Control |
| Controller Type | Universal Digital, Mini-Pro, ¼-DIN |
| Input Types | Thermocouple, RTD, mV, Voltage, Current |
| Output Type | Relay Output |
| Display | Single Display |
| Power Supply | 90–250 VAC, 50/60 Hz |
| Power Consumption | 12 VA |
| Tuning Algorithm | Accutune II (Fuzzy Logic Overshoot Suppression) |
| Isolation | Input/Output Isolation |
| Communications Optional | Modbus or ASCII via RS-485 (optional) |
| Mounting | Panel-mounted (¼-DIN) |
| Weight | 1.2 lbs |
Information About DC230L-EE-00-10-0A00000-00-0
The DC230L-EE-00-10-0A00000-00-0 belongs to Honeywell’s UDC2300 Mini‑Pro family, offering universal digital control in a compact ¼‑DIN enclosure. It accepts a wide range of input types—including thermocouples, RTDs, millivolt, voltage, and current signals—and provides isolated relay output, ideal for simple on/off control tasks. Featuring the Accutune II tuning algorithm for fuzzy‑logic overshoot suppression, it ensures stable and accurate control with minimal user tuning. Its universal AC power supply (90–250 VAC, 50/60 Hz) and low power consumption (12 VA) simplify installation across diverse electrical environments.
Key Features:
- Compact ¼-DIN Form Factor: Saves panel space while delivering full control capabilities.
- Universal Input Compatibility: Accepts thermocouples, RTDs, mV, voltage, and current signals.
- Isolated Relay Output: Ensures safe switching without ground-loop issues.
- Accutune II Algorithm: Implements fuzzy logic for precise, responsive control.
- Wide Power Range: Operates from 90–250 VAC at either 50 or 60 Hz.
- Low Power Requirement: Draws just 12 VA, reducing panel load.
- Standalone Operation: Compact digital front-panel interface with single display for easy control.
The DC230L-EE-00-10-0A00000-00-0 provides the reliability and simplicity required for basic temperature and process control tasks in industrial applications.
