DC2500-CE-3A00-200-00000-E0-0 | Honeywell Universal Digital Controller
- Regular price
- $2,287.00
- Sale price
- $2,287.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DC2500-CE-3A00-200-00000-E0-0
Description

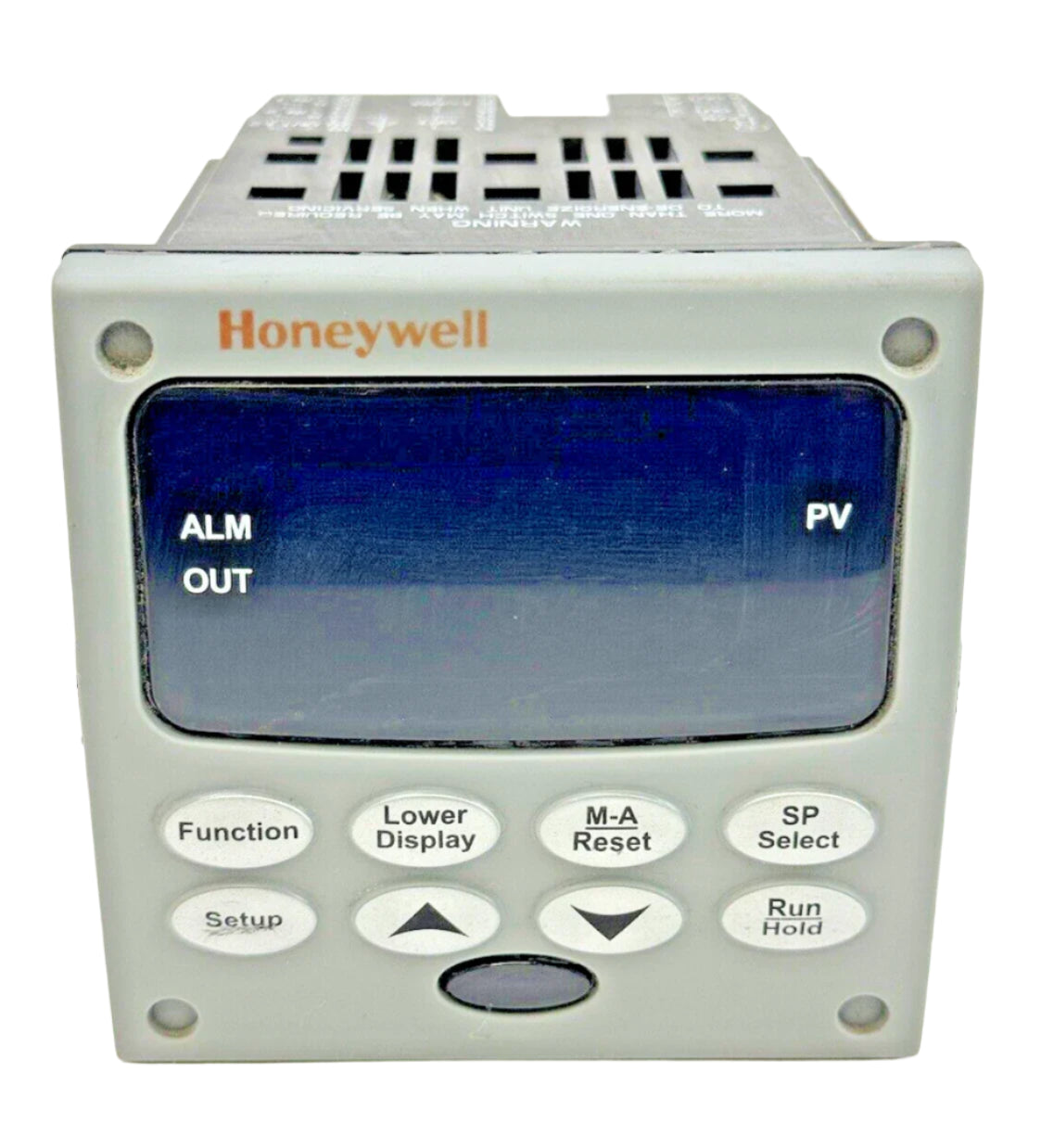

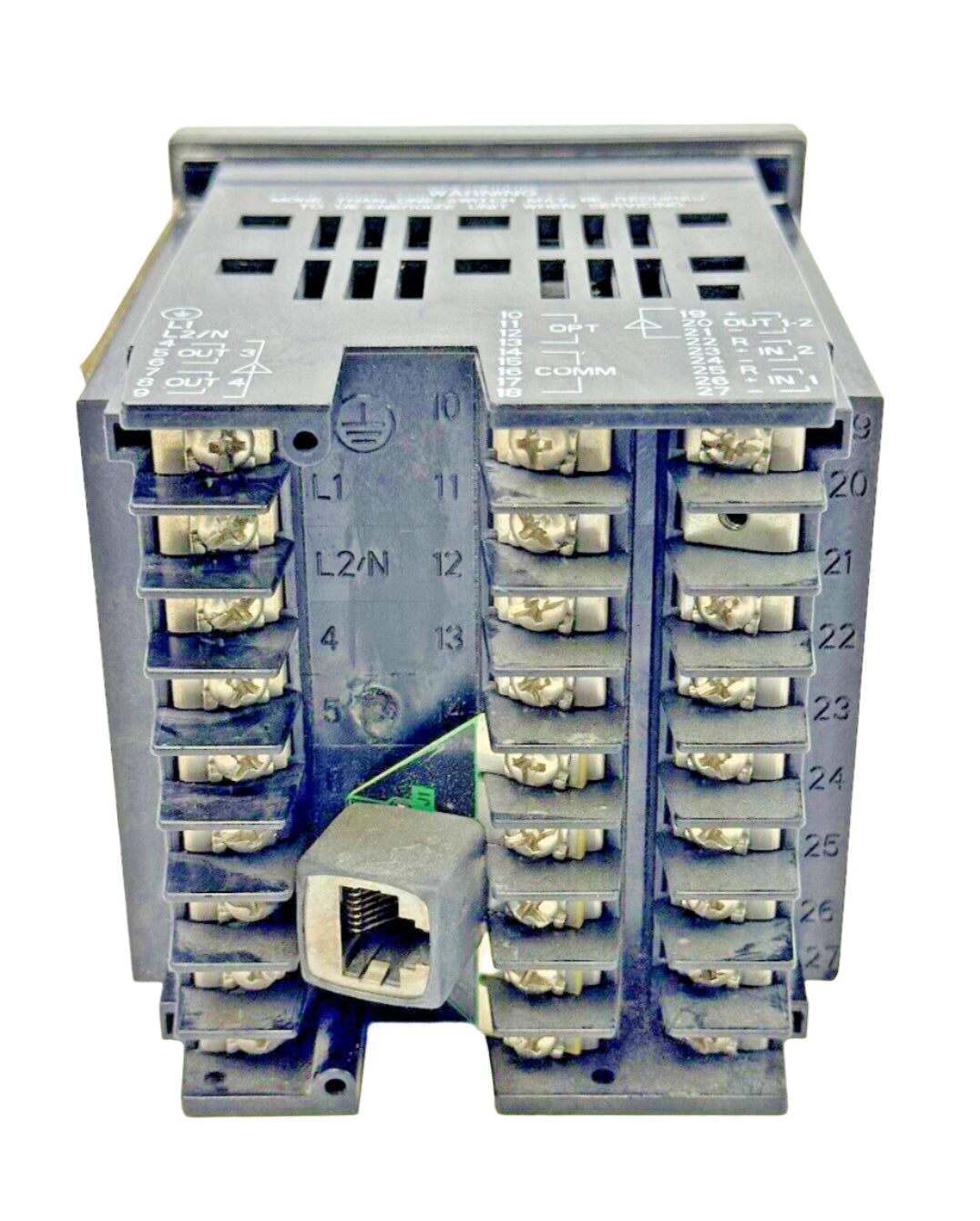

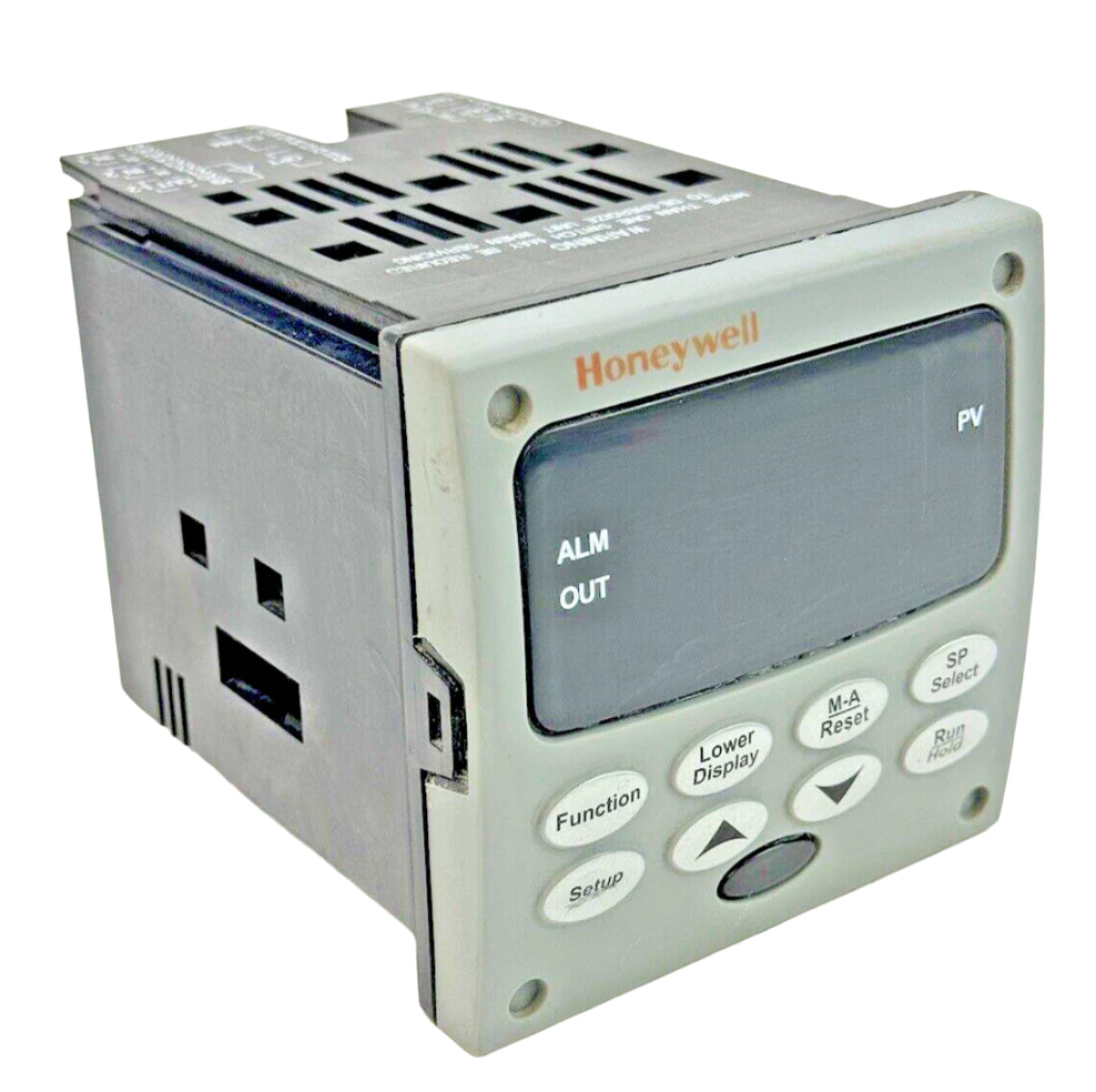

The Honeywell DC2500-CE-3A00-200-00000-E0-0 is a compact universal digital controller used in industrial temperature and process control systems. Featuring advanced output and communication options, it is designed to regulate complex applications with high precision and adaptability.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | DC2500-CE-3A00-200-00000-E0-0 |
| Subcategory | Temperature/Process Control |
| Series | UDC2500 |
| Form Factor | 1/4 DIN |
| Display | Dual 4-digit LED display |
| Input Types | TC, RTD, mV, 0–5V, (0)4–20mA |
| Output 1 | 4–20 mA (analog) |
| Output 2 | Relay (alarm/control) |
| Digital Input / Aux Output | Yes |
| Communication | Ethernet |
| Operating Voltage | 90–264 VAC |
| Certifications | CE, UL, CSA |
| Mounting Type | Panel mount |
| Country of Manufacture | United States |
| Discontinued | Yes |
| Weight | 3.00 lbs (approx. 1.36 kg) |
Information About DC2500-CE-3A00-200-00000-E0-0
The DC2500-CE-3A00-200-00000-E0-0 is a model from Honeywell’s UDC2500 series, offering digital temperature and process control in a versatile 1/4 DIN form factor. This discontinued model supports multiple analog inputs such as TC, RTD, mV, voltage, and current, with a combination of 4-20mA and relay outputs. It includes dual displays for process and setpoint monitoring, Ethernet communication capability, and auxiliary I/O for additional integration flexibility. Designed to meet CE, UL, and CSA standards, it is suitable for OEM and end-user applications requiring reliable, compact control.
Key Features:
- Multi-Input Capability: Accepts TC, RTD, millivolt, 0–5V, and (0)4–20mA input types.
- Universal Power Supply: Operates from 90–264 VAC without the need for reconfiguration.
- Compact Design: 1/4 DIN panel size fits standard industrial enclosures.
- Analog Output: 4–20 mA output for precise control or retransmission (Output 1).
- Relay Output: Configured for control or alarm function (Output 2).
- Ethernet Connectivity: Supports remote monitoring and configuration via networked environments.
- Dual Digital Display: Provides real-time process values and setpoint readouts.
- Digital Input & Aux Output: Additional I/O channels for user-defined actions and signals.
- Standards Certified: Complies with CE, UL, and CSA for safety and performance.
- Modular Expansion: Designed to accommodate varying process control needs via configurable options.
The DC2500-CE-3A00-200-00000-E0-0 delivers accurate, versatile control performance in space-limited industrial automation applications.
