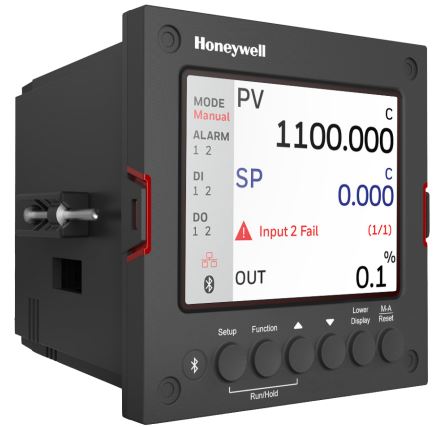

DC2800-CE-1S0-210-000-00-0 | Honeywell UDC2800 1/4 DIN Digital Single-Loop Controller 100–240 VAC Bluetooth
- Regular price
- $1,539.00
- Sale price
- $1,539.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: DC2800-CE-1S0-210-000-00-0
Description
The Honeywell DC2800-CE-1S0-210-000-00-0 is a 1/4 DIN universal digital single-loop controller designed for precision temperature and process control in industrial environments. Featuring a full-color TFT display, Bluetooth connectivity, and Accutune III fuzzy logic auto-tuning, it ensures fast setup, optimal stability, and high-performance process management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Controls & Indicators |
| Part Number | DC2800-CE-1S0-210-000-00-0 |
| Subcategory | Temperature/Process Control |
| Series | UDC2800 |
| Controller Type | Single-Loop Digital Controller |
| Display | TFT color display with status indicators |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Input Types | TC, RTD, mV, 0/1–5 V, 0/10 V, 0/4–20 mA |
| Number of Inputs | 2 universal inputs |
| Analog Output | 0/4–20 mA |
| Relay Outputs | 1 × 5 A control relay, 1 × 5 A alarm relay (Form C) |
| Digital I/O | 1 auxiliary output / 1 digital input |
| Communication Interfaces | Bluetooth (standard), RS-485 Modbus (optional) |
| Control Algorithms | PID, Accutune III fuzzy logic |
| Accuracy | ±0.1 % of span typical |
| Enclosure Rating | NEMA 4X / IP66 front panel |
| Case Material | Black plastic with gray elastomer bezel |
| Ambient Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Mounting | 1/4 DIN panel mount |
| Dimensions | 96 mm × 96 mm × 100 mm (3.78 × 3.78 × 3.94 in) |
| Certifications | CE, cULus, RoHS |
| Compatibility | Honeywell EasySet App via Bluetooth |
| Weight | 3.00 lbs (approx.) |
Information About DC2800-CE-1S0-210-000-00-0
The DC2800-CE-1S0-210-000-00-0 belongs to Honeywell’s UDC2800 Series of universal digital controllers, offering advanced control features in a compact, NEMA 4X/IP66-rated housing. It operates on 100–240 VAC and supports a wide variety of input types, including thermocouples, RTDs, mV, voltage, and current signals. The controller integrates Accutune III with fuzzy logic to minimize overshoot and process variability, while its TFT display provides clear visualization of process variables, setpoints, and alarms. Standard Bluetooth communication allows configuration via the Honeywell EasySet mobile app, simplifying commissioning and maintenance. Additional I/O includes one 0/4–20 mA analog output, one 5 A electromechanical relay, one 5 A Form C alarm relay, and auxiliary digital inputs/outputs or RS-485 Modbus communication.
Key Features:
- Universal Input Capability: Accepts TC, RTD, mV, 0/1–5 V, 0/10 V, and 0/4–20 mA input signals for flexible control applications.
- Accutune III with Fuzzy Logic: Advanced auto-tuning ensures fast setup, stable operation, and minimal process overshoot.
- Full-Color TFT Display: Bright, high-contrast screen with status icons for control mode, alarm, and temperature units.
- Bluetooth Connectivity: Enables wireless setup and configuration through the Honeywell EasySet App.
- Comprehensive Output Options: Includes one 0/4–20 mA analog output, one control relay, and one alarm relay.
- Rugged Design: NEMA 4X/IP66 front panel protection with durable black plastic case and dark gray elastomer bezel.
- Modbus RS-485 Communication: Optional for integration into SCADA, PLC, or distributed control systems.
- Auxiliary I/O Support: Configurable digital inputs and outputs for added flexibility.
- Global Approvals: CE marked, compliant with EMC and safety standards for worldwide industrial use.
- Compact 1/4 DIN Form Factor: Fits standard panel cutouts and simplifies retrofit installations.
The DC2800-CE-1S0-210-000-00-0 delivers precise process control, easy configuration, and modern connectivity for industrial automation systems.
