DC3200-EE-000R-200-00000-E0-0 | Honeywell Universal Digital Controller
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DC3200-EE-000R-200-00000-E0-0
Description

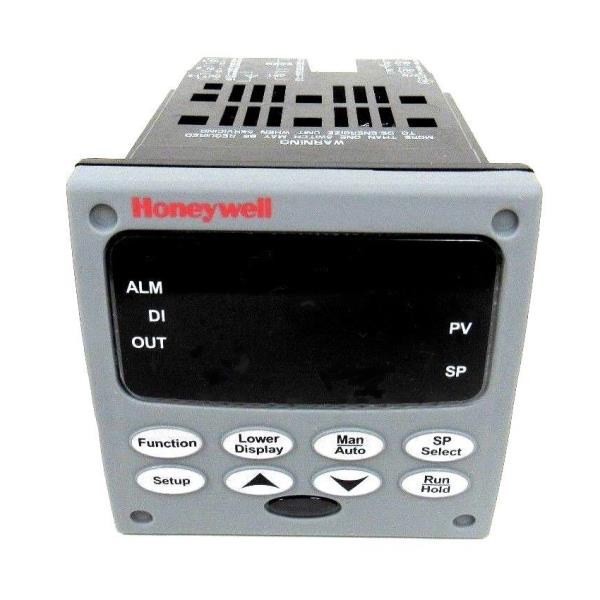

The Honeywell DC3200-EE-000R-200-00000-E0-0 is a ¼ DIN universal digital controller designed for precise monitoring and control of temperature and process variables. With dual relay outputs, flexible input support, and an intuitive interface, it is ideal for industrial automation and thermal control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | DC3200-EE-000R-200-00000-E0-0 |
| Subcategory | Temperature/Process Control |
| Series | UDC3200 |
| Type | Universal Digital Controller |
| Power Supply | 90–250 VAC |
| Input Types | TC, RTD, mV, 0–5V, (0)4–20 mA |
| Output 1 | Relay (Control) |
| Output 2 | Relay (Alarm/Control) |
| Display | Dual 4-digit LED display |
| Mounting Size | ¼ DIN (96 x 96 mm front panel) |
| Interface | Infrared (IR) |
| Software | Standard functionality |
| PID Control | Yes (standard) |
| CE Compliance | Yes |
| Weight | 0.99 lbs |
| Manual Language | English |
| Environmental Rating | IP66 (front panel) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
Information About DC3200-EE-000R-200-00000-E0-0
The DC3200-EE-000R-200-00000-E0-0 is part of Honeywell’s UDC3200 controller series and operates on a 90–250 VAC universal power supply. It features relay outputs for control and alarm functions and supports a broad range of sensor inputs including thermocouples (TC), resistance temperature detectors (RTD), millivolt, 0–5V, and (0)4–20mA analog signals. This model offers standard software functionality and includes an infrared interface for convenient non-contact configuration. With international CE compliance and a compact form factor, the DC3200 offers dependable and versatile performance in heating, cooling, and general process control applications.
Key Features:
- Universal Input Capability: Accepts TC, RTD, mV, 0–5V, and (0)4–20mA input types for broad sensor compatibility.
- Dual Relay Outputs: Includes relay output 1 for control and relay output 2 for alarms or secondary processes.
- Flexible Power Supply: Operates on 90–250 VAC input, suitable for global electrical systems.
- ¼ DIN Panel Mounting: Compact industry-standard size simplifies integration into control panels.
- Infrared Configuration Interface: Allows non-invasive parameter adjustment and monitoring.
- Standard Software Package: Provides essential PID and tuning capabilities for industrial processes.
- CE Approved: Complies with European safety and EMC regulations.
- Multi-Language Support: Delivered with English-language interface and documentation.
The DC3200-EE-000R-200-00000-E0-0 delivers the reliability and configurability required for modern temperature and process control operations.
