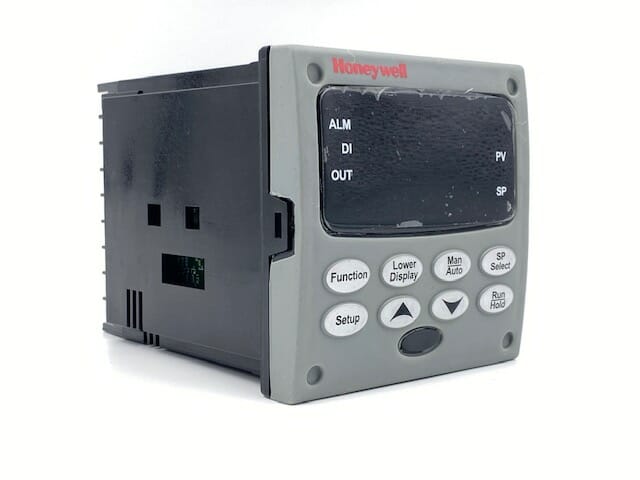

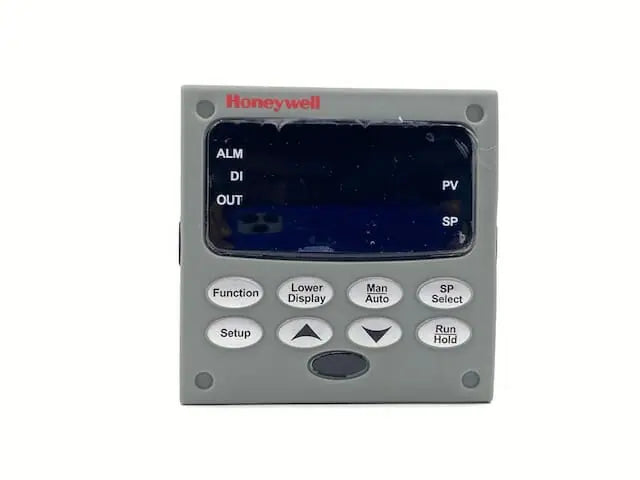

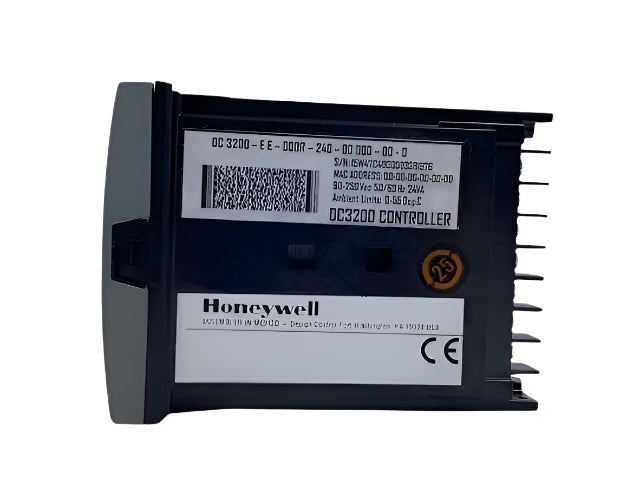

DC3200-EE-000R-240-00000-00-0 | Honeywell Universal Digital Controller
- Regular price
- $2,447.00
- Sale price
- $2,447.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DC3200-EE-000R-240-00000-00-0
Description
The DC3200-EE-000R-240-00000-00-0 is a discontinued 1/4 DIN universal digital controller (UDC3200) by Honeywell, operating on 90–250 VAC. It uses dual relay outputs for primary control and alarm functions, and supports configuration via infrared. This device is designed for precise process variables like temperature, fitted with universal inputs.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | DC3200-EE-000R-240-00000-00-0 |
| Subcategory | Temperature/Process Control |
| Series | UDC3200 Universal Digital Controller |
| Power Supply | 90–250 VAC, 50/60 Hz |
| Input #1 | TC/RTD/mV/0–5 V/4–20 mA universal analog input |
| Input #2 | Sidewire / slidewire position input |
| Output #1 | Relay (Form C, 5 A) primary control |
| Output #2 / Alarm | Relay (Form C, 5 A) alarm |
| Scan Rate | 166 ms |
| Accuracy | ±0.20% full scale |
| Configuration Interface | Infrared (Pocket PC) |
| Autotune | Accutune III |
| Outputs (field-upgrade) | Up to 5 analog/digital plus communications (Modbus/Ethernet) |
| Front Panel Protection | NEMA 4X / IP65 |
| Display Size | 1/4 DIN (96 × 96 mm) |
| Approvals | CE |
| Discontinued Status | Yes |
| Weight | 3.00 lbs |
Information About DC3200-EE-000R-240-00000-00-0
The DC3200-EE-000R-240-00000-00-0 is part of Honeywell’s mid-range UDC3200 family, offering a balance of functionality and cost-effectiveness. It features one universal analog input (TC/RTD/mV/0‑5 V/4–20 mA) plus a second sidewire or slidewire input for position proportional control. Its output stage includes two Form C relays—one for control and a second for alarm—rated up to 5 A. The device supports infrared configuration, Accutune III autotuning, multiple output options, and includes CE approval with IP65/NEMA 4X front-face protection.
Key Features:
- Universal Input: TC/RTD/mV/0–5 V/4–20 mA input for flexible process variable sensing
- Slidewire Input: Second input supports sidewire for position proportional control
- Dual Relays (Form C): One control and one alarm relay output rated up to 5 A
- Wide Power Range: Operates on 90–250 VAC, 50/60 Hz
- Infrared Configuration: Supports setup and configuration via Pocket PC or infrared remote
- High Accuracy & Fast Response: 0.20% accuracy with 166 ms scan rate
- Accutune III Autotuning: Built-in autotune simplifies PID controller setup
- Communications Ready: Field-upgradable for Modbus (RS‑485) or Ethernet connectivity
- Rugged Front Panel: Equipped with NEMA 4X/IP65 protection for wash-down environments
- CE Certified: Meets international safety and EMC standards
The DC3200-EE-000R-240-00000-00-0 delivers the reliability and precision required for advanced process control in industrial applications.
