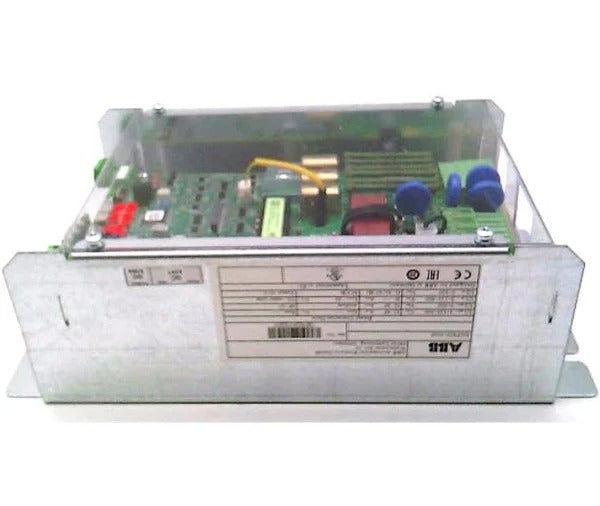

DCF803-0035 | ABB External Field Exciter Drive, 35A, 110–500 VAC
- Regular price
- $4,299.00
- Sale price
- $4,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DCF803-0035
Description
The ABB DCF803-0035 is an external field exciter drive designed to control the field current of DC motors. It supports three-phase AC input ranging from 110 to 500 VAC and provides up to 35 A output at a voltage of 0–500 VDC. This open-type drive is suitable for industrial applications requiring precise field regulation for DC drive systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | ABB |
| Category |
Drives
|
| Part Number | DCF803-0035 |
| Subcategory | Field Exciter |
| Input Voltage Range | 110–500 VAC (3 Phase) |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–500 VDC |
| Output Current | 35 A |
| Drive Type | External Field Exciter |
| Enclosure Type | Open Type |
| Protection Rating | IP00 |
| Mounting | Panel Mount |
| Cooling Method | Natural Convection |
| Series | DCF800 |
| Weight | 4 kg (9 lbs) |
Information About DCF803-0035
The DCF803-0035 is a field supply unit in ABB's DCF800 series, built for compatibility with a wide range of DC drives. It features an open-frame design with IP00 protection and supports input voltages from 110 to 500 VAC at 50/60 Hz. The module supplies up to 35 A of field current, making it suitable for demanding motor control environments. Designed for panel mounting, it integrates seamlessly with ABB automation systems or third-party equipment.
Key Features:
- Three-Phase Input: Accepts a wide input voltage range from 110 to 500 VAC.
- DC Output Range: Provides up to 35 A at 0–500 VDC for field excitation.
- Open-Type Design: Ideal for installation within a controlled electrical cabinet.
- High Current Capability: Supports demanding industrial DC motor applications.
- Flexible Frequency Support: Operates at both 50 Hz and 60 Hz.
- Panel Mounting Compatibility: Designed for easy integration into existing setups.
- IP00 Protection Class: No external enclosure, suitable for internal cabinet environments.
- Efficient Field Regulation: Enables stable and responsive DC motor control.
The DCF803-0035 delivers the reliability and precision required for industrial DC motor field control systems.
