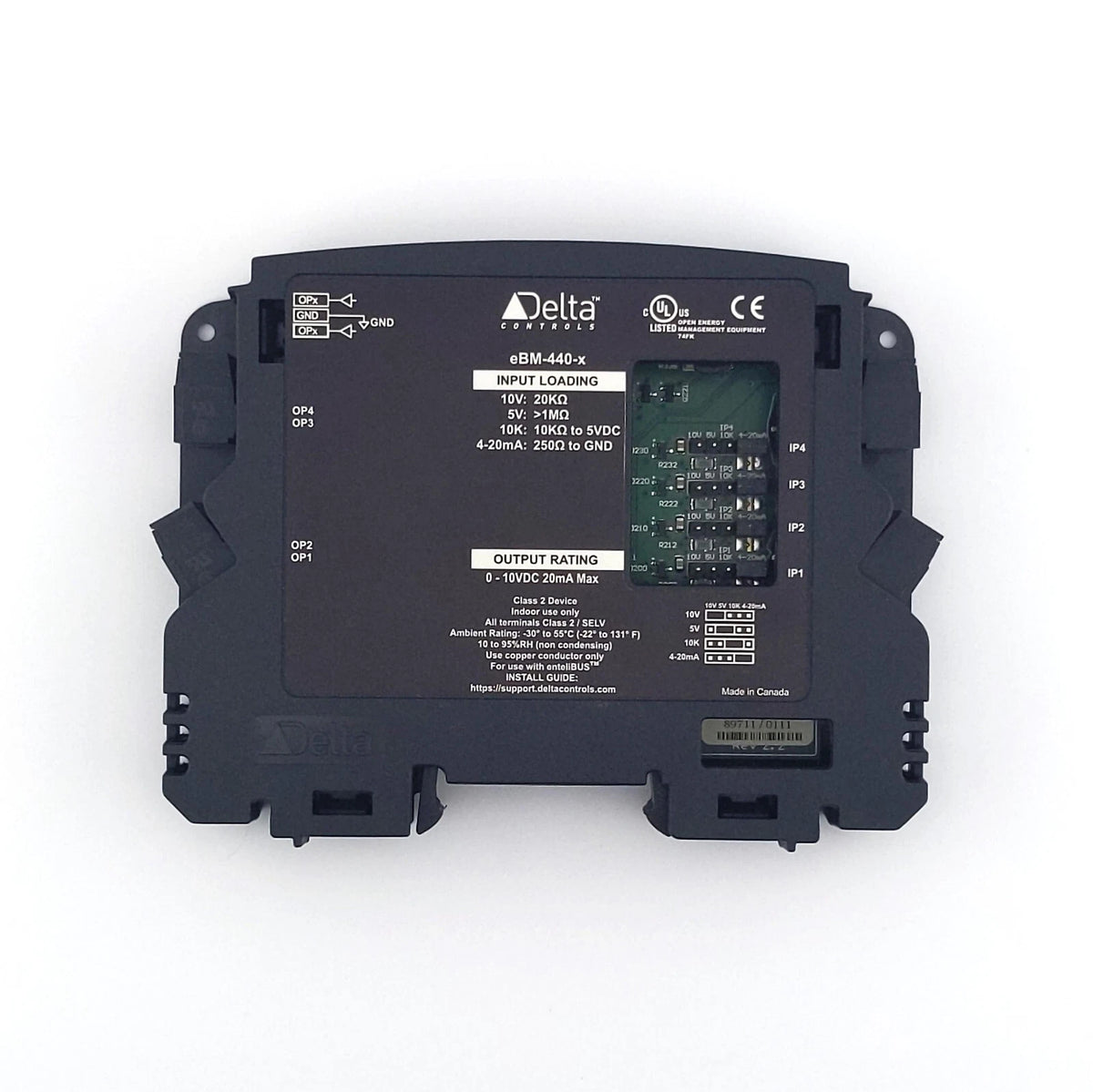

Delta Controls 375601 eBM-440-M enteliBUS I/O Module
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 375601
Description
The Delta Controls 375601 is an eBM-440-M enteliBUS I/O module designed for HVAC and building automation systems. It features four universal inputs and four analog outputs for monitoring field sensors and controlling compatible equipment. With integrated Hand-Auto-Off (HAO) override switches and manual output adjustment levers, the module supports flexible control and monitoring in building management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | 375601 |
| Subcategory | Building Automation I/O Modules |
| Model | eBM-440-M |
| Module Type | Universal Input / Analog Output Module |
| Universal Inputs | 4 |
| Input Resolution | 12-bit; 16-bit with compatible systems |
| Input Types | 0–5 VDC, 0–10 VDC, 10 kΩ thermistor, dry contact, 4–20 mA |
| Analog Outputs | 4 × 0–10 VDC |
| Output Current | 20 mA maximum per output |
| Output Resolution | 8-bit |

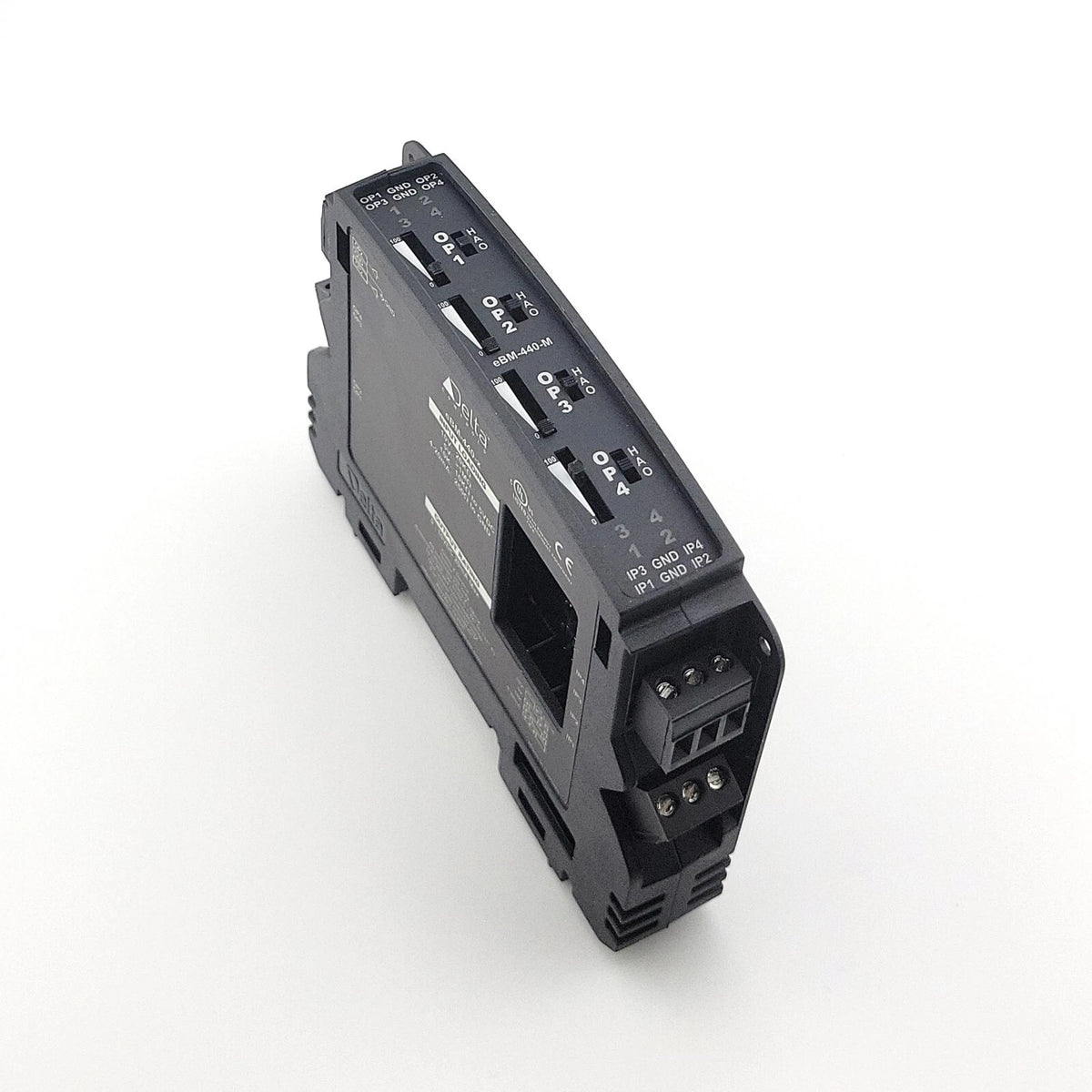

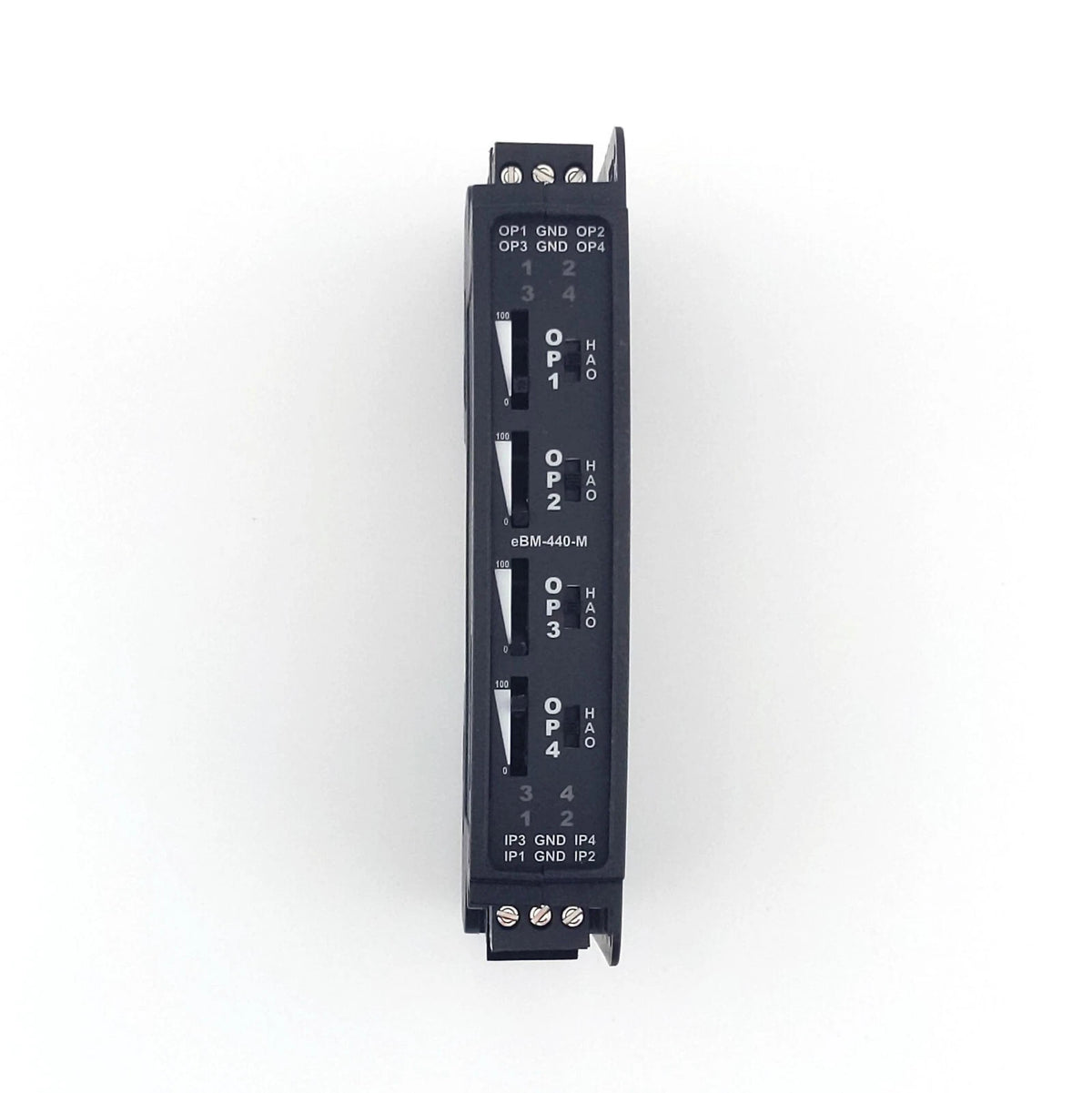

| Override Controls | Three-position HAO switches with 0–100% adjustment levers |
| Power Supply | 24 VAC/VDC, 50/60 Hz |
| Power Consumption | 5 VA |

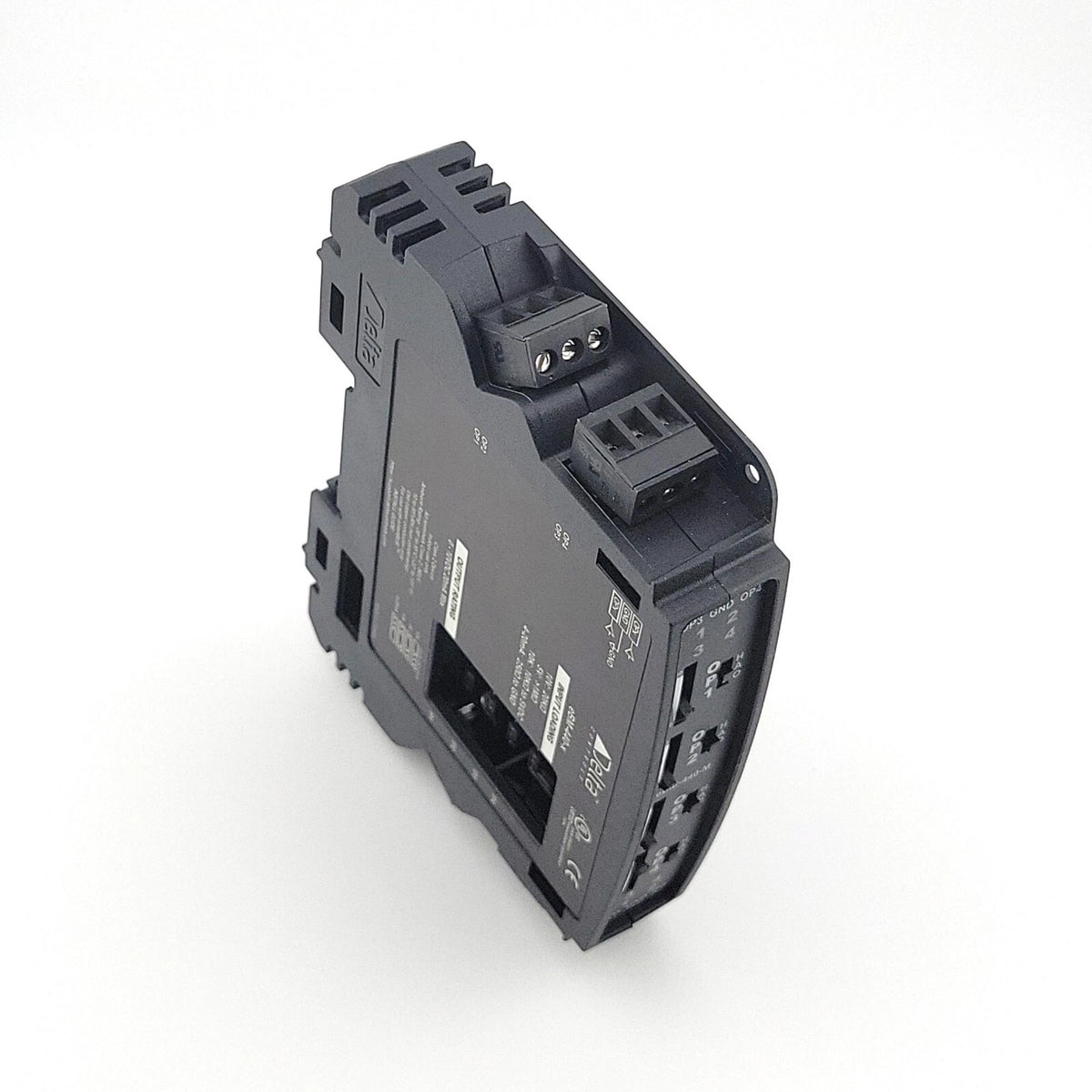

| Connectors | 3-pin removable screw-type terminals |

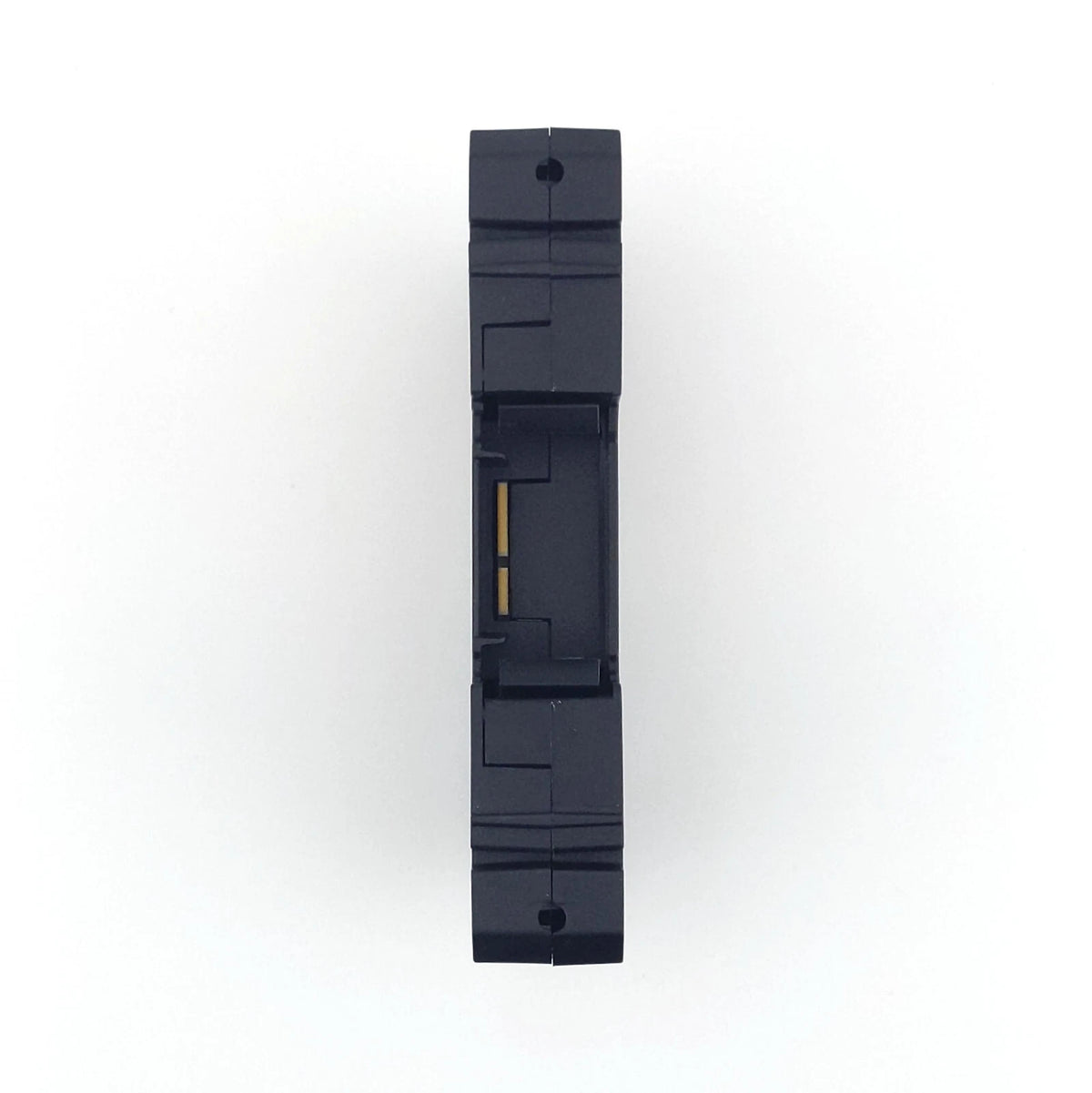

| Mounting | enteliBUS backplane and 35 mm DIN rail |
| Operating Temperature | −30°C to 55°C; UL 864 versions: 0°C to 55°C |
| Humidity | 10–95% RH, non-condensing |
| Dimensions | 126 × 23 × 100 mm |
| Weight | 108 g |
Information About 375601
The 375601 is a Delta Controls eBM-440-M enteliBUS I/O module designed for building automation and HVAC control applications. It combines four universal inputs with four 0–10 VDC outputs for connecting sensors and controlling compatible field devices. The module includes three-position Hand-Auto-Off (HAO) override switches and 0–100% output adjustment levers for manual control. It supports hot-swappable installation in compatible enteliBUS systems.
Key Features:
- Four Universal Inputs: Accepts configurable sensor and equipment signals.
- Four Analog Outputs: Provides 0–10 VDC control signals, up to 20 mA per output.
- Manual HAO Overrides: Supports Hand, Auto, and Off operation.
- 0–100% Adjustment Levers: Allows manual adjustment of output levels.
- Configurable Inputs: Supports voltage, thermistor, dry-contact, and 4–20 mA signals.
- DIN Rail Mounting: Designed for compatible enteliBUS backplanes and 35 mm DIN rails.
The 375601 provides flexible sensor interfacing and manual output control for HVAC and building automation systems.
