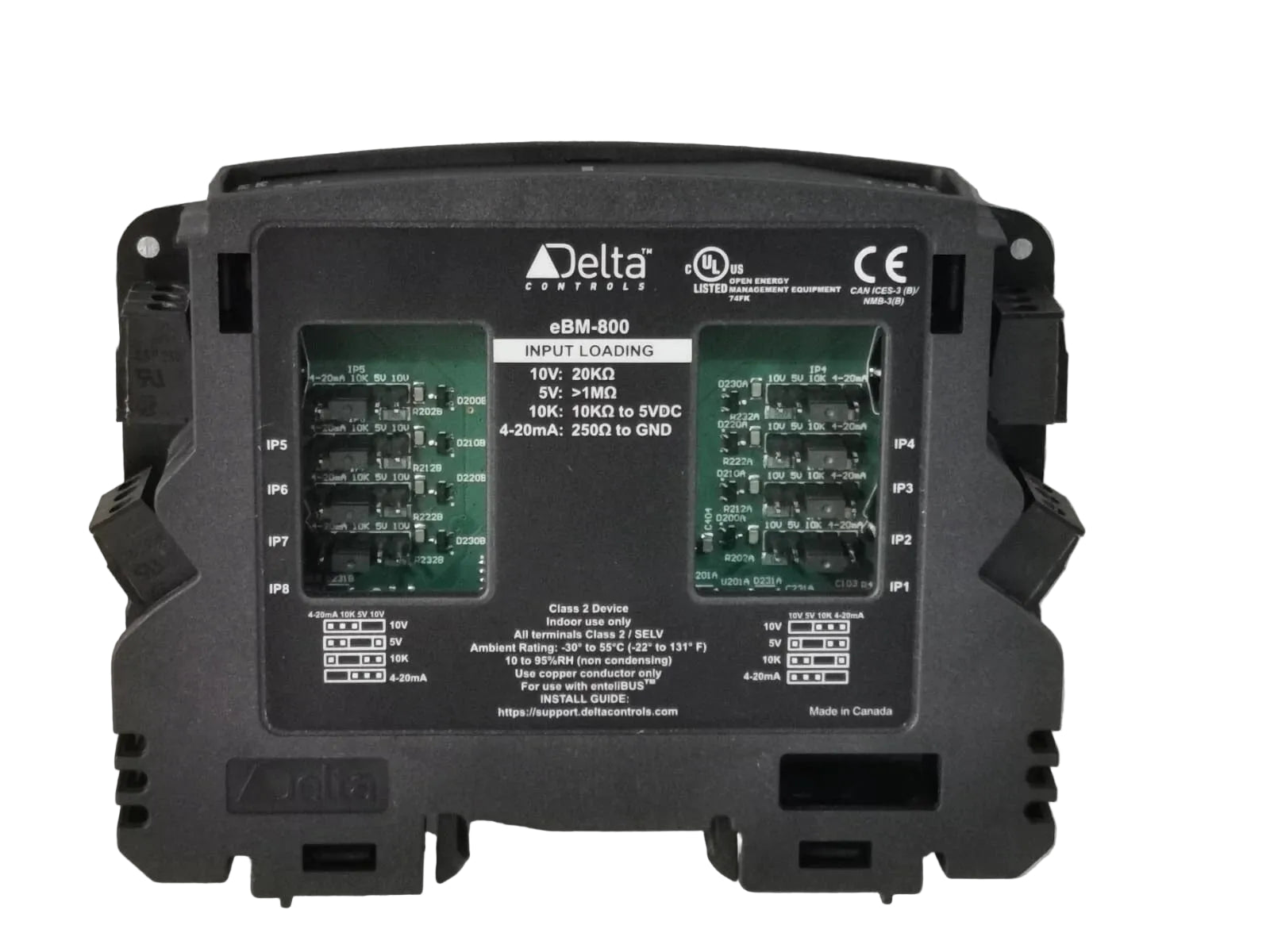

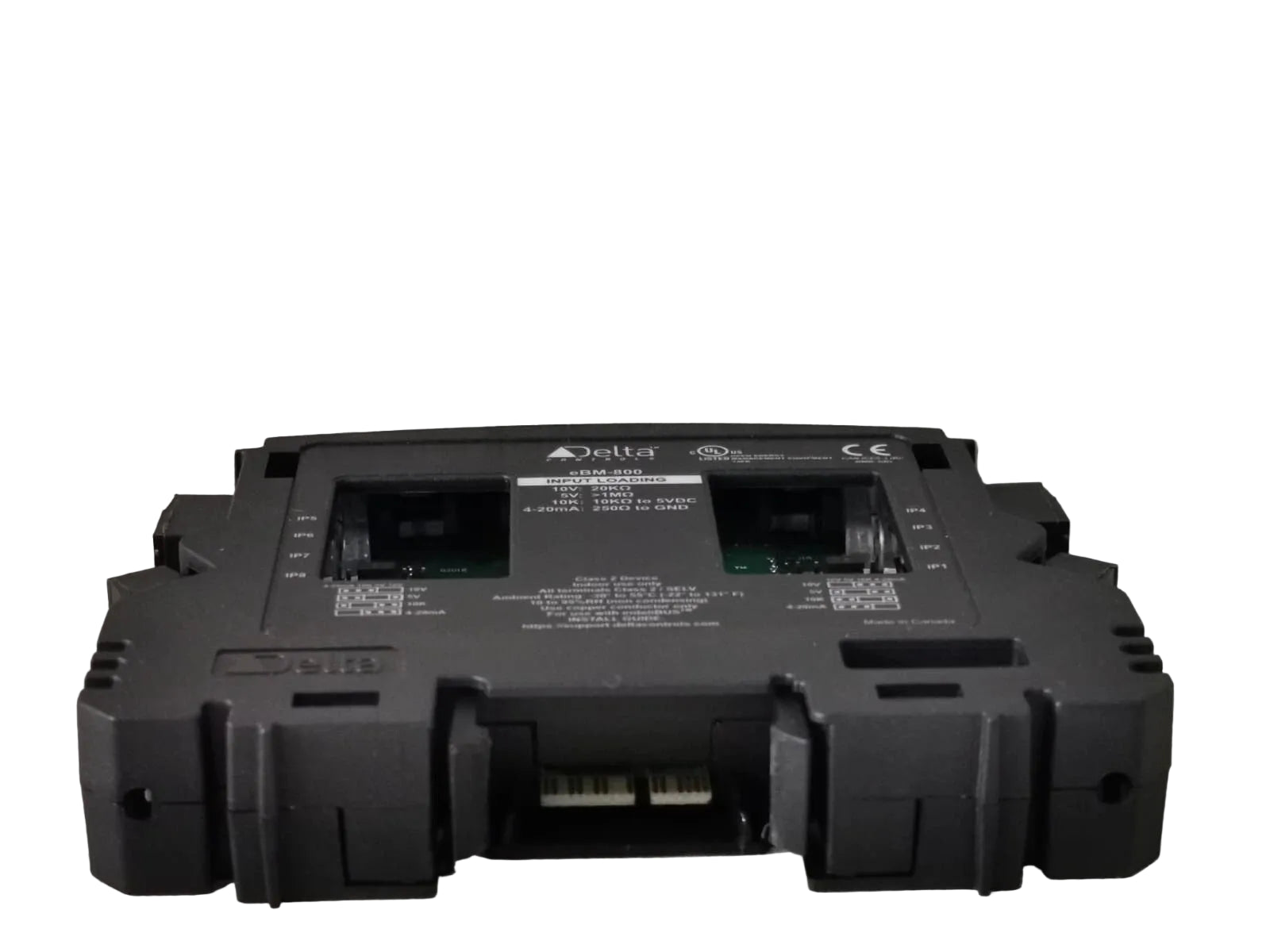

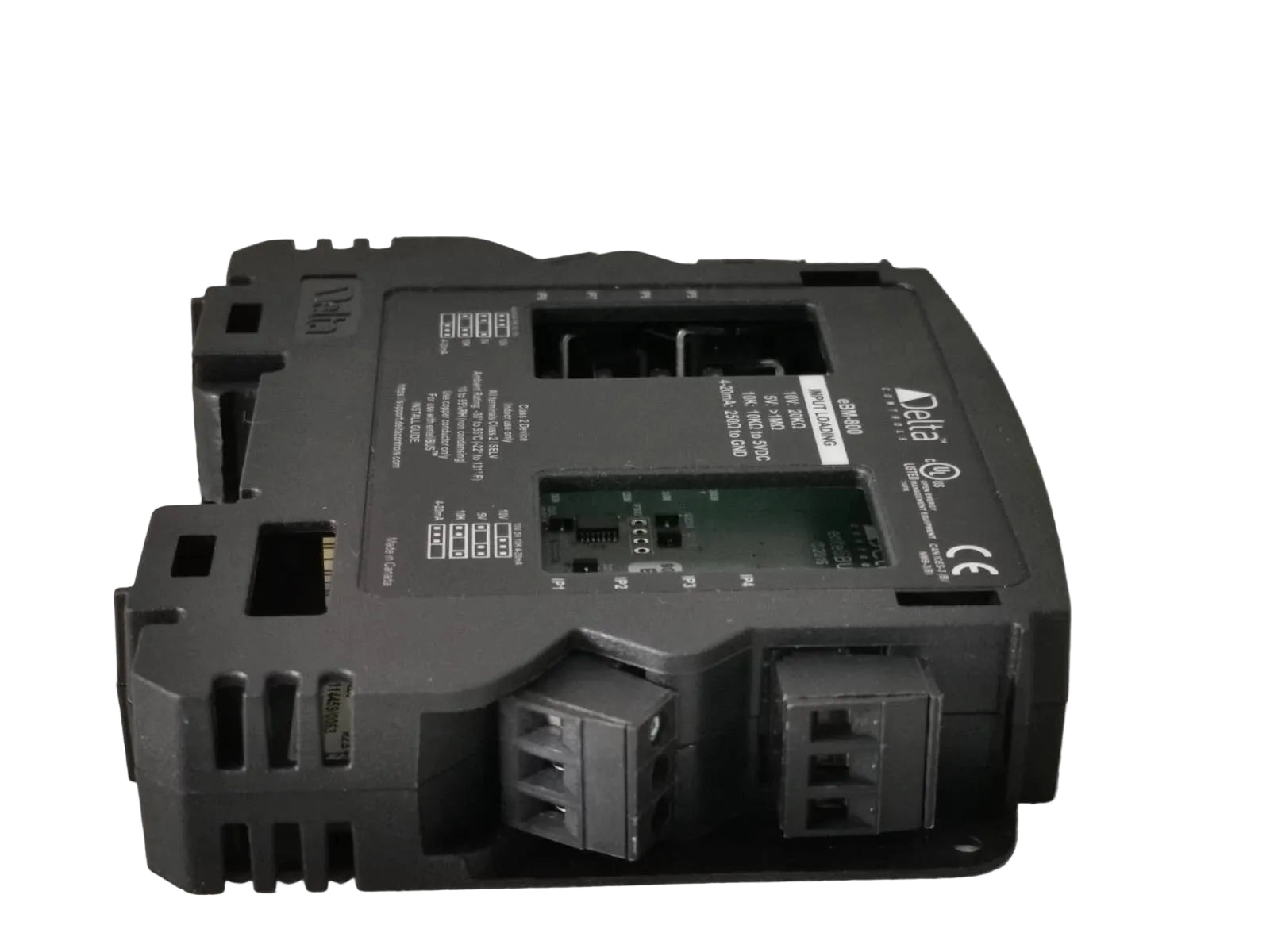

Delta Controls 375606 eBM-800 enteliBUS I/O Module
- Regular price
- $425.00
- Sale price
- $425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 375606
Description
The Delta Controls 375606 is an eBM-800 enteliBUS input/output module designed to provide eight universal inputs for building automation and HVAC control systems. It accepts configurable analog and dry-contact signals from compatible field devices, supporting temperature monitoring, equipment status detection, and other building management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | 375606 |
| Subcategory | Building Automation I/O Modules |
| Model | eBM-800 |
| Module Type | Universal Input Module |
| Number of Inputs | 8 universal inputs |
| Input Resolution | 12-bit; 16-bit available with compatible system configurations |
| Voltage Inputs | 0–5 VDC and 0–10 VDC |
| Other Input Types | 10 kΩ thermistor, dry contact, 4–20 mA |
| Power Supply | 24 VAC/DC |
| Power Consumption | 5 VA |
| Connectors | 3-pin removable screw-type terminals |
| Mounting | enteliBUS backplane and DIN rail assembly |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Humidity | 10–95% RH, non-condensing |
| Protection Rating | IP30 |
| Dimensions | 126 × 23 × 100 mm |
| Weight | 116 g |
Information About 375606
The 375606 is the part number associated with the Delta Controls eBM-800 I/O module. It supports eight jumper-configurable universal inputs for measuring voltage, reading 10 kΩ thermistors, monitoring dry contacts, and accepting 4–20 mA signals. The module is auto-detecting and hot-swappable within compatible enteliBUS systems, allowing modules to be replaced or expanded with reduced system downtime. It mounts to an enteliBUS backplane and DIN rail assembly and uses removable screw-type terminal connectors.
Key Features:
- Eight Universal Inputs: Connects multiple field sensors and status signals.
- Configurable Signal Types: Supports 0–5 VDC, 0–10 VDC, 10 kΩ thermistors, dry contacts, and 4–20 mA signals.
- Input Status LEDs: Provides visual indication of each input's status.
- Hot-Swappable Design: Supports replacement in compatible enteliBUS systems.
- DIN Rail Mounting: Fits compatible enteliBUS backplane and DIN rail assemblies.
- Removable Terminals: Uses three-pin screw-type terminal connectors.
- Building Automation Integration: Provides field-level signal interfacing for compatible HVAC and BMS applications.
The 375606 provides flexible input monitoring for compatible Delta Controls enteliBUS building automation systems.
