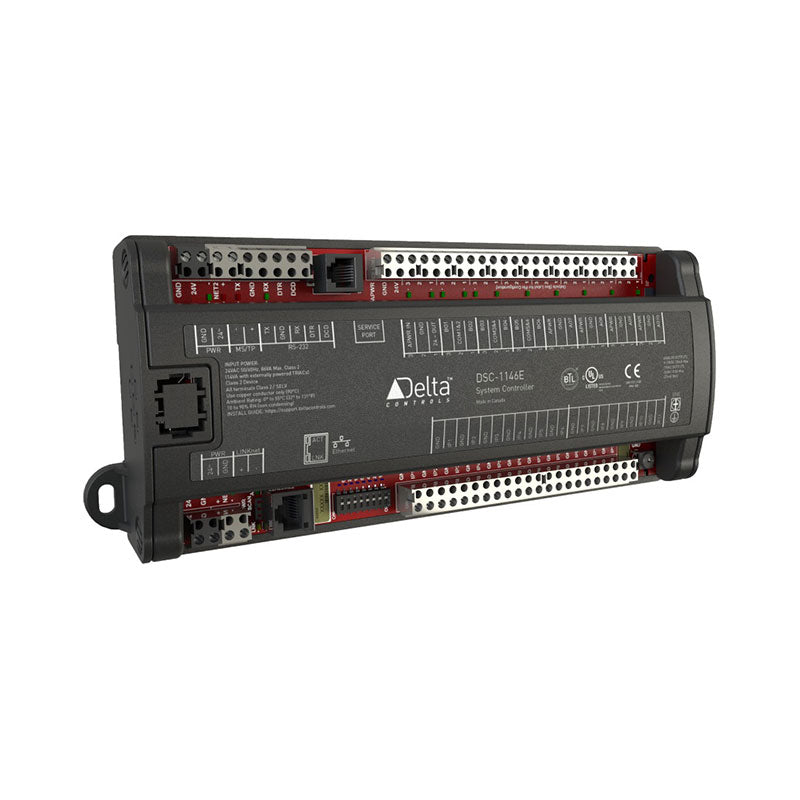

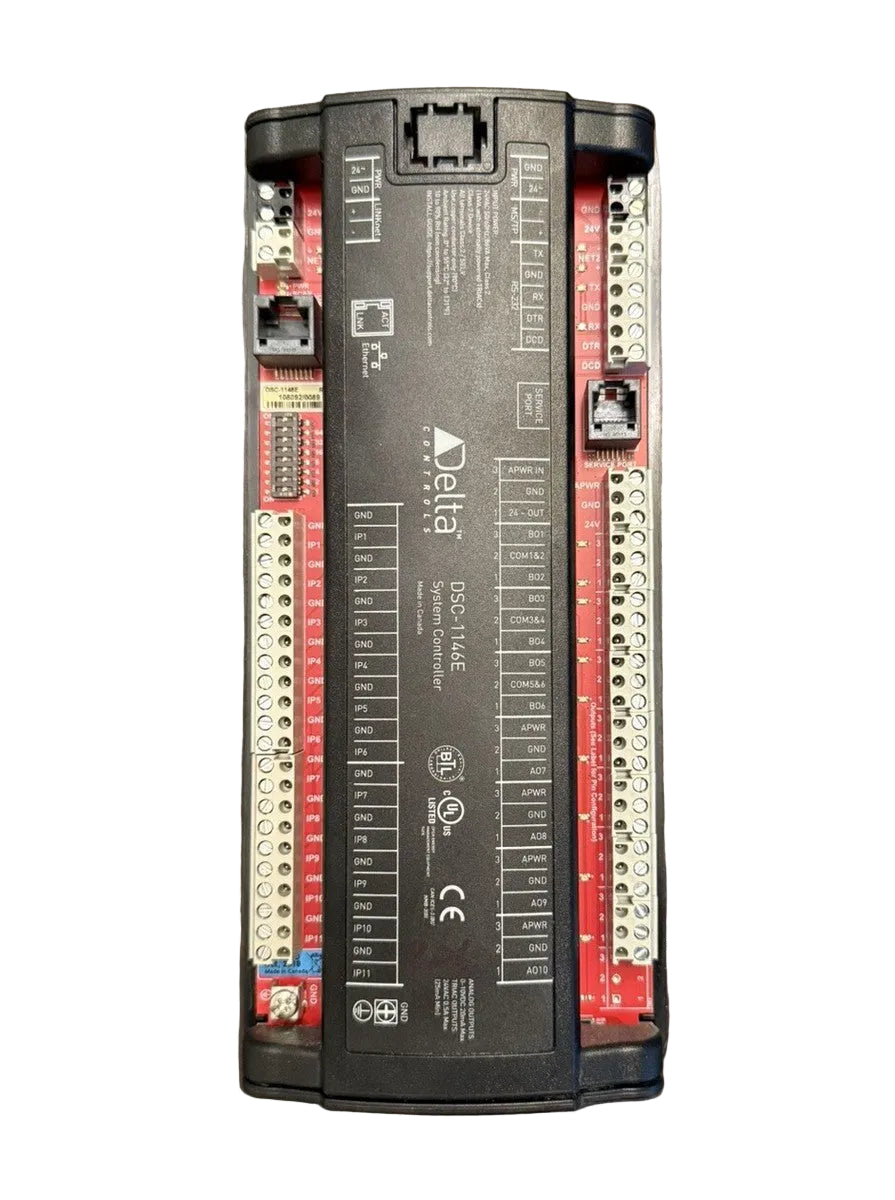

Delta Controls DSC-1146E BACnet System Controller
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DSC-1146E
Description
The Delta Controls DSC-1146E is a programmable BACnet building system controller designed to manage HVAC equipment and other building automation applications. It combines 11 universal inputs, four analog outputs, six binary TRIAC outputs, and Ethernet communication to support centralized monitoring and control of building systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | DSC-1146E |
| Subcategory | Building System Controllers |
| Controller Type | Programmable BACnet System Controller |
| Power Supply | 24 V AC, 50/60 Hz |
| Power Consumption | 14 VA with externally powered binary outputs; up to 86 VA with fully loaded internally powered outputs |
| Universal Inputs | 11, 10-bit resolution |
| Analog Outputs | 4 × 0–10 V DC |
| Analog Output Current | 20 mA maximum per output |
| Ethernet | 10BASE-T, 10 Mbps |
| Ethernet Protocols | BACnet/IP, BACnet over Ethernet |
| RS-485 Communication | NET1 and NET2 |
| BACnet MS/TP | Up to 76,800 bps; up to 99 devices on NET1 |
| Programming | GCL+ programmable logic |
| Processor | 16-bit |
| Flash Memory | 2 MB |
| SRAM | 319 KB |
| Real-Time Clock Backup | Supercapacitor backup, up to 72 hours |
| Service Port | RS-232 / RJ-11 |
| Mounting | DIN rail or wall mounting |
| Relative Humidity | 10–90%, non-condensing |
| Weight | 435 g |
Information About DSC-1146E
The DSC-1146E is a Delta Controls System Controller with native BACnet functionality and programmable GCL+ control logic. It communicates through BACnet/IP and BACnet over Ethernet, as well as BACnet MS/TP over RS-485. The controller supports configurable voltage, current, thermistor, and dry-contact inputs, allowing it to interface with a wide range of field sensors and equipment. Its analog and binary outputs can control compatible HVAC devices, while LINKnet connectivity supports Delta Controls network sensors and field modules.
Key Features:
- Programmable Building Control: Supports custom GCL+ logic for building automation sequences.
- BACnet Communication: Supports BACnet/IP, BACnet Ethernet, and BACnet MS/TP.
- Universal Inputs: Provides 11 configurable inputs for common sensor signal types.
- Analog Outputs: Includes four 0–10 V DC outputs for modulating control devices.
- Binary TRIAC Outputs: Provides six 24 V AC switching outputs for compatible equipment.
- Network Configuration: Allows controller addressing and configuration through hardware switches or software.
- Backup Memory: Includes a supercapacitor-backed real-time clock and memory backup for up to 72 hours.
The Delta Controls DSC-1146E provides flexible programmable control and multi-protocol networking for commercial HVAC and building management systems.
