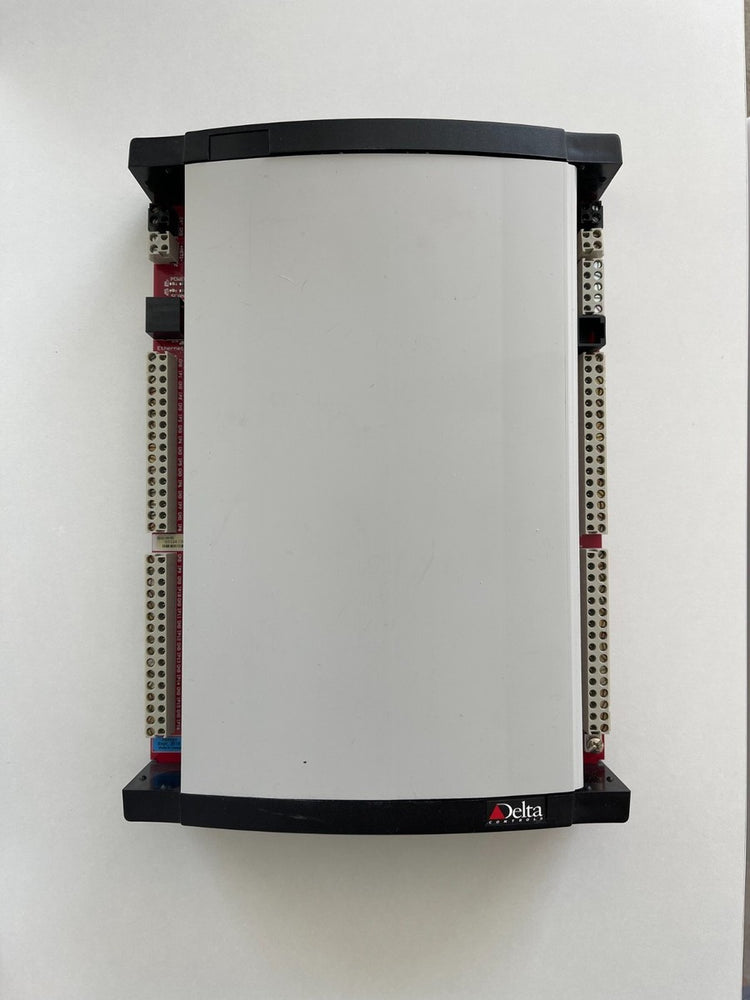

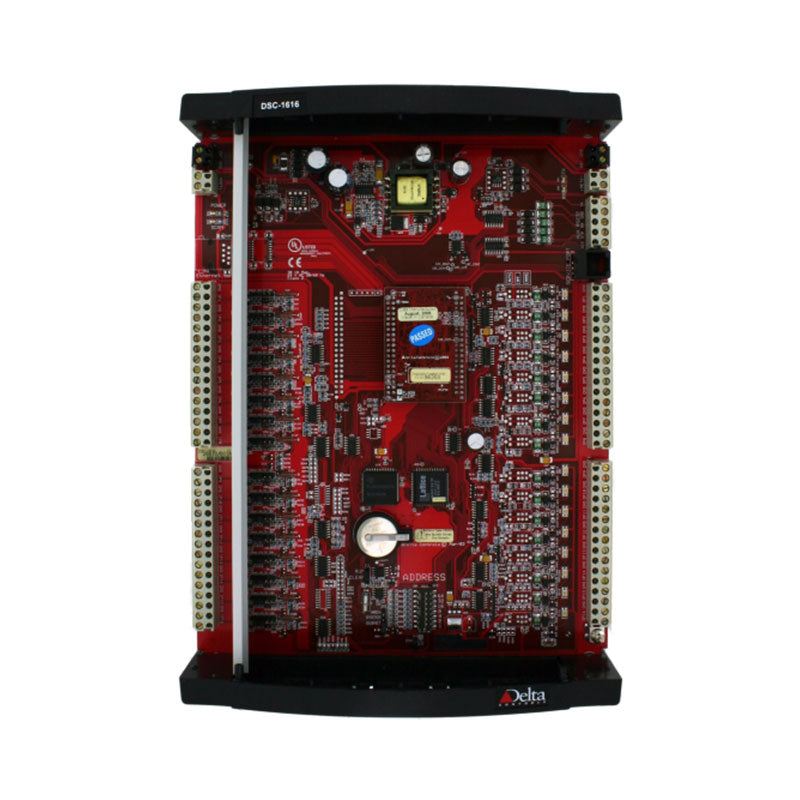

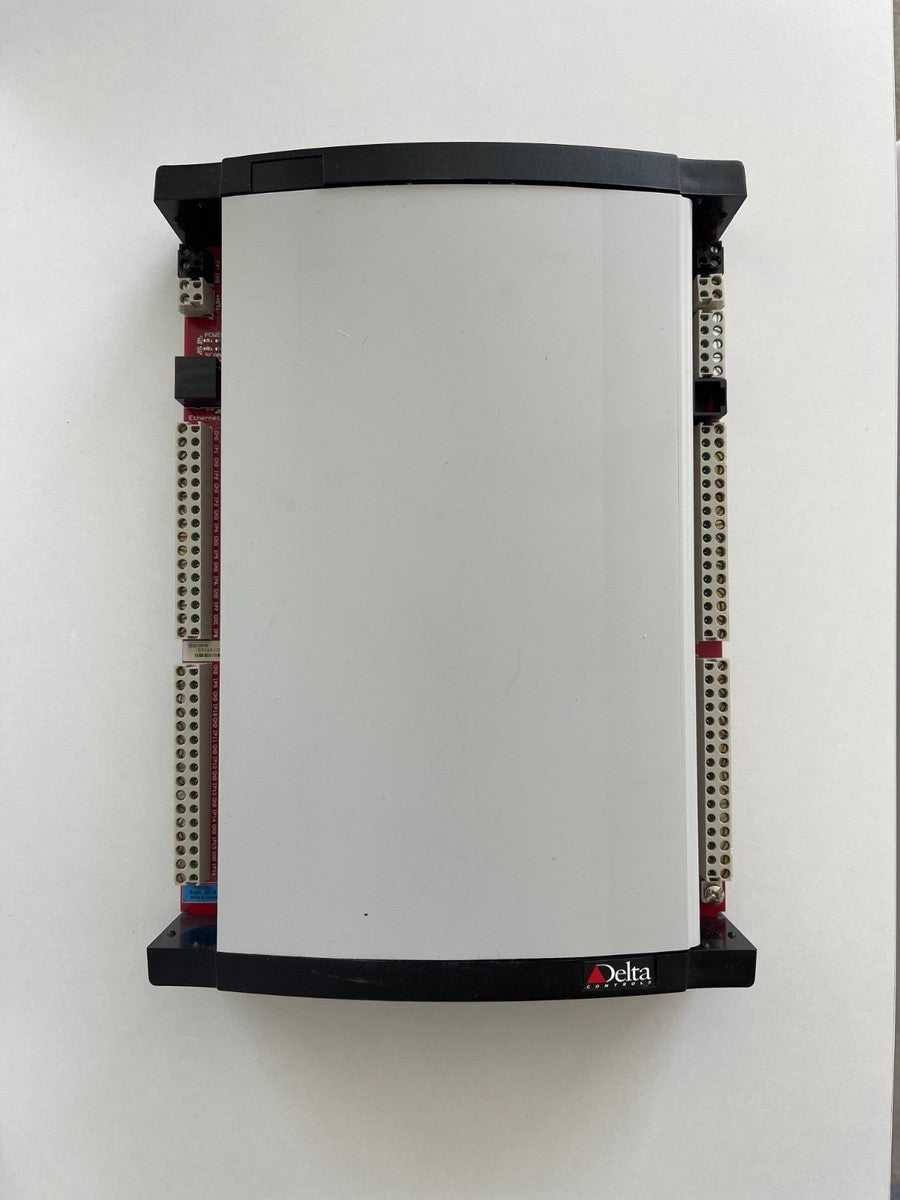

Delta Controls DSC-1616E BACnet System Controller
- Regular price
- $1,625.00
- Sale price
- $1,625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DSC-1616E
Description
The Delta Controls DSC-1616E is a fully programmable BACnet building controller designed for HVAC and building management systems. It features 16 universal inputs and 16 configurable analog outputs that can operate as analog or binary outputs, allowing it to monitor sensors and control connected equipment. With Ethernet connectivity, BACnet/IP, BACnet MS/TP, and support for Delta LINKnet devices, it is suitable for applications involving air handling units, boilers, chillers, and other building systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | DSC-1616E |
| Subcategory | Building Automation Controllers |
| Controller Type | Programmable BACnet System Controller |
| BACnet Profile | BACnet Building Controller (B-BC) |
| Universal Inputs | 16 |
| Input Resolution | 10-bit |
| Input Types | 0–5 VDC, 0–10 VDC, 10 kΩ thermistor, dry contact, 4–20 mA |
| Outputs | 16 × 0–10 VDC, software-configurable as analog or binary |
| Maximum Output Current | 20 mA per output |
| Manual Overrides | Hand-Off-Auto (HOA) switches with position feedback |
| Power Supply | 24 VAC, 50/60 Hz, Class 2 |
| Ethernet | 10BASE-T, 10 Mbps |
| Network Protocols | BACnet/IP, BACnet Ethernet, BACnet MS/TP |
| Processor | 32-bit |
| Flash Memory | 2 MB |
| RAM | 512 KB SRAM |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Humidity | 10–90% RH, non-condensing |
| Weight | 0.93 kg |
Information About DSC-1616E
The DSC-1616E is a Delta Controls system controller designed for installations requiring a larger number of inputs and outputs in one controller. Its 16 universal inputs support 0–5 VDC, 0–10 VDC, 10 kΩ thermistors, dry contacts, and 4–20 mA signals. The 16 outputs provide 0–10 VDC signals and can be configured in software for analog or binary operation, with individual Hand-Off-Auto (HOA) switches and position feedback. The controller supports programmable GCL+ logic, network-based firmware and application database updates, and optional Modbus RTU functionality using a compatible hardware key.
Key Features:
- 16 Universal Inputs: Monitors a wide range of compatible sensors and field signals.
- 16 Configurable Outputs: Provides 0–10 VDC outputs configurable for analog or binary operation.
- Native BACnet Support: Integrates with compatible building automation systems.
- Ethernet Connectivity: Supports BACnet/IP and BACnet over Ethernet.
- RS-485 Communication: Supports BACnet MS/TP networking.
- Delta LINKnet Support: Connects compatible Delta Controls field devices through the supported subnetwork.
- Programmable GCL+ Logic: Allows application-specific control sequences.
- Optional Modbus RTU: Can be enabled with the compatible hardware key.
The DSC-1616E provides centralized monitoring and programmable control for medium-sized HVAC and building automation applications.
