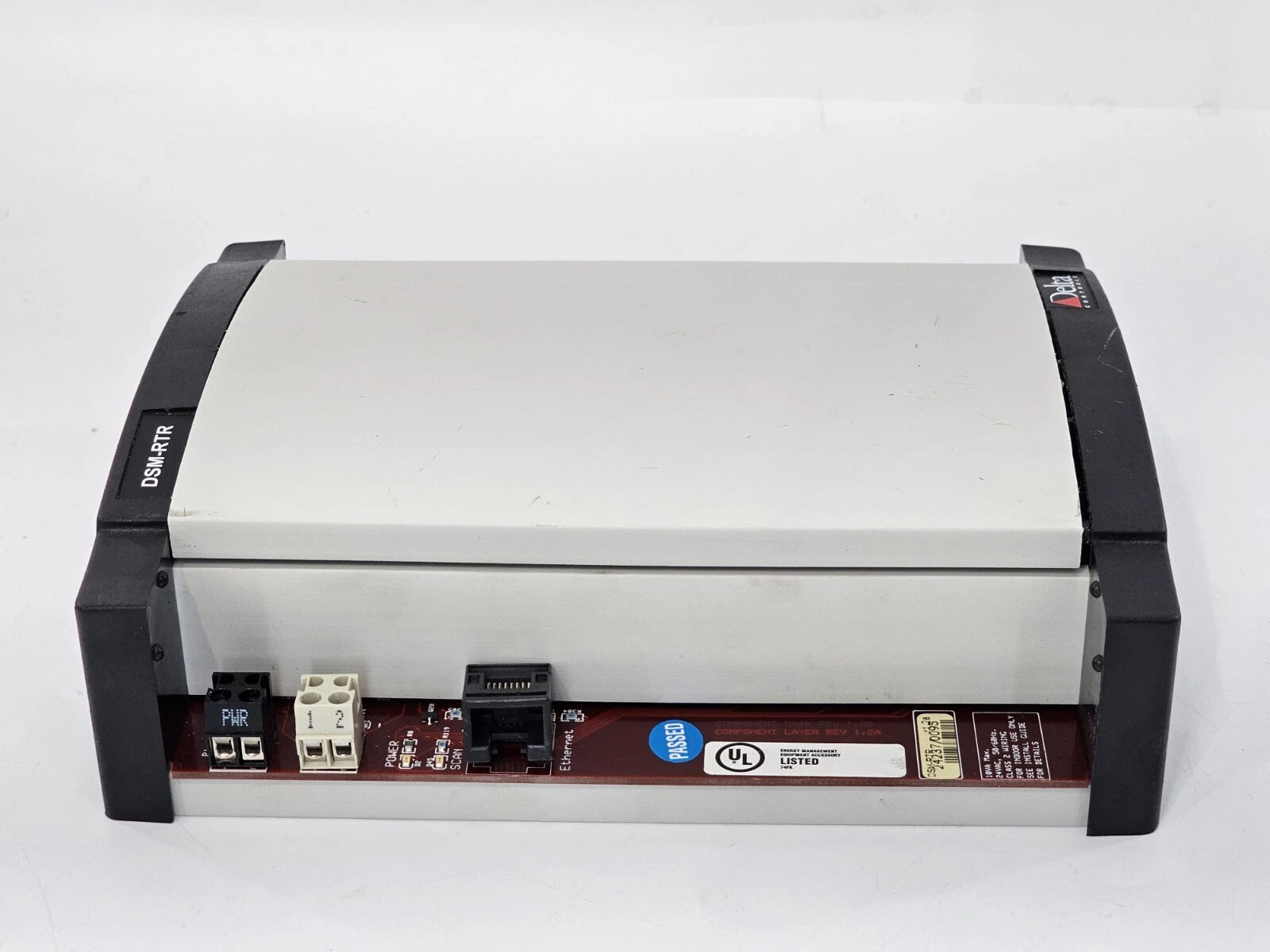

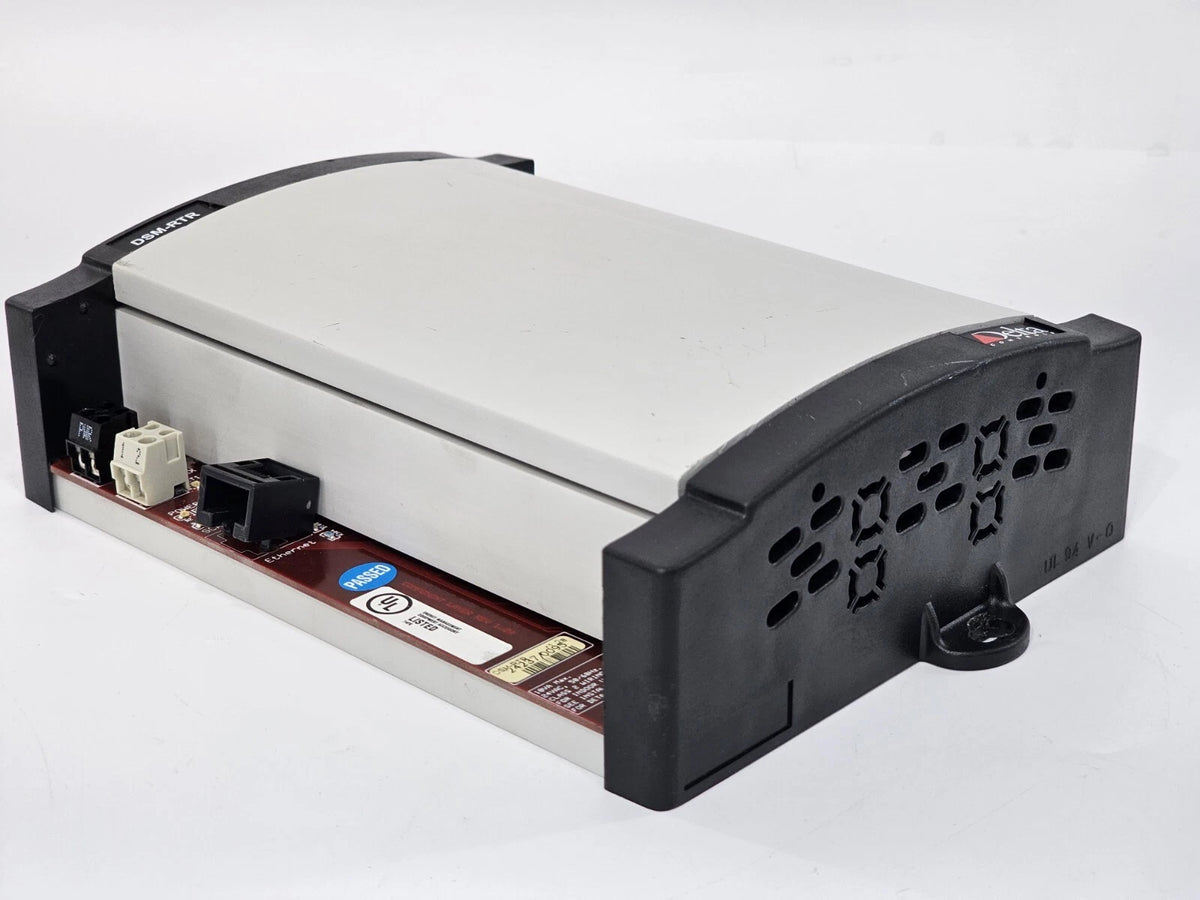

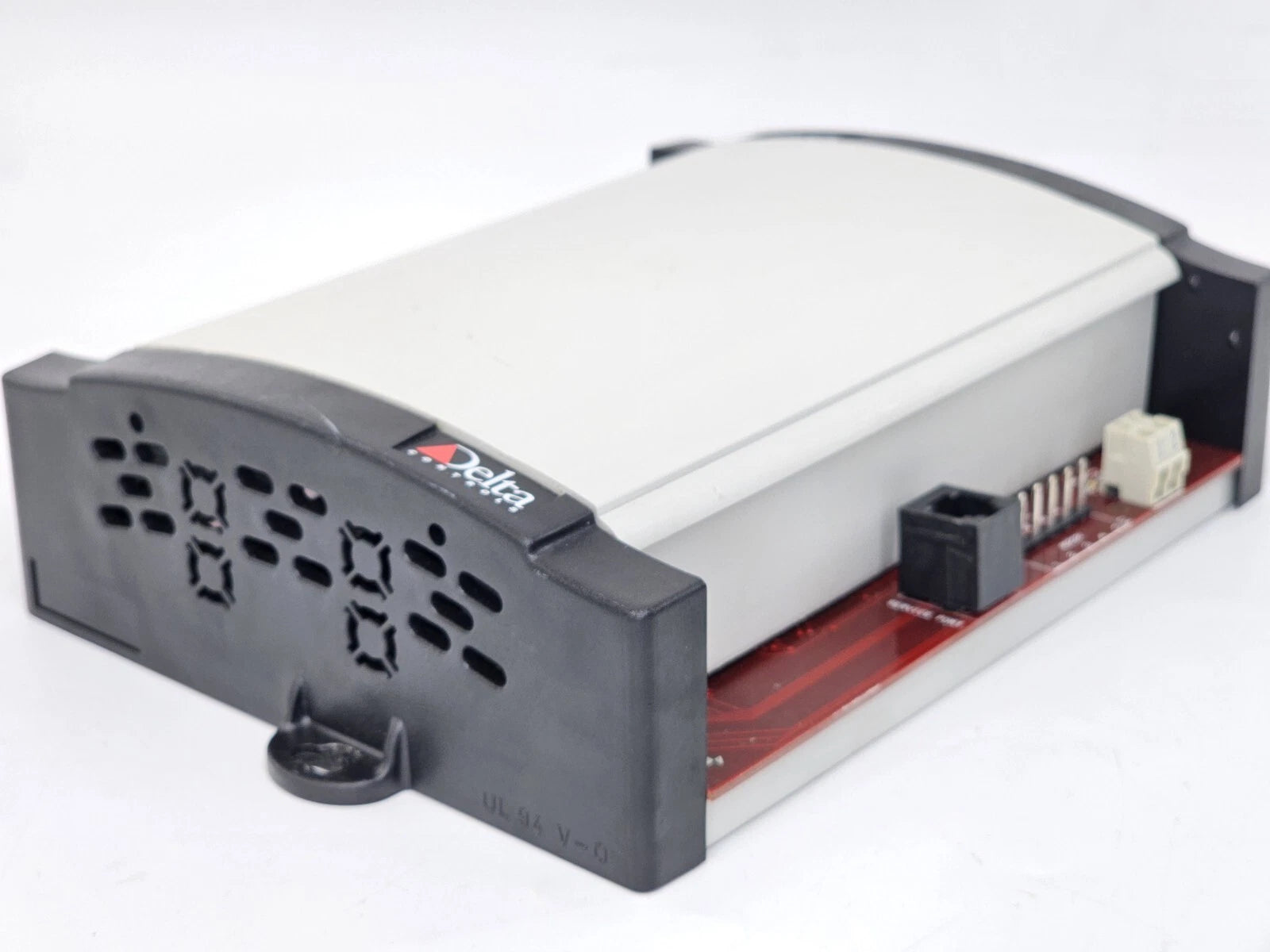

Delta Controls DSM-RTR BACnet System Router
- Regular price
- $1,285.00
- Sale price
- $1,285.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DSM-RTR
Description
The Delta Controls DSM-RTR is a programmable BACnet system router designed to connect multiple building automation networks using different communication media. It supports BACnet/IP and BACnet Ethernet over 10BASE-T Ethernet, as well as BACnet MS/TP over RS-485 and BACnet PTP over RS-232. The router enables communication between network segments and helps integrate distributed HVAC and building management systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | DSM-RTR |
| Subcategory | Building Automation Network Routers |
| Device Type | Programmable BACnet System Router |
| BACnet Profile | BACnet Building Controller (B-BC) |
| Network Functions | BACnet routing between network segments |
| Ethernet | 10BASE-T, 10 Mbps |
| Ethernet Protocols | BACnet/IP and BACnet Ethernet |
| Serial Communication | RS-485 and RS-232 |
| Serial Protocols | BACnet MS/TP and BACnet PTP |
| Processor | 32-bit |
| Flash Memory | 2 MB |
| SRAM | 512 KB |
| Programming | GCL+ |
| Real-Time Clock | Integrated, with battery backup |
| Power Supply | 24 VAC |
| Configuration | Area-level or system-level device |
| Product Status | Legacy product |
| Weight | 0.47 kg |
Information About DSM-RTR
The DSM-RTR is a native BACnet building controller configured for BACnet routing and network management rather than direct field-device control. It routes BACnet traffic between Ethernet, BACnet/IP, MS/TP, and PTP network connections, allowing separate BACnet networks to communicate as part of a larger system. The device uses a 32-bit processor, 2 MB flash memory, and 512 KB SRAM, with an integrated real-time clock. It supports GCL+ programming and can be configured as an area-level or system-level device. The DSM-RTR does not provide physical I/O points, so it is intended for network infrastructure rather than direct sensor or actuator connections.
Key Features:
- BACnet Network Routing: Connects separate BACnet networks into a unified building automation system.
- BACnet/IP Support: Routes BACnet communication over Ethernet networks.
- BACnet Ethernet: Supports BACnet communication over 10BASE-T Ethernet.
- BACnet PTP: Supports point-to-point BACnet communication over RS-232.
- GCL+ Programmability: Supports configurable system-level functions.
- Flash-Based Firmware: Supports network-based firmware updates.
- No Physical I/O Points: Designed specifically for communication and routing rather than direct field control.
The DSM-RTR provides BACnet network integration for compatible HVAC and building management installations.
