Delta Controls eBCON enteliBUS BACnet Building Controller
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: eBCON
Description

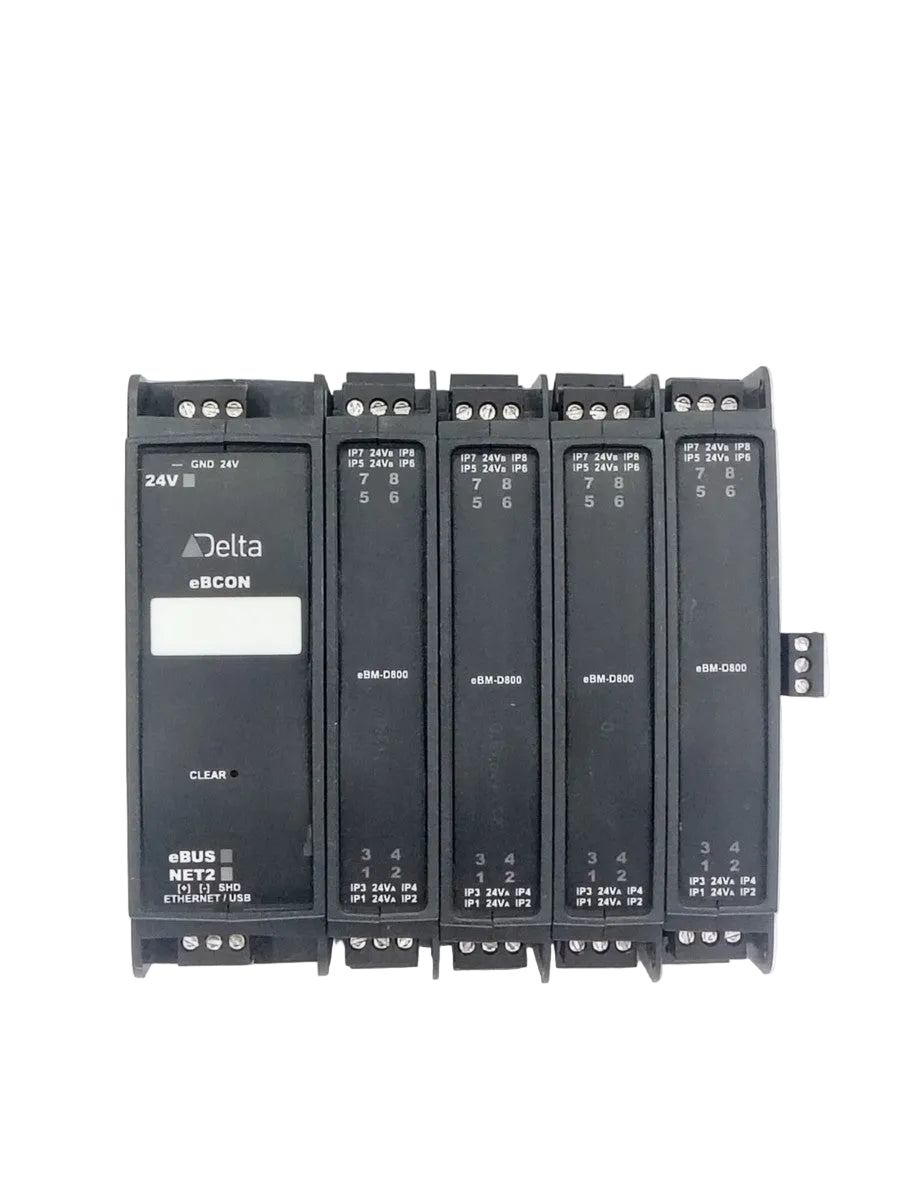

The Delta Controls eBCON is a programmable enteliBUS building automation controller designed to monitor and control HVAC equipment and other building systems. It supports native BACnet communication, programmable GCL+ logic, and modular I/O expansion through a four-slot controller backplane.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | eBCON |
| Subcategory | Building Automation Controllers |
| Controller Type | Programmable BACnet Building Controller |
| BACnet Device Profile | B-BC (Building Controller) |
| Power Supply | 24 V AC, 50/60 Hz |
| Power Consumption | 6 VA; up to 100 VA with fully loaded I/O modules |
| Flash Memory | 64 MB |
| SDRAM | 32 MB |
| Memory Expansion | SD/SDIO card slot |
| Real-Time Clock | Temperature-compensated RTC with ultracapacitor backup |
| Controller Backplane | 4-slot enteliBUS backplane included |
| Direct I/O Expansion | Up to 4 enteliBUS I/O modules on the controller backplane |
| Ethernet | 10/100BASE-T |
| Ethernet Protocols | BACnet/IP, BACnet over Ethernet |
| RS-485 Communication | BACnet MS/TP and Delta LINKnet, up to 76,800 bps |
| USB Interface | USB host port |
| Programming | GCL+ programmable control logic |
| Operating Temperature | −30°C to +55°C; UL 864 versions: 0°C to +55°C |
| Relative Humidity | 10–95%, non-condensing |
| Dimensions (W × H × D) | 126 × 145 × 100 mm, including controller backplane |
| Weight | 372 g |
Information About eBCON

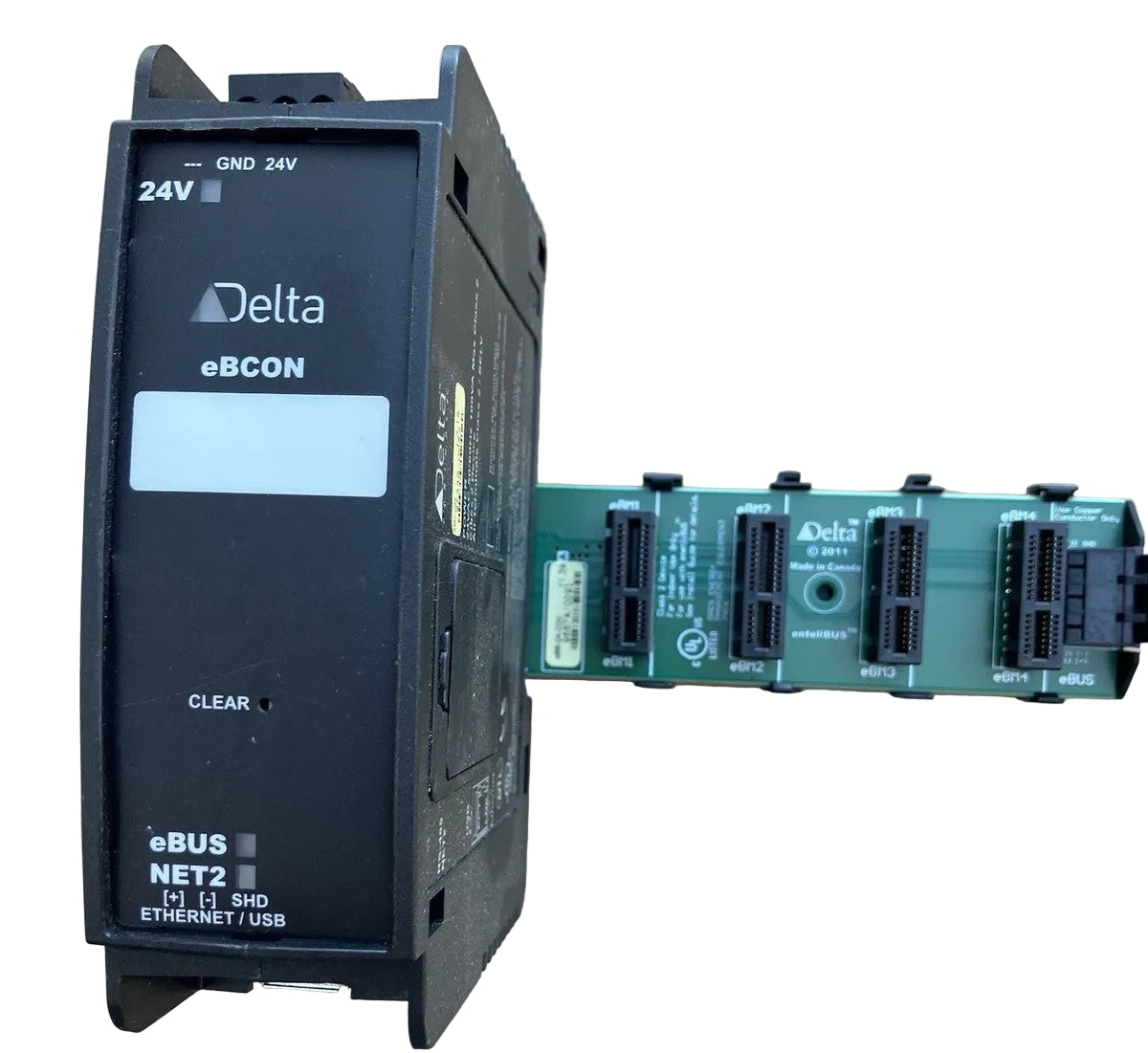

The eBCON is a native BACnet building controller that combines a programmable control engine, communication interfaces, and an enteliBUS I/O backplane. It supports BACnet/IP and BACnet over Ethernet, as well as BACnet MS/TP and Delta LINKnet over RS-485. The controller accommodates up to four enteliBUS I/O modules directly, and additional backplanes can be connected for expanded applications. Its Ethernet port, USB host port, SD/SDIO memory expansion slot, and onboard real-time clock support system configuration, data storage, and building management operations.
Key Features:
- Programmable Control: Supports GCL+ logic for customized building automation sequences
- Native BACnet Support: Communicates using BACnet/IP, BACnet Ethernet, and BACnet MS/TP.
- Modular I/O Expansion: Includes a four-slot controller backplane for compatible enteliBUS modules.
- Ethernet Connectivity: Provides 10/100BASE-T Ethernet networking.
- System Diagnostics: Uses status LEDs to indicate power, controller operation, and communication activity.
- DIN-Rail Mounting: Supports installation in industrial and commercial control panels.
The Delta Controls eBCON provides programmable control and expandable I/O connectivity for commercial HVAC and building management applications.
