Delta Controls eBM-404-H enteliBUS I/O Module with HOA Switches
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: eBM-404-H
Description

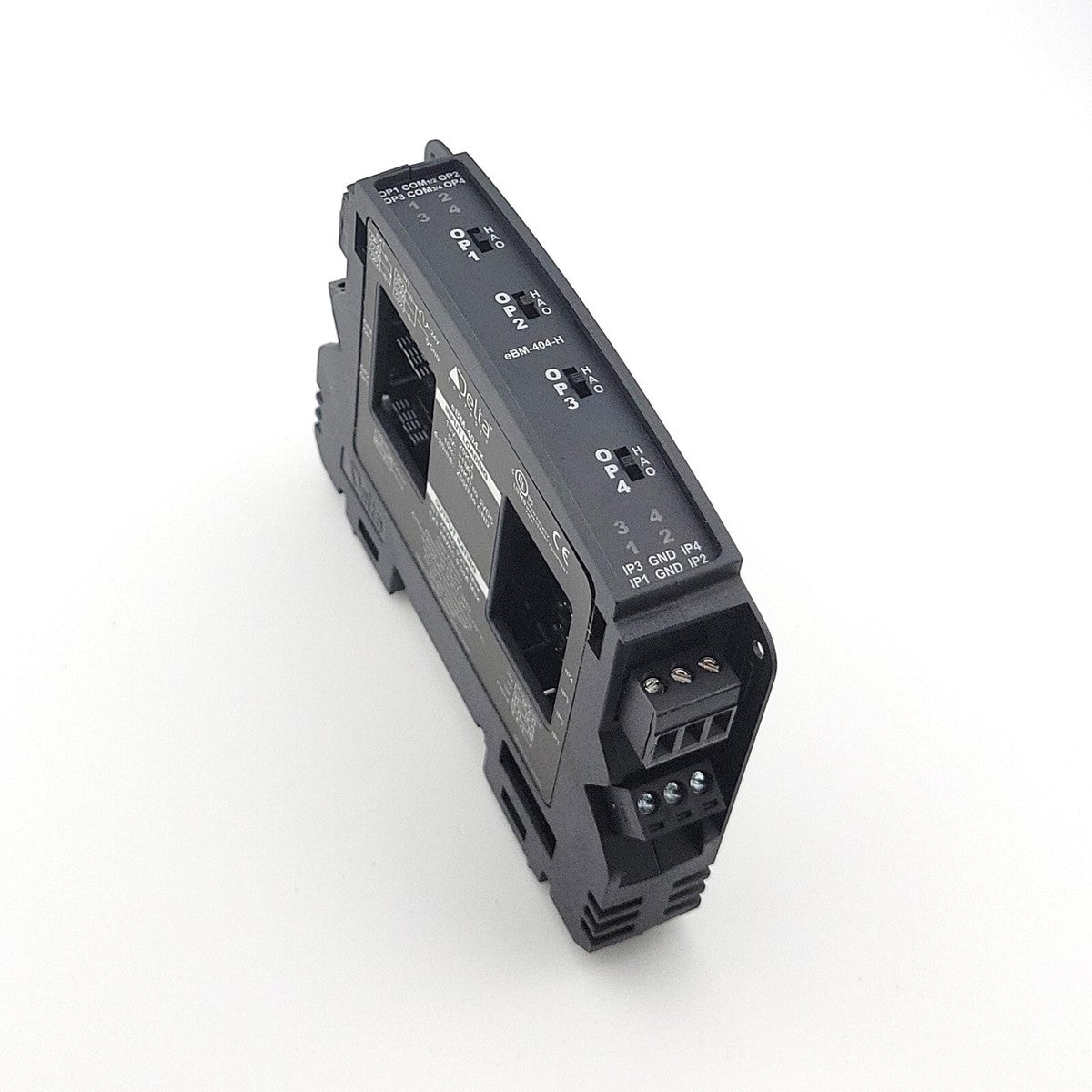

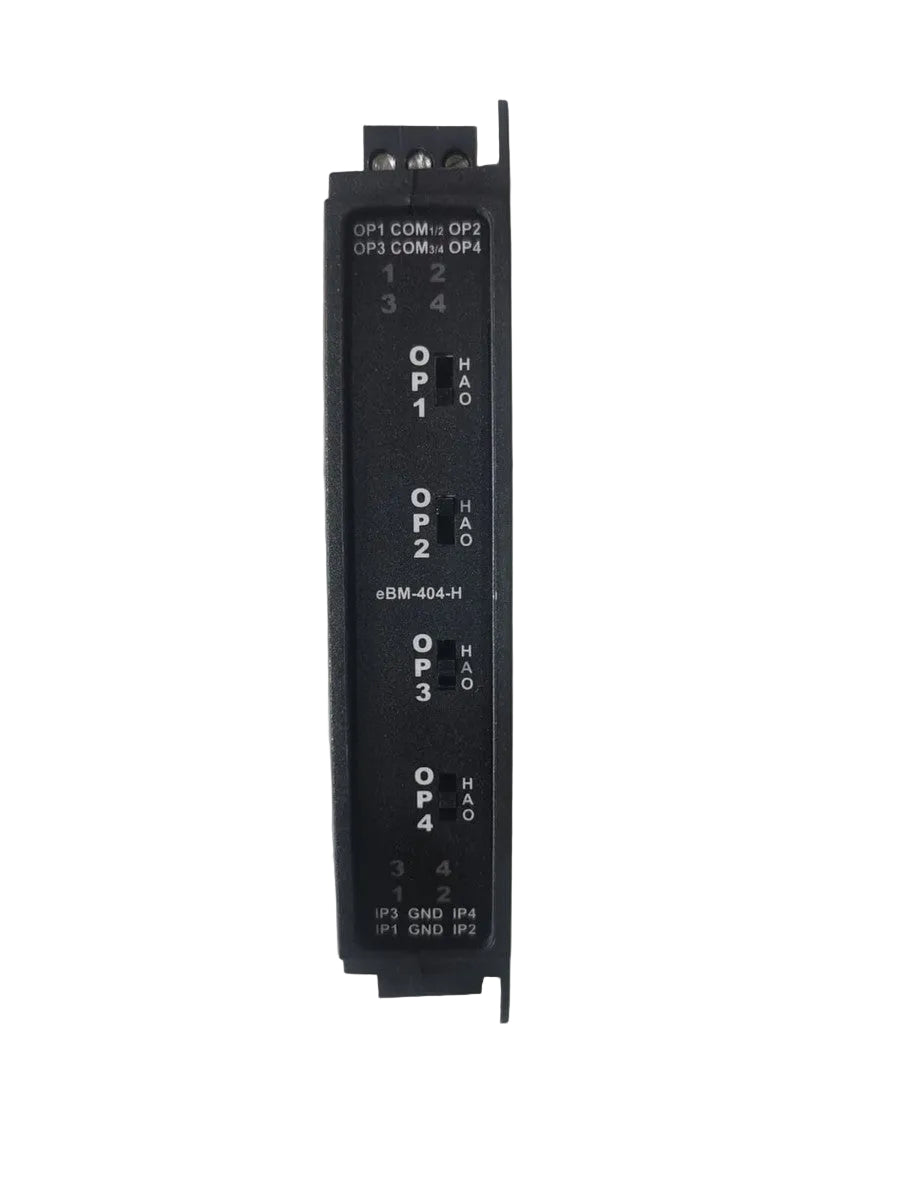

The Delta Controls eBM-404-H is an enteliBUS input/output expansion module designed for HVAC and building automation systems. It provides four universal inputs and four 24 V AC TRIAC outputs, with three-position Hand-Off-Auto (HOA) override switches for manual control of connected equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | eBM-404-H |
| Series | enteliBUS |
| Subcategory | Building Automation I/O Modules |
| Module Type | Universal Input / TRIAC Output Module |
| Universal Inputs | 4, 12-bit resolution |
| Input Signal Types | 0–5 V DC, 0–10 V DC, 10 kΩ thermistor, dry contact, 4–20 mA |
| Binary Outputs | 4 TRIAC outputs |
| Output Voltage | 24 V AC |
| Maximum Output Current | 0.5 A per output with external power; 0.25 A per output with internal power |
| Manual Override | Three-position Hand-Off-Auto (HOA) switches |
| Power Supply | 24 V AC, 50/60 Hz, supplied through the enteliBUS backplane |
| Power Consumption | 5 VA; up to 27 VA with fully loaded outputs |
| System Compatibility | Compatible Delta Controls enteliBUS backplanes and controllers |
| Relative Humidity | 10–95%, non-condensing |
| Housing | Compact plastic enclosure |
| Compliance | CE, FCC; UL 916 listing documented for the series |
| Weight | 124 g |
Information About eBM-404-H
The eBM-404-H is part of the Delta Controls enteliBUS I/O module family and is designed to operate with compatible enteliBUS controllers and backplanes. Its universal inputs can be configured for voltage signals, thermistors, dry contacts, and 4–20 mA signals. Four TRIAC outputs control compatible 24 V AC loads, while the integrated HOA switches allow operators to select manual or automatic output operation. LED indicators provide visual feedback for input and output status. The module supports hot-swapping when used with a compatible enteliBUS system.
Key Features:
- Universal Inputs: Provides four configurable inputs for common building automation sensors.
- TRIAC Outputs: Includes four 24 V AC binary outputs for compatible HVAC equipment.
- Manual Override: Features three-position HOA switches for Hand, Off, and Auto operation.
- Input Signal Flexibility: Supports voltage, thermistor, dry-contact, and 4–20 mA signals.
- DIN-Rail Installation: Mounts to a compatible enteliBUS backplane and DIN-rail assembly.
-
Compact Construction: Uses a compact enclosure for installation in building automation control panels.
The Delta Controls eBM-404-H provides flexible field I/O and manual output overrides for HVAC and building management applications
