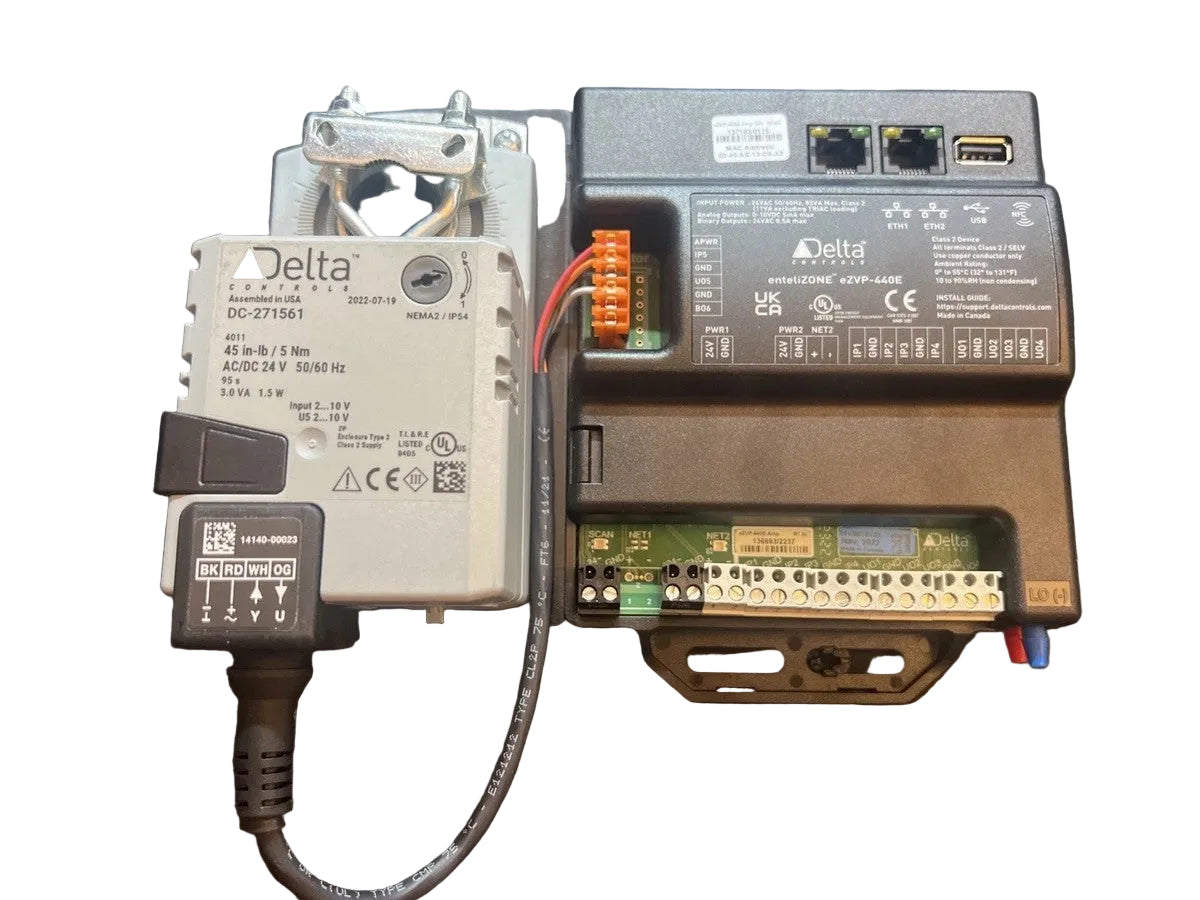

Delta Controls eZVP-440E enteliZONE Programmable VAV Controller
- Regular price
- $1,355.00
- Sale price
- $1,355.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: eZVP-440E
Description
The Delta Controls eZVP-440E is a programmable VAV (Variable Air Volume) controller designed to regulate airflow and manage HVAC zone conditions in commercial building automation systems. It combines an integrated differential pressure airflow sensor, damper actuator support, BACnet Ethernet connectivity, and programmable control logic for flexible ventilation management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Delta Controls |
| Category | HVAC & Building Automation |
| Part Number | eZVP-440E |
| Series | enteliZONE |
| Subcategory | Programmable VAV Controllers |
| Controller Type | Programmable VAV / VVT Controller |
| BACnet Device Profile | BACnet Application Specific Controller (B-ASC) |
| Power Supply | 24 V AC, 50/60 Hz |
| Maximum Power Consumption | 85 VA; 11 VA excluding TRIAC loading |
| Input Types | 0–5 V DC, 0–10 V DC, 10 kΩ thermistor, dry contact |
| Universal Outputs | 4 |
| Analog Output | 0–10 V DC, 5 mA maximum |
| TRIAC Output | 24 V AC, 0.5 A maximum |
| Actuator Options | Belimo or Siemens; configuration depends on suffix |
| Ethernet Ports | 2-port 10/100 Ethernet switch |
| Communication Protocols | BACnet/IP, BACnet Ethernet, Delta LINKnet |
| Flash Memory | 1 MB |
| External Data Flash | 16 Mbit |
| Programming | GCL+ programmable control logic |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Relative Humidity | 10–95%, non-condensing |
| Dimensions with Actuator | 204 × 157 × 74 mm (8.1 × 6.2 × 2.9 in.) |
| Weight | 900 g |
Information About eZVP-440E
The eZVP-440E belongs to the Delta Controls enteliZONE product family and is designed for VAV and VVT applications. It supports BACnet/IP and BACnet Ethernet communications through two Ethernet ports with an integrated switch, while an RS-485 LINKnet port allows connection of compatible Delta Controls network sensors. Four universal inputs and four universal outputs support configurable field devices, and the onboard differential pressure sensor measures airflow-related pressure. The controller can use built-in VAV control algorithms or custom GCL+ programming for applications such as reheat systems and series or parallel fan boxes.
Key Features:
- Programmable VAV Control: Supports customized airflow and HVAC zone control sequences.
- Integrated Differential Pressure Sensor: Measures differential pressure for airflow regulation.
- BACnet Networking: Supports BACnet/IP and BACnet Ethernet integration.
- Dual Ethernet Ports: Provides an integrated two-port Ethernet switch for network connectivity.
- Universal Outputs: Includes four configurable outputs for analog or TRIAC control.
- Damper Actuator Support: Supports compatible analog or floating-point damper actuators.
The Delta Controls eZVP-440E provides flexible programmable airflow control for commercial HVAC and building management systems.
