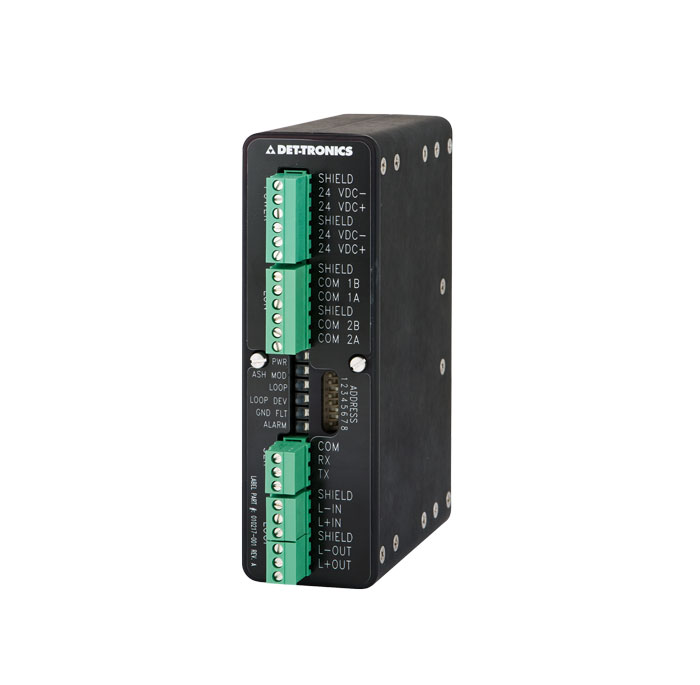

DET-TRONICS 010210-001 EQ3750DW Addressable Smoke and Heat Detector Interface Module
- Regular price
- $2,495.00
- Sale price
- $2,495.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 010210-001
Description
The DET-TRONICS 010210-001 (EQ3750DW) is an addressable smoke and heat detector interface module designed for use with the Eagle Quantum Premier (EQP) fire and gas safety system. It provides reliable monitoring of conventional smoke and heat detectors through a supervised detection loop while enabling seamless communication with the EQP Local Operating Network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | DET-TRONICS |
| Category | Fire Detection |
| Part Number | 010210-001 |
| Subcategory | Smoke and Heat Detector Interface Modules |
| Model Number | EQ3750DW |
| Product Type | Addressable Smoke and Heat Detector Interface |
| System Compatibility | Eagle Quantum Premier (EQP) |
| Operating Voltage | 18–30 VDC (24 VDC Nominal) |
| Input Current | 690 mA Maximum |
| Loop Current | 225 mA Maximum |
| Input Circuit | Two-Wire Class B (Style B) Supervised Loop |
| Communication Protocol | EQP Local Operating Network (LON) |
| Detector Capacity | Up to 20 Conventional Smoke Detectors |
| Detection Types | Smoke and Heat Detectors |
| Installation Environment | Industrial and Hazardous Locations |
| Enclosure Compatibility | Explosion-Proof or NEMA 4X Rated Enclosures |
| Operating Temperature | –40°C to +85°C (–40°F to +185°F) |
| Monitoring Type | Addressable Fire Detection Monitoring |
| Weight | 1 lb |
Information About 010210-001
The 010210-001 is part of the Det-Tronics Eagle Quantum Premier product family, developed for advanced fire and gas detection systems used in industrial and hazardous environments. Designed as an addressable detector interface, the module connects conventional smoke and heat detectors to the EQP platform through a supervised two-wire detection loop. The unit communicates digitally over the Local Operating Network (LON), allowing centralized alarm processing, diagnostics, and event management. Its compatibility with explosion-proof and NEMA 4X enclosures makes it suitable for demanding installations requiring environmental protection and long-term reliability.
Key Features:
- Addressable Detector Interface: Integrates conventional smoke and heat detectors into EQP systems.
- Eagle Quantum Premier Compatibility: Designed specifically for Det-Tronics EQP fire and gas safety platforms.
- Supervised Detection Loop: Utilizes a two-wire Class B supervised input circuit.
- Digital Network Communication: Supports communication through the EQP Local Operating Network (LON).
- Multi-Detector Support: Accommodates up to 20 conventional smoke detectors depending on detector type.
- Wide Operating Voltage Range: Operates from 18 to 30 VDC with 24 VDC nominal input.
- Industrial Environmental Design: Suitable for installation in explosion-proof or NEMA 4X enclosures.
- Extended Temperature Range: Rated for operation in harsh industrial environments from –40°C to +85°C.
The 010210-001 delivers the reliability and precision required for industrial fire detection and life-safety monitoring systems.
