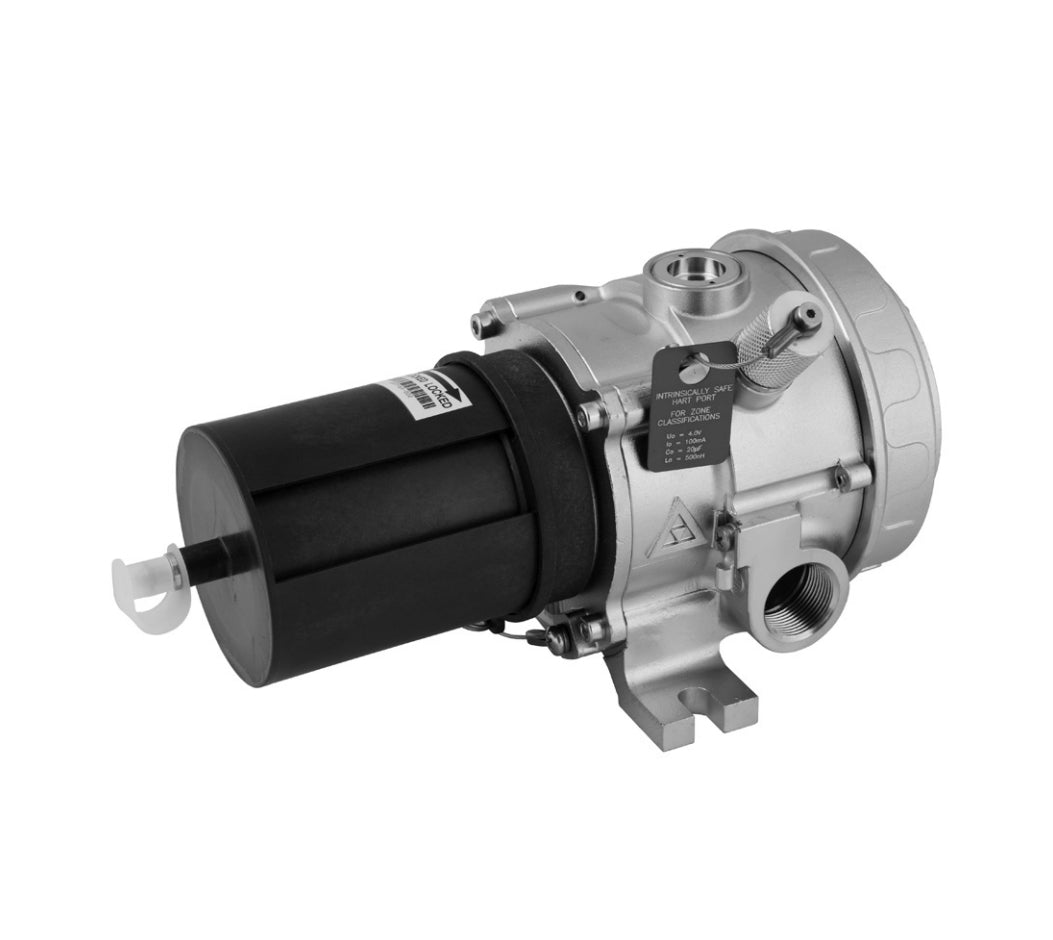

Det-Tronics PIRECLA1A1W1 PointWatch Eclipse Infrared Gas Detector
- Regular price
- $7,099.00
- Sale price
- $7,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PIRECLA1A1W1
Description
The Det-Tronics PIRECLA1A1W1 PointWatch Eclipse is an infrared hydrocarbon gas detector designed for continuous monitoring of combustible gas concentrations in industrial and hazardous environments. It provides a 4–20 mA output, HART communication, an RS-485 interface, and a 3/4-inch NPT entry thread.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Det-Tronics |
| Category | Fire Safety |
| Part Number | PIRECLA1A1W1 |
| Subcategory | Infrared Gas Detector |
| Product Series | PointWatch Eclipse PIRECL |
| Detection Technology | Infrared |
| Target Gas | Hydrocarbons; factory calibrated for methane |
| Detection Range | 0–100% LFL |
| Output Signal | 4–20 mA |
| Communication | HART and RS-485 |
| Supply Voltage | 18–32 V DC |
| Power Consumption | 4 W nominal at 24 V DC; 10 W maximum at 32 V DC |
| Entry Thread | 3/4 in NPT |
| Weather Protection | Hydrophobic weather baffle and filter |
| Operating Temperature | -67°F to 167°F |
| Hazardous-Area Approvals | FM, CSA, ATEX, IECEx |
| Dimensions | 9.3 × 5.2 × 4.6 in |
| Weight | 8.43 lb |
Information About PIRECLA1A1W1
The PIRECLA1A1W1 is part of the Det-Tronics PointWatch Eclipse PIRECL infrared gas detection series. It detects hydrocarbon gases using infrared sensing technology and is factory calibrated for methane. The detector provides a standard measurement range of 0–100% lower flammable limit (LFL), with a linear 4–20 mA output and HART communication port. Its configuration includes a hydrophobic weather baffle and certifications for use in specified hazardous locations.
Key Features:
-
Infrared Gas Detection: Monitors combustible hydrocarbon gases using infrared sensing technology.
-
Methane Calibration: Factory calibrated for methane detection.
-
4–20 mA Output: Provides an analog signal for compatible monitoring and control systems.
-
HART Communication: Supports configuration and diagnostics through the HART interface.
-
RS-485 Interface: Supports digital communication with compatible systems.
-
0–100% LFL Range: Provides the standard full-scale detection range.
-
Hydrophobic Weather Protection: Includes a weather baffle with a hydrophobic filter.
-
Hazardous-Area Certifications: Designed for installations meeting applicable FM, CSA, ATEX, and IECEx requirements.
The PIRECLA1A1W1 delivers continuous infrared gas monitoring and signal integration required for compatible industrial safety systems.
