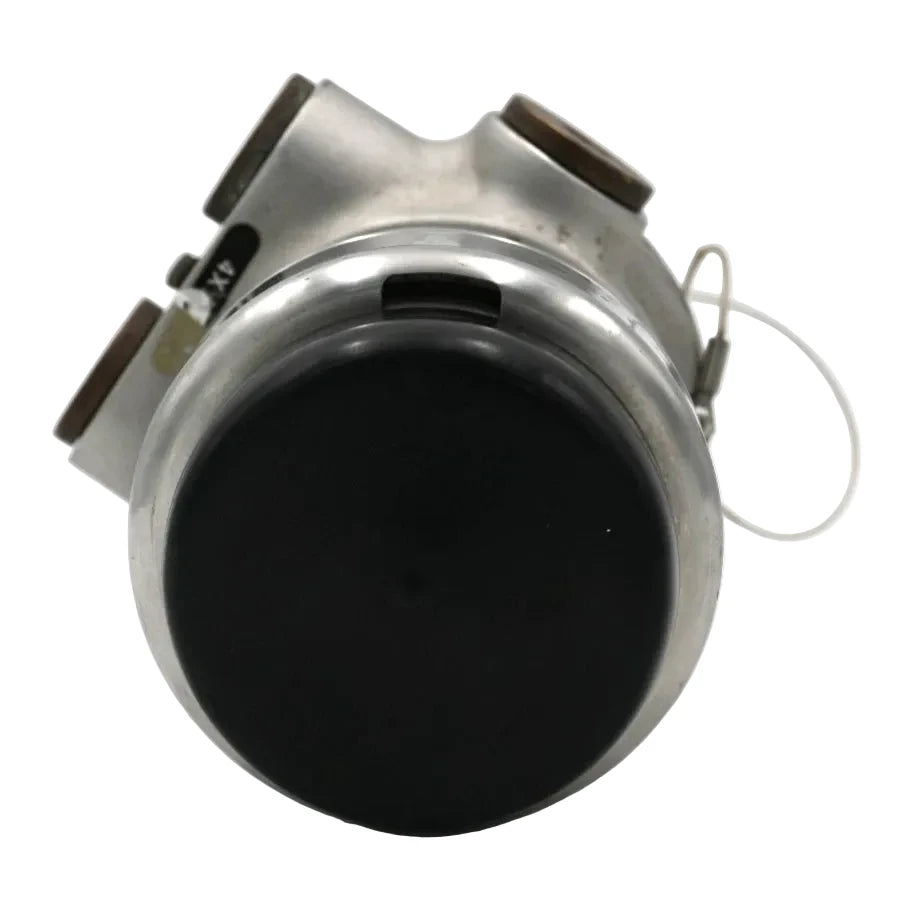

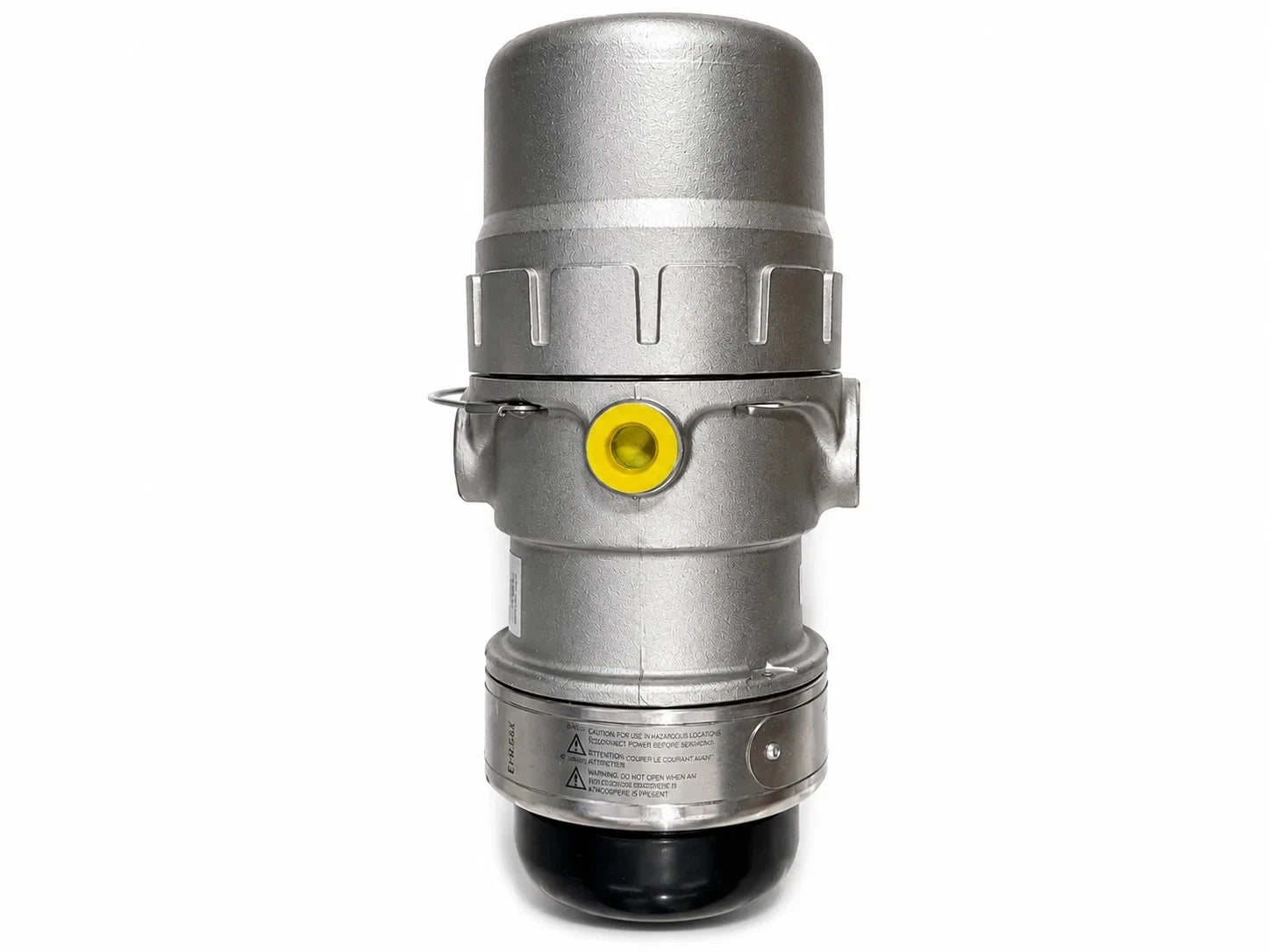

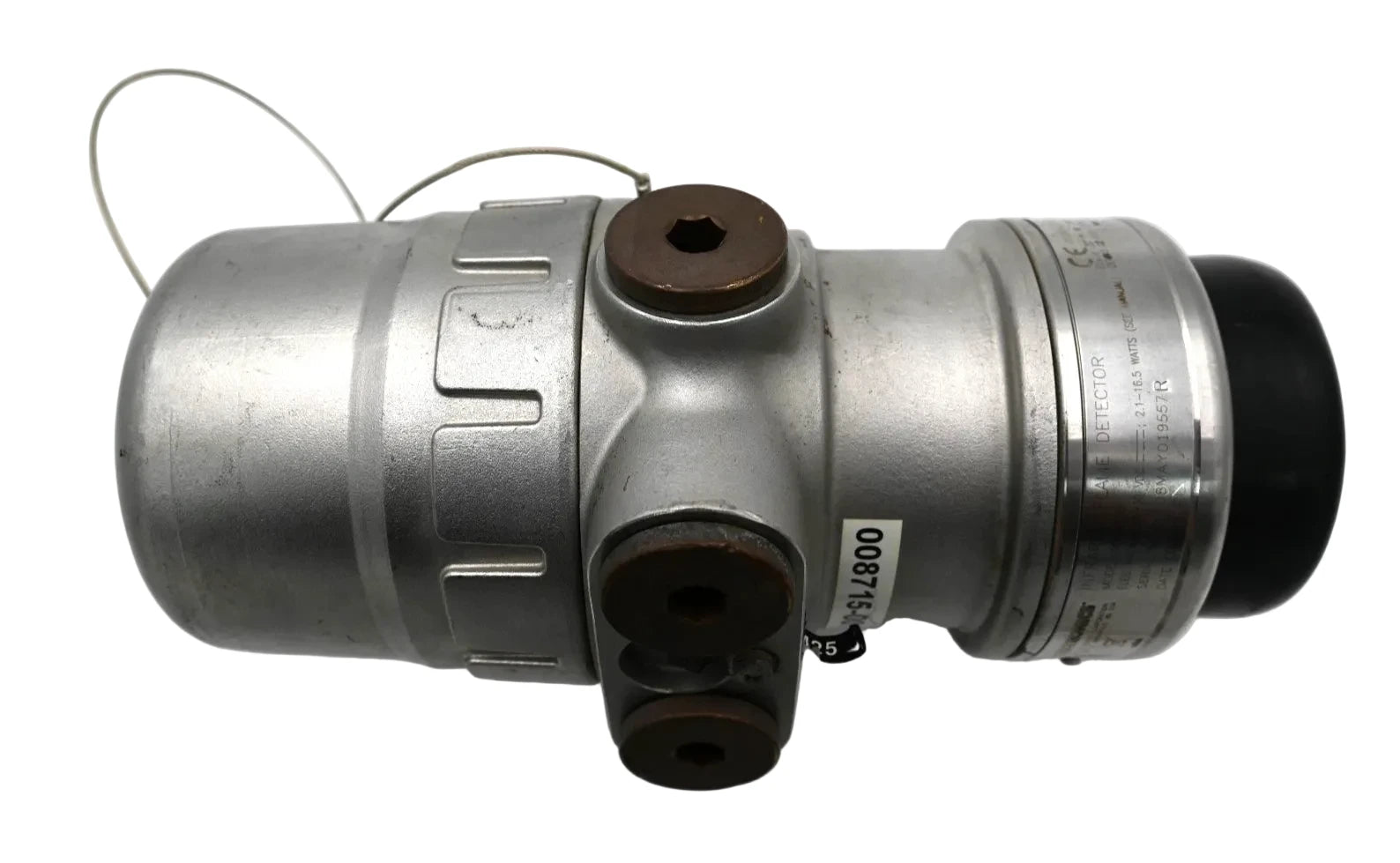

Det-Tronics X9800S Single-Frequency Infrared Stainless-Steel Flame Detector
- Regular price
- $4,025.00
- Sale price
- $4,025.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: X9800S
Description
The Det-Tronics X9800S is a single-frequency infrared flame detector designed to identify hydrocarbon fires in industrial and hazardous environments. It detects infrared radiation within the 4–5 micron spectral range and provides fire alarm outputs for integration with compatible fire and gas safety systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Det-Tronics |
| Category | Fire Detection Equipment |
| Part Number | X9800S |
| Subcategory | Infrared Flame Detectors |
| Product Series | X9800 |
| Detection Technology | Single-frequency infrared |
| Spectral Sensitivity | 4–5 microns |
| Operating Voltage | 24 VDC nominal |
| Operating Voltage Range | 18–30 VDC |
| Horizontal Field of View | 90 degrees |
| Fire Alarm Output | Form C relay, model dependent |
| Fault Output | Form A relay |
| Enclosure Material | Stainless steel; exact grade depends on configuration |
| Ingress Protection | IP66/IP67, configuration dependent |
| Operating Temperature | Model dependent; consult the applicable datasheet |
| Weight | 14.6 lb |
Information About X9800S
The X9800S belongs to the Det-Tronics X9800 series of infrared flame detectors developed for industrial fire protection. The S designation identifies the stainless-steel housing version, although the complete model code is needed to confirm the exact configuration. The detector operates from a nominal 24 VDC supply and uses infrared sensing technology with a 90-degree horizontal field of view. Depending on the specific model, available functions can include fire and fault relays, optional analog output, and hazardous-area certifications.
Key Features:
-
Infrared Flame Detection: Detects flame radiation within the 4–5 micron spectral range.
-
Stainless-Steel Housing: Designed for industrial installations requiring a corrosion-resistant enclosure.
-
Operating Voltage: Uses a nominal 24 VDC supply, with an operating range of 18–30 VDC.
-
Wide Field of View: Provides a 90-degree horizontal viewing angle.
-
Alarm Outputs: Supports fire alarm relay outputs, depending on the selected configuration.
-
Fault Monitoring: Provides a fault relay output for system diagnostics.
-
Hazardous-Area Protection: Available configurations carry approvals for specified hazardous locations.
-
Environmental Protection: Specified configurations provide IP66/IP67 ingress protection.
The X9800S delivers the reliability and precision required for industrial flame detection and hazardous-area fire protection systems.
