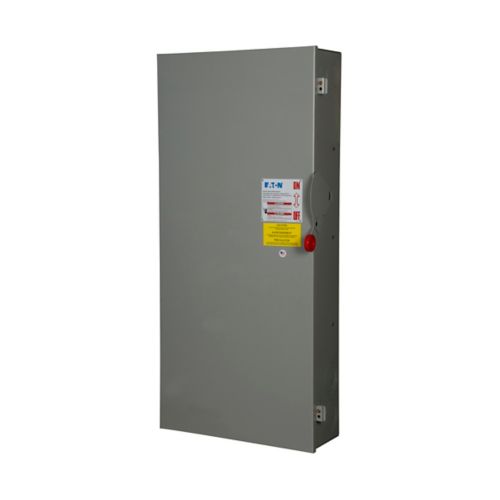

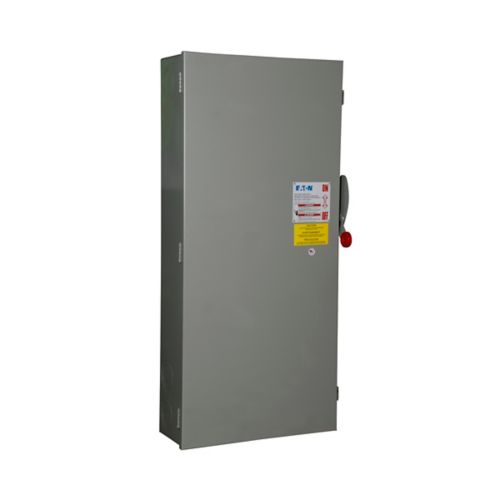

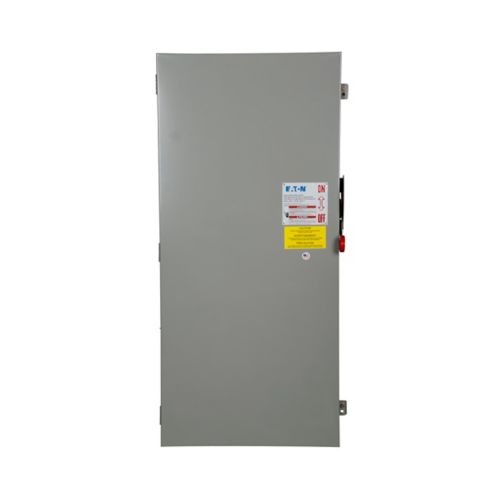

DG226NGK | Eaton General Duty Cartridge Fuse Safety Switch
- Regular price
- $2,231.00
- Sale price
- $2,231.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DG226NGK
Description
The DG226NGK is part of Eaton’s DG Series general-duty cartridge fuse safety switches—reliable, load‑break rated solutions engineered for indoor power disconnection in commercial and industrial electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Electrical Products
|
| Part Number | DG226NGK |
| Subcategory | Safety Switch |
| Enclosure |
NEMA 1 |
| Enclosure Material | Painted steel |
| Fuse Configuration |
Fusible with neutral
|
| Number of Poles | Two-pole |
| Number of Wires | 3 |
| Type | General duty, cartridge fused |
| Amperage Rating | 600A |
| Fuse Class Provision | Class H fuses |
| Voltage Rating |
240V
|
| Certifications | UL Listed |
| Length/Depth | 14.25 in |
| Height | 52.25 in |
| Width | 24 in |
| Weight | 145 lbs |
Information About DG226NGK
The DG226NGK is part of Eaton’s DG Series of general-duty cartridge fuse safety switches—compact, fusible disconnect solutions built for indoor power distribution and load isolation in industrial and commercial environments. This two-pole plus neutral switch handles 600 A at 240 VAC with Class H cartridge fuses and features a NEMA 1 painted steel enclosure. Rated for manual load-break switching with a 10 kA SCCR, and UL-listed for NEC 230.62(C) compliance, the DG226NGK provides dependable safety switching capability wherever service or branch circuit isolation is required.
Key Features:
- Two-Pole Plus Neutral Design: Allows full isolation of single-phase, three-wire circuits with neutral continuity.
- 600 A Rated Capacity: Accommodates large feeders or service disconnects in commercial and light industrial power systems.
- Class H Fuse Compatibility: Supports coordinated protection using high-performance fusible cartridges.
- 10 kA Short-Circuit Rating: Provides safe manual switching under load when paired with appropriate fuses.
- NEMA 1 Painted Steel Enclosure: Suitable for protected indoor applications in dry, non-corrosive environments.
- UL-Listed for Safety Switch Use: Designed in compliance with NEC 230.62(C) and UL safety switch standards.
- Manual Load-Break Switching: Enables safe power isolation and equipment lockout/tagout.
- Durable Construction: Painted steel enclosure and internal barrier design enhance durability and safety.
The Eaton DG226NGK safety switch combines high current capacity, manufacturer-rated fusible protection, and load-break capability in a compact assembly—making it a reliable and code‑compliant option for service or branch circuit isolation in commercial and industrial installations.
