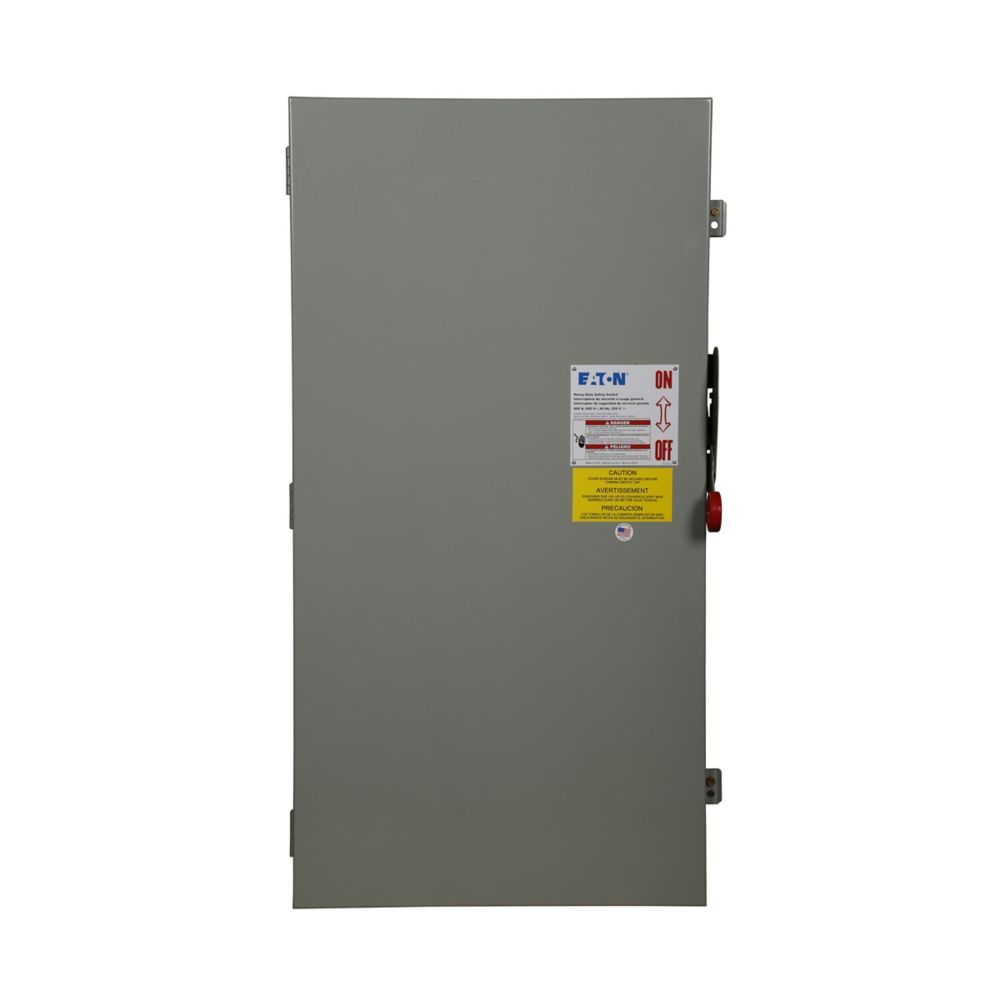

DH365UGK | Eaton Heavy Duty Non-Fusible Safety Switch
- Regular price
- $1,179.00
- Sale price
- $1,179.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DH365UGK
Description
DH365UGK - Eaton Heavy Duty Non-Fusible Safety Switch. Eaton heavy-duty single-throw non-fused safety switch. Single-throw. 400 A. NEMA 1. Painted steel. Non-Fusible. Three-pole. Three-wire. 125 A at 240 VAC TD, 3 Phase. 250 A at 480 VAC TD, 3 Phase. 350 A at 600 VAC TD, 3 Phase. 50 A at 250 VDC.
Technical Specifications
|
PRODUCT NAME |
Eaton heavy duty non-fusible safety switch |
|
CATALOG NUMBER |
DH365UGK |
|
UPC |
782113207223 |
|
PRODUCT LENGTH/DEPTH |
12.31 in |
|
PRODUCT HEIGHT |
44.31 in |
|
PRODUCT WIDTH |
24.12 in |
|
PRODUCT WEIGHT |
175 lb |
|
ENCLOSURE |
NEMA 1 |
|
ENCLOSURE MATERIAL |
Painted steel |
|
FUSE CONFIGURATION |
Non-fusible |
|
NUMBER OF POLES |
Three-pole |
|
NUMBER OF WIRES |
3 |
|
TYPE |
Single-throw |
|
AMPERAGE RATING |
400A |
|
HP RATING - MAX |
125 at 240 Vac TD 3 Ph, 250 at 480 Vac TD 3 Ph, 350 at 600 Vac TD 3 Ph, 50 at 250 Vdc |
|
NEMA RATING |
NEMA 1 |
|
VOLTAGE RATING |
600 V |
Information About DH365UGK
The Eaton DH365UGK is a heavy-duty, non-fusible safety switch engineered for rigorous electrical applications. This single-throw safety switch is designed for reliable performance and safety in various environments. The device features a current rating of 400 amperes and a maximum voltage rating of 600 volts. It is housed in a NEMA 1 rated enclosure, fabricated from painted steel, ensuring durability and protection in indoor environments.
The DH365UGK switch is a three-pole, three-wire device, suitable for diverse industrial applications requiring robust and reliable electrical isolation and control. It is designed for single-throw operation, meaning it performs a simple on-off switching function. The switch accommodates multiple power configurations, supporting up to 125 horsepower at 240 volts AC in a three-phase configuration, 250 horsepower at 480 volts AC in a three-phase configuration, 350 horsepower at 600 volts AC in a three-phase configuration, and 50 horsepower at 250 volts DC.
The device's physical dimensions include a product length of 12.31 inches, a height of 44.31 inches, and a width of 24.12 inches. The overall weight of the switch is 175 pounds, reflecting its heavy-duty construction and capability to handle significant electrical loads. The enclosure's NEMA 1 rating indicates that the switch is suitable for use in environments where it is protected from limited amounts of falling dirt.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
