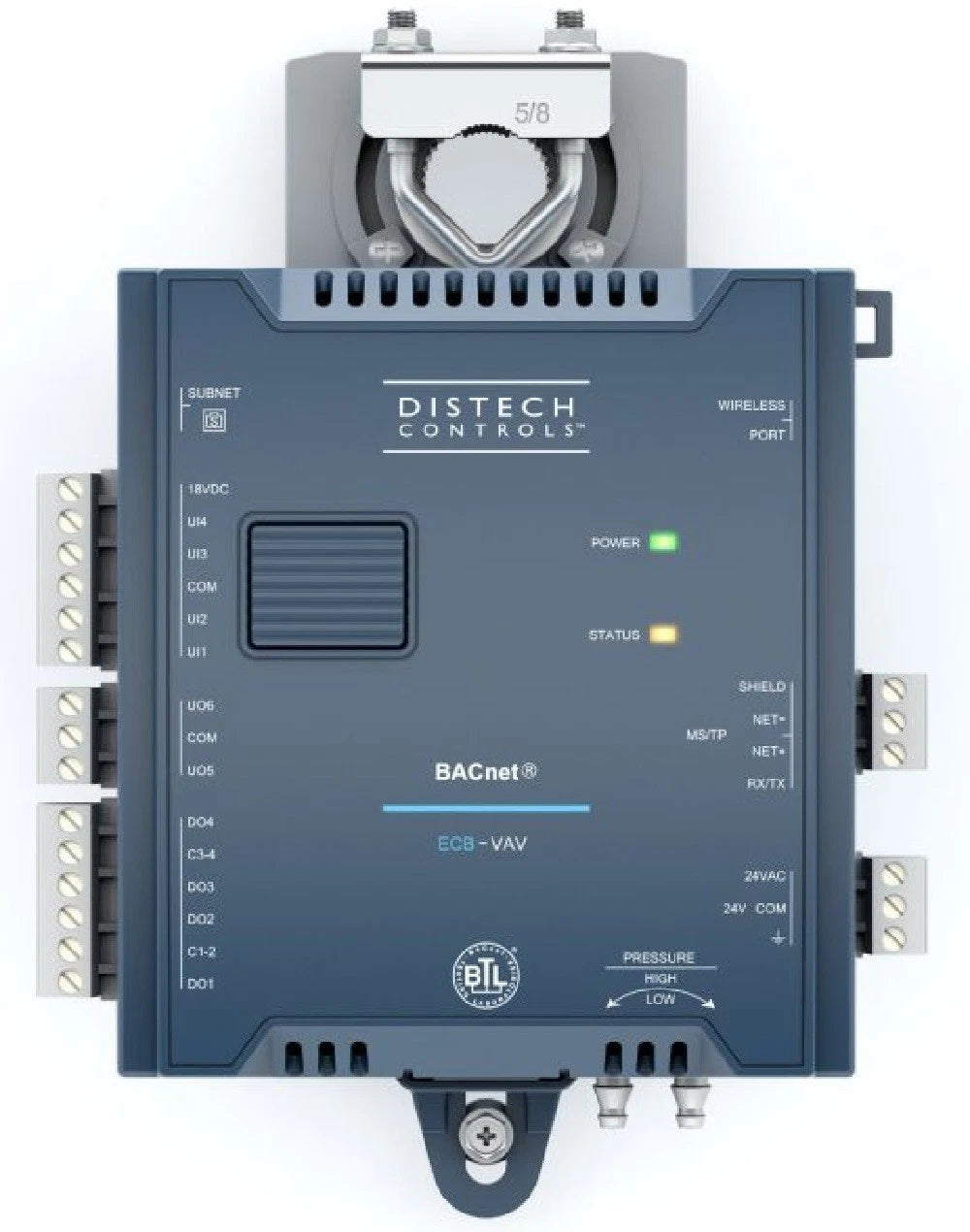

Distech Controls CDIB-VAXX-IMP-10 Programmable BACnet VAV Controller with Built-In Actuator
- Regular price
- $617.00
- Sale price
- $617.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CDIB-VAXX-IMP-10
Description
The Distech Controls CDIB-VAXX-IMP-10 is a programmable Variable Air Volume (VAV) controller designed for precise airflow regulation and zone temperature control in commercial HVAC systems. It combines a built-in actuator, integrated airflow sensing, and BACnet MS/TP communication into a single compact device for efficient VAV box control. The controller is engineered to simplify installation while providing reliable performance across a wide range of HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Controls & Indicators |
| Part Number | CDIB-VAXX-IMP-10 |
| Subcategory | Control |
| Product Type | Programmable VAV Controller |
| Manufacturer Status | Discontinued by Manufacturer |
| Series | ECB-VAV (IMP) |
| Supply Voltage | 24 VAC/VDC |
| Communication Protocol | BACnet MS/TP |
| Network Port | RS-485 |
| Integrated Actuator | Yes |
| Real-Time Clock | Yes |
| Universal Inputs | 4 |
| Digital Outputs | 4 Triac Outputs |
| Universal Outputs | 2 |
| Integrated Airflow Sensor | Differential Pressure Transducer |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Typical Applications | Cooling Only VAV, Reheat VAV, Fan-Powered VAV, Dual-Duct VAV Systems |
| Weight | 0.45 kgs |
Information About CDIB-VAXX-IMP-10
The CDIB-VAXX-IMP-10 is part of the Distech Controls ECB-VAV (IMP) controller family developed for intelligent VAV terminal unit control. It incorporates a factory-installed actuator, integrated differential pressure sensor, programmable control logic, and a real-time clock to support accurate airflow management and scheduling functions. The controller communicates through BACnet MS/TP over an RS-485 network and supports applications including cooling-only VAV boxes, cooling with reheat, parallel fan, series fan, and dual-duct VAV systems. Its preloaded application software reduces commissioning time while allowing customization for project-specific HVAC requirements.
Key Features:
- Programmable VAV Controller: Provides configurable control for a wide range of commercial VAV applications.
- Built-In Actuator: Integrates the damper actuator to reduce installation time and wiring complexity.
- BACnet MS/TP Communication: Connects seamlessly with BACnet building automation systems through RS-485.
- Integrated Airflow Sensor: Uses an onboard differential pressure transducer for accurate airflow measurement.
- Real-Time Clock: Supports scheduling and time-based HVAC control functions.
- Flexible I/O Configuration: Includes 4 universal inputs, 4 triac digital outputs, and 2 universal outputs.
- Wide Operating Temperature: Designed to operate from 32°F to 122°F (0°C to 50°C).
- Factory Preloaded Applications: Accelerates commissioning with configurable VAV control programs.
The CDIB-VAXX-IMP-10 delivers the reliability and precision required for advanced variable air volume control in commercial building automation systems.
