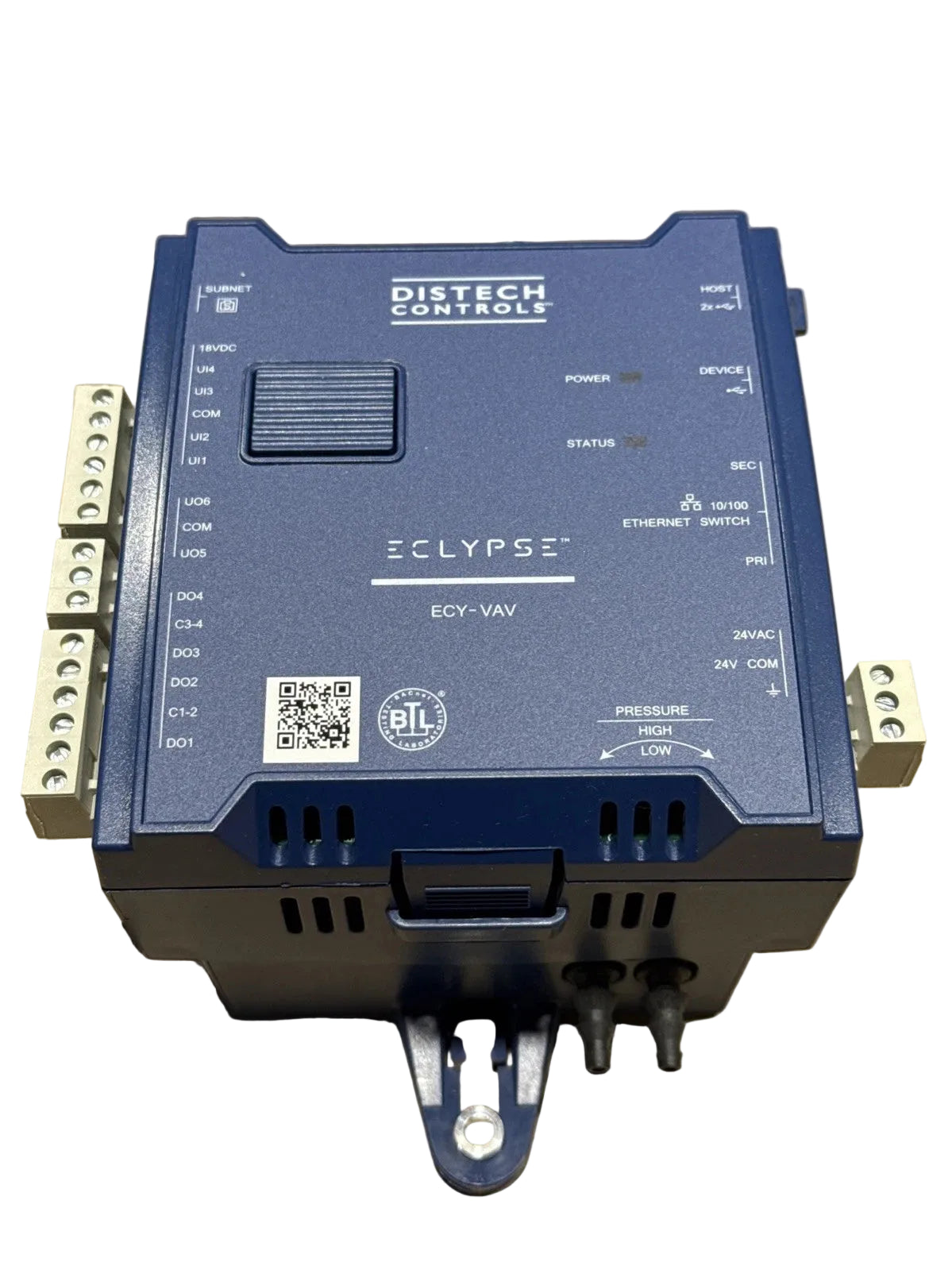

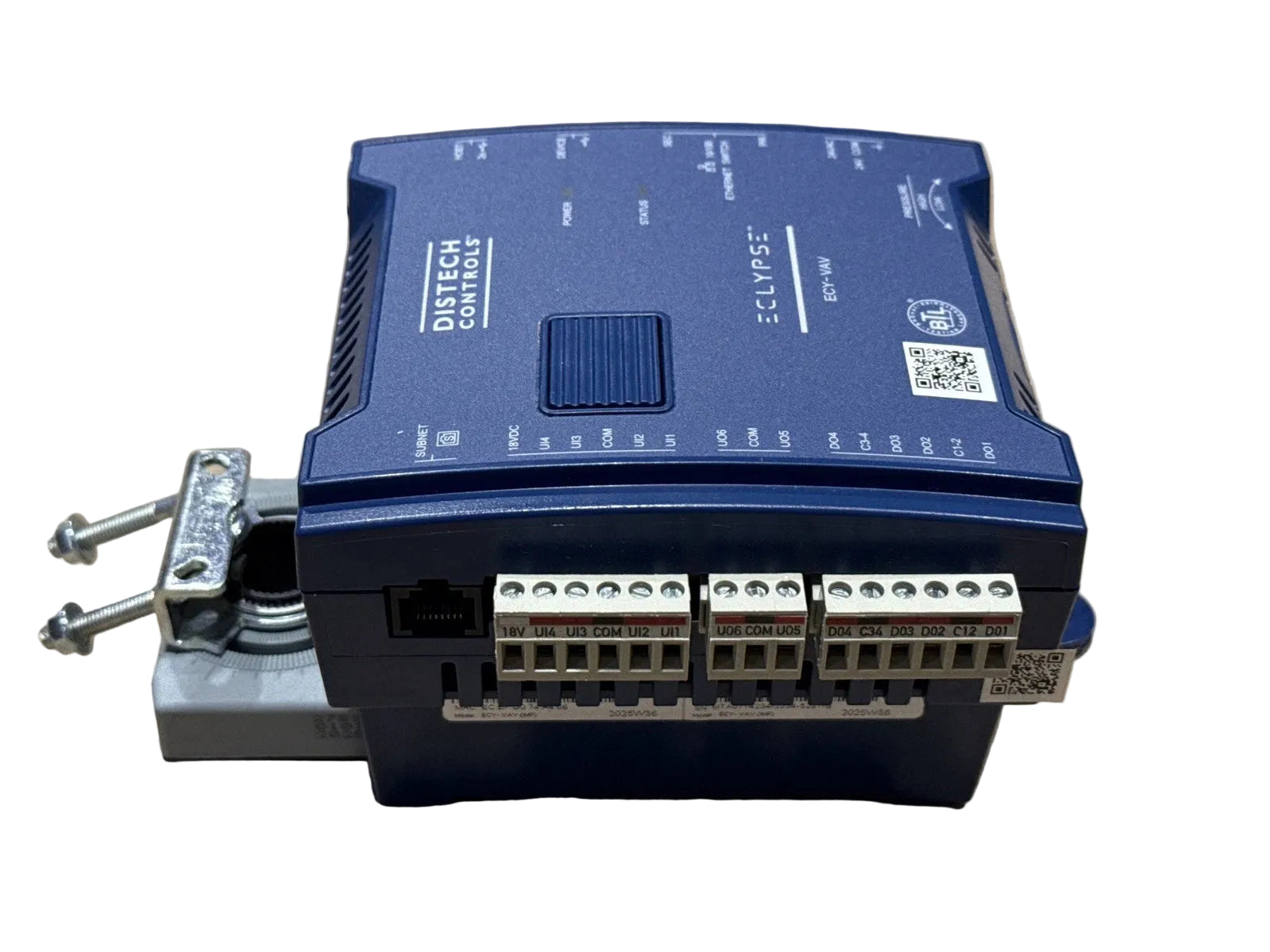

Distech Controls CDIY-VAXXX-IMP-00 ECLYPSE Connected VAV Controller with Built-In Actuator
- Regular price
- $662.00
- Sale price
- $662.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CDIY-VAXXX-IMP-00
Description
The Distech Controls CDIY-VAXXX-IMP-00 is an ECLYPSE Connected Variable Air Volume (VAV) Controller designed to provide intelligent airflow and zone temperature control for commercial HVAC systems. It integrates a programmable BACnet/IP controller, built-in differential pressure transducer, and damper actuator into a single compact device for simplified installation and commissioning. Although discontinued by the manufacturer, the CDIY-VAXXX-IMP-00 remains an effective solution for maintaining existing ECLYPSE-based VAV installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | HVAC |
| Part Number | CDIY-VAXXX-IMP-00 |
| Subcategory | HVAC Accessory & Rebuild Kit & Seal Kit |
| Product Type | Connected Variable Air Volume Controller |
| Series | ECLYPSE ECY-VAV (IMP) |
| Power Supply | 24 VAC |
| Communication Protocol | BACnet/IP |
| Universal Inputs | 4 |
| Digital Outputs | 4 TRIAC Outputs |
| Universal Outputs | 2 |
| Built-In Actuator | 5 Nm (45 in-lb) |
| Differential Pressure Sensor | Integrated, 0–500 Pa (0–2.0 in. w.c.) |
| Embedded Interface | ENVYSION Viewer (HTML5) |
| Applications | Pre-loaded Imperial HVAC Applications |
| Mounting | Damper Shaft Mount |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 1.13 kg |
Information About CDIY-VAXXX-IMP-00
The CDIY-VAXXX-IMP-00 is the Distech Controls ECY-VAV (IMP) Connected VAV Controller from the ECLYPSE product family, developed for precise control of variable air volume boxes in commercial buildings. It incorporates four universal inputs, four TRIAC digital outputs, two universal outputs, a built-in 5 Nm damper actuator, and an integrated differential pressure transducer for accurate airflow measurement. The controller supports BACnet/IP communication, features an embedded HTML5 web interface with ENVYSION Viewer, and includes pre-loaded Imperial applications to simplify deployment and commissioning. Its scalable IP architecture makes it suitable for offices, schools, hospitals, hotels, and other commercial facilities requiring intelligent room and airflow control.
Key Features:
- Integrated VAV Controller: Combines controller, actuator, and airflow sensing into one device.
- Built-In Damper Actuator: Includes a 5 Nm (45 in-lb) actuator for direct VAV damper control.
- Differential Pressure Sensor: Integrated 0–500 Pa pressure transducer provides accurate airflow measurement.
- BACnet/IP Communication: Supports open-system integration with modern building automation networks.
- Embedded HTML5 Interface: ENVYSION Viewer enables browser-based monitoring and configuration.
- Preloaded Imperial Applications: Factory-installed applications accelerate installation and commissioning.
- Flexible I/O Configuration: Includes 4 universal inputs, 4 TRIAC outputs, and 2 universal outputs.
- Smart HVAC Control: Suitable for cooling, reheat, parallel fan, series fan, and room pressurization applications.
The CDIY-VAXXX-IMP-00 delivers the reliability and precision required for intelligent Variable Air Volume control in commercial HVAC and building automation systems.
