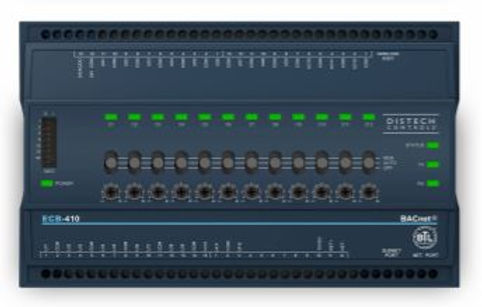

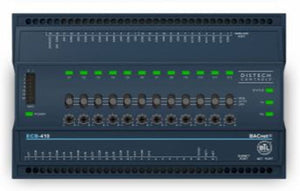

Distech Controls ECB-413 BACnet 24-Point Programmable HVAC Controller with HOA Switches
- Regular price
- $1,827.00
- Sale price
- $1,827.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECB-413
Description
The Distech Controls ECB-413 is a BACnet advanced application programmable controller designed for medium and large HVAC equipment, including air handling units, rooftop units, boilers, chillers, and cooling towers. It combines flexible universal inputs, triac digital outputs, and analog outputs with integrated HOA switches and potentiometers for local override and commissioning. The controller provides reliable automation, monitoring, and equipment control for commercial building management systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Controls & Indicators |
| Part Number | ECB-413 |
| Subcategory | Control |
| Product Type | BACnet Advanced Application Programmable Controller |
| Series | ECB-400 Series |
| Communication Protocol | BACnet MS/TP |
| BACnet Profile | B-AAC (BTL Listed) |
| Power Supply | 15 VDC Internal Supply / 24 VAC Hardwired Input |
| Universal Inputs | 12 |
| Digital Outputs | 8 Triac Outputs |
| Universal Outputs | 4 |
| Total I/O Points | 24 |
| HOA Function | Integrated Hand-Off-Auto Switches with Potentiometers |
| Programming Software | EC-gfxProgram |
| Applications | AHUs, Rooftop Units, Boilers, Chillers, Cooling Towers, Multi-Zone Systems |
| Mounting | DIN Rail or Surface Mount |
| Weight | Approximately 0.53 kgs |
Information About ECB-413
The ECB-413 is part of the Distech Controls ECB-400 Series of BACnet B-AAC programmable controllers developed for system and equipment control applications. It features a 24-point I/O configuration consisting of 12 universal inputs, 8 triac digital outputs, and 4 universal outputs, making it suitable for medium and large mechanical systems. Integrated Hand-Off-Auto (HOA) switches with potentiometers simplify commissioning, maintenance, and manual equipment override without requiring software access. The controller supports BACnet MS/TP communication, EC-gfxProgram programming, Allure communicating room sensors, Open-to-Wireless technology, and advanced scheduling, alarm, and PID control functions.
Key Features:
- 24-Point I/O Configuration: Provides 12 universal inputs, 8 triac outputs, and 4 universal outputs for flexible equipment control.
- BACnet MS/TP Communication: Supports open BACnet networking for seamless building automation integration.
- HOA Switches: Integrated Hand-Off-Auto switches allow convenient local output override during commissioning and maintenance.
- Built-In Potentiometers: Enable manual adjustment and testing of controlled outputs without software tools.
- Advanced HVAC Applications: Suitable for air handling units, rooftop units, boilers, chillers, cooling towers, and multi-zone systems.
- Universal Input Support: Accepts temperature sensors, analog signals, digital contacts, and pulse-counting inputs.
- Programmable Control Logic: Configurable using EC-gfxProgram for customized building automation sequences.
- Open-to-Wireless Ready: Supports wireless expansion and communicating room sensors for enhanced flexibility.
The ECB-413 delivers the reliability and precision required for advanced commercial HVAC equipment control and building automation applications.
