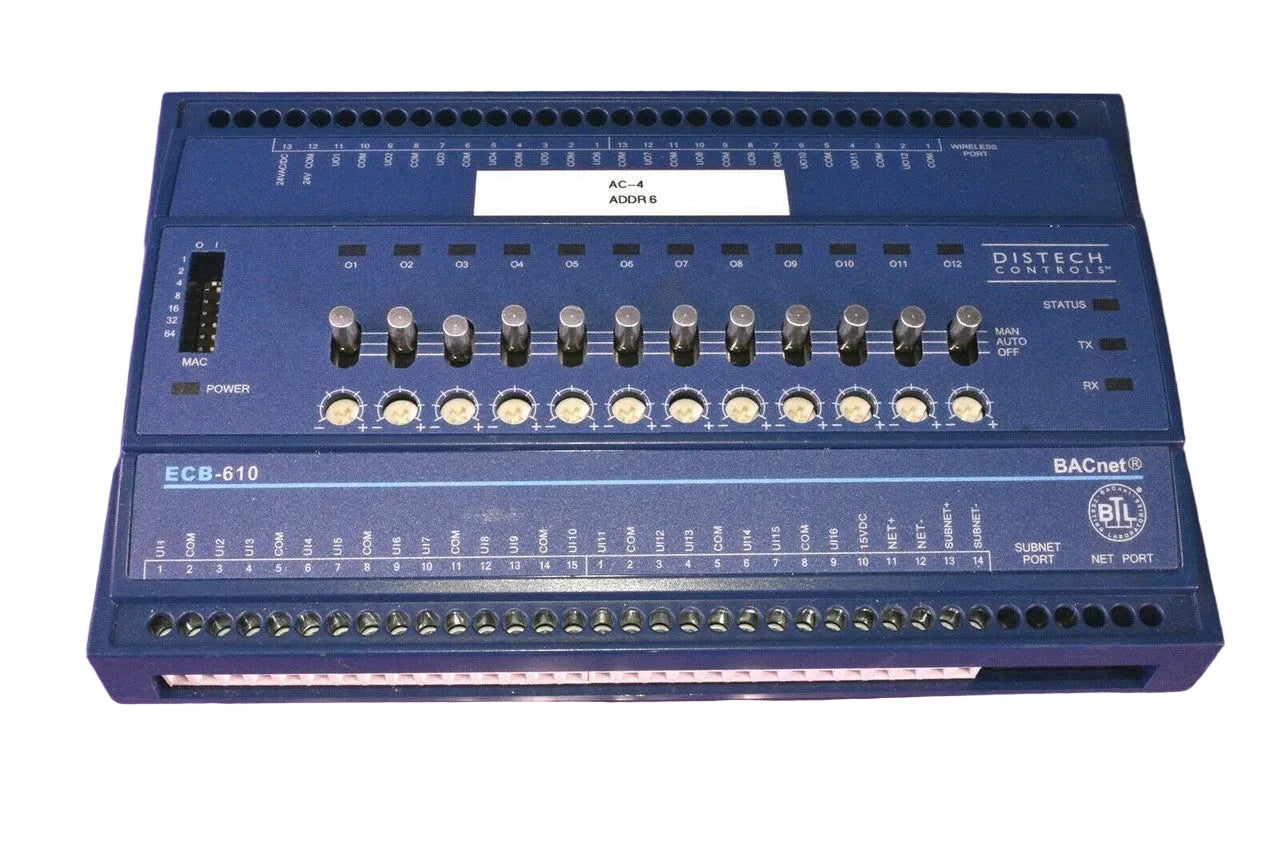

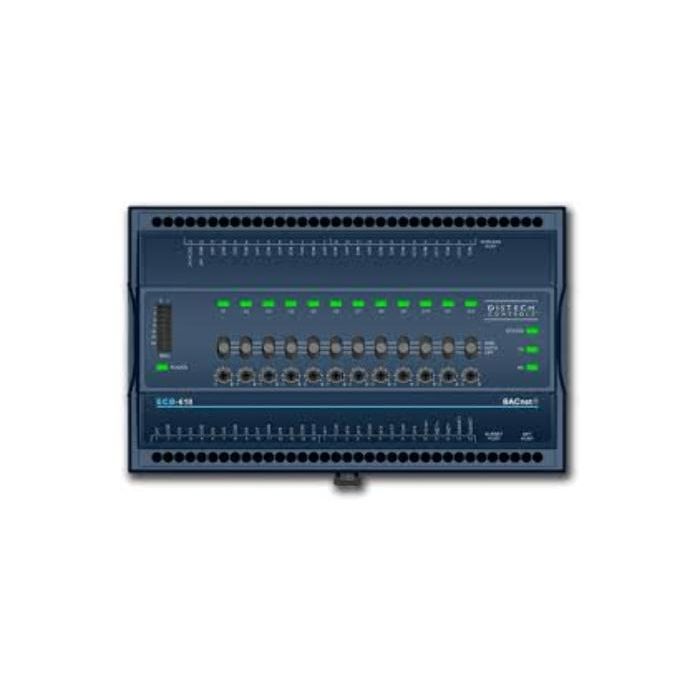

Distech Controls ECB-610 BACnet Advanced Application Controller with HOA Switches for Commercial HVAC
- Regular price
- $1,365.00
- Sale price
- $1,365.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECB-610
Description
The Distech Controls ECB-610 is a BACnet Advanced Application Controller designed for large HVAC equipment and central plant automation. It provides extensive input and output capacity, integrated Hand-Off-Auto (HOA) switches with potentiometers, and programmable control for complex mechanical systems. Although discontinued by the manufacturer, the ECB-610 remains a dependable solution for servicing and expanding existing Distech Controls building automation installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Controls & Indicators |
| Part Number | ECB-610 |
| Subcategory | Control |
| Product Type | BACnet Advanced Application Controller |
| Series | ECB-600 Series |
| Total I/O Points | 28 |
| Universal Inputs | 16 |
| Universal Outputs | 12 |
| HOA Switches | Integrated Hand-Off-Auto Switches |
| Manual Override | Integrated Potentiometers |
| Power Consumption | 22 VA Typical (plus external loads) |
| Power Supply | 24 VAC/DC Class 2 |
| Communication Protocol | BACnet MS/TP |
| Expandable I/O | Supports Up to 2 ECx Expansion Modules |
| Wireless Support | Open-to-Wireless™ Ready |
| Application | Air Handling Units, Boilers, Chillers, Cooling Towers, Pumps, Central Plant |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.53 kg |
Information About ECB-610
The ECB-610 is part of the Distech Controls ECB-600 Series of programmable BACnet controllers developed for air handling units, boilers, chillers, cooling towers, pumps, and central plant applications. It incorporates sixteen universal inputs, twelve universal outputs, integrated HOA switches, and manual potentiometers that simplify equipment commissioning, maintenance, and troubleshooting. The controller communicates using the BACnet MS/TP protocol and supports expansion with up to two ECx Series I/O modules, increasing system capacity while maintaining centralized control. It also supports Open-to-Wireless™ technology, Allure communicating room sensors, embedded scheduling, PID control loops, and extensive BACnet object functionality for commercial building automation.
Key Features:
- Twenty-Eight I/O Points: Provides 16 universal inputs and 12 universal outputs for complex HVAC applications.
- Integrated HOA Controls: Includes Hand-Off-Auto switches and potentiometers for local override and commissioning.
- BACnet MS/TP Communication: Supports open-system integration with BACnet building automation networks.
- Expandable Architecture: Compatible with up to two ECx Series expansion modules for additional I/O capacity.
- Open-to-Wireless™ Ready: Supports optional wireless sensors and switches for flexible installations.
- 15 VDC Auxiliary Supply: Powers compatible 4–20 mA transmitters and process sensors directly.
- Advanced Control Functions: Supports scheduling, calendars, PID loops, alarms, and hundreds of BACnet objects.
- Commercial HVAC Applications: Designed for air handling units, chillers, boilers, pumps, cooling towers, and central plant systems.
The ECB-610 delivers the reliability and precision required for advanced HVAC equipment control and commercial building automation systems.
