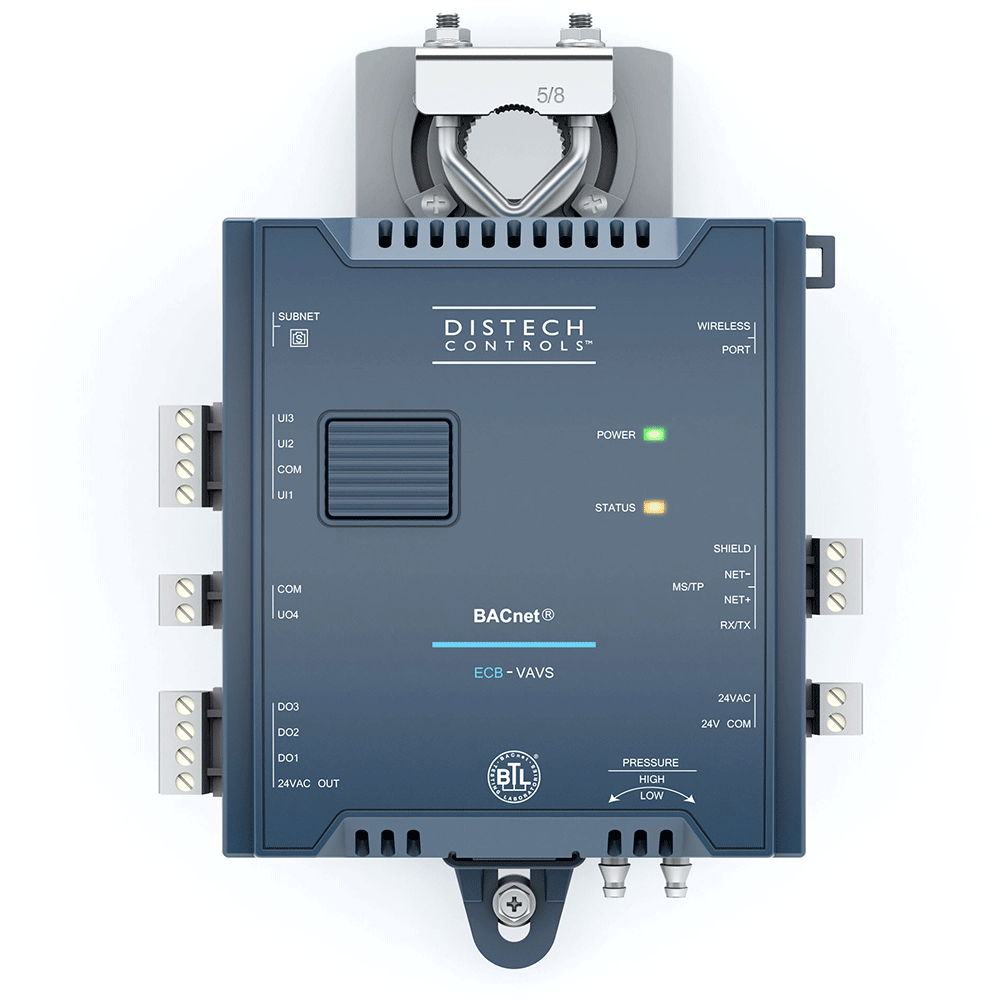

Distech Controls ECB-VAVS BACnet Programmable Variable Air Volume Room Controller
- Regular price
- $415.00
- Sale price
- $415.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECB-VAVS
Description
The Distech Controls ECB-VAVS is a BACnet programmable room control solution designed for cooling-only and cooling-with-reheat variable air volume (VAV) HVAC applications. It combines an integrated airflow sensor, brushless damper actuator, and programmable control logic into a compact controller that simplifies installation and commissioning. The ECB-VAVS is engineered to provide accurate airflow regulation and efficient zone-level environmental control in commercial buildings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Controls & Indicators |
| Part Number | ECB-VAVS |
| Subcategory | BACnet |
| Product Type | Room Control Solution |
| Controller Type | Programmable VAV Controller |
| Communication Protocol | BACnet MS/TP |
| BACnet Profile | B-ASC (BTL Listed) |
| Applications | Cooling Only and Cooling with Reheat VAV |
| Input Configuration | 3 Universal Inputs |
| Output Configuration | 3 Digital Triac Outputs, 1 Universal Output |
| Integrated Actuator | Brushless DC, 45 lb-in Torque |
| Airflow Sensor | Drift-Free, Polarity-Free NoZero Sensor |
| Wireless Support | Open-to-Wireless Compatible |
| Room Sensor Support | Up to 4 Allure Communicating Sensors |
| Sales Regions | US, OC, ME, EU, CSA, CA, AS |
| Weight | Approximately 0.91 kgs |
Information About ECB-VAVS
The ECB-VAVS is a member of the Distech Controls ECB Series of BACnet room controllers developed for variable air volume terminal applications. It features a 9-point I/O configuration, an integrated brushless actuator, and a drift-free, polarity-free airflow sensor with NoZero calibration technology to reduce balancing time and improve long-term accuracy. The controller communicates over BACnet MS/TP and is BTL-listed, allowing seamless integration with compatible building automation systems. It supports configurable applications through EC-gfxProgram software, communicates with Allure series room sensors, and can be expanded with Open-to-Wireless technology for battery-less wireless devices.
Key Features:
- Integrated VAV Controller: Designed specifically for cooling-only and cooling-with-reheat VAV applications.
- 9-Point I/O: Includes 3 universal inputs, 3 digital triac outputs, and 1 universal output for flexible field connectivity.
- Built-In Damper Actuator: Brushless 45 lb-in DC actuator provides reliable and precise damper positioning.
- Integrated Airflow Sensor: Drift-free, polarity-free NoZero sensor minimizes commissioning and balancing time.
- BACnet MS/TP Communication: Supports open-system integration using the BACnet B-ASC protocol.
- Wireless Expansion Support: Compatible with Open-to-Wireless technology for battery-less wireless sensors.
- Smart Sensor Compatibility: Supports up to four Allure communicating room sensors for advanced occupant interaction.
- Advanced Programming: Configurable using EC-gfxProgram and compatible with mobile air-balancing tools.
The ECB-VAVS delivers the reliability and precision required for accurate variable air volume control in commercial HVAC systems.
