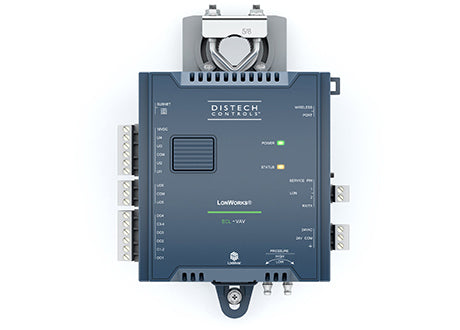

Distech Controls ECL-VAV 12-Point Programmable LONWORKS VAV Controller
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECL-VAV
Description
Distech Controls ECL-VAV is a 12-point programmable VAV controller designed for variable air volume HVAC applications. It combines integrated airflow sensing, damper actuation, and configurable control functions for cooling-only, reheat, dual-duct, parallel-fan, and series-fan VAV systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Building Automation / HVAC Controls |
| Part Number | ECL-VAV |
| Subcategory | VAV Controllers |
| Product Type | Programmable VAV Controller |
| I/O Points | 12 points |
| Universal Inputs | 4 |
| Digital Outputs | 4 Triac outputs |
| Universal Outputs | 2 |
| Communication Protocol | LONWORKS / LonTalk |
| Certification | LONMARK SCC VAV |
| Airflow Sensor | Onboard, 0–2 in. w.c. (0–500 Pa) |
| Damper Actuator | Integrated brushless DC actuator |
| Actuator Torque | 45 lb-in (5.1 Nm) |
| Power Supply | 24 VAC/DC |
| Applications | Cooling-only, reheat, dual-duct, parallel-fan, series-fan VAV |
| Weight | 1.95 lb |
Information About ECL-VAV
The ECL-VAV is part of the Distech Controls ECL LONWORKS controller family and is LONMARK certified as an SCC VAV controller. It provides four universal inputs, four Triac digital outputs, and two universal outputs for connection to HVAC sensors and controlled equipment. An onboard airflow sensor and integrated brushless actuator support airflow measurement and damper positioning without requiring separate components. The controller can be configured with preloaded VAV applications or programmed using Distech Controls EC-gfxProgram.
Key Features:
- 12-Point I/O: Provides four universal inputs, four Triac digital outputs, and two universal outputs.
- LONWORKS Communication: Uses LonTalk communication for integration with compatible building automation networks.
- LONMARK Certified: Certified as an SCC VAV controller for standardized VAV applications.
- Airflow Sensor: Includes an onboard sensor for airflow monitoring and control.
- Integrated Actuator: Built-in brushless actuator provides damper positioning with integrated feedback.
- Programmable Control: Supports custom HVAC sequences through EC-gfxProgram.
- Preloaded Applications: Provides factory-configured sequences for standard VAV equipment.
- VAV Applications: Supports cooling-only, reheat, dual-duct, parallel-fan, and series-fan configurations.
The ECL-VAV delivers the reliability and precision required for variable air volume control and HVAC building automation applications.
