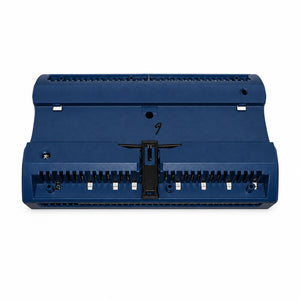

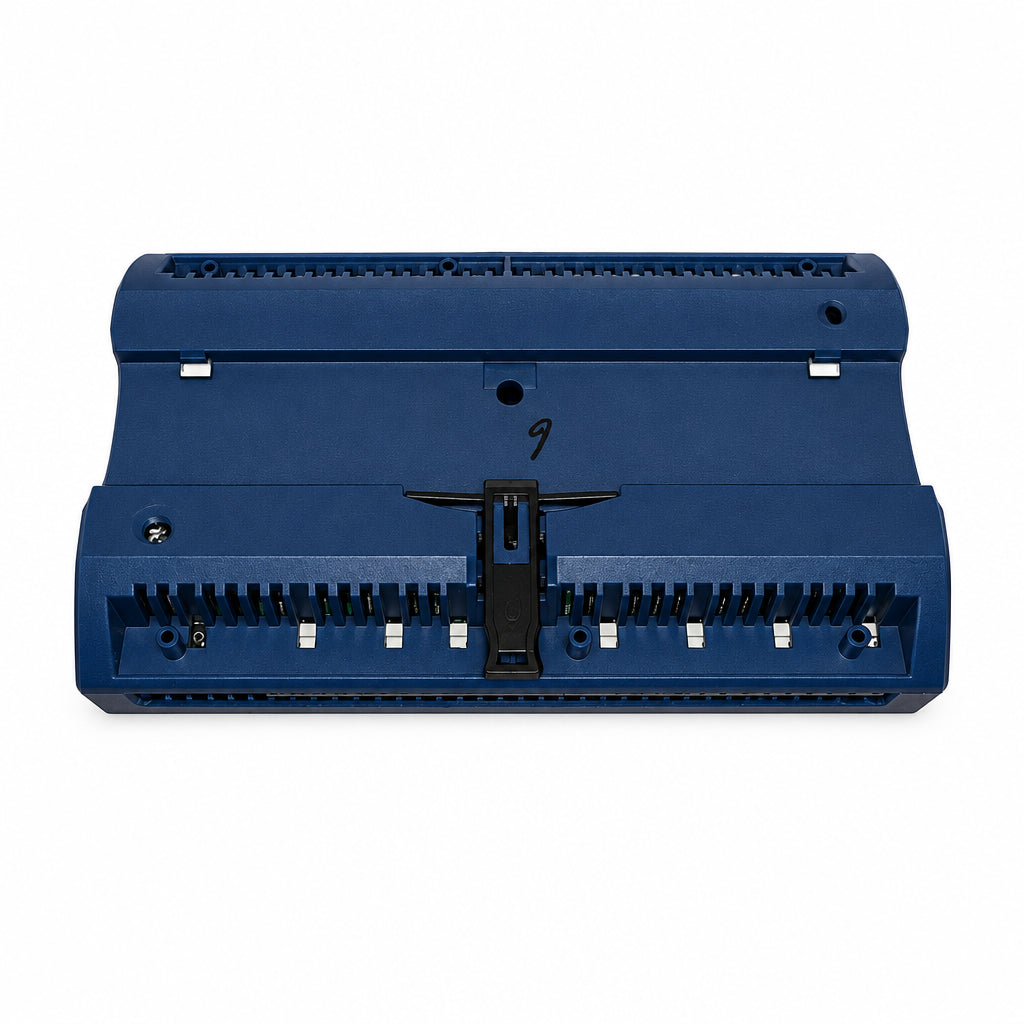

Distech Controls ECP-410 24 Point Free Programmable HVAC Controller
- Regular price
- $1,995.00
- Sale price
- $1,995.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECP-410
Description
The Distech Controls ECP-410 is a 24-point free programmable controller designed for HVAC and building automation applications. It provides 12 universal inputs and 12 universal outputs, with 24 VAC/DC power and LON-based communication for integration into compatible control systems. The controller includes HOA (Hand-Off-Auto) functionality and can be mounted directly on a DIN rail or wall.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | HVAC & Building Automation |
| Part Number | ECP-410 |
| Subcategory | Programmable Controllers |
| Device Type | Free Programmable Controller |
| Control Points | 24 |
| Universal Inputs | 12 |
| Universal Outputs | 12 |
| Input Signals | 0–10 VDC, 4–20 mA, Dry Contact |
| Output Signals | 0–10 VDC, 0–20 mA |
| Auxiliary Power Output | 15 VDC, 240 mA maximum |
| Supply Voltage | 24 VAC/DC |
| Frequency | 50/60 Hz |
| Communication | LON / LonTalk |
| Installation | DIN Rail or Wall Mount |
| Dimensions | Approx. 195.6 × 119.4 × 50.8 mm |
| Operating Temperature | 0°C to 70°C |
| Housing Material | ABS / PA-765A |
| HOA Functionality | Yes |
| Weight | 0.43 lb |
Information About ECP-410
The ECP-410 is a microprocessor-based Distech Controls programmable controller intended for HVAC control and building automation systems. It provides 12 universal inputs and 12 universal outputs, supporting common analog and digital signal types. The controller operates from 24 VAC/DC and provides a 15 VDC auxiliary power supply with a maximum output of 240 mA. The ECP-410 is a discontinued model and is associated with Distech's earlier LON-based controller platforms.
Key Features:
- 24-Point Controller: Provides 24 configurable control points for HVAC and building automation applications.
- 12 Universal Inputs: Supports configurable input signals including voltage, current, and dry-contact signals.
- 12 Universal Outputs: Provides 12 configurable outputs for controlling connected HVAC equipment.
- 24 VAC/DC Power: Operates from a 24 VAC or 24 VDC supply at 50/60 Hz.
- 15 VDC Auxiliary Supply: Provides up to 240 mA for compatible connected devices.
- Free Programmable: Allows the controller to be configured for different building automation applications.
- HOA Functionality: Includes Hand-Off-Auto control functionality for connected outputs.
- DIN-Rail Mounting: Supports direct DIN-rail or wall mounting for flexible installation.
The ECP-410 delivers the control and flexibility required for HVAC equipment management and building automation applications.
