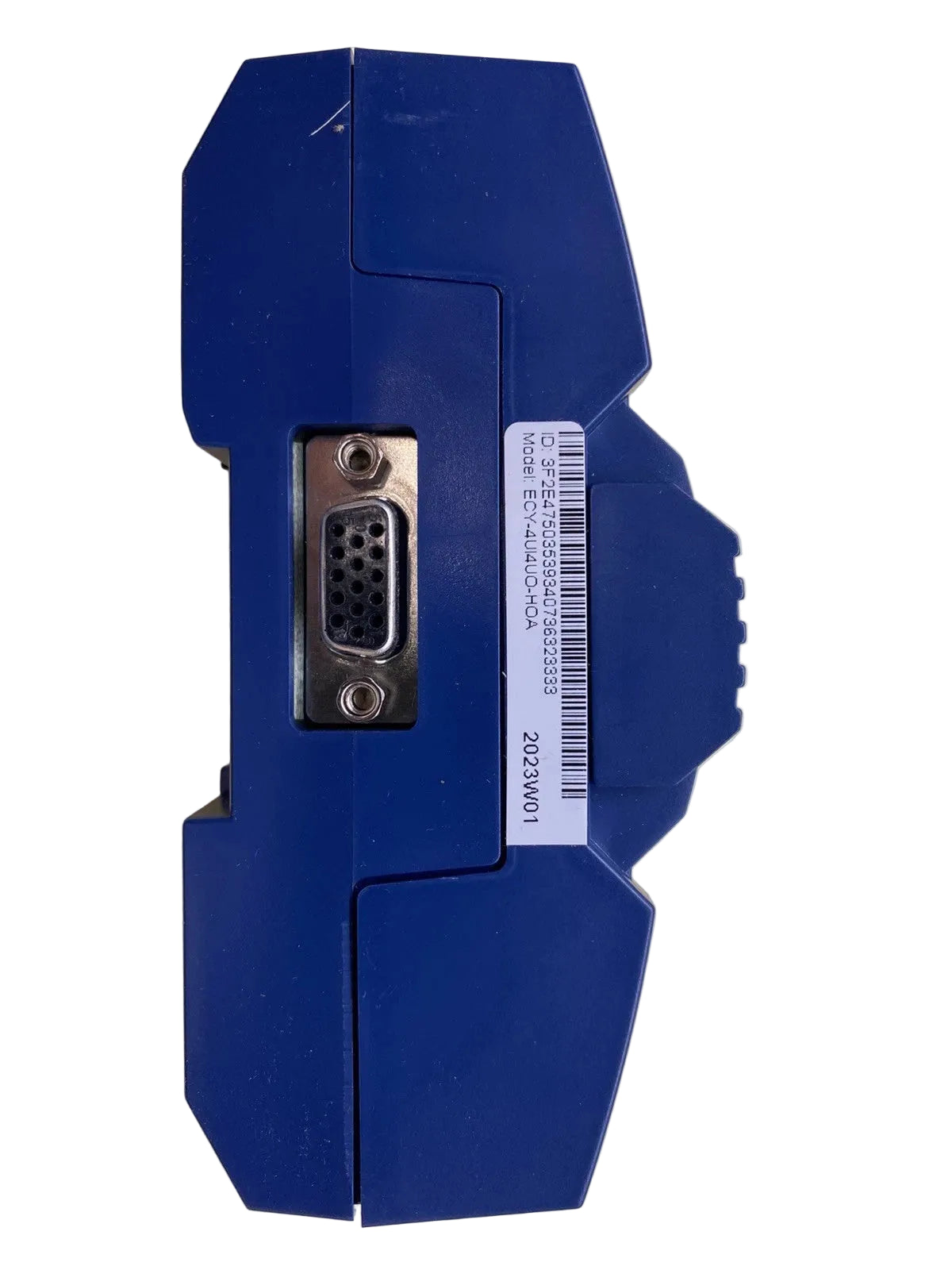

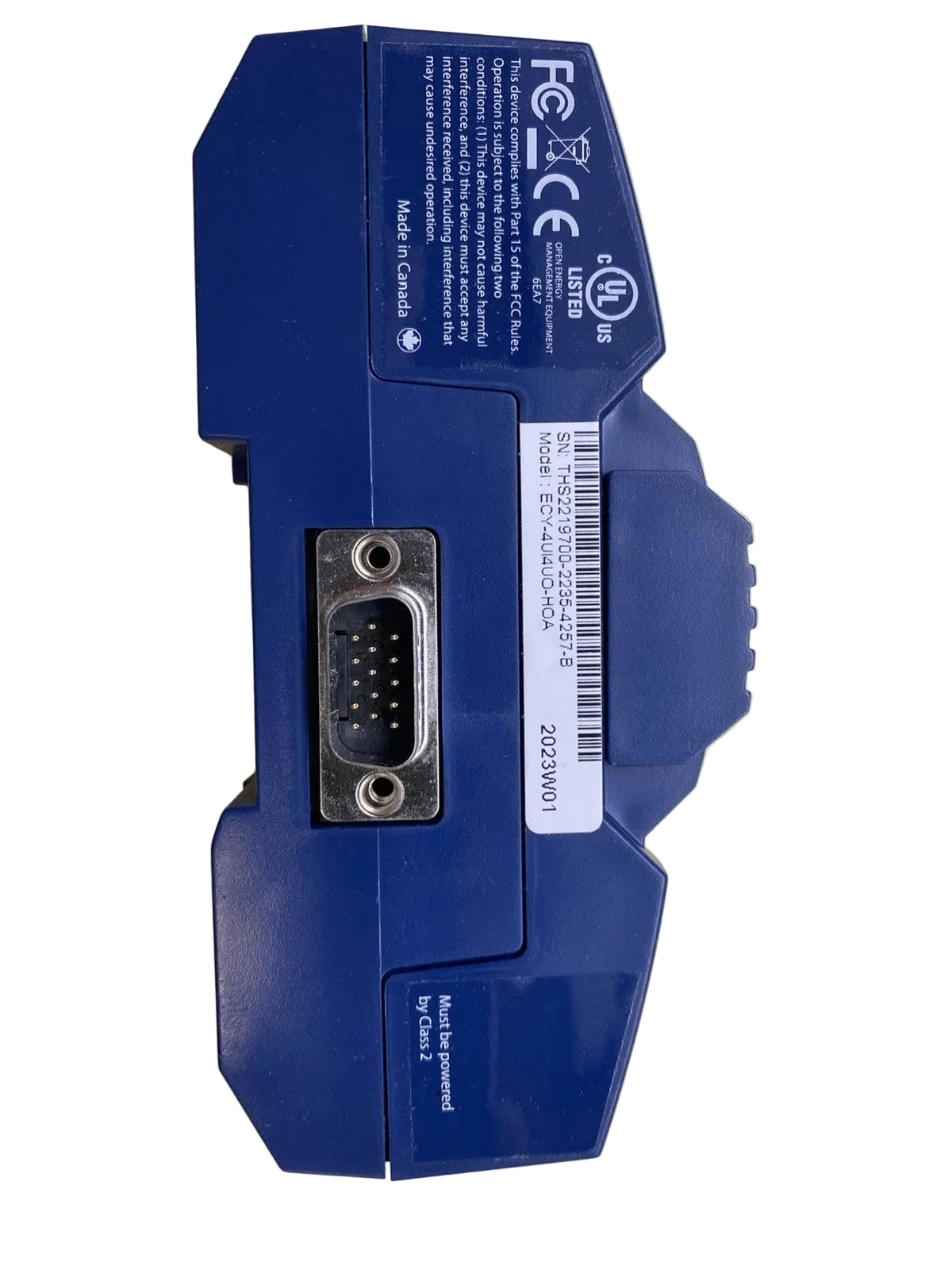

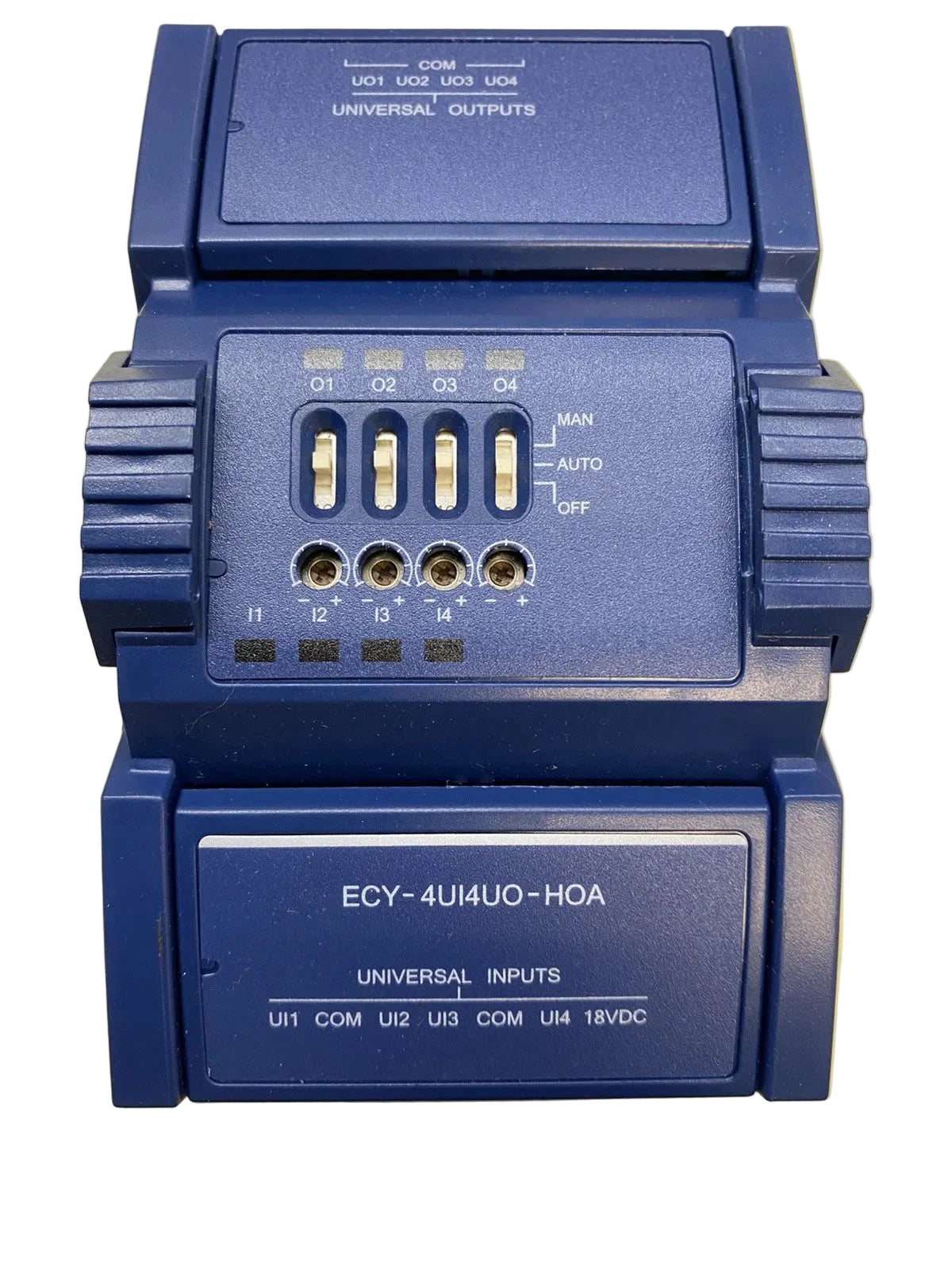

Distech Controls ECY-4UI4UO-HOA Eight-Point I/O Extension Module with HOA Switches and Potentiometers
- Regular price
- $835.00
- Sale price
- $835.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECY-4UI4UO-HOA
Description
The Distech Controls ECY-4UI4UO-HOA is an eight-point I/O extension module designed to expand the capabilities of Eclypse Connected System Controllers in commercial building automation systems. It provides four universal inputs and four universal outputs equipped with Hand-Off-Auto (HOA) switches and potentiometers for local override and commissioning. The module supports flexible integration with HVAC equipment while simplifying field installation and maintenance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | PLCs/Machine Control |
| Part Number | ECY-4UI4UO-HOA |
| Subcategory | PLC Module/Rack |
| Product Type | I/O Extension Module |
| Series | ECY I/O Module Series |
| Associated Model | CDIY-4UI4UOHOA-00 |
| Universal Inputs | 4 |
| Universal Outputs | 4 |
| Total I/O Points | 8 |
| HOA Switches | Yes |
| Potentiometers | Integrated |
| Supply Voltage | 18 VDC |
| Power Consumption | 0.94 W |
| Status Indicators | Green LED Indicators |
| Hot Swappable | Yes |
| Mounting | DIN Rail or Screw Mount |
| Enclosure Rating | NEMA 1 / IP20 |
| Compatible Controllers | Eclypse Connected System Controllers |
| Typical Applications | Commercial HVAC and Building Automation Systems |
| Weight | 0.12 kgs |
Information About ECY-4UI4UO-HOA
The ECY-4UI4UO-HOA is part of the Distech Controls ECY I/O Module Series developed for the Eclypse building automation platform. It features four configurable universal inputs and four configurable universal outputs capable of supporting a wide variety of HVAC sensors and control devices. Integrated HOA switches and potentiometers allow technicians to manually override outputs during startup, testing, and maintenance without modifying controller programming. Operating from an 18 VDC supply, the module includes hot-swappable capability, green LED status indicators, and compatibility with Eclypse Connected System Controllers for scalable distributed control.
Key Features:
- Eight-Point I/O Module: Combines four universal inputs and four universal outputs in one compact module.
- HOA Switches: Provides Hand-Off-Auto switches for convenient local output override.
- Integrated Potentiometers: Allows manual adjustment of output values during commissioning and troubleshooting.
- Universal Input Support: Accepts voltage, current, resistance, thermistor, pulse, and dry-contact signals.
- Universal Output Capability: Supports analog output control for a wide range of HVAC devices.
- Hot-Swappable Design: Enables installation or replacement without shutting down the controller system.
- LED Status Indicators: Green LEDs provide quick verification of power and I/O operating status.
- Eclypse Controller Compatibility: Designed specifically for Eclypse Connected System Controllers.
The ECY-4UI4UO-HOA delivers the reliability and precision required for expanding commercial HVAC control systems and building automation applications.
