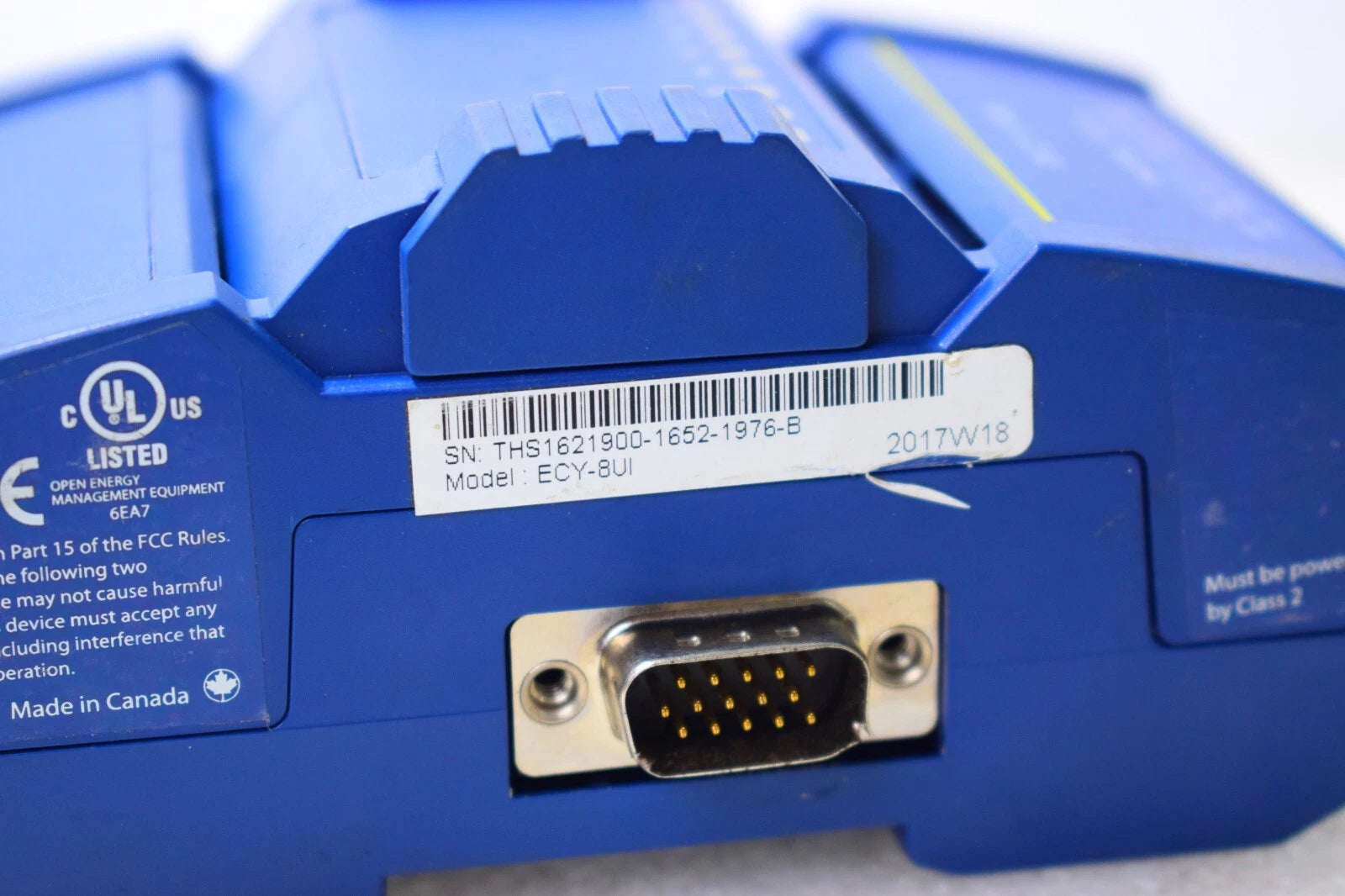

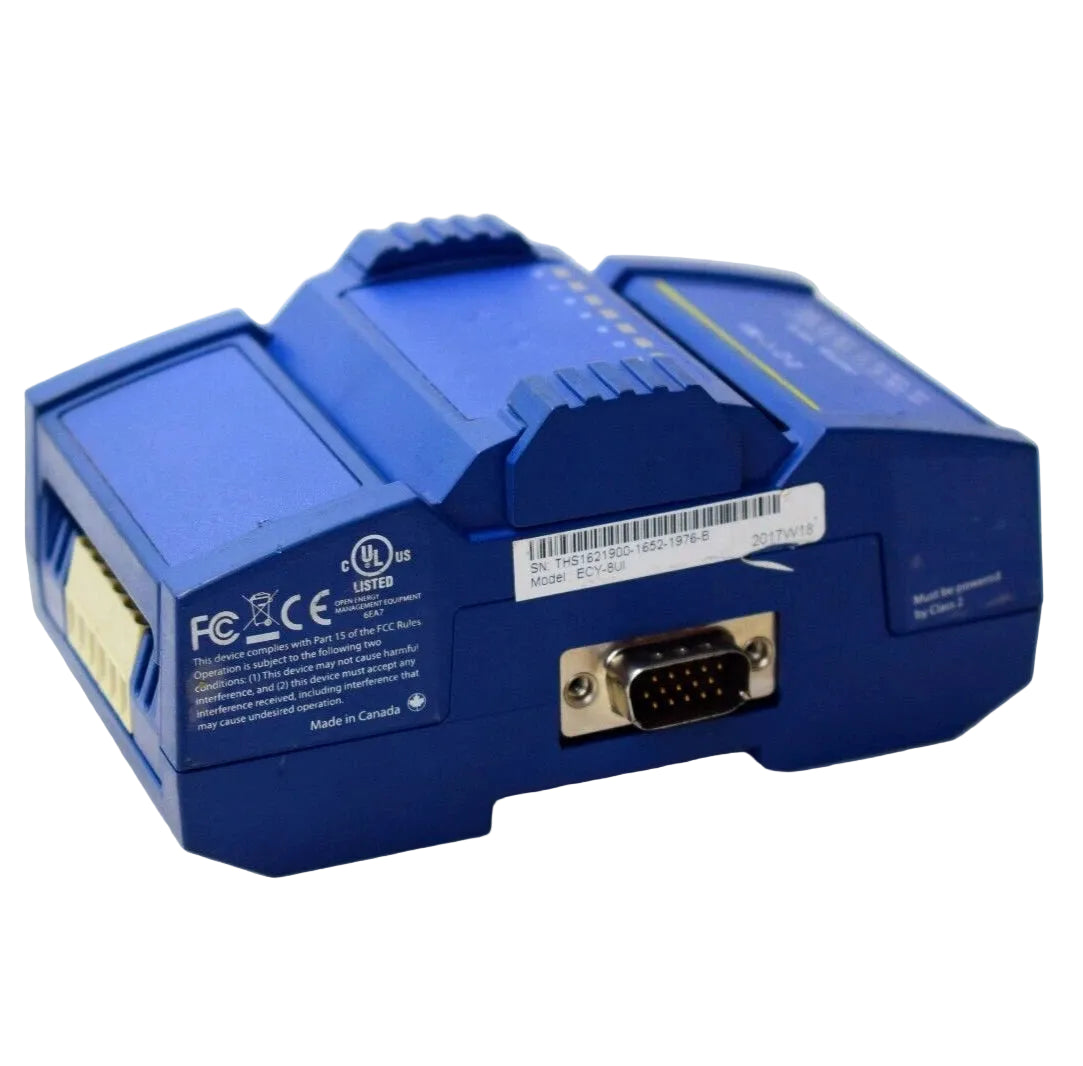

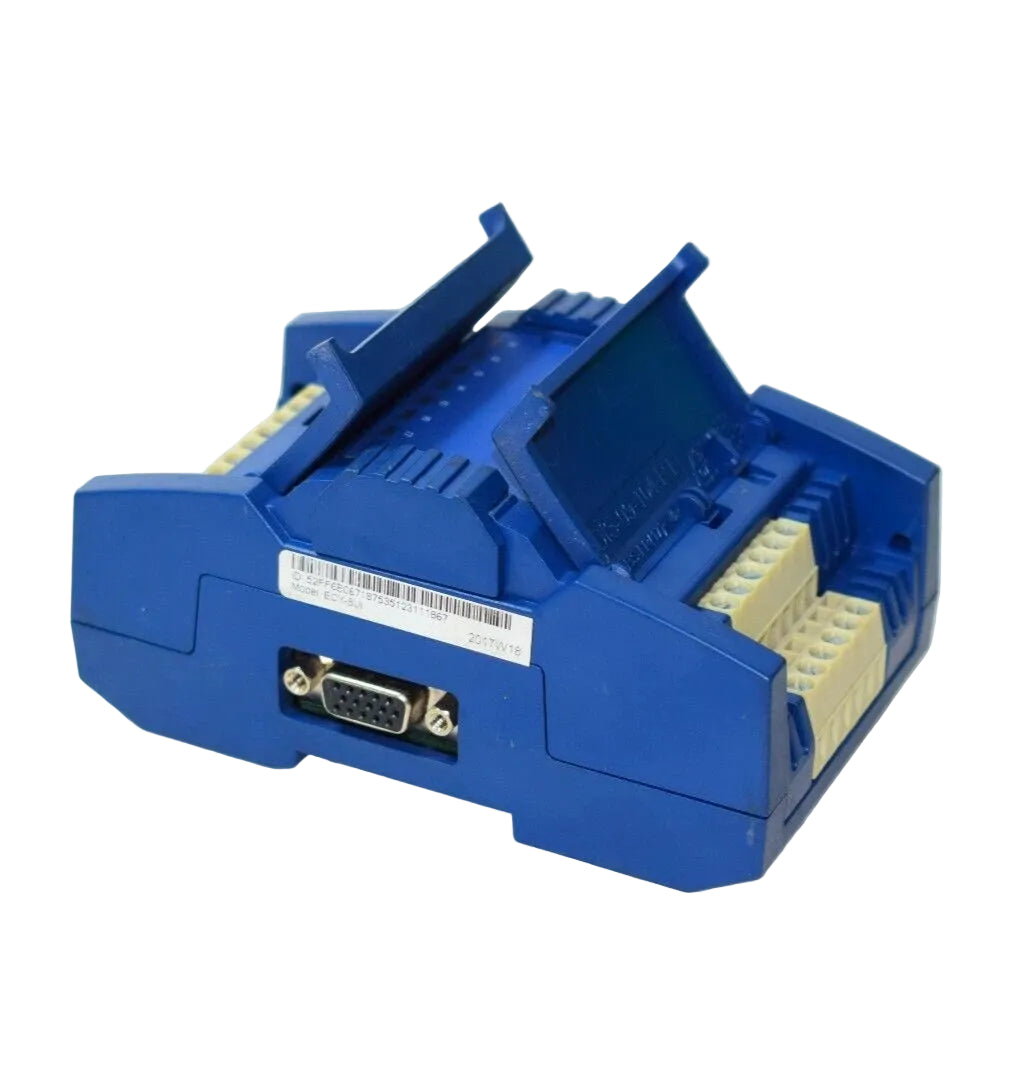

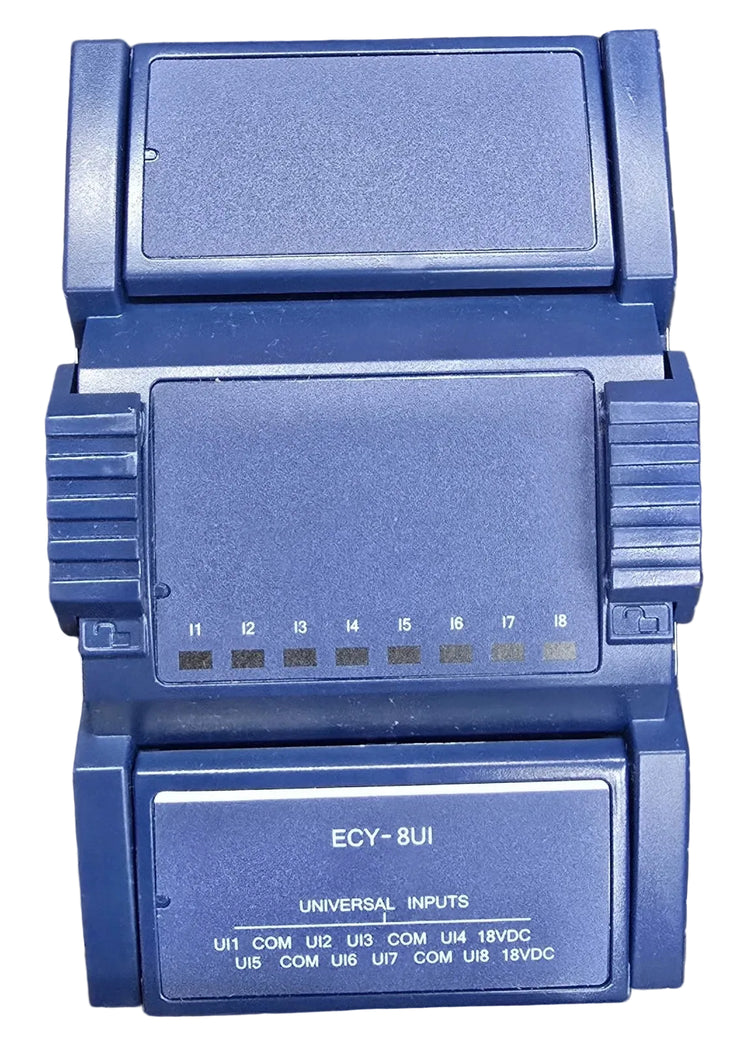

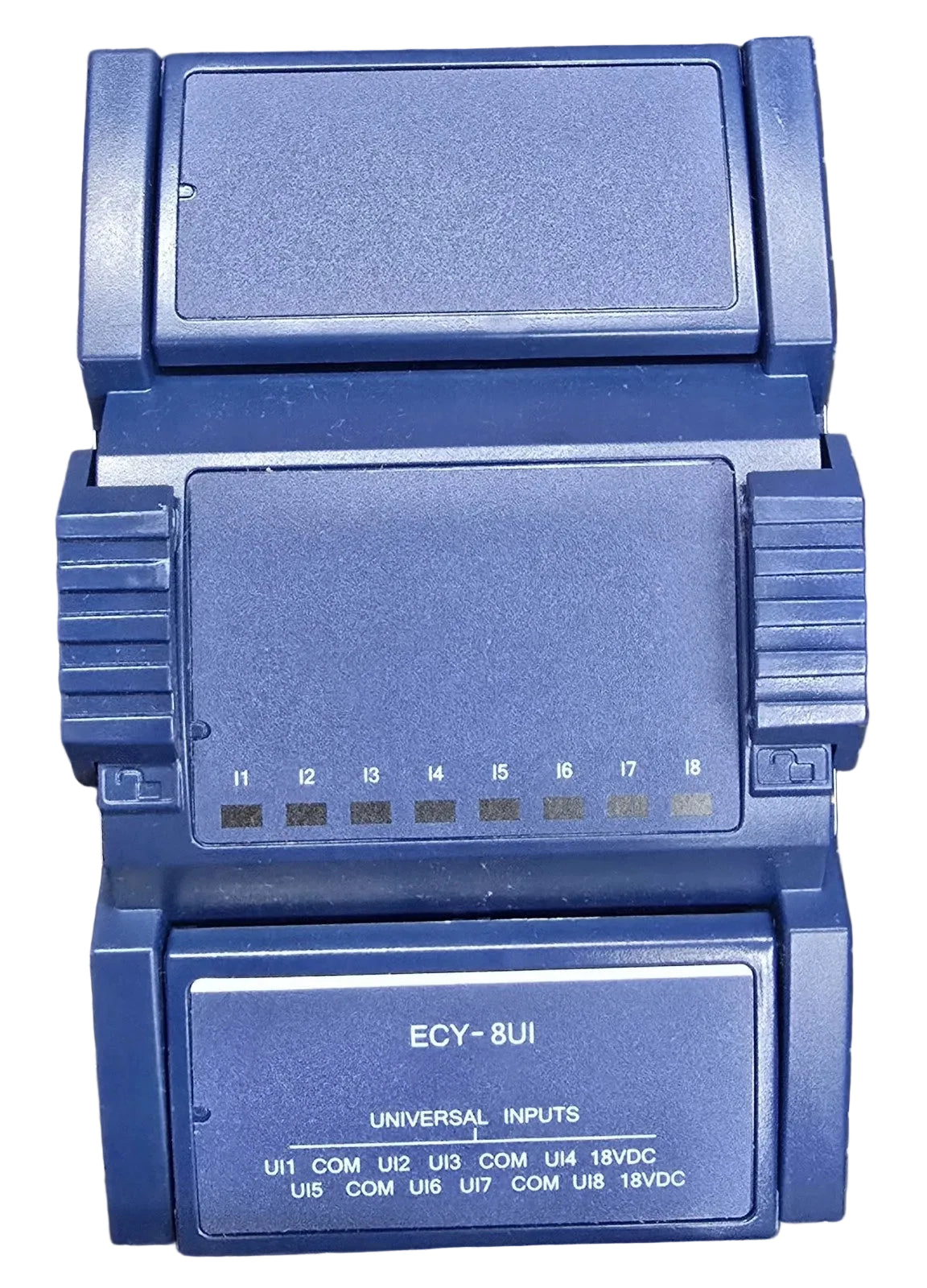

Distech Controls ECY-8UI Eight Universal Input Expansion Module for Eclypse Connected System Controllers
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECY-8UI
Description
The Distech Controls ECY-8UI is an eight-point universal input expansion module designed to increase the input capacity of Eclypse Connected System Controllers in commercial building automation systems. It supports multiple sensor input types, including temperature, voltage, resistance, current, and dry contacts, allowing flexible integration with HVAC equipment. The module provides reliable input expansion while maintaining seamless communication with the host controller.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Controls & Indicators |
| Part Number | ECY-8UI |
| Subcategory | Power Controller |
| Product Type | Universal Input Expansion Module |
| Series | ECY I/O Module Series |
| Manufacturer Status | Discontinued by Manufacturer |
| Universal Inputs | 8 |
| Outputs | None |
| Supply Voltage | 18 VDC |
| Power Consumption | 0.94 W |
| Status Indicators | Green LED Indicators |
| Input Current Support | 0–20 mA |
| Dry Contact Support | Yes |
| Hot Swappable | Yes |
| Enclosure Rating | NEMA 1 |
| Compatible Controllers | Eclypse Connected System Controllers |
| Typical Applications | Commercial HVAC and Building Automation Systems |
| Weight | 0.23 kgs |
Information About ECY-8UI
The ECY-8UI is part of the Distech Controls ECY I/O Module Series developed for the Eclypse Connected System Controller platform. It provides eight configurable universal inputs without onboard outputs, making it suitable for projects requiring additional sensing capacity while preserving controller resources. The module operates from an 18 VDC supply, features hot-swappable installation for simplified maintenance, and includes green LED status indicators for quick diagnostics. Its configurable universal inputs support thermistors, resistance sensors, voltage, current loops, counters, pulse inputs, and dry contacts, making it adaptable to a wide range of commercial HVAC and building automation applications.
Key Features:
- Eight Universal Inputs: Expands controller capacity with eight configurable universal input channels.
- Multiple Input Types: Supports thermistors, resistance, voltage, current, counters, pulse inputs, and dry contacts.
- Hot-Swappable Design: Allows module replacement or installation with minimal system downtime.
- Green LED Indicators: Provides clear visual indication of module and input operating status.
- Low Power Consumption: Operates using only 0.94 W from an 18 VDC supply.
- Connected Controller Compatibility: Designed for seamless integration with Eclypse Connected System Controllers.
- Flexible Current Inputs: Supports 0–20 mA sensing through configurable onboard settings.
- Commercial HVAC Integration: Suitable for monitoring sensors throughout building automation systems.
The ECY-8UI delivers the reliability and precision required for expanding HVAC monitoring and commercial building automation input capacity.
