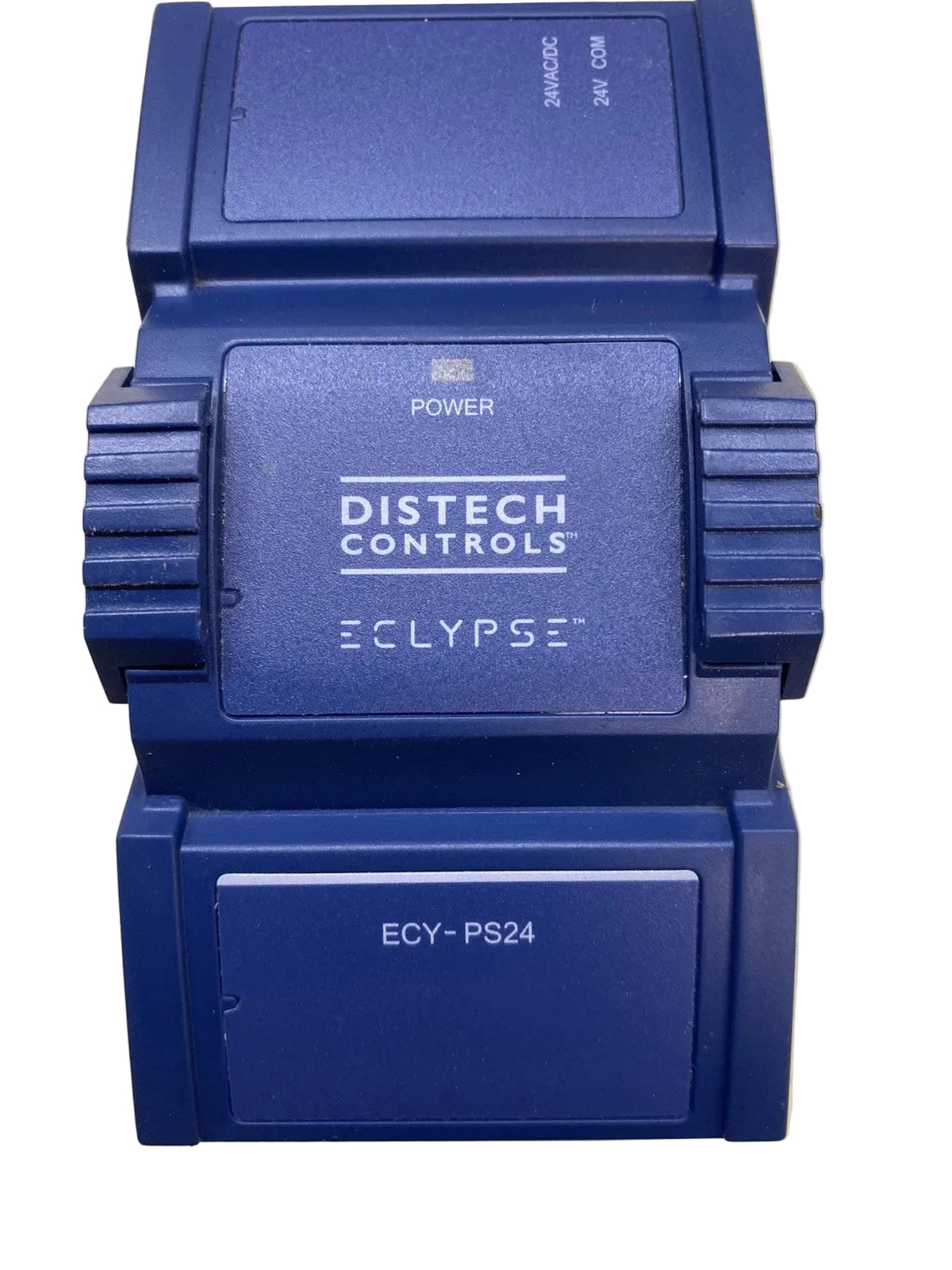

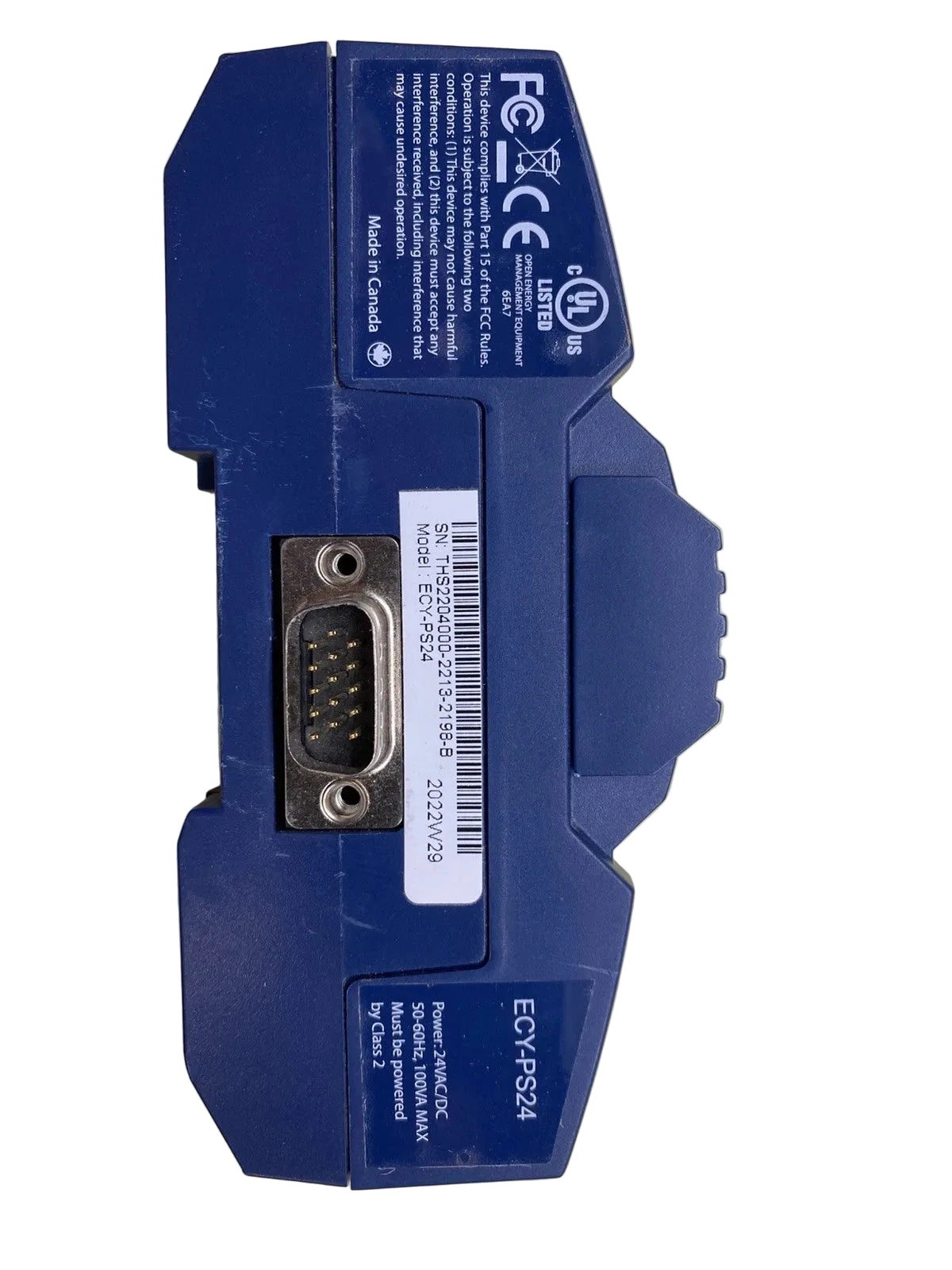

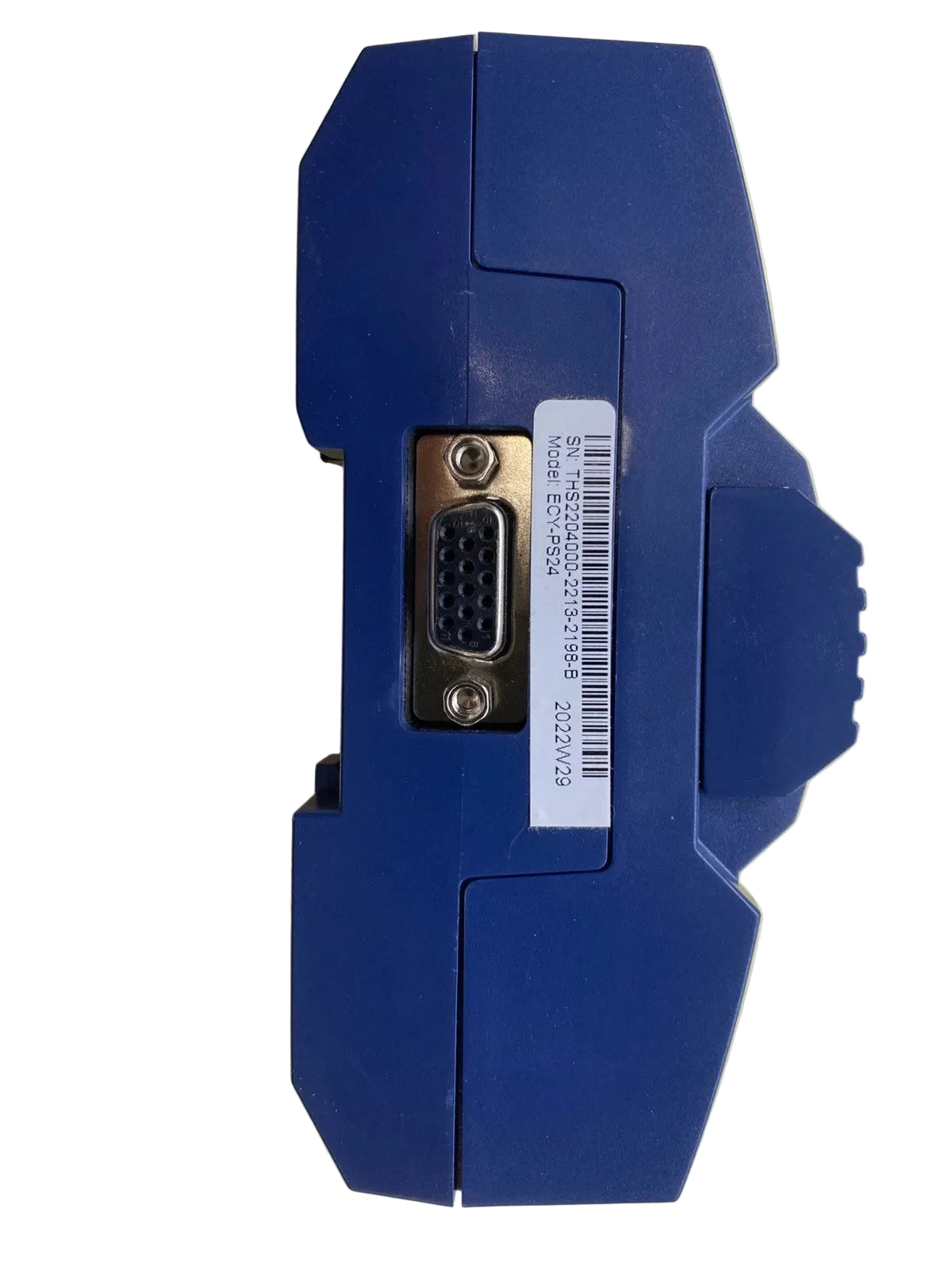

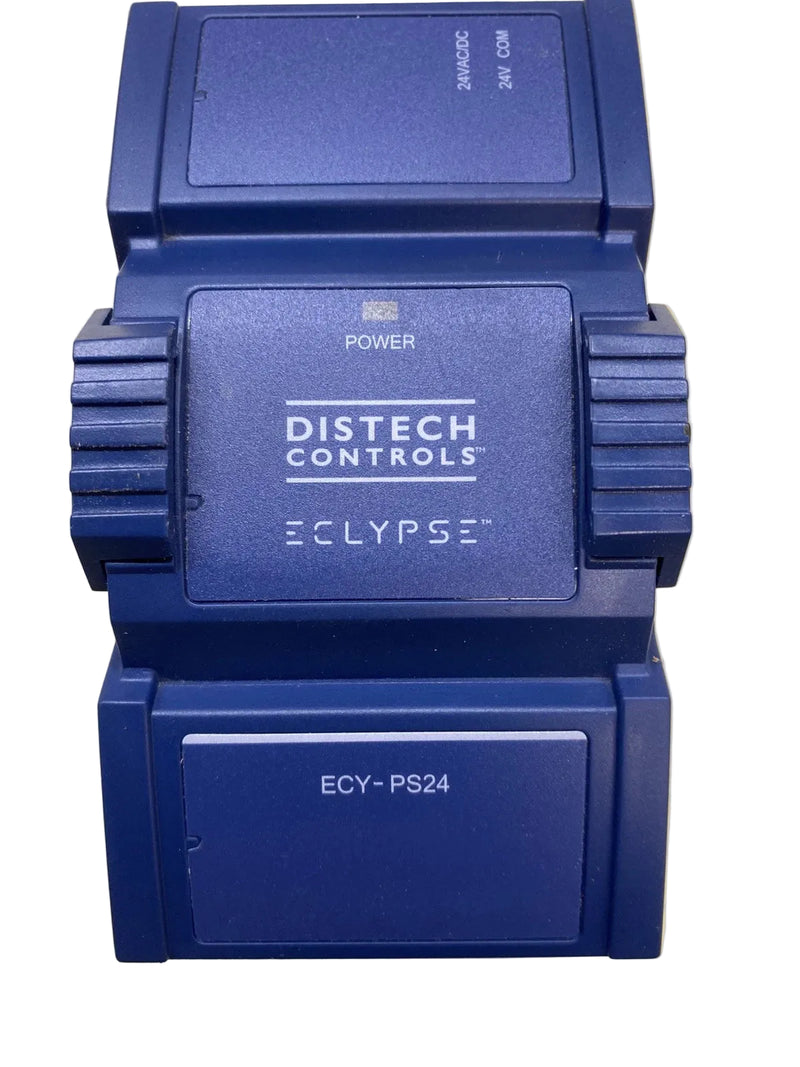

Distech Controls ECY-PS24 24 VAC/DC Power Supply Module for Eclypse Connected System Controllers
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECY-PS24
Description
The Distech Controls ECY-PS24 is a regulated 24 VAC/DC power supply module designed to provide stable power distribution for Eclypse Connected System Controllers and I/O expansion modules. It delivers dependable operating power while simplifying installation through DIN rail or screw mounting options. The module is intended for commercial HVAC and building automation systems requiring reliable Class 2 power distribution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Power Supplies |
| Part Number | ECY-PS24 |
| Subcategory | Power Supply |
| Product Type | Power Supply Module |
| Series | ECY-PS Series |
| Input Voltage | 24 VAC/DC ±15%, Class 2 |
| Input Frequency | 50/60 Hz |
| Maximum Transformer Rating | 100 VA |
| Input Power Consumption | 60 VA |
| Output Voltage | Regulated 18 VDC |
| Maximum Output Current | 1.6 A |
| Rated Output Power | 30 W |
| Overcurrent Protection | Field-Replaceable 4 A Fast-Acting Fuse |
| Status Indicator | Green Power LED |
| Communication Bus | Integrated Backplane Pass-Through |
| Mounting | DIN Rail or Screw Mount |
| Enclosure Rating | IP20, NEMA 1 |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Weight | 0.30 kgs |
Information About ECY-PS24
The ECY-PS24 is part of the Distech Controls ECY-PS Power Supply Series developed specifically for Eclypse building automation platforms. It accepts a 24 VAC/DC Class 2 input and generates a regulated 18 VDC output to power controllers and connected expansion modules through the integrated backplane bus. The module incorporates a field-replaceable fuse, green power status LED, and pass-through data and control bus connections to simplify installation and maintenance. Its compact FR/ABS enclosure, DIN rail mounting capability, and IP20-rated construction make it suitable for commercial control panels and equipment cabinets.
Key Features:
- Regulated Power Supply: Provides stable regulated power for Eclypse controllers and expansion modules.
- 24 VAC/DC Input: Accepts Class 2 24 VAC/DC power with a ±15% input range.
- 18 VDC Output: Delivers regulated 18 VDC output for connected system modules.
- DIN Rail Mounting: Supports fast installation using DIN rail or screw mounting methods.
- Field-Replaceable Fuse: Includes overcurrent protection with an easily replaceable fast-acting fuse.
- Integrated Backplane Bus: Passes power, data, and control signals to adjacent connected modules.
- LED Status Indicator: Green LED provides immediate confirmation of power status.
- Industrial Construction: FR/ABS enclosure with UL94-V0 flammability rating and IP20 protection.
The ECY-PS24 delivers the reliability and precision required for powering commercial HVAC building automation controllers and expansion modules.
