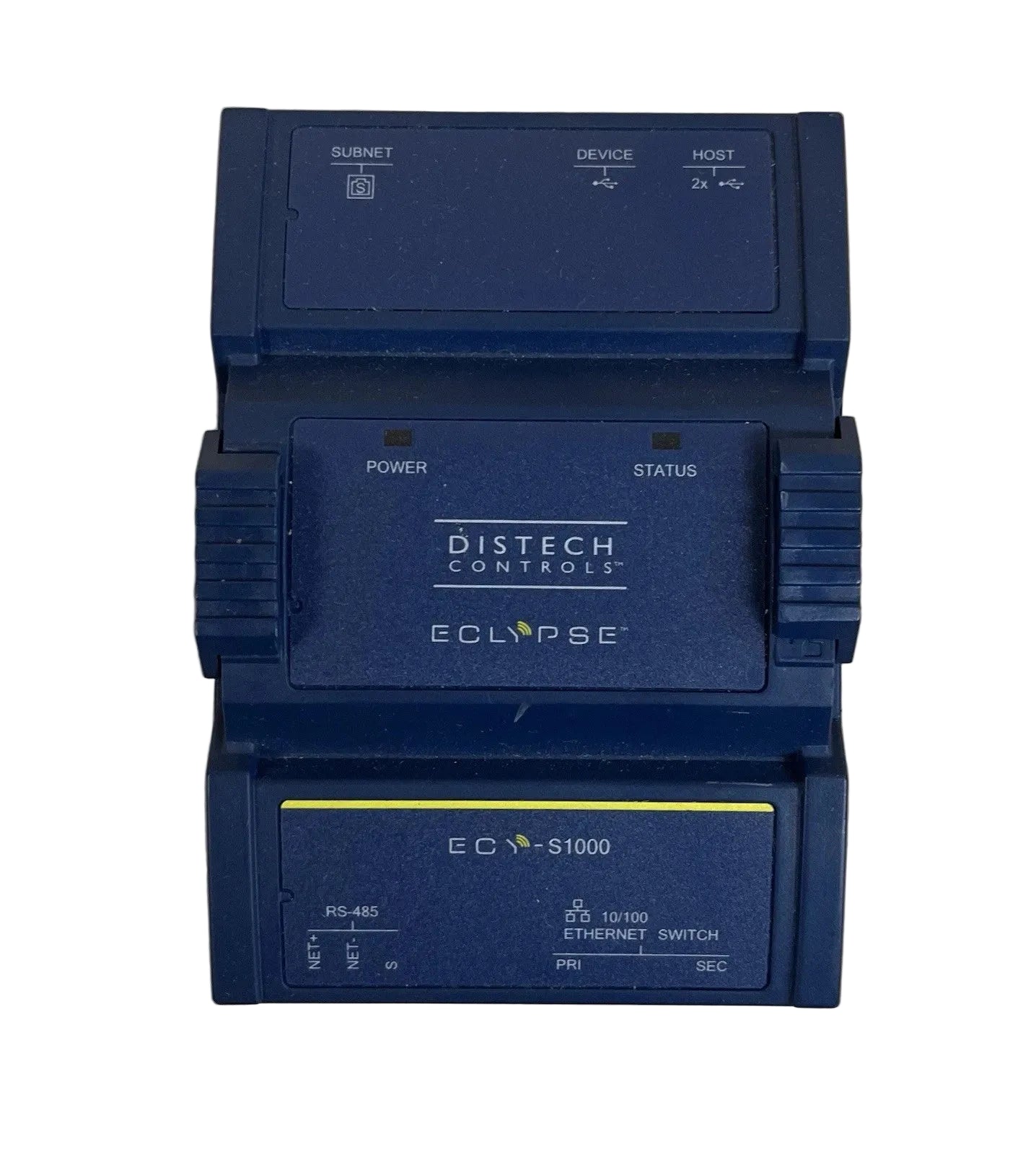

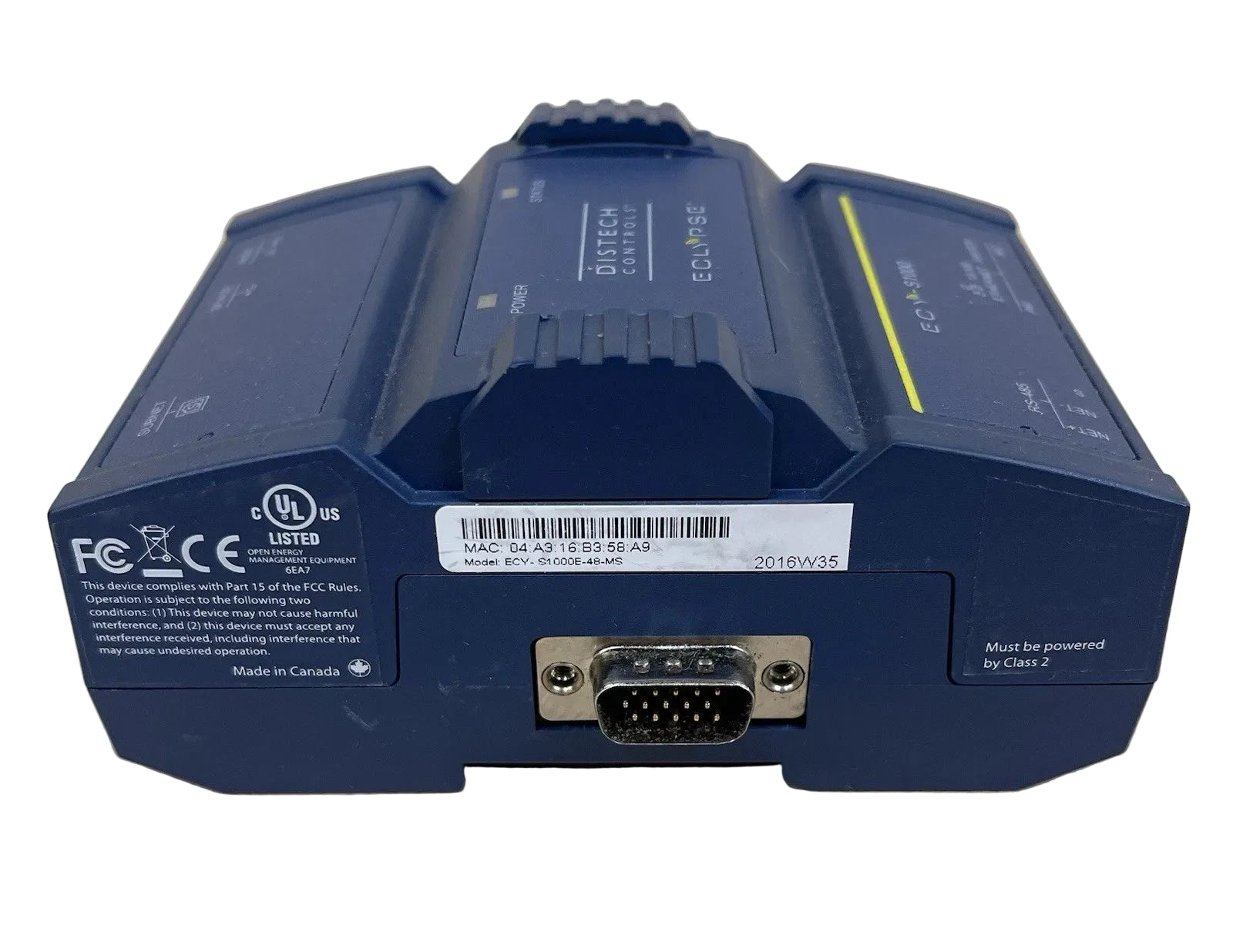

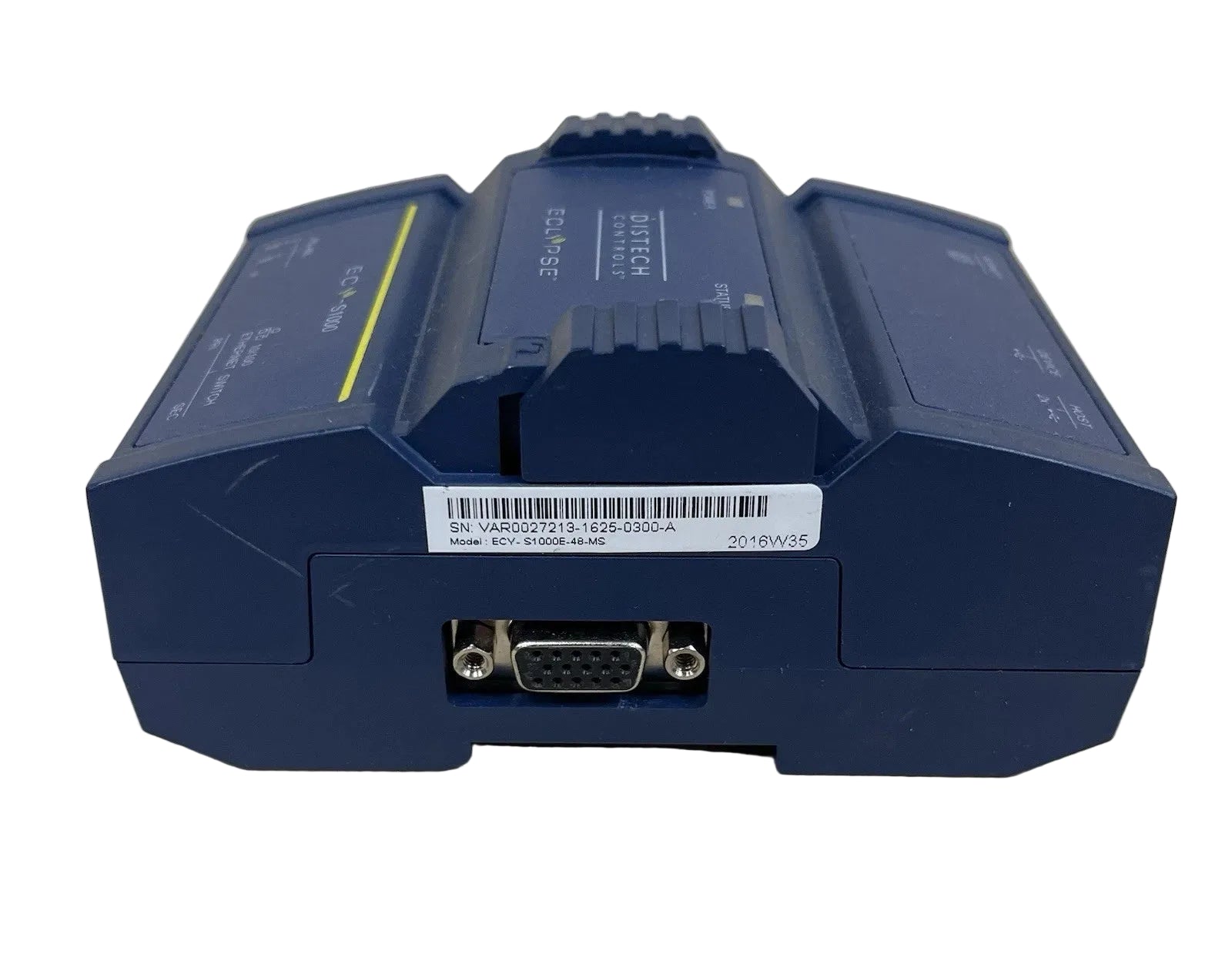

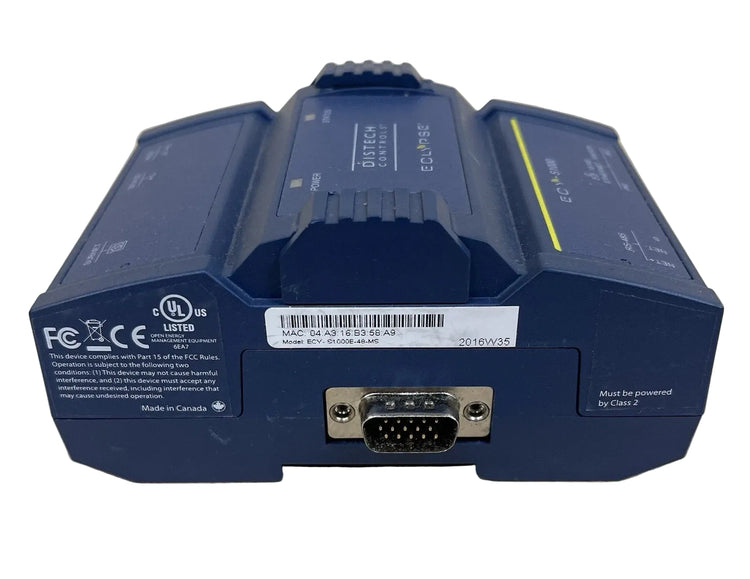

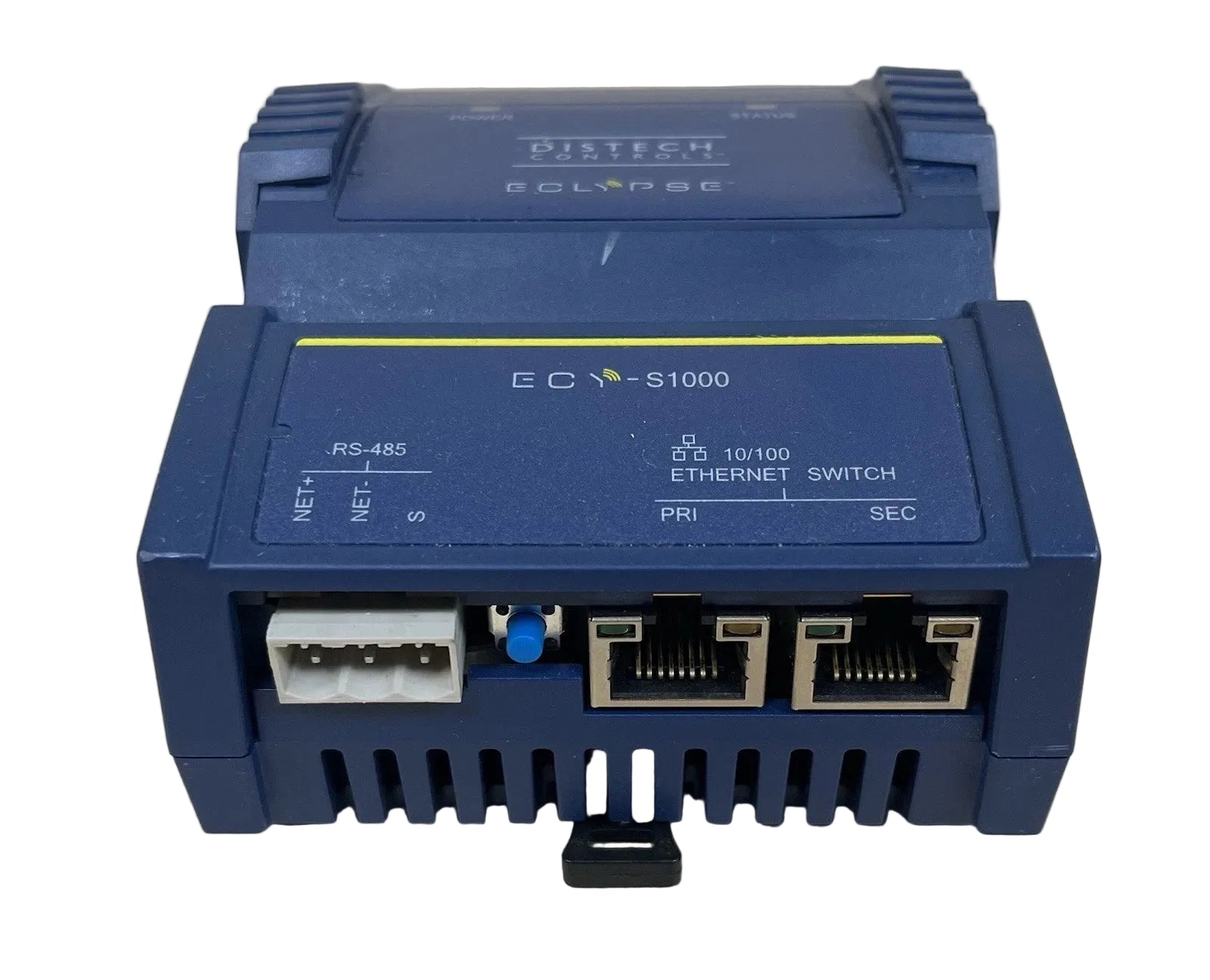

Distech Controls ECY-S1000E Eclypse Supervisory Controller with BACnet/IP and Modbus Communication
- Regular price
- $627.00
- Sale price
- $627.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECY-S1000E
Description
The Distech Controls ECY-S1000E is a high-performance programmable system controller designed for centralized building automation and energy management applications. As part of the Eclypse™ Series, the ECY-S1000E integrates BACnet/IP, BACnet MS/TP, Modbus TCP, and Modbus RTU communications into a single platform, providing scalable supervision and control for commercial and industrial HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Building Automation |
| Part Number | ECY-S1000E |
| Subcategory | Supervisory System Controller |
| Series | Eclypse™ |
| Product Type | Programmable Supervisory Controller |
| Power Supply | 18 VDC |
| Power Consumption | 8.9 W |
| Communication Protocols | BACnet/IP, BACnet MS/TP, Modbus RTU, Modbus TCP |
| Ethernet Ports | 10/100 Mbps Ethernet |
| Serial Ports | RS-485 |
| Licensed I/O Capacity | Up to 320 I/O Points |
| Built-in I/O | 20 Points |
| Expansion Support | Up to 20 ECY I/O Expansion Modules |
| Maximum Modbus Devices | 96 (Up to 32 per RS-485 Trunk) |
| Maximum BACnet MS/TP Devices | Up to 50 Devices per Trunk |
| Real-Time Clock | Integrated |
| Web Services | Open to Web Services |
| Wireless Support | Wired and Wireless Network Connectivity |
| Compatible Sensors | Distech Allure™ Communicating Sensors |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Mounting | DIN Rail |
| Certifications | UL 916, CE (EN61000-6-1, EN61000-6-3), FCC Part 15 Class B |
| Typical Applications | Central Plants, Data Centers, Commercial Buildings, Healthcare Facilities, Educational Campuses, Enterprise Building Automation |
| Weight | Approximately 0.9 kg |
Information About ECY-S1000E
The ECY-S1000E is a member of the Distech Controls Eclypse™ controller family, developed to serve as a supervisory controller for advanced building automation systems. It combines powerful processing capabilities with multi-protocol communication, allowing it to coordinate HVAC equipment, lighting, energy management devices, and smart room applications from a centralized platform. The controller supports up to 320 I/O points through expansion modules and can supervise multiple BACnet and Modbus networks simultaneously, making it suitable for medium and large building automation projects. Featuring an integrated real-time clock, embedded web services, wireless connectivity support, and hot-swappable modular construction, the ECY-S1000E provides exceptional flexibility, reliability, and simplified commissioning.
Key Features:
- Eclypse™ supervisory controller: Designed for centralized building automation and energy management.
- Multi-protocol communication: Supports BACnet/IP, BACnet MS/TP, Modbus TCP, and Modbus RTU.
- Scalable I/O capacity: Licensed for up to 320 I/O points using expansion modules.
- Supervises multiple networks: Supports up to 96 Modbus devices and multiple BACnet MS/TP trunks.
- Integrated Ethernet connectivity: Enables high-speed IP communication and web-based management.
- Open to Web Services: Facilitates integration with enterprise and cloud-based applications.
- Smart Room Control support: Optimized for intelligent room automation systems.
- Allure™ sensor compatibility: Supports Distech Controls communicating room sensors.
- Real-Time Clock: Maintains schedules, trend logs, and time-based control strategies.
- Wireless connectivity support: Compatible with wired and wireless network architectures.
- Tool-less hot-swappable design: Simplifies installation, replacement, and maintenance.
- DIN rail mounting: Compact industrial design for control panel installation.
The ECY-S1000E delivers the reliability and precision required for enterprise-level building automation, HVAC supervision, and intelligent energy management systems.
