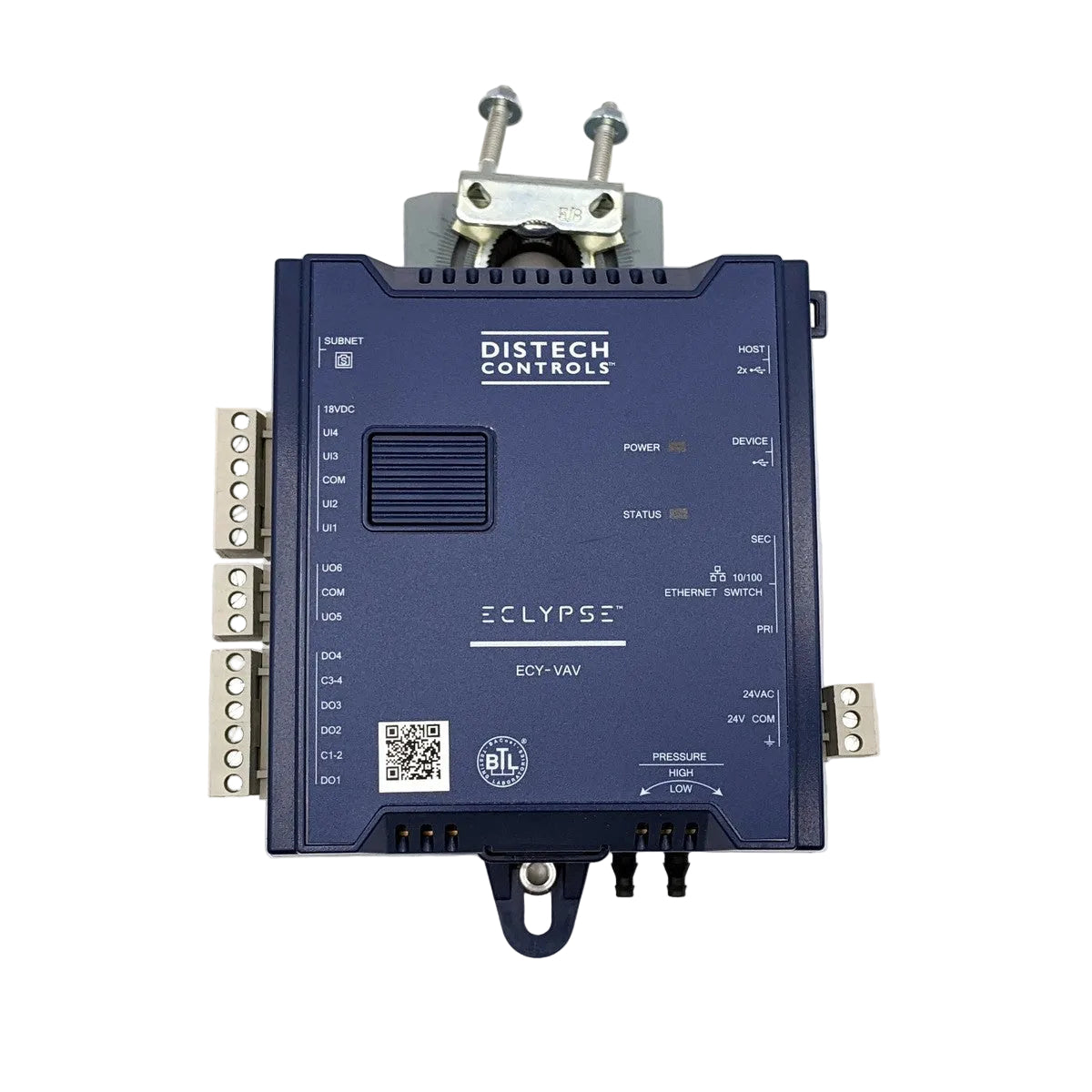

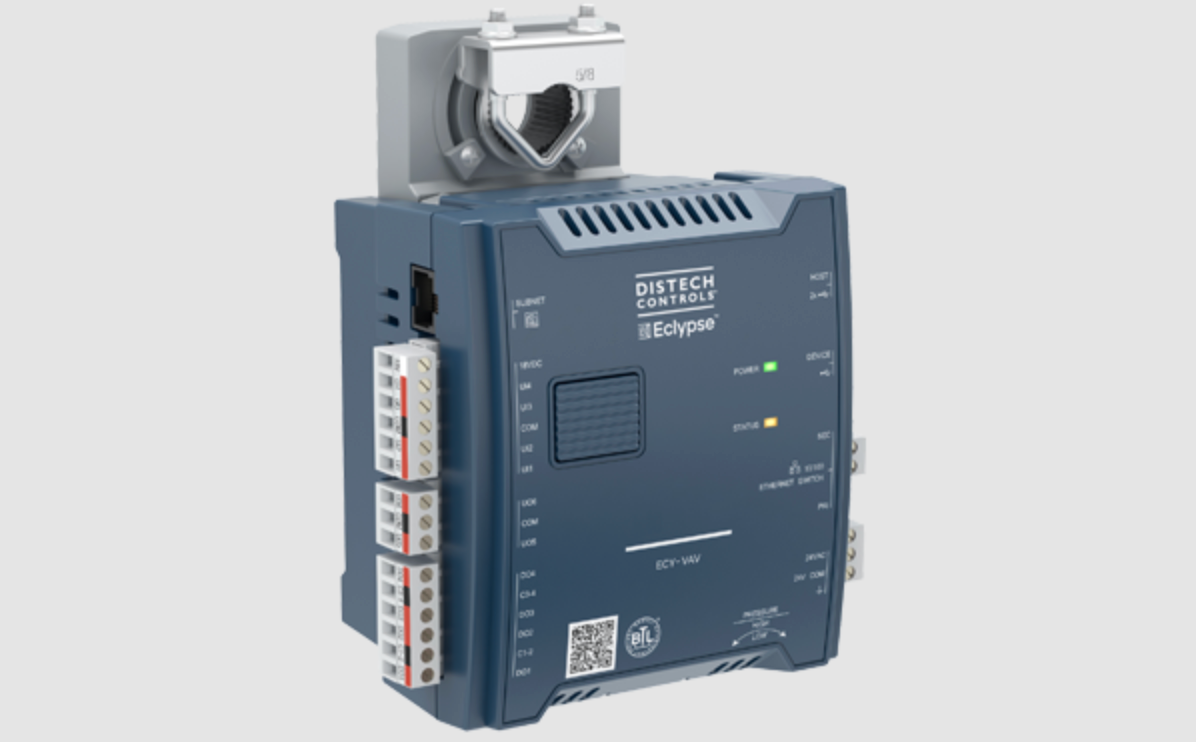

Distech Controls ECY-VAV ECLYPSE Connected Variable Air Volume Controller with Integrated Damper Actuator
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ECY-VAV
Description
The Distech Controls ECY-VAV is an ECLYPSE Connected Variable Air Volume (VAV) Controller designed to provide precise airflow and zone temperature control in commercial HVAC systems. It integrates an intelligent controller, built-in differential pressure sensor, and damper actuator into a single compact device, simplifying installation while supporting BACnet/IP communication. Although discontinued by the manufacturer, the ECY-VAV remains a reliable solution for maintaining existing ECLYPSE building automation installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Distech Controls |
| Category | Controls & Indicators |
| Part Number | ECY-VAV |
| Subcategory | Control |
| Product Type | Connected Variable Air Volume Controller |
| Series | ECLYPSE |
| Total I/O Points | 11 |
| Universal Inputs | 4 |
| Universal Outputs | 2 |
| Digital Outputs | 4 Triac Outputs |
| Auxiliary Output | 18 VDC |
| Integrated Actuator | Brushless Damper Actuator |
| Integrated Sensor | Differential Pressure / Flow Sensor |
| Communication Protocol | BACnet/IP |
| Embedded Web Server | Yes |
| Power Supply | 24 VAC/DC or Power over Ethernet (model dependent) |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.91 kg |
Information About ECY-VAV
The ECY-VAV is part of the Distech Controls ECLYPSE Series of Connected VAV Controllers developed for intelligent building automation and energy-efficient airflow management. It features an embedded web server, integrated visualization interface, scheduling, alarm management, and trend logging, allowing direct browser-based access without additional software. The controller includes an integrated brushless damper actuator, built-in airflow sensor, and eleven onboard I/O points to support cooling-only, cooling with reheat, dual-duct, parallel fan, and series fan VAV applications. Its BACnet Building Controller (B-BC) certification and IP-based architecture make it suitable for offices, hospitals, schools, retail facilities, and other commercial buildings.
Key Features:
- Integrated VAV Controller: Combines controller, airflow sensor, and damper actuator into one assembly.
- Eleven I/O Points: Includes 4 universal inputs, 2 universal outputs, 4 digital outputs, and an 18 VDC auxiliary output.
- Built-In Damper Actuator: Features a brushless DC actuator for accurate and reliable airflow control.
- Embedded Web Server: Enables browser-based configuration, diagnostics, scheduling, and monitoring.
- BACnet/IP Communication: Supports open-system integration as a BACnet Building Controller.
- Integrated Flow Sensor: Provides polarity-free differential pressure measurement for accurate airflow balancing.
- Embedded Applications: Includes configurable applications for multiple Variable Air Volume system types.
- Energy-Efficient Design: Optimizes zone comfort while supporting efficient HVAC operation.
The ECY-VAV delivers the reliability and precision required for intelligent Variable Air Volume control in commercial HVAC and building automation systems.
