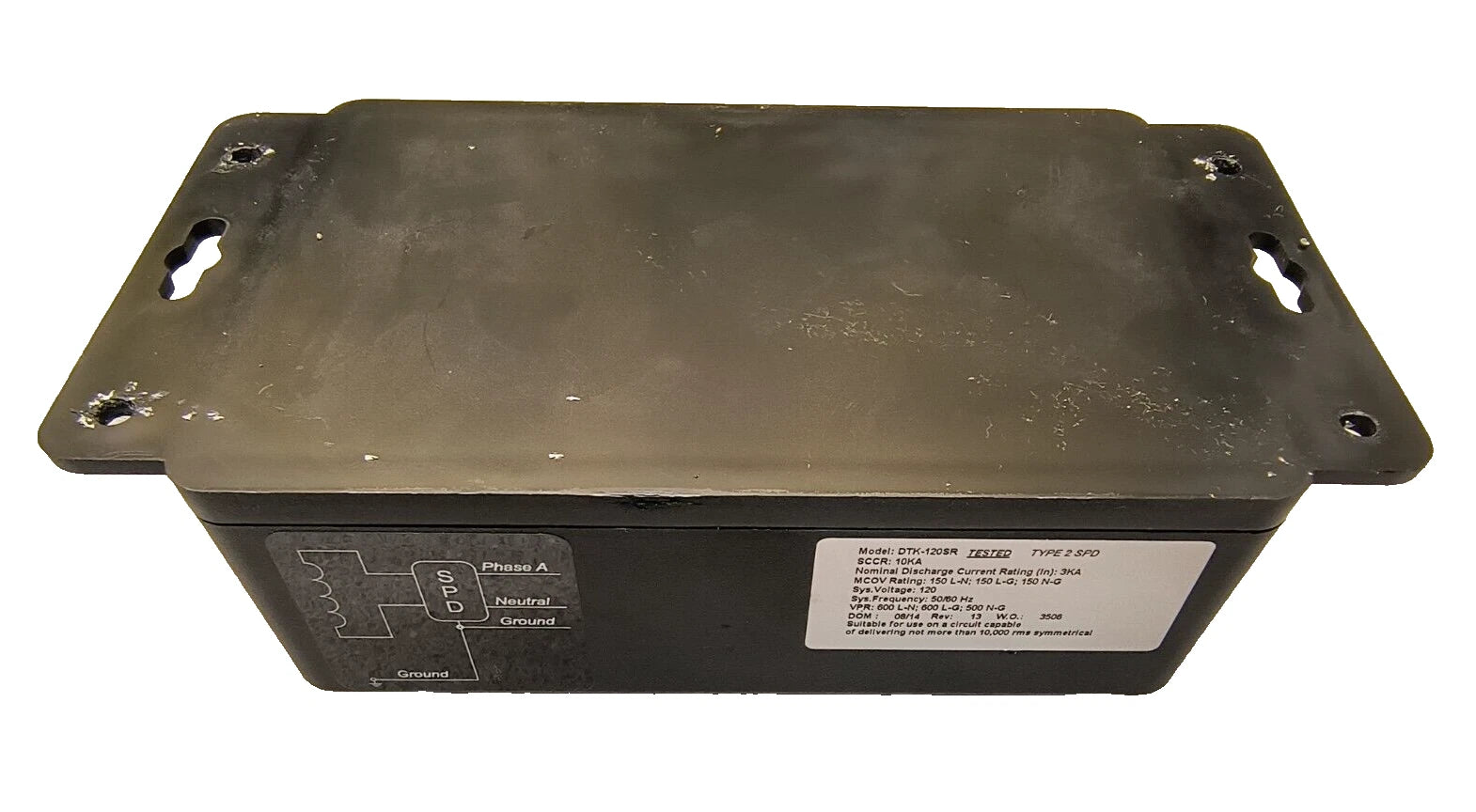

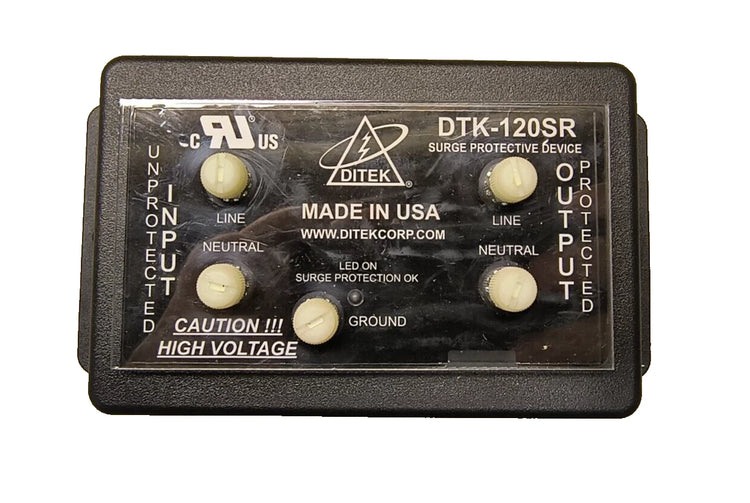

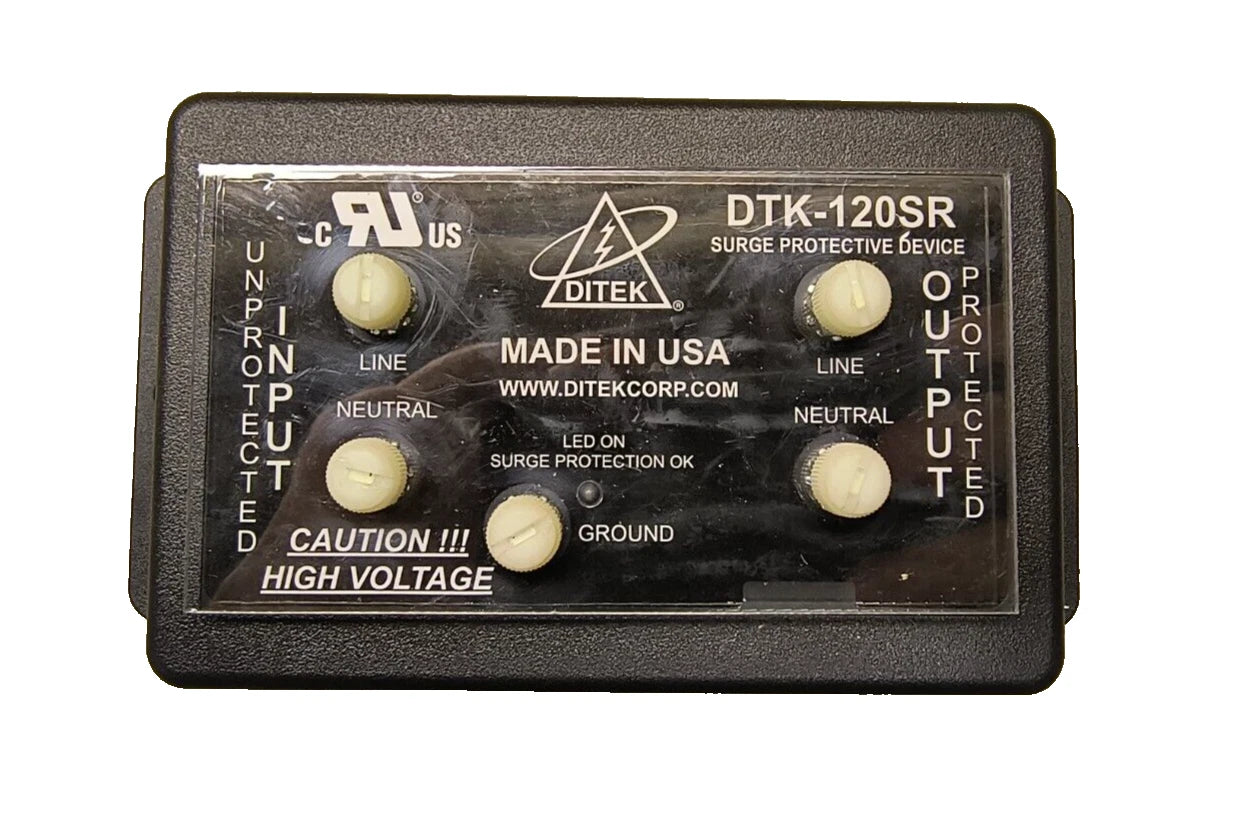

DTK-120SR | Ditek 54kA Series Connected Surge Protector
- Regular price
- $85.00
- Sale price
- $85.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DTK-120SR
Description
Ditek DTK-120SR 120V - 20A Series Hybrid w/EMI/RFI Filtering, UL SPD Type 2 recognized component, 54kA Amps/Phase, SCCR: 10kA, 3kA (In)
Technical Specifications
| Brand | Ditek |
| Protector Type | Type 2 Component Assembly for use in Type 2 Applications |
| Part Number | DTK-120SR |
| Nominal Discharge Current Rating (In) | 3kA |
| SCCR | 10kA |
| Operating Voltage | 120VAC |
| MCOV | 150VAC |
| Peak Surge Current | 54,000 Amps |
| Maximum Continuous Current | 20A |
| EMI/RFI Attenuation | Up to 35dB, 100kHz-100MHz |
| Protection Modes | All modes (L-N, L-G, N-G) |
| Voltage Protection Rating | 600V |
| Temperature Range | 32F 104F (0C - 40C) |
| Dimensions | 6.87 x 3.50 x 2.50 (174.50 mm x 88.90 mm x 63.50 mm) |
| Housing | ABS |
Information About DTK-120SR
The DTK-120SR ‘Critical Load’ surge protector from DITEK is a true multi-stage series hybrid design which provides the best filtering and lowest clamp levels in its class. Designed for critical 120V circuits, it meets both government and military specs for fire panel applications. 120V, 20A series connected surge protector. It protects 120V power on electrical circuits and control panels. The hybrid series design provides maximum critical load protection, with EMI/RFI filtering. The 120SR is ideal for use in UL Listed control panels where a UL Recognized Component is required for control panel certification.
Features
Compact design fits in a variety of control panels
Suitable for use on circuit breakers rated at 10kA AIC
Multi-stage hybrid circuit design
EMI/RFI filtering
LED indicates protection status
UL1449 3rd Edition Recognized component
