DM362X | Cognex DataMan 360 Series Barcode Reader
- Regular price
- $3,199.00
- Sale price
- $3,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DM362X
Description

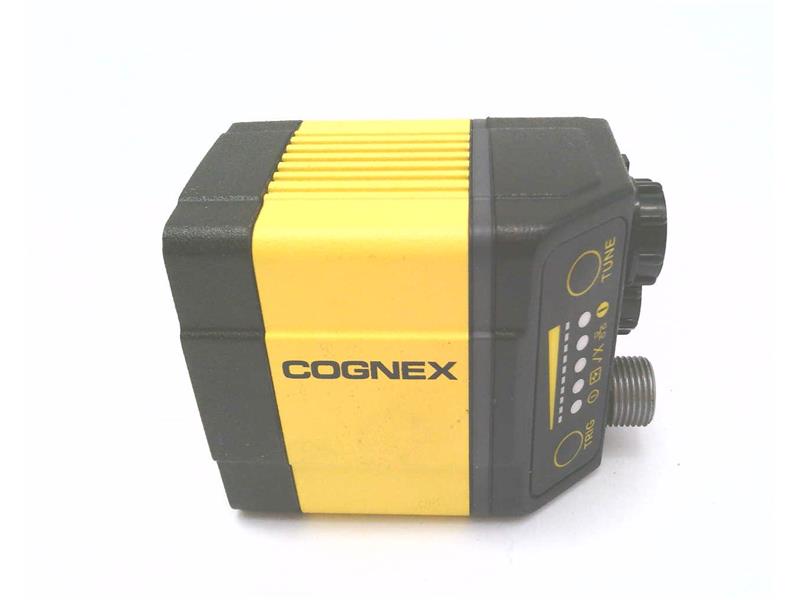

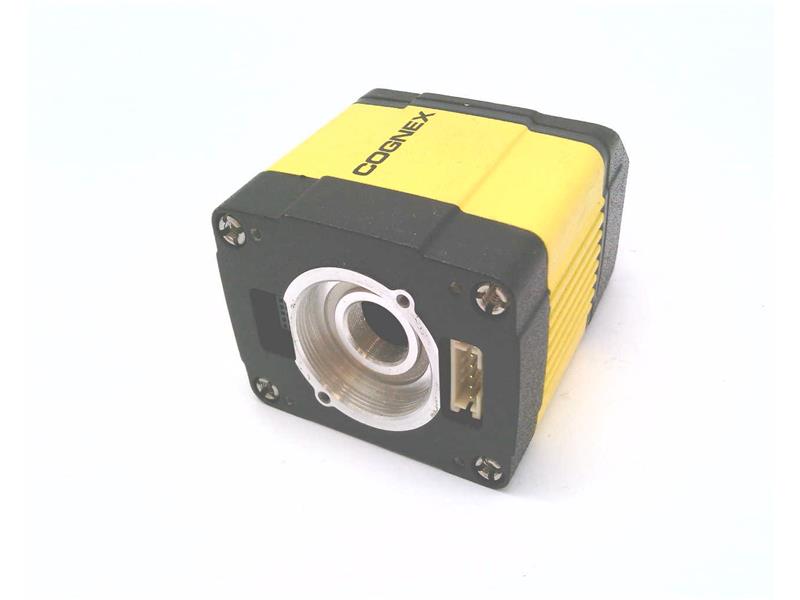

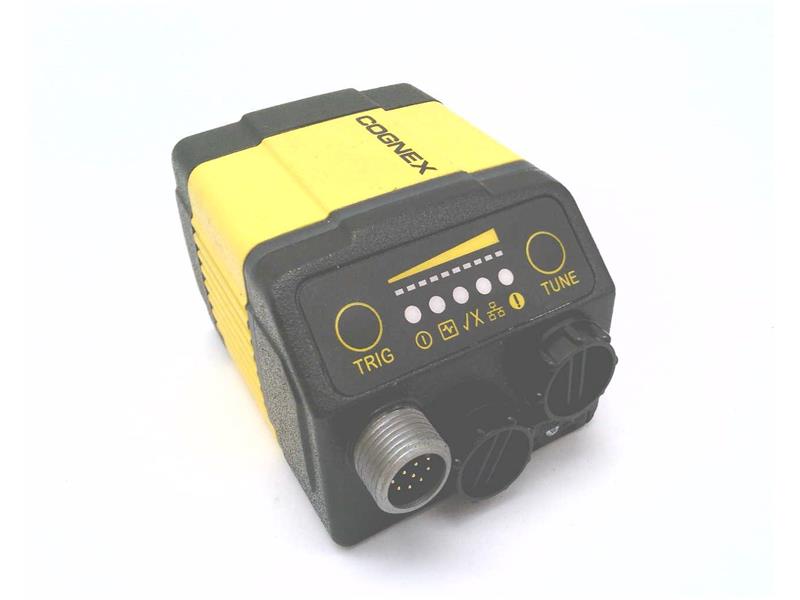

The Cognex DM362X is a fixed-mount barcode reader from the DataMan 360 series, designed for high-performance industrial barcode reading applications. It supports decoding of 1D linear, stacked, and 2D barcodes, making it suitable for complex tracking and traceability operations in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Vision Systems
|
| Part Number | DM362X |
| Subcategory | Smart Image-Based Scanners |
| Series | DataMan 360 Series |
| Sensor Type | 1/1.8" CMOS |
| Resolution | 1280 x 1024 pixels |
| Pixel Size | 5.3 µm |
| Frame Rate | Up to 60 frames per second |
| Barcode Support | 1D, stacked, 2D (including DataMatrix, QR, etc.) |
| Protection Rating | IP65 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Humidity | < 95% non-condensing |
| Communication | 10/100 Mbps Ethernet, full/half duplex |
| Light Connector Load | Up to 1.05 A average |
| Weight | 165 g |
Information About DM362X
The DM362X is a discontinued model in the Cognex DataMan product family, but it remains a capable barcode scanner with integrated PowerGrid™ technology for reading degraded or distorted codes. It features a 1/1.8" CMOS sensor with 1280 x 1024 resolution and a pixel size of 5.3 µm, capturing high-detail images at up to 60 frames per second. The device offers full and half-duplex 10/100 Ethernet communication and withstands industrial environments with its IP65-rated enclosure. Its lightweight 165 g design, broad code support, and high-speed image acquisition made it ideal for integration in automated production lines and inspection systems.
Key Features:
- High-Resolution Imaging: 1.3 MP sensor (1280 x 1024) with 5.3 µm pixels for crisp barcode capture.
- PowerGrid™ Technology: Enables robust reading of damaged or poorly printed codes.
- Code Compatibility: Supports 1D linear, stacked, and 2D barcode types including DataMatrix and QR.
- Fast Frame Rate: Captures up to 60 images per second for rapid scanning and decoding.
- Compact and Lightweight: Weighs only 165 grams for easy mounting in space-constrained areas.
- Industrial Protection: Rated IP65 for dust and water resistance in harsh environments.
- Ethernet Communication: 10/100 Mbps with support for both full and half-duplex modes.
- Reliable in Variable Conditions: Performs reliably in temperatures from 0°C to 40°C, with humidity up to 95%.
The DM362X provided high-speed, high-resolution barcode scanning capabilities in a rugged, IP65-rated housing designed for fixed industrial applications.
