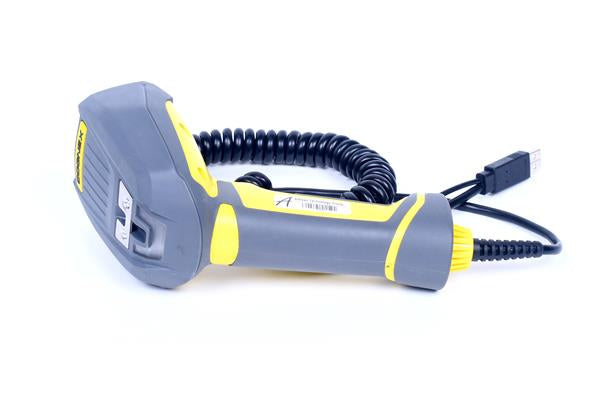

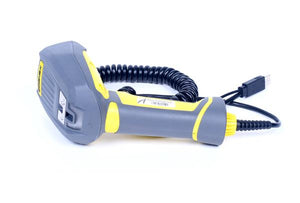

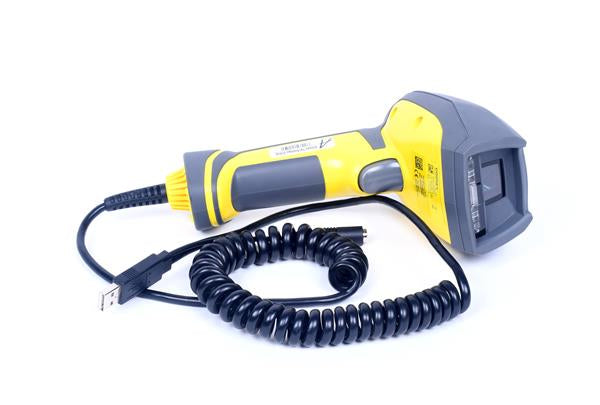

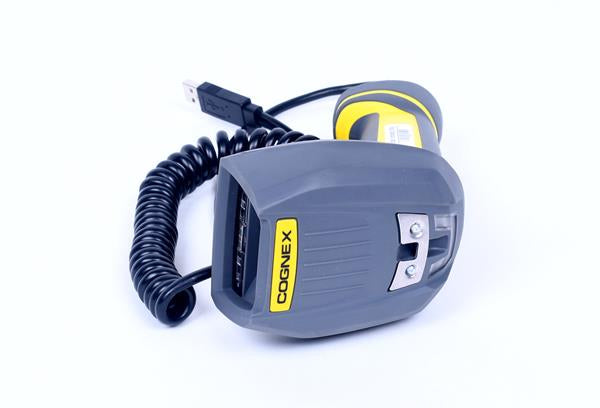

DM8050X | Cognex Handheld Barcode Reader
- Regular price
- $1,100.00
- Sale price
- $1,100.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DM8050X
Description
The Cognex DataMan DM8050X is a rugged handheld barcode reader equipped to tackle the most demanding 1D and 2D barcode scanning applications. Designed for industrial environments, it combines exceptional decoding performance with robust connectivity options including industrial Ethernet.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Vision Systems
|
| Part Number | DM8050X |
| Subcategory | Handheld Barcode Readers |
| Material | Polycarbonate with overmold |
| Imager | 752 x 480 global shutter sensor |
| Aiming | Centralized green LED aimer |
| Status Outputs | LED and beeper |
| Lighting | Integrated LED with near/far optics |
| Symbologies Supported | 1D: UPC, Code 128, Code 39, Codabar, PDF417, etc. 2D: DataMatrix, QR |
| Power Supply (Corded) | 5–6 V DC, 2.5 W max (LPS or NEC Class 2) |
| Power Supply (Ethernet) | PoE Class 2 |
| Power Supply (Bluetooth) | 3.7 V, 3100 mAh Li-ion |
| Environmental Rating | RoHS compliant |
| Electrical Certification | CE, CSA, UL 60950 |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Humidity | < 95% non-condensing |
| Dimensions | 210 mm x 115 mm x 85 mm |
| Weight | Corded: 279 g; Wireless: 330 g |
Information About DM8050X
The DM8050X barcode reader delivers unmatched flexibility with support for a broad range of communication protocols, including Ethernet/IP, PROFINET, and Modbus TCP. Its polycarbonate housing with overmold ensures resilience in harsh factory environments, while its advanced imaging system—featuring a 752 x 480 global shutter sensor and green LED aimer—guarantees precise, high-speed scanning. With status feedback via LED and beeper, and compliance to RoHS and major electrical standards, this device ensures both performance and safety. Whether you require serial, USB, Bluetooth, or Wi-Fi connectivity, the DataMan 8050X adapts to your infrastructure.
Key Features:
- Advanced Barcode Decoding: 1DMax+ and Hotbars algorithms decode damaged, low-contrast, or DPM barcodes with speed and precision.
- Robust Communication: Supports RS-232, USB, Industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP), Wi-Fi, and Bluetooth.
- Versatile Imaging: Global shutter sensor (752 x 480 px) with bright field illumination and centralized green LED aimer.
- Rugged Construction: Durable polycarbonate housing with overmold, IP-rated for industrial environments.
- User Feedback: Audible beeper and LED status indicators ensure operator confirmation.
- Flexible Power Options: PoE, LPS, NEC Class 2 power supply compatibility, and Li-ion battery for wireless use.
- Data Validation: Supports GS1, ISO15434, ISO15418, and US DoD UID guidelines.
- Plug-and-Play Setup: Compatible with Windows XP, 7, and 8; requires In-Sight Explorer or DataMan software.
The DM8050X is a premium choice for industrial barcode reading where accuracy, speed, and durability are paramount.
Description
The Cognex DataMan DM8050X is a rugged handheld barcode reader equipped to tackle the most demanding 1D and 2D barcode scanning applications. Designed for industrial environments, it combines exceptional decoding performance with robust connectivity options including industrial Ethernet.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Vision Systems
|
| Part Number | DM8050X |
| Subcategory | Handheld Barcode Readers |
| Material | Polycarbonate with overmold |
| Imager | 752 x 480 global shutter sensor |
| Aiming | Centralized green LED aimer |
| Status Outputs | LED and beeper |
| Lighting | Integrated LED with near/far optics |
| Symbologies Supported | 1D: UPC, Code 128, Code 39, Codabar, PDF417, etc. 2D: DataMatrix, QR |
| Power Supply (Corded) | 5–6 V DC, 2.5 W max (LPS or NEC Class 2) |
| Power Supply (Ethernet) | PoE Class 2 |
| Power Supply (Bluetooth) | 3.7 V, 3100 mAh Li-ion |
| Environmental Rating | RoHS compliant |
| Electrical Certification | CE, CSA, UL 60950 |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Humidity | < 95% non-condensing |
| Dimensions | 210 mm x 115 mm x 85 mm |
| Weight | Corded: 279 g; Wireless: 330 g |
Information About DM8050X
The DM8050X barcode reader delivers unmatched flexibility with support for a broad range of communication protocols, including Ethernet/IP, PROFINET, and Modbus TCP. Its polycarbonate housing with overmold ensures resilience in harsh factory environments, while its advanced imaging system—featuring a 752 x 480 global shutter sensor and green LED aimer—guarantees precise, high-speed scanning. With status feedback via LED and beeper, and compliance to RoHS and major electrical standards, this device ensures both performance and safety. Whether you require serial, USB, Bluetooth, or Wi-Fi connectivity, the DataMan 8050X adapts to your infrastructure.
Key Features:
- Advanced Barcode Decoding: 1DMax+ and Hotbars algorithms decode damaged, low-contrast, or DPM barcodes with speed and precision.
- Robust Communication: Supports RS-232, USB, Industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP), Wi-Fi, and Bluetooth.
- Versatile Imaging: Global shutter sensor (752 x 480 px) with bright field illumination and centralized green LED aimer.
- Rugged Construction: Durable polycarbonate housing with overmold, IP-rated for industrial environments.
- User Feedback: Audible beeper and LED status indicators ensure operator confirmation.
- Flexible Power Options: PoE, LPS, NEC Class 2 power supply compatibility, and Li-ion battery for wireless use.
- Data Validation: Supports GS1, ISO15434, ISO15418, and US DoD UID guidelines.
- Plug-and-Play Setup: Compatible with Windows XP, 7, and 8; requires In-Sight Explorer or DataMan software.
The DM8050X is a premium choice for industrial barcode reading where accuracy, speed, and durability are paramount.
