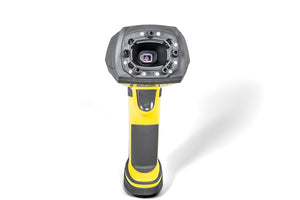

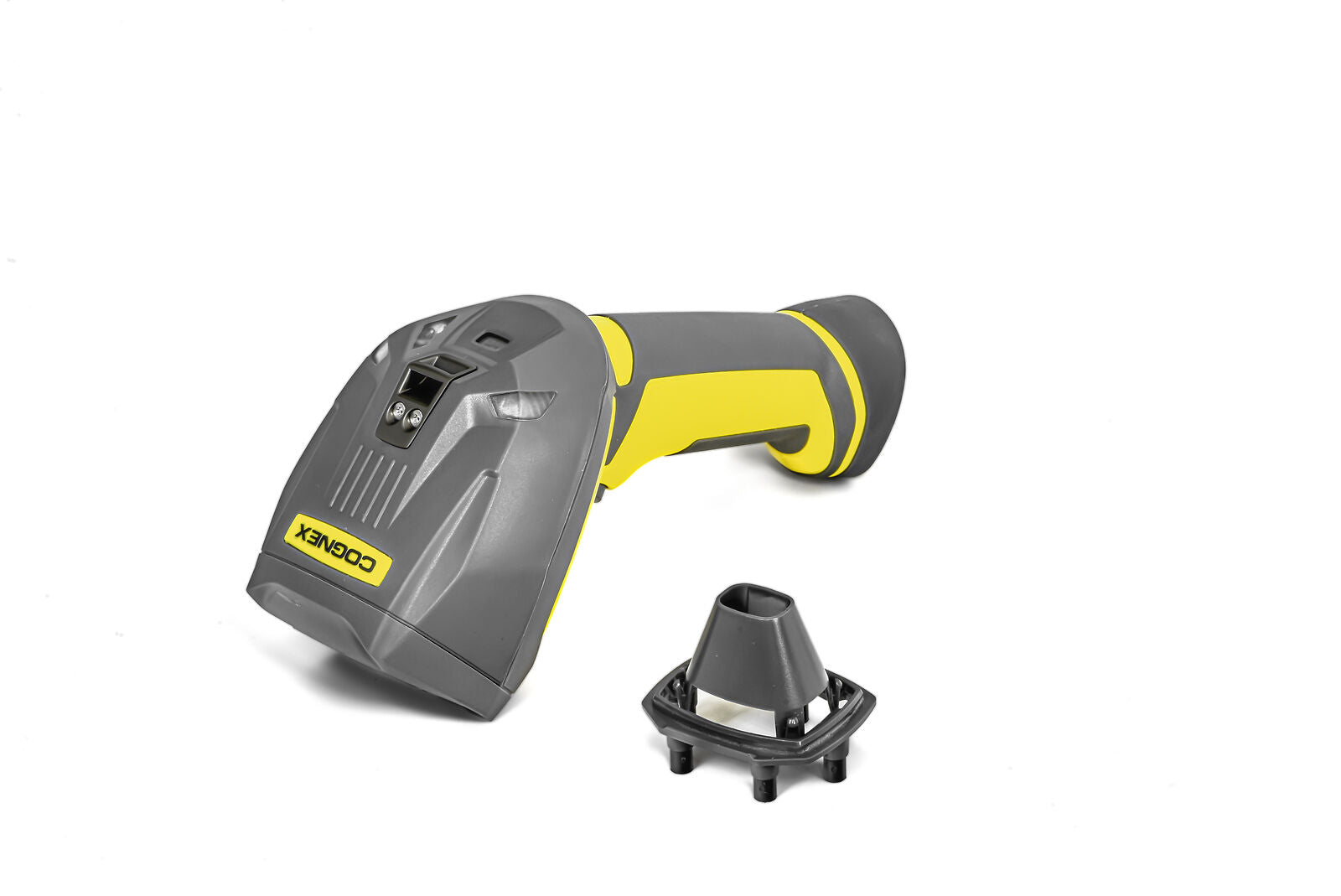

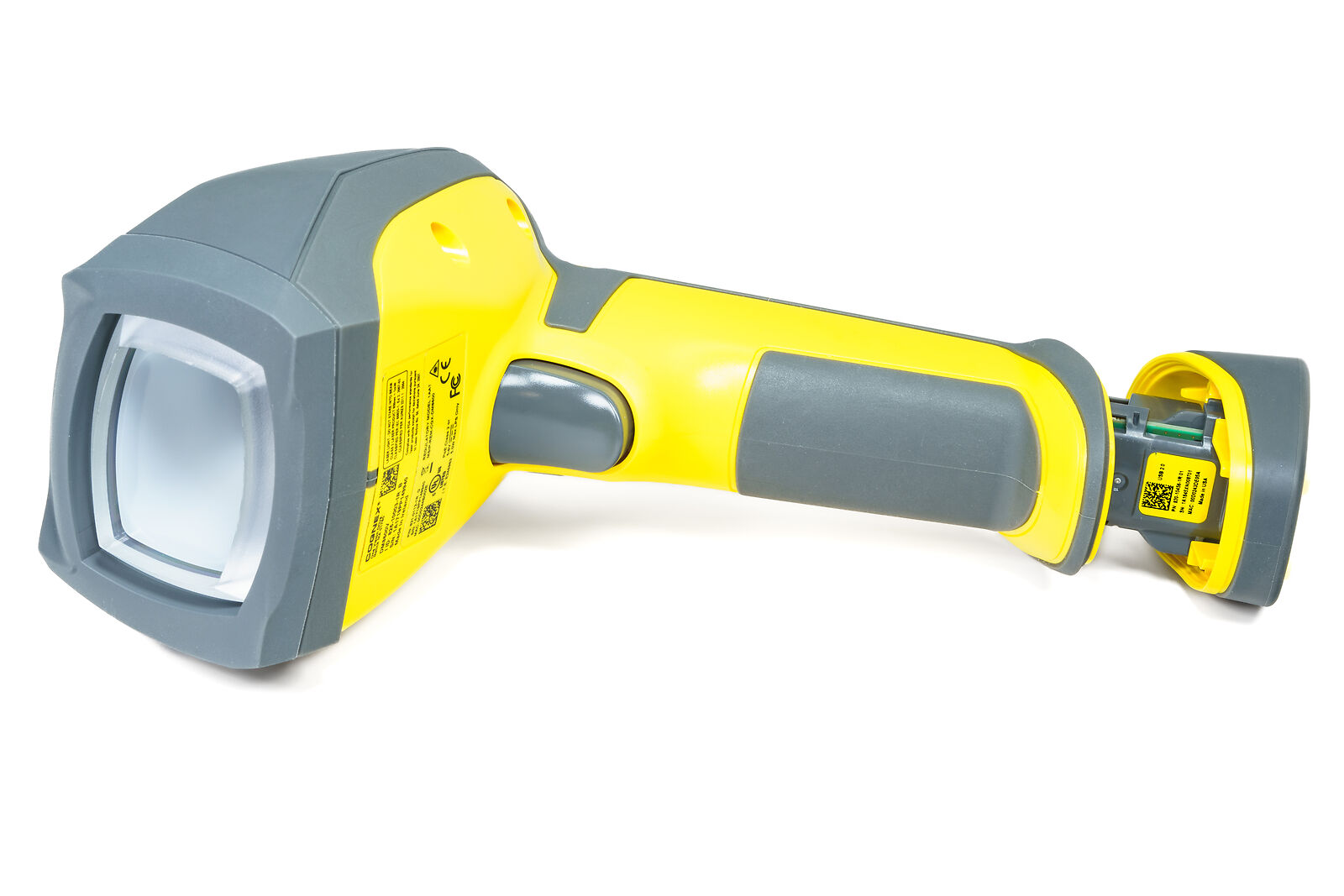

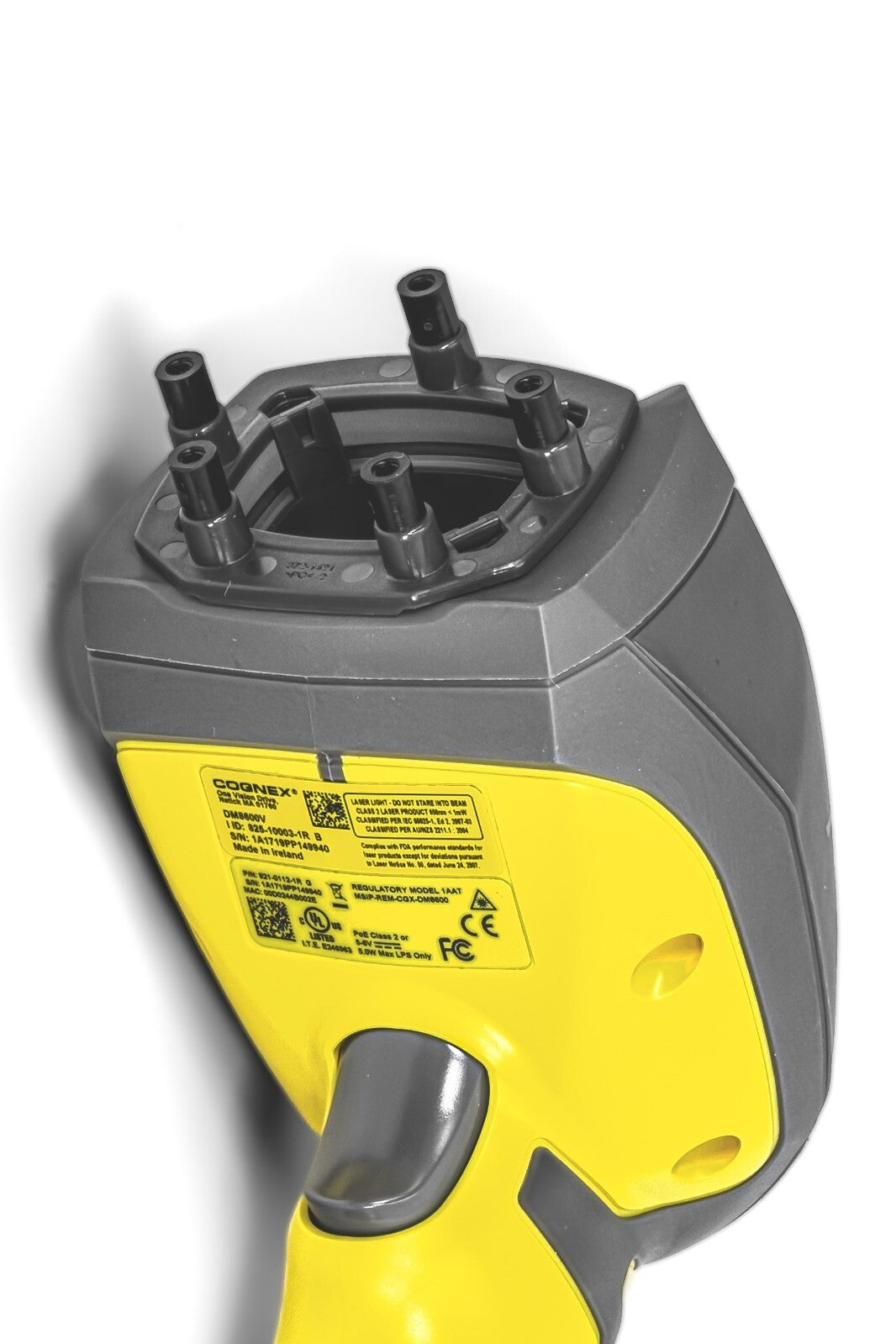

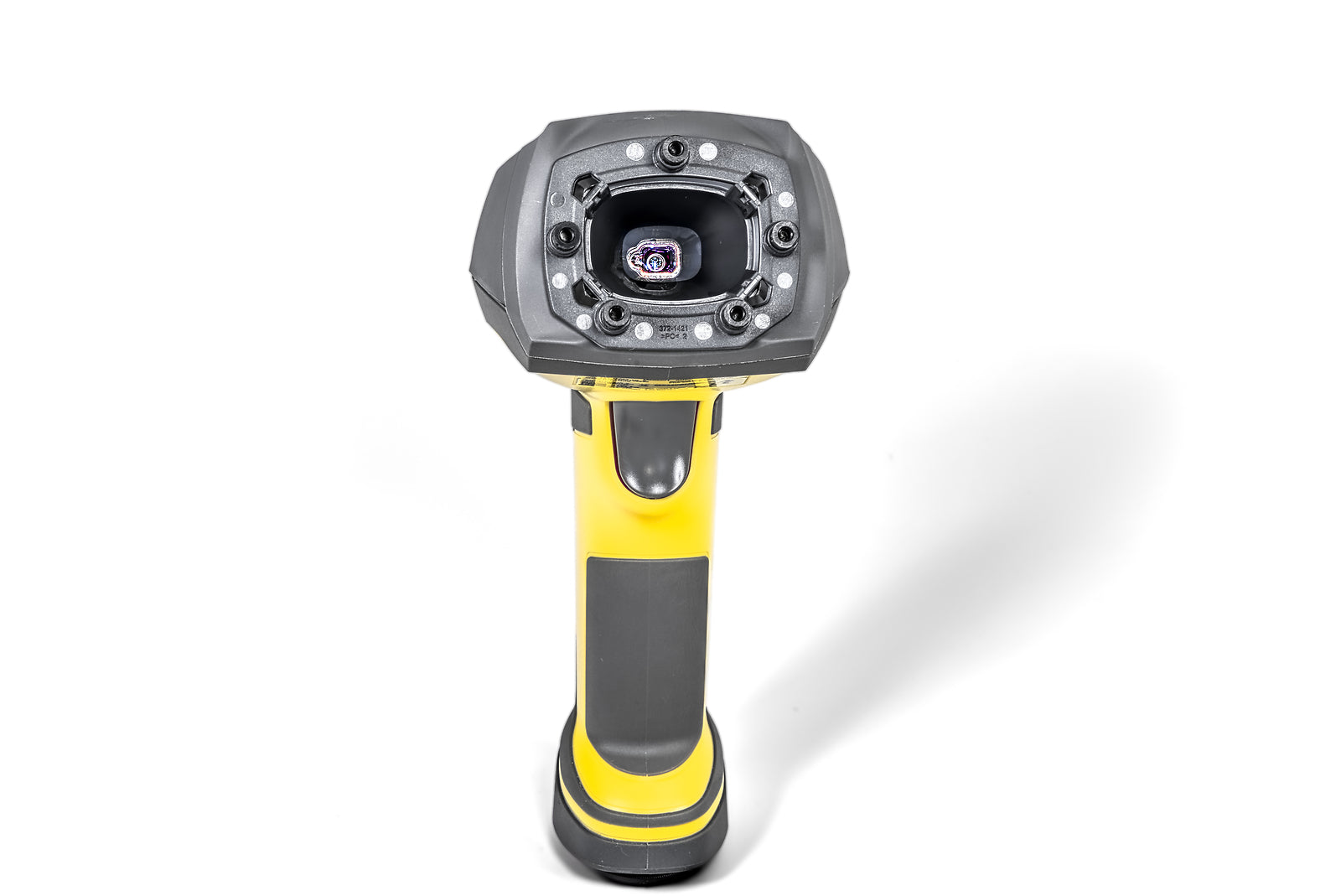

DM8600V | Cognex Verifier Ethernet w/ Cable Verification DPM 2D Dataman DMR-8600V
- Regular price
- $4,899.00
- Sale price
- $4,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DM8600V
Description
The Cognex DM8600V is a powerful barcode verifier designed to validate and assess the quality of 1D, 2D, and DPM (Direct Part Mark) codes in compliance with global standards such as AIM DPM/ISO/IEC TR 29158:2011.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Vision Systems
|
| Part Number | DM8600V |
| Subcategory | Barcode Verifiers |
| Alternate Part Number | DMR-8600V |
| Barcode Types Supported | 1D, 2D, and DPM |
| Standards Compliance | AIM-DPM/ISO/IEC TR 29158:2011, ISO 15434, ISO 15418, UID |
| Image Sensor | 1/1.8" CMOS, 1280 x 1024 px |
| Frame Rate | Up to 60 fps |
| Connectivity | Ethernet 10/100 Base-T, Bluetooth 2.1, Wi-Fi 802.11 b/g |
| Power Requirements | 24 VDC, 250 mA (typical), 5 A inrush (30 μs peak) |
| Environmental Rating | IP65 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | Tethered: -40°C to 60°C, Wireless: -10°C to 45°C |
| Humidity | < 95% non-condensing |
| Battery Life (Wireless) | Up to 2,900 scans per 10-hour shift |
| Weight | 345 g |
Information About DM8600V
The DM8600V verifier from Cognex provides a complete solution for code validation and grading with support for symbologies including Data Matrix, QR Code, PDF417, and traditional 1D barcodes. It supports key global standards such as ISO 15434, ISO 15418, and the U.S. DoD UID Guidelines. The verifier offers immediate PDF report generation and user-configurable grading metrics. It comes calibrated with a Cognex certification card to ensure accurate verification out of the box. Housed in a durable IP65-rated enclosure, it is ideal for shop floor or warehouse environments. Whether tethered or used wirelessly, the DM8600V delivers consistent performance over its expected 5-year operational lifespan.
Key Features:
- Comprehensive Code Support: Verifies 1D, 2D, and DPM codes including Data Matrix, QR Code, Code 128, and PDF417.
- Global Standards Compliance: Validates codes to AIM-DPM/ISO/IEC TR 29158, ISO 15434, ISO 15418, and UID guidelines.
- Data Reporting: Generates user-configurable PDF reports with detailed grading metrics.
- Industrial Durability: IP65 environmental rating ensures dust and water protection.
- Versatile Communication: Offers Ethernet 10/100 Base-T, Bluetooth 2.1, and Wi-Fi 802.11 b/g connectivity.
- Wireless Flexibility: Battery-powered mode allows for up to 2,900 scans in a 10-hour shift.
- Compact Design: Lightweight at just 303 g (tethered: 345 g) for ease of handling in industrial use.
- Extended Service Life: Designed for a 5-year operational lifespan under normal usage.
The DM8600V provides reliable, standards-based barcode quality verification in a durable, portable, and highly connected device.
