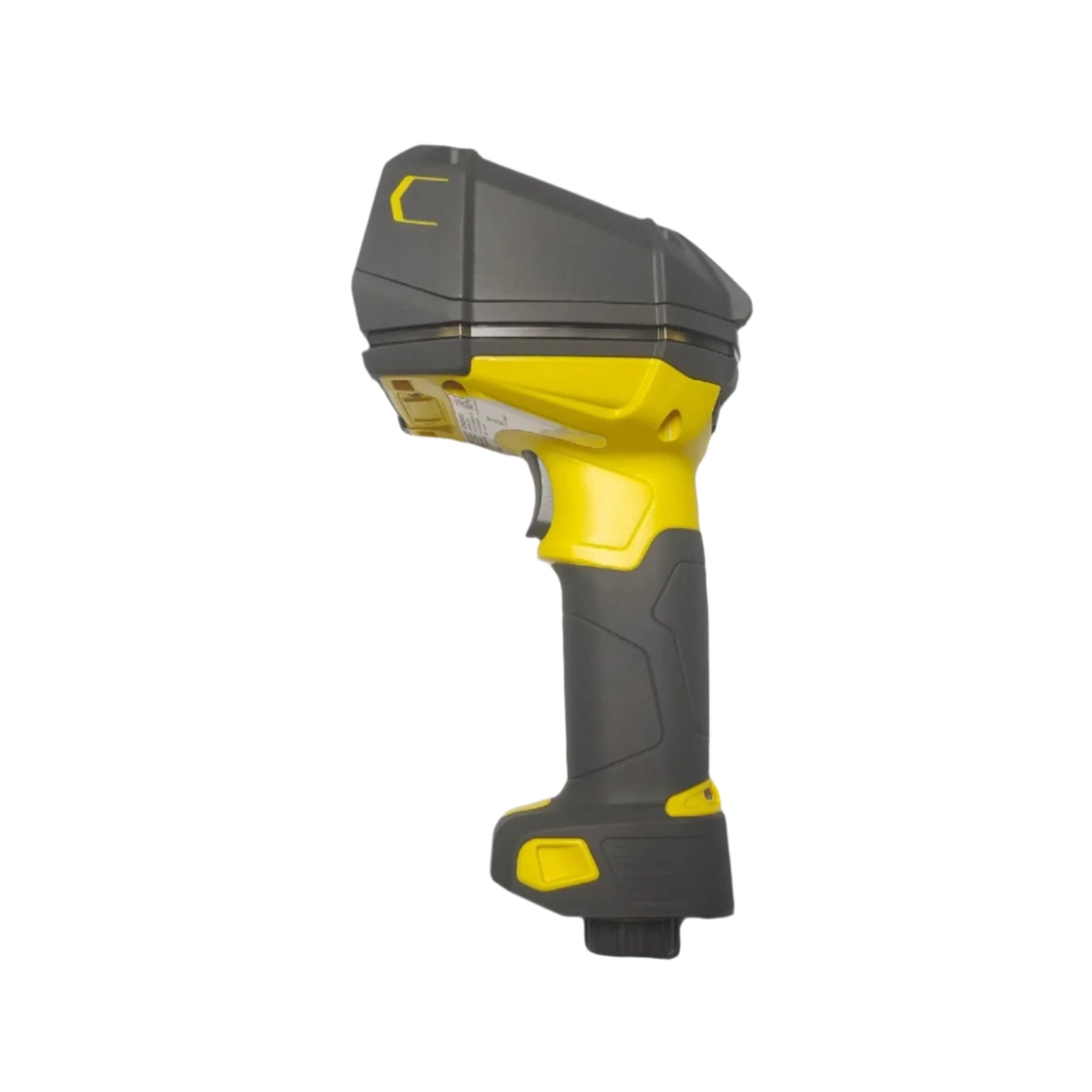

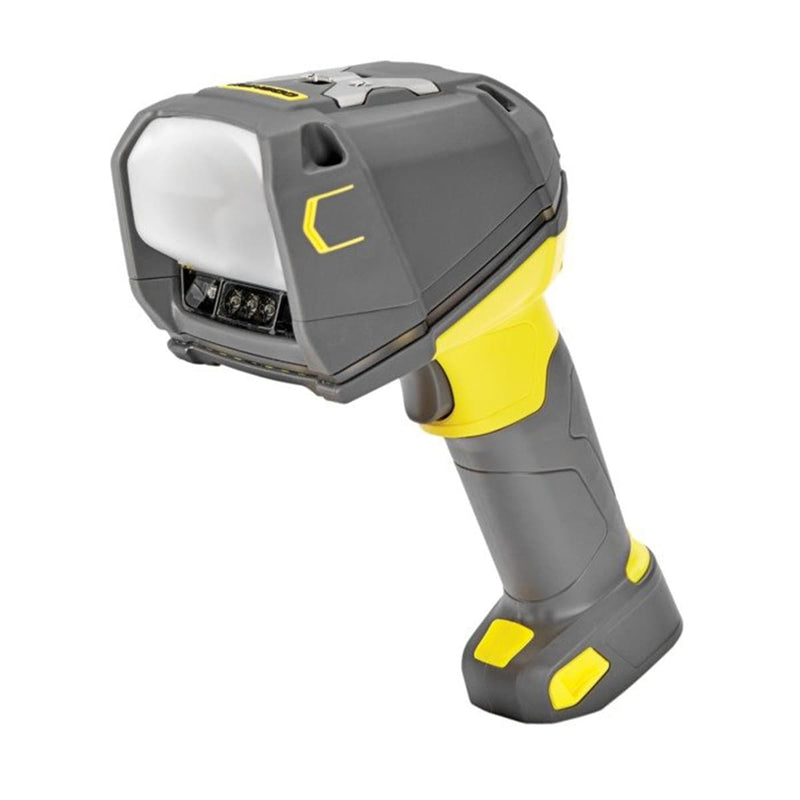

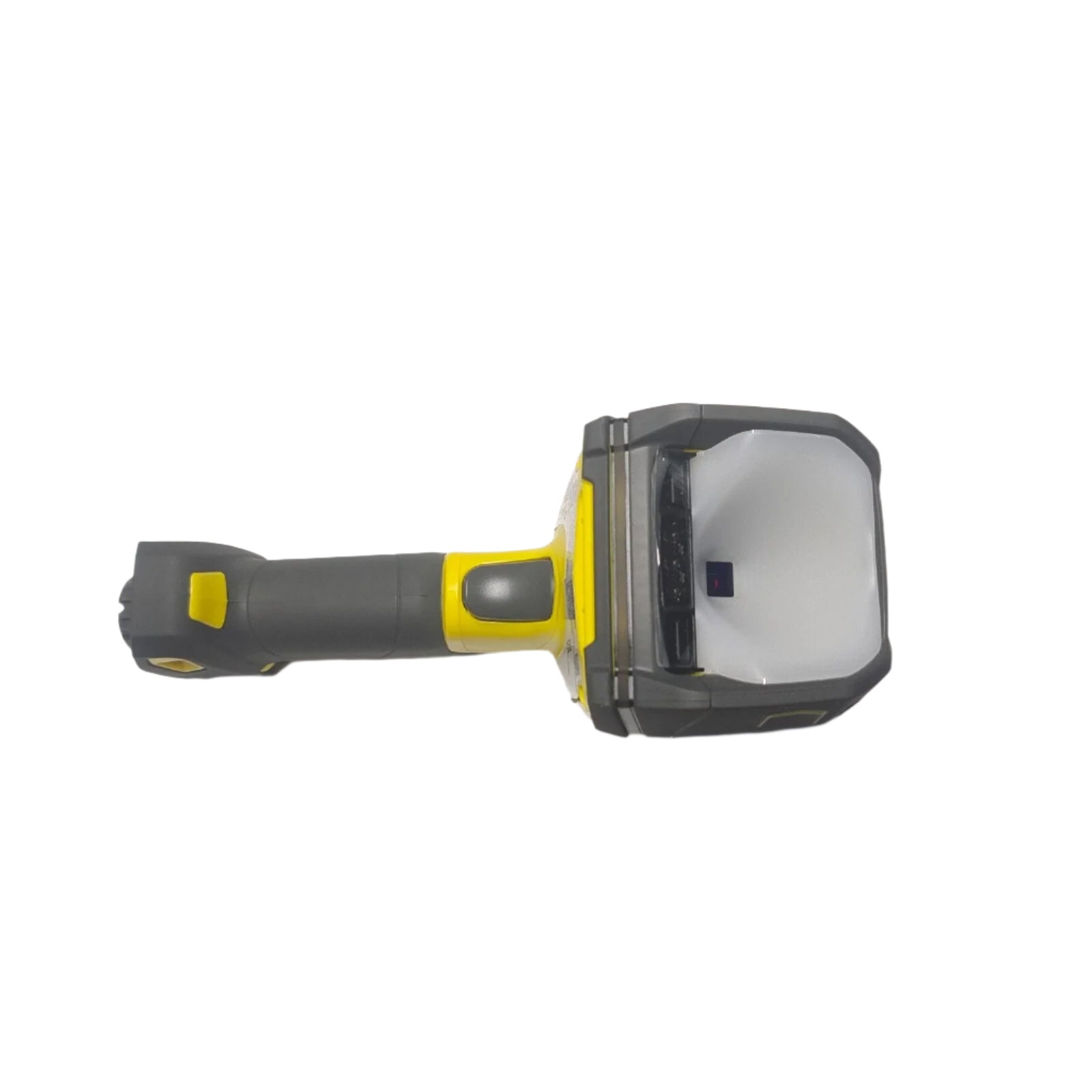

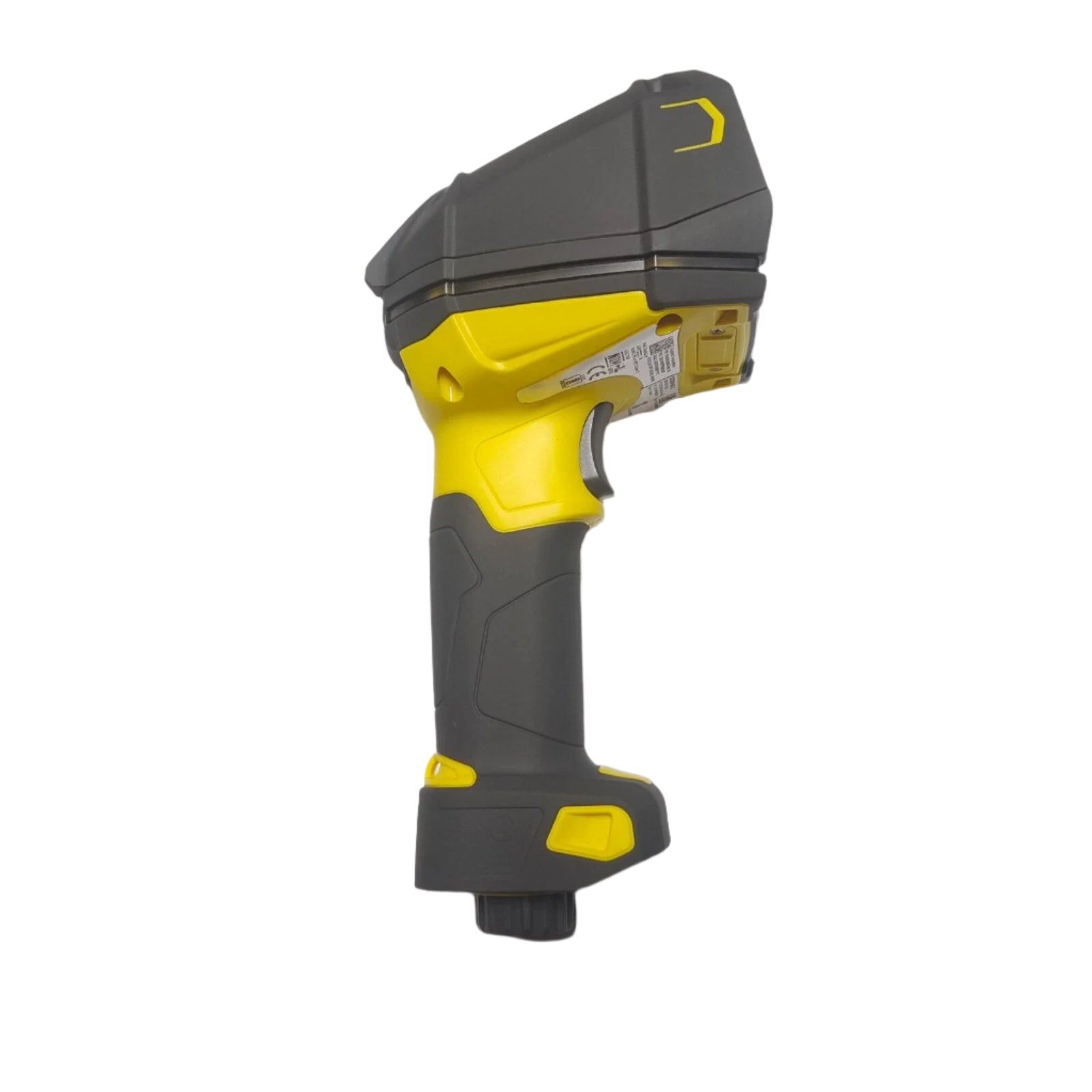

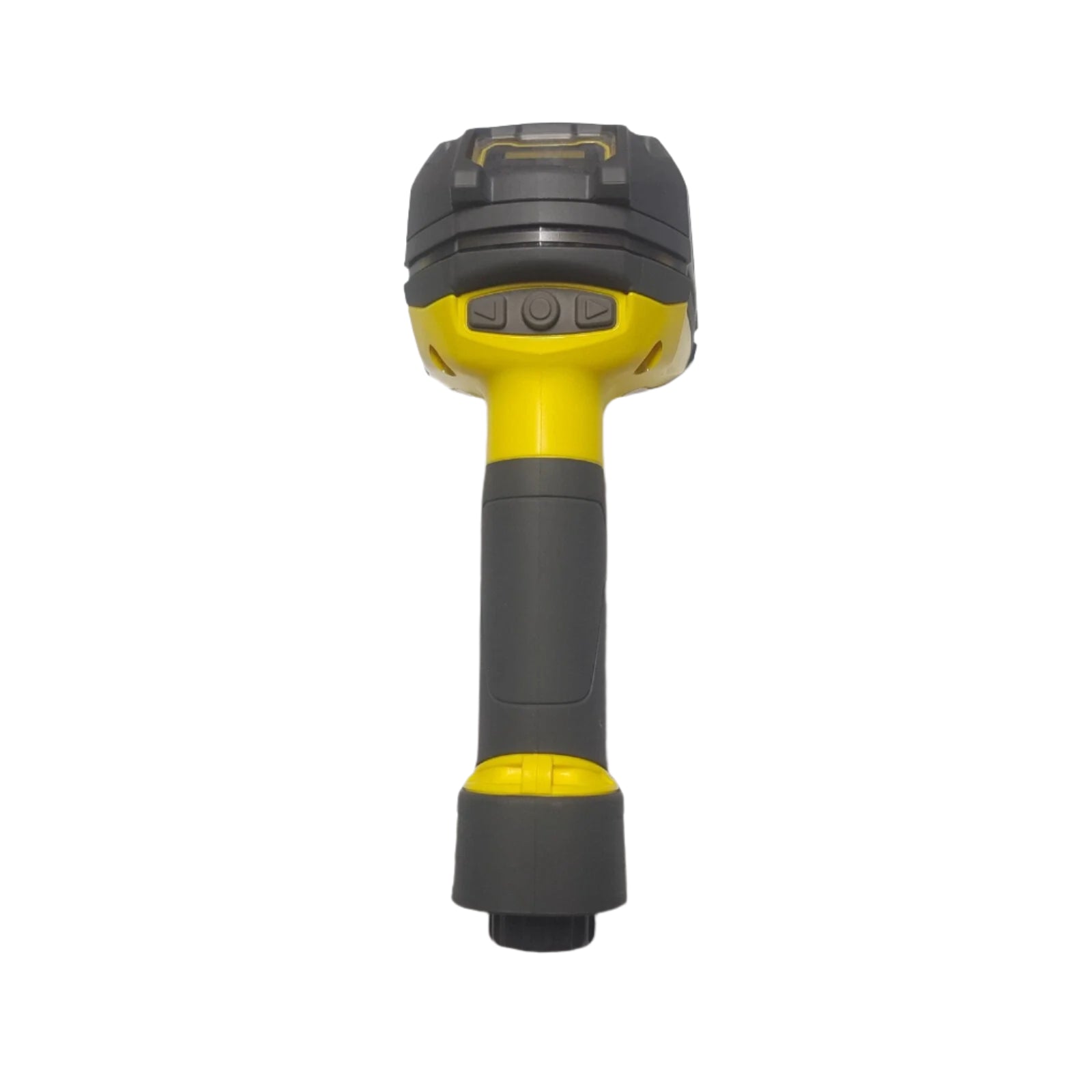

DM8700DX-RS | Cognex Handheld Barcode Scanner
- Regular price
- $2,556.00
- Sale price
- $2,556.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DM8700DX-RS
Description
The Cognex DM8700DX-RS is a rugged handheld barcode scanner engineered for industrial environments. It excels at reading challenging 1D and 2D codes, including direct part marks (DPMs), thanks to advanced decoding algorithms and integrated lighting.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cognex |
| Category |
Vision Systems
|
| Part Number | DM8700DX-RS |
| Subcategory | Handheld Barcode Scanners |
| Series | DataMan 8700 |
| Image Sensor | 1.6 MP CMOS |
| Decoding Algorithms | 1DMax with Hotbars, 2DMax with PowerGrid |
| Autofocus | High-speed liquid lens |
| HDR Imaging | Yes |
| Lighting | Diffuse, polarized, and direct |
| Display | OLED |
| Connectivity | RS-232, USB, Ethernet |
| Protection Rating | IP67 |
| Drop Resistance | Multiple drops from 2.5 meters |
| Tumble Test | 5,000 tumbles from 1 meter |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 60°C |
| Humidity | Up to 95% non-condensing |
| Dimensions (Corded) | 233.2 mm x 114.1 mm |
| Power Supply | 5.5 V DC, 6.0 W maximum |
| Weight (Corded) | 0.45 kgs |
Information About DM8700DX-RS
The Cognex DM8700DX-RS is a rugged handheld barcode scanner engineered for industrial environments. It excels at reading challenging 1D and 2D codes, including direct part marks (DPMs), thanks to advanced decoding algorithms and integrated lighting. With RS-232 connectivity, it's ideal for applications requiring reliable wired communication.
Key Features:
- Advanced Decoding Algorithms: Utilizes 1DMax with Hotbars and 2DMax with PowerGrid for reliable reading of damaged or low-contrast codes.
- High-Speed Liquid Lens: Provides fast autofocus to accommodate varying working distances without manual adjustments.
- HDR Imaging: Enhances image quality and contrast, improving readability on challenging surfaces.
- Robust Construction: IP67-rated housing resists dust, water, and oil, suitable for harsh industrial environments.
- Multiple Communication Interfaces: Offers RS-232, USB, and Ethernet connectivity for seamless integration.
- User-Friendly Interface: Features an OLED display and on-device controls for straightforward setup and feedback.
- Integrated Lighting: Combines diffuse, polarized, and direct lighting to optimize code visibility.
- Durability: Withstands multiple drops from 2.5 meters and 5,000 tumbles from 1 meter.
The DM8700DX-RS delivers the reliability and precision required for demanding barcode scanning applications in manufacturing, logistics, and other industrial sectors.
