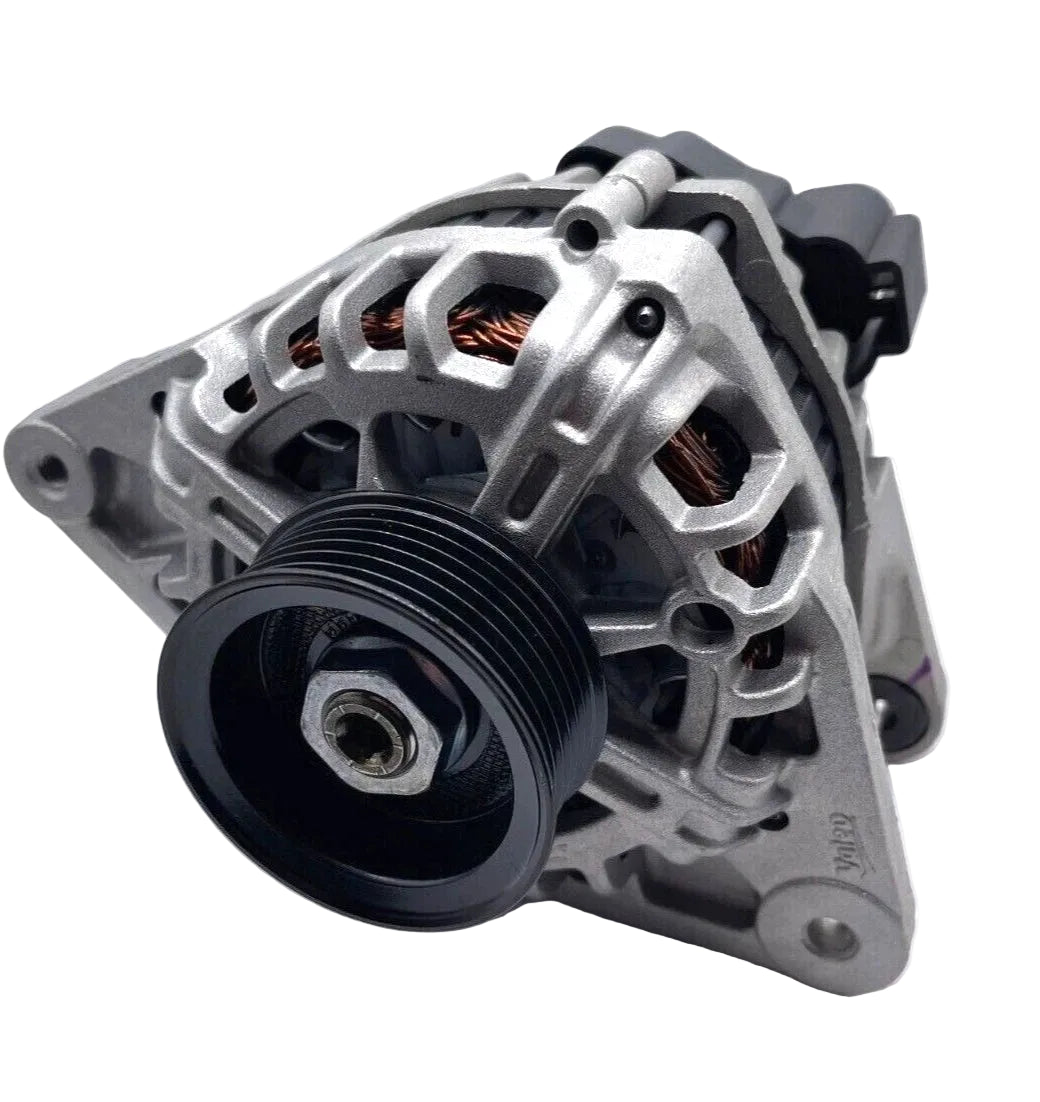

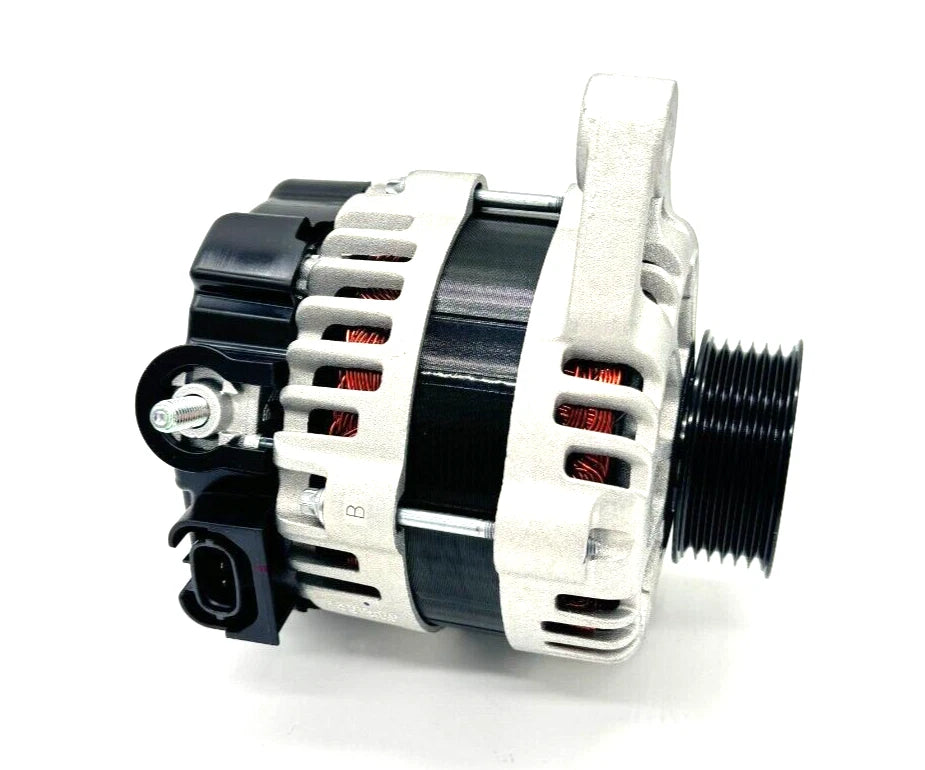

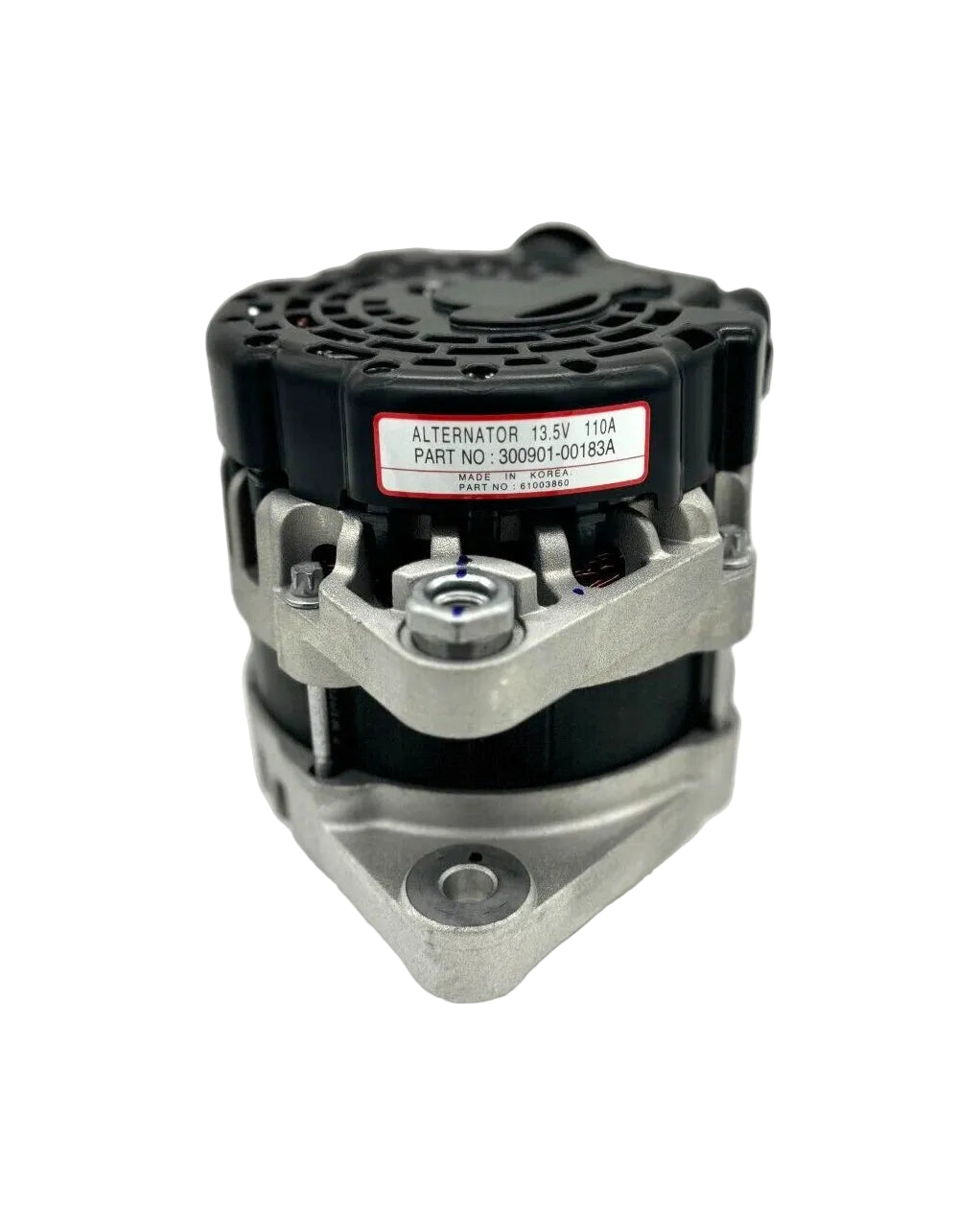

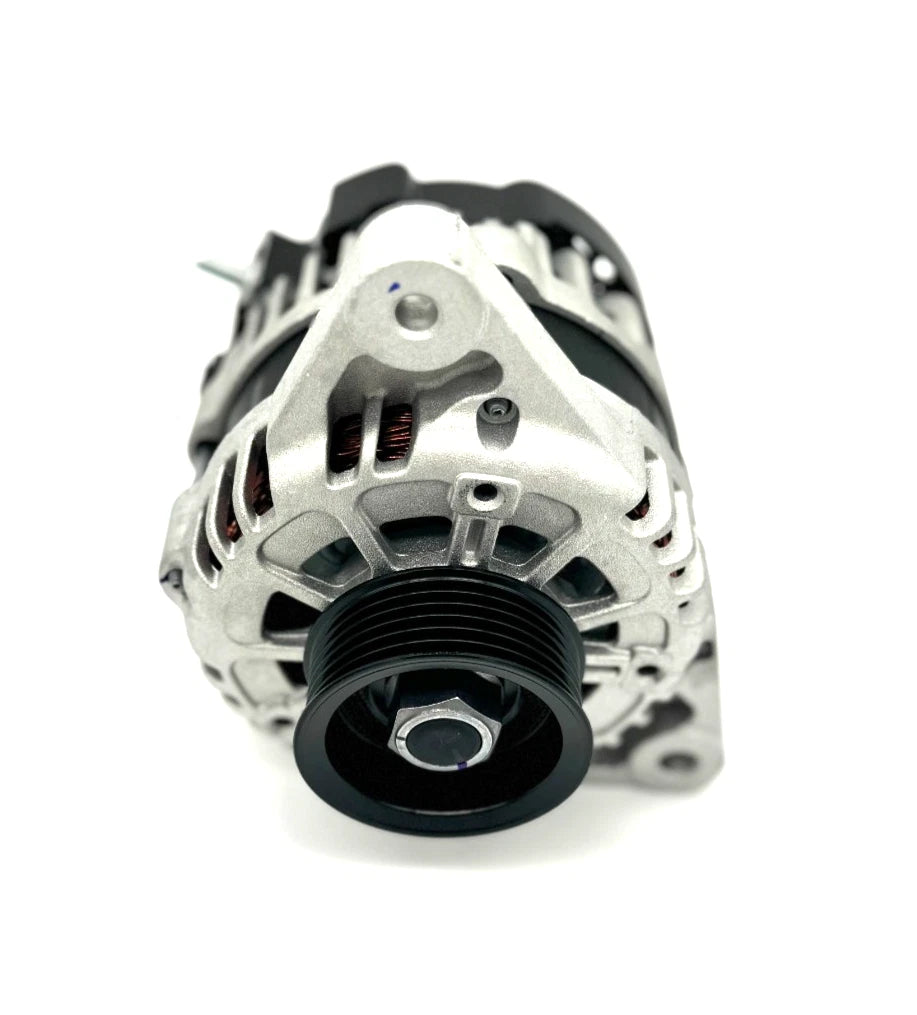

Doosan 300901-00183A 12V 110A Engine Alternator
- Regular price
- $835.00
- Sale price
- $835.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 300901-00183A
Description
The Doosan 300901-00183A is a 12V engine alternator designed to supply charging current and electrical power while industrial equipment is operating. Rated at 110 amps, it uses a belt-driven configuration with an integrated voltage regulator for stable electrical system output. It is intended for compatible Doosan-powered construction and material handling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Doosan |
| Category | Electrical Components |
| Part Number | 300901-00183A |
| Subcategory | Alternators |
| Product Type | Engine Alternator |
| Voltage | 12V |
| Charging Current | 110A |
| Nominal Charging Voltage | 13.5V |
| Drive Type | Belt Driven |
| Pulley Type | 6-Groove Serpentine Pulley |
| Voltage Regulator | Integrated |
| Main Output Terminal | M8 B+ Stud |
| Mounting Configuration | 3-Bolt |
| OEM Reference | 30090100183A |
| Cross Reference | 61003860 |
| Application | Industrial Construction and Material Handling Equipment |
| Weight | 11.02 lbs (5.00 kg) |
Information About 300901-00183A
The 300901-00183A is a heavy-duty alternator used within Doosan industrial diesel engine electrical systems. Its construction combines a metal housing, internal voltage regulation, and a 6-groove pulley for belt-driven operation. The unit operates on a 12V electrical system and provides up to 110 amps of charging current for batteries and onboard electrical components. It is associated with Doosan equipment and is also cross-referenced in selected Linde, Still, and Clark material handling applications where the specified electrical and mounting configuration is required.
Key Features:
- Electrical Rating: Operates on a 12V electrical system with a rated charging current of 110 amps.
- Integrated Regulation: Built-in voltage regulator maintains controlled charging output during engine operation.
- Belt-Driven Design: Uses engine-driven mechanical rotation to generate electrical charging power.
- Pulley Configuration: Equipped with a 6-groove pulley for compatible serpentine belt systems.
- Mounting Design: Uses a 3-bolt mounting configuration for installation on compatible engine brackets.
- Main Terminal: Features an M8 B+ output stud for the primary charging connection.
- Cross-Reference Support: Associated with OEM references 30090100183A and 61003860.
- Equipment Application: Intended for compatible Doosan-powered construction and material handling machinery.
The 300901-00183A delivers the reliability and precision required for engine charging and onboard electrical power systems in industrial equipment.
