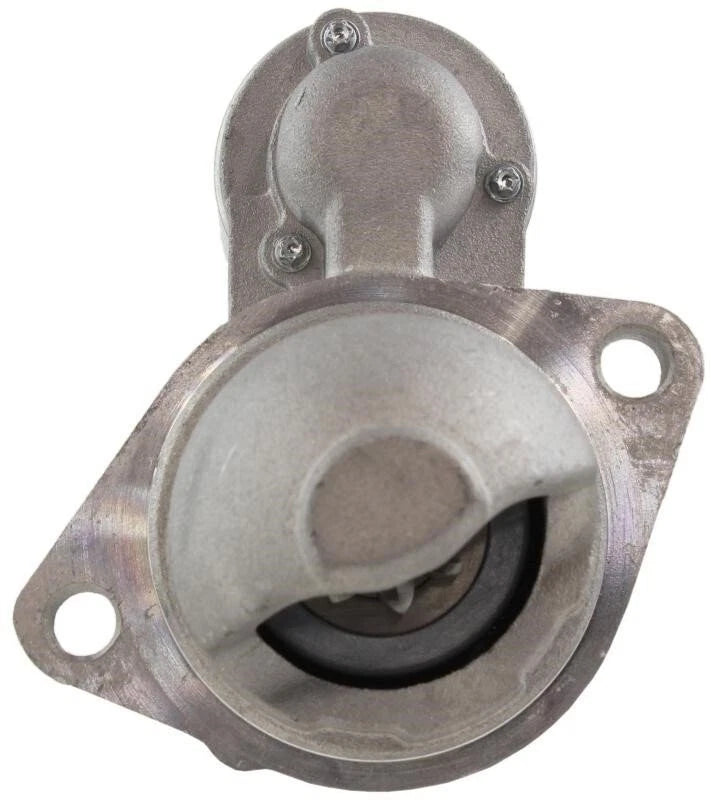

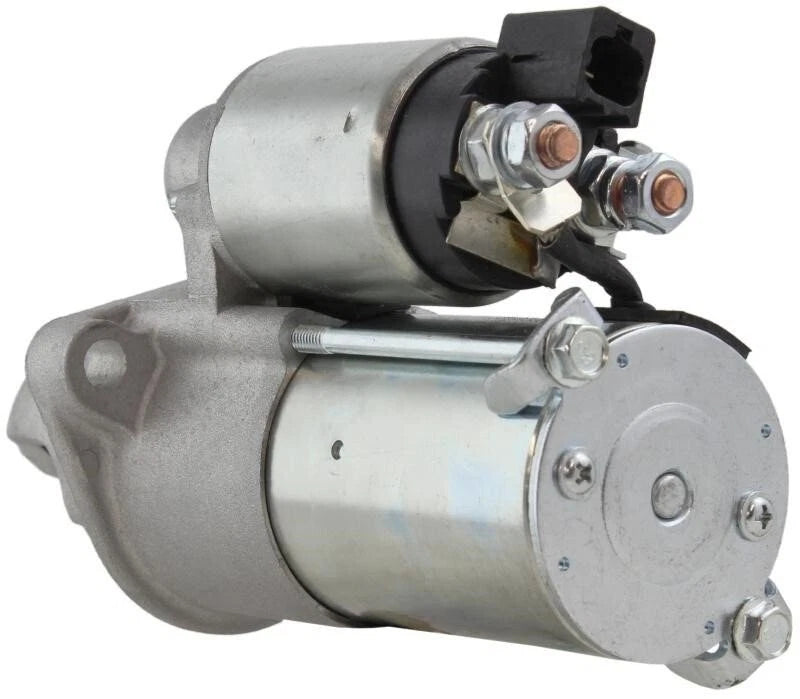

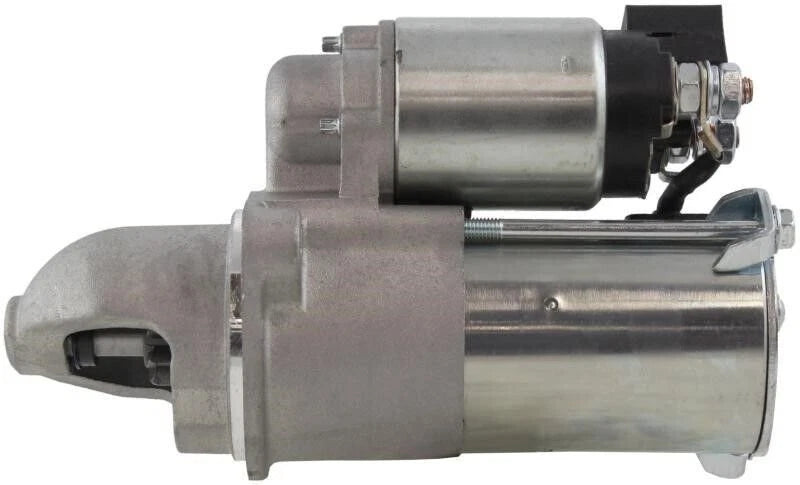

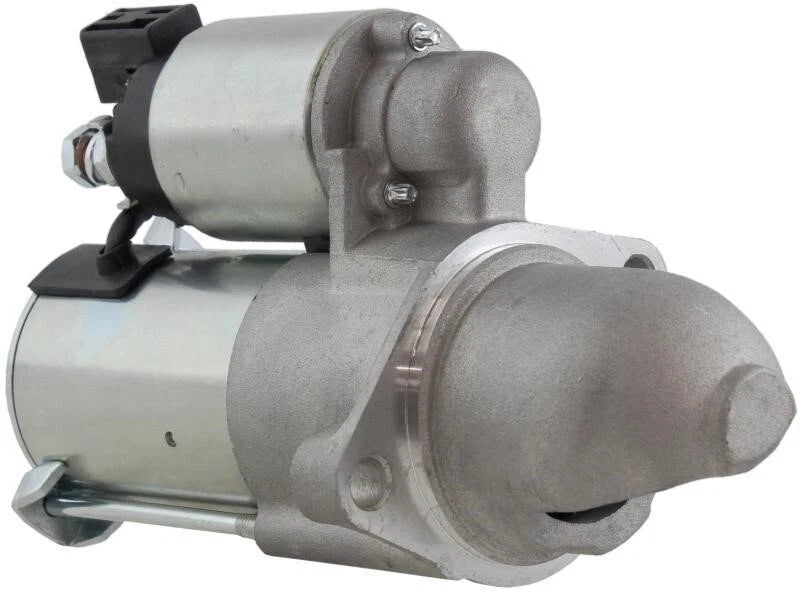

Doosan 36100-2CC00 12V 1.4kW 8-Tooth CW PMGR Starter Motor
- Regular price
- $135.00
- Sale price
- $135.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 36100-2CC00
Description
The Doosan 36100-2CC00 is a 12V starter motor designed to provide engine cranking power for compatible Hyundai and Kia applications. It uses an 8-tooth pinion, 1.4 kW output, clockwise rotation, and a PMGR design with flange mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Doosan |
| Category | Starting & Charging |
| Part Number | 36100-2CC00 |
| Subcategory | Starter Motors |
| Voltage | 12V |
| Power | 1.4 kW |
| Number of Teeth | 8T |
| Rotation | Clockwise (CW) |
| Design | PMGR |
| Grade | G |
| Mounting Configuration Code | B |
| Mounting Type | Flange |
| Mounting Ear Hole Diameter | 10.6 mm |
| Mounting Hole Center-to-Center | 94 mm |
| Registry Outside Diameter | 70 mm |
| Overall Length | 150 mm |
| Vehicle Fit | Hyundai Lift Trucks; compatible Hyundai and Kia applications |
| Weight | 3.33 kg |
Information About 36100-2CC00
The 36100-2CC00 is a starter motor identified for Hyundai lift truck and compatible Hyundai Veloster and Kia vehicle applications. Its PMGR construction uses a permanent-magnet gear-reduction design for compact engine-starting operation. The unit features an unthreaded mounting-ear configuration with defined mounting-hole spacing and a 70 mm registry outside diameter. Its 12V electrical system, 8-tooth gear, clockwise rotation, and flange mounting configuration are specified for compatible starting systems.
Key Features:
- 12V Electrical System: Designed for 12-volt vehicle starting systems.
- 1.4 kW Power Rating: Provides the specified electrical output for engine cranking.
- 8-Tooth Pinion: Uses an 8-tooth starter gear for compatible flywheel engagement.
- PMGR Design: Permanent-magnet gear-reduction construction supports a compact starter configuration.
- Clockwise Rotation: Operates with clockwise rotational direction.
- Flange Mounting: Uses a flange-style mounting arrangement for installation.
- Mounting Geometry: Features 94 mm center-to-center mounting holes and a 70 mm registry OD.
- Mounting Ear Holes: Provides 10.6 mm unthreaded holes for the specified mounting configuration.
The 36100-2CC00 delivers the reliability and precision required for compatible 12V engine starting applications.
