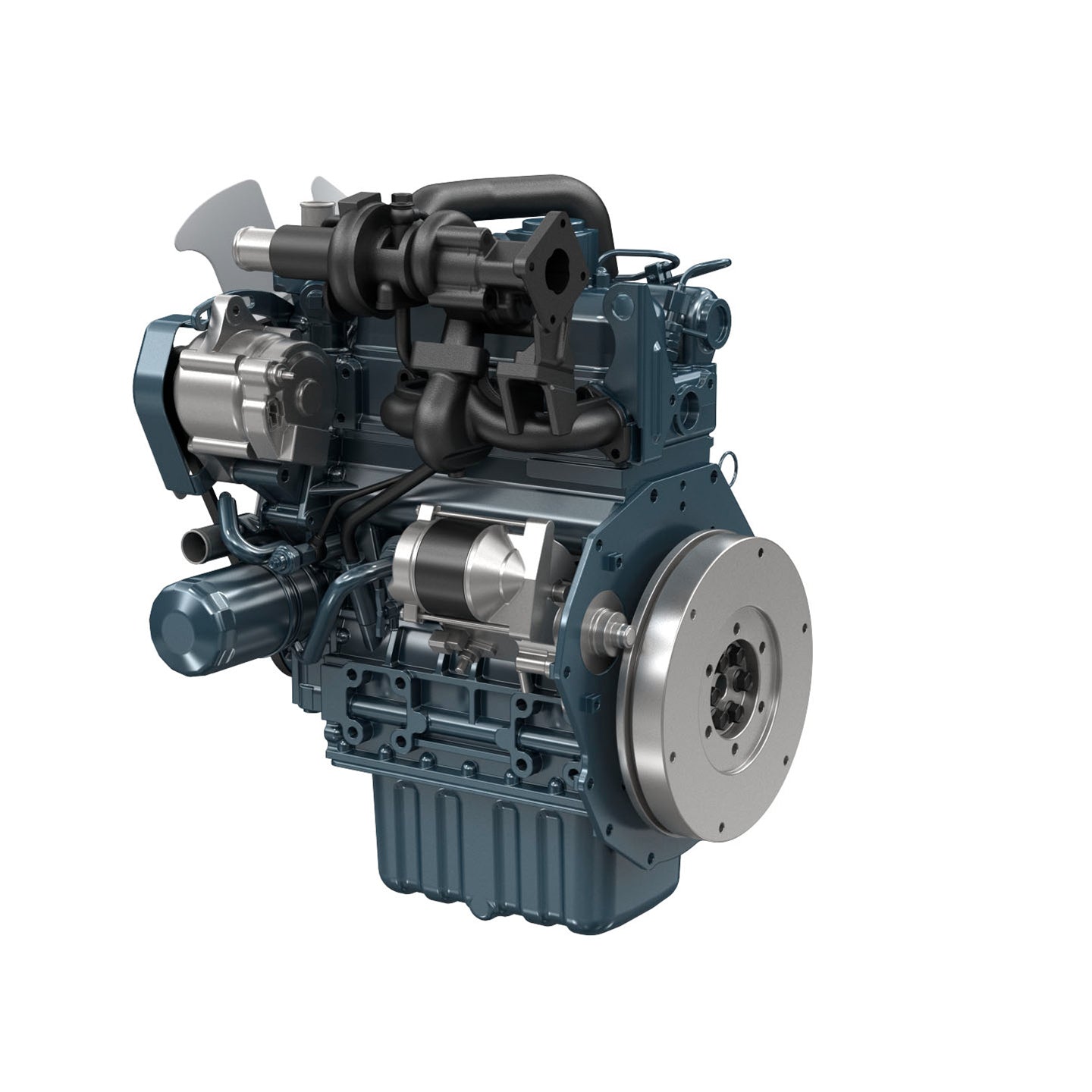

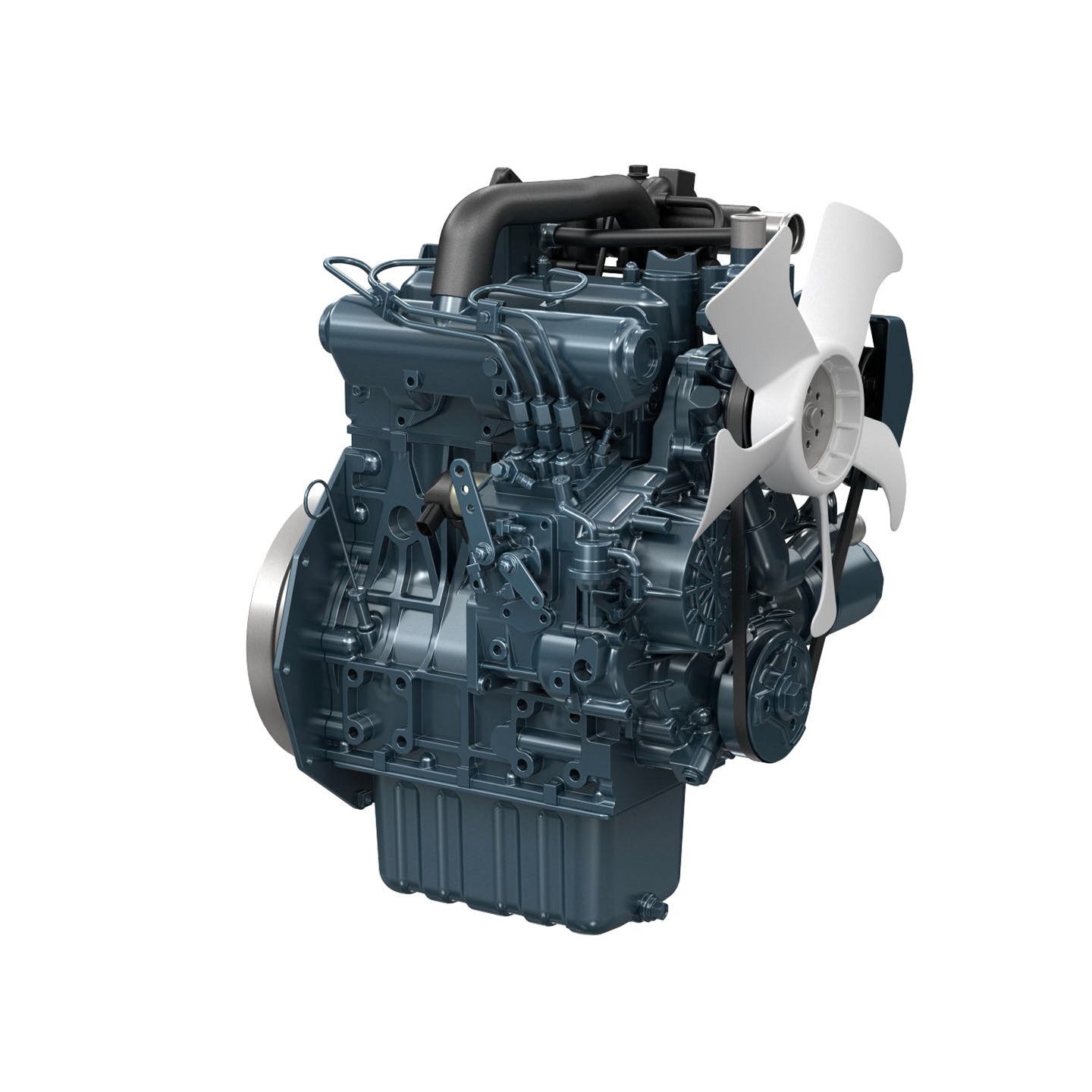

Doosan D1105-T-E3B 1.123L 3-Cylinder Turbocharged Diesel Engine 24.5kW
- Regular price
- $9,899.00
- Sale price
- $9,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D1105-T-E3B
Description
The Doosan D1105-T-E3B is a 3-cylinder, turbocharged, water-cooled diesel engine rated at 24.5 kW (32.9 HP) at 3,000 rpm. It is designed for industrial equipment applications and meets EPA/CARB interim Tier 4 and EU Stage IIIA emission requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Doosan |
| Category | Diesel Engines |
| Part Number | D1105-T-E3B |
| Subcategory | Industrial Diesel Engines |
| Engine Type | Vertical, water-cooled 4-cycle diesel engine |
| Number of Cylinders | 3 |
| Bore | 78.0 mm (3.07 in) |
| Stroke | 78.4 mm (3.09 in) |
| Displacement | 1.123 L (68.53 cu. in) |
| Aspiration | Turbocharged |
| Combustion System | Indirect injection |
| Fuel System | In-line pump |
| Emission Regulation | EPA/CARB interim Tier 4 + EU Stage IIIA |
| Dimensions | 480 × 433 × 629 mm (18.9 × 17.0 × 24.8 in), without aftertreatment |
| Cooling Type | Water cooled |
| Weight | 97 kg |
Information About D1105-T-E3B
The D1105-T-E3B is part of the established Kubota 05 Series diesel engine family used as a power source for industrial equipment. Its vertical 4-cycle configuration uses indirect fuel injection and an in-line pump fuel system. The turbocharged design produces a maximum torque of 88.1 Nm at 2,000 rpm while maintaining a compact 480 × 433 × 629 mm footprint. The engine uses water cooling and is designed with mounting dimensions compatible with equipment applications using the D1105-T-E3B configuration.
Key Features:
- 3-Cylinder Configuration: Uses three cylinders in a compact vertical engine layout.
- Turbocharged Aspiration: Uses a turbocharger to support the rated engine output.
- 24.5 kW Rated Output: Produces 32.9 HP at the specified 3,000 rpm rated speed.
- 88.1 Nm Maximum Torque: Delivers peak torque of 88.1 Nm at 2,000 rpm.
- Indirect Injection: Uses an indirect-injection combustion system.
- In-Line Fuel Pump: Equipped with an in-line pump fuel system.
- Water Cooling: Uses a water-cooled system for controlled engine operating temperatures.
- Emissions Compliance: Meets EPA/CARB interim Tier 4 and EU Stage IIIA emission requirements.
The D1105-T-E3B delivers the reliability and precision required for industrial equipment power applications.
