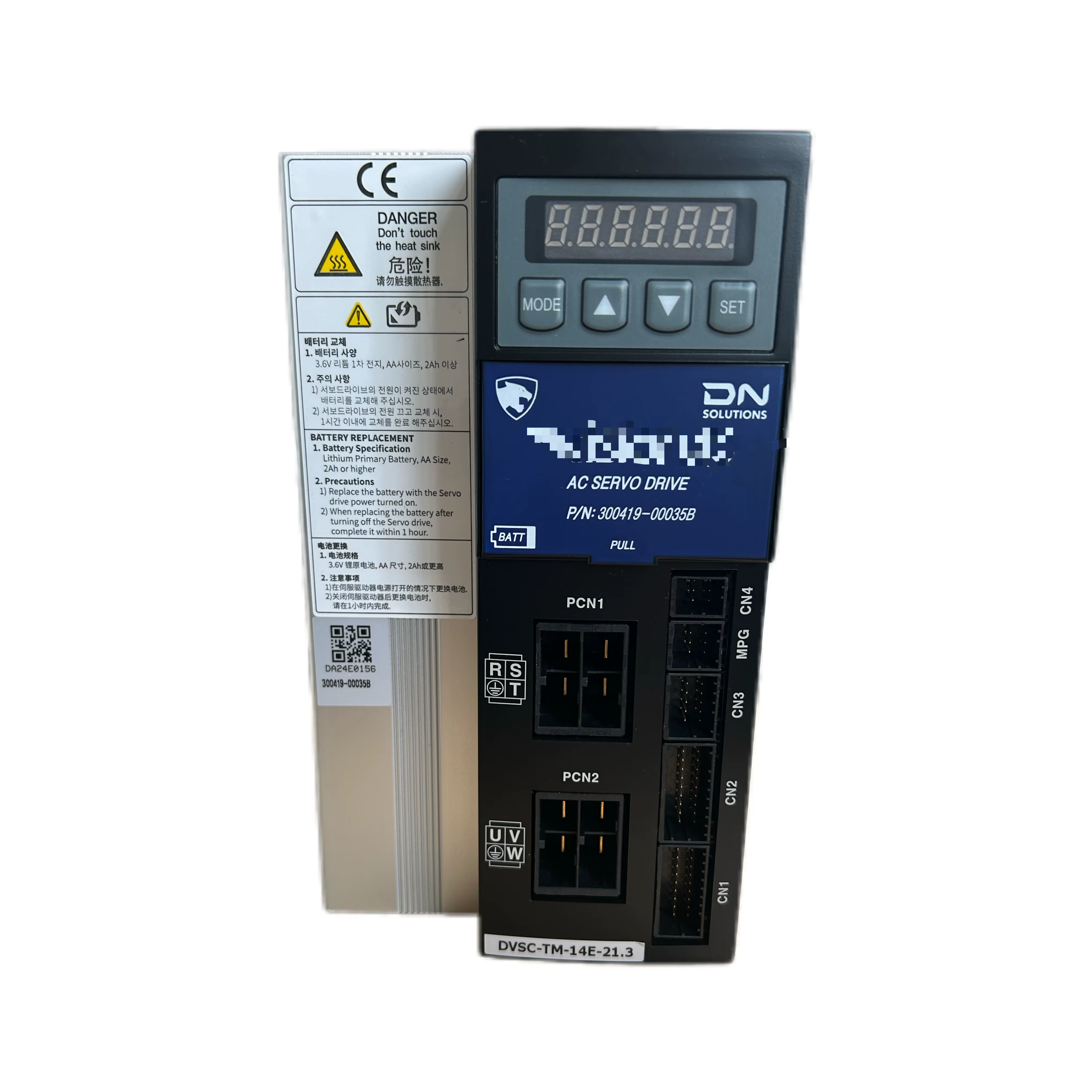

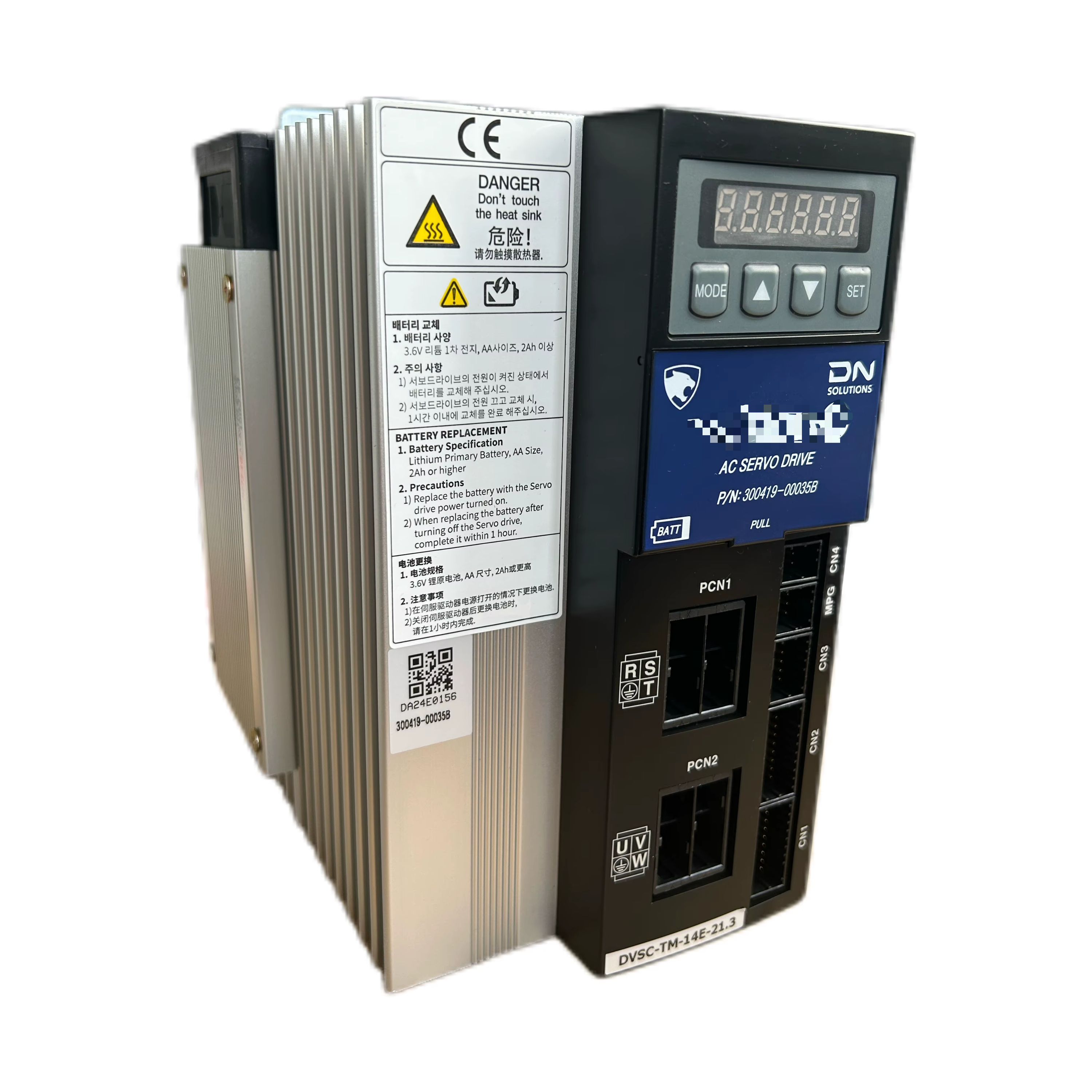

Doosan DVSC-TM-14E 2.5kW 14A 3-Phase AC Servo Drive 300419-00035B
- Regular price
- $2,825.00
- Sale price
- $2,825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DVSC-TM-14E
Description
The Doosan DVSC-TM-14E is a 3-phase AC servo drive designed for closed-loop control of compatible AC servo motors. It provides up to 2.5 kW of power and is intended for turret indexing and tool magazine positioning on Doosan and DN Solutions CNC machines.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Doosan |
| Category | Electrical Equipment |
| Part Number | DVSC-TM-14E |
| Subcategory | Servo Drives |
| Doosan Part Number | 300419-00035B |
| Phase | 3 Phase |
| Input Voltage | 200–240 VAC |
| Input Current | 12 A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 170 VAC |
| Output Current | 14 A |
| Output Frequency | 0–333.3 Hz |
| Power Rating | 2.5 kW |
| Protection Rating | IP20 |
| Application | Turret Indexing and Tool Magazine Positioning |
| Compatible Machines | Doosan and DN Solutions CNC Machines |
| Weight | 3.67 kg |
Information About DVSC-TM-14E
The DVSC-TM-14E is part of the DVSC servo drive/control system and is identified by Doosan part number 300419-00035B. It accepts a 200–240 VAC, 3-phase input at 12 A and provides a 170 VAC output rated at 14 A. The drive operates across an output frequency range of 0–333.3 Hz and uses an IP20 enclosure. Its control function is suited to servo positioning applications involving turret and tool magazine mechanisms on compatible machining centers and CNC lathes.
Key Features:
- AC Servo Drive: Provides power and closed-loop control for compatible AC servo motors.
- 3-Phase Input: Operates from a 200–240 VAC, 50/60 Hz three-phase supply.
- 14 A Output: Provides a rated output current of 14 A for the connected servo system.
- 2.5 kW Class: Designed for AC servo motor applications in the approximately 2.5 kW power range.
- Variable Frequency: Provides an output frequency range of 0–333.3 Hz.
- IP20 Enclosure: Uses an IP20-rated enclosure suitable for protected industrial installations.
- Machine Applications: Used for turret indexing and tool magazine positioning on compatible CNC equipment.
- Part Identification: Identified by DVSC-TM-14E and Doosan part number 300419-00035B.
The DVSC-TM-14E delivers the reliability and precision required for industrial servo control and CNC positioning applications.
