Product Description P/N: DR4301-0000-G0100-0000-0000-U0-000-00
Description

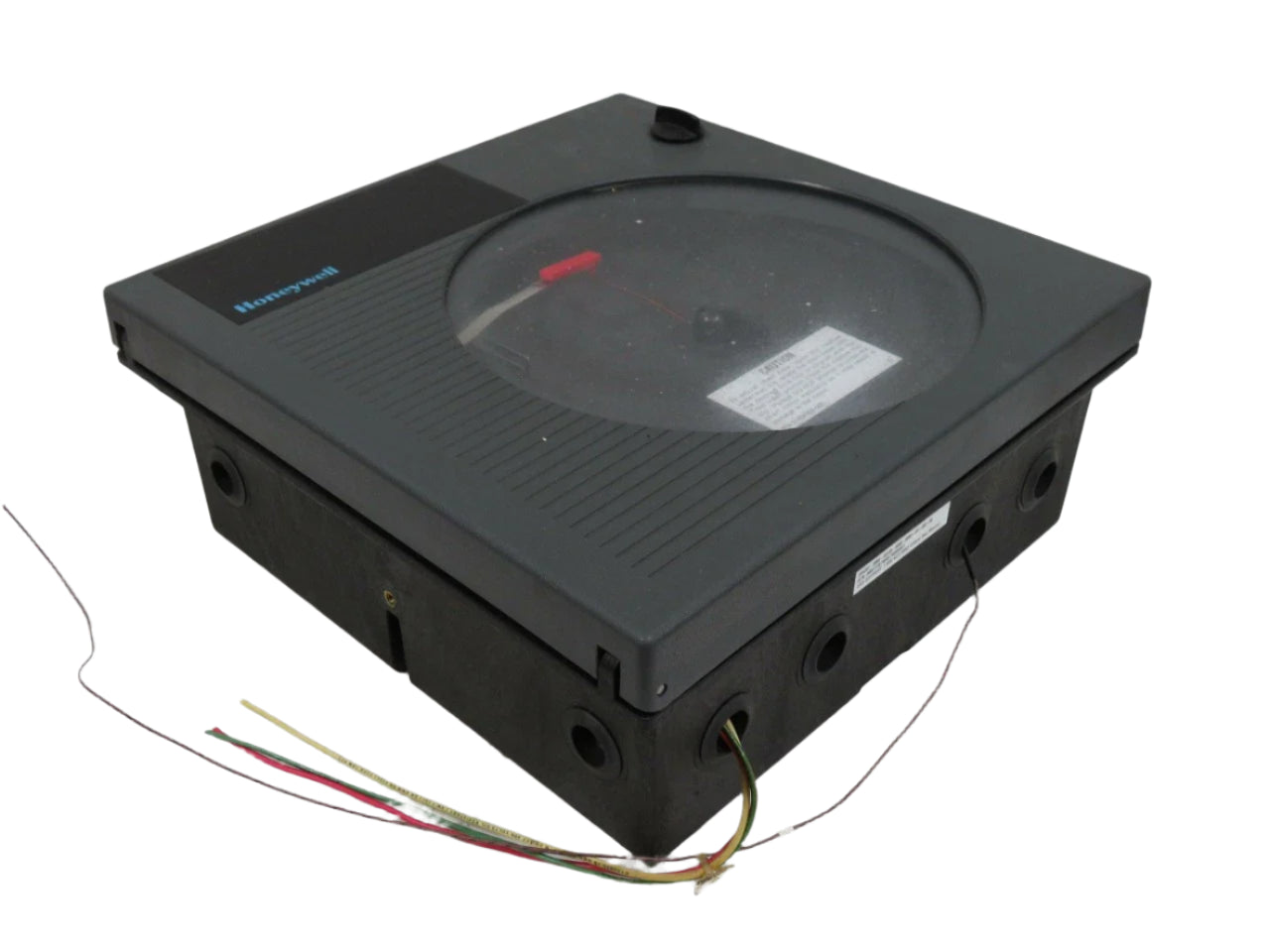

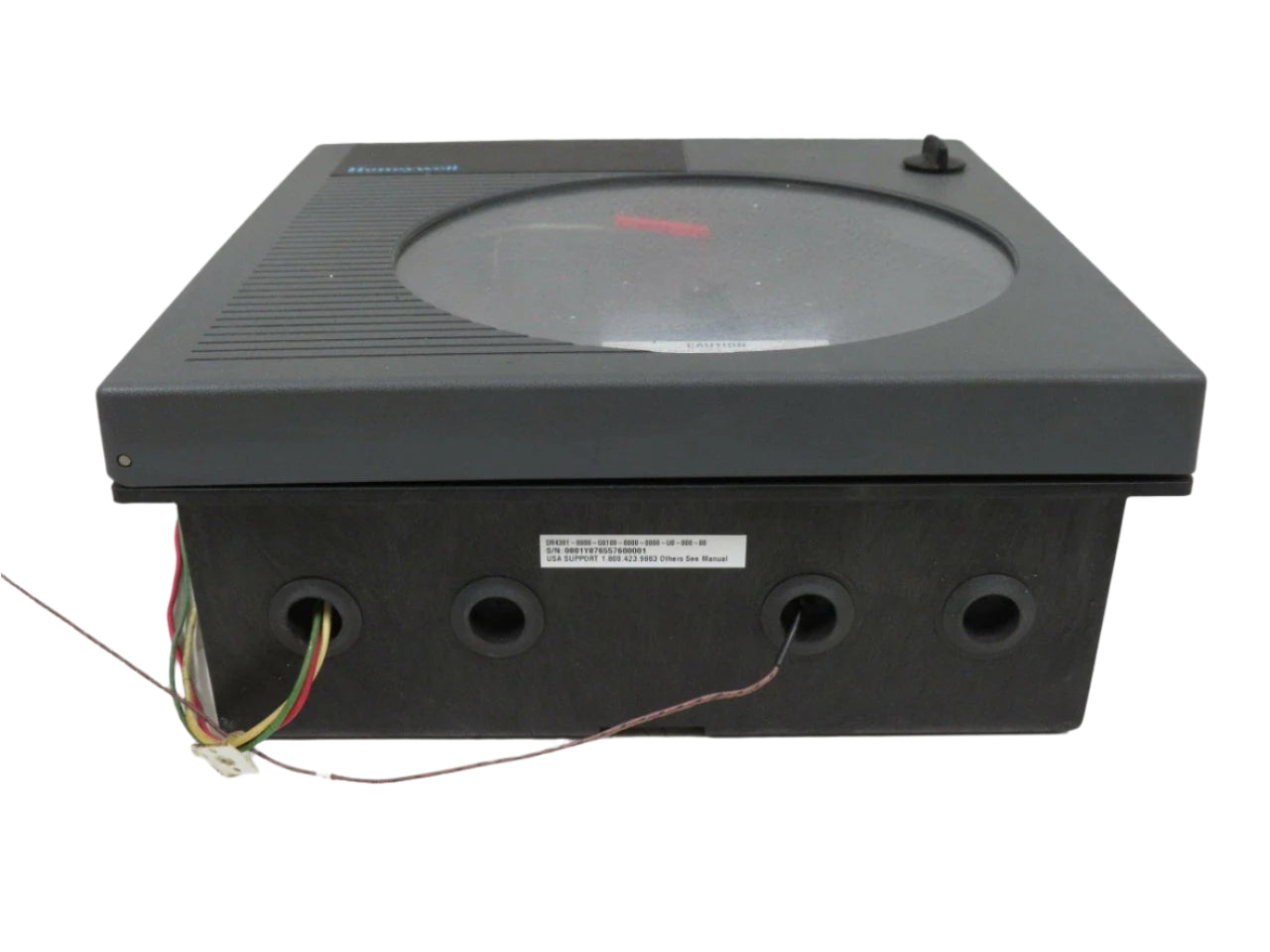

The DR4301-0000-G0100-0000-0000-U0-000-00 is a discontinued, single-pen circular chart recorder for continuous analog process monitoring. It records process variables on a 10‑inch chart using microprocessor-controlled stepper motors. Powered universally from 100–240 VAC, it suits diverse industrial applications from ovens to wastewater systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Process Recorders
|
| Part Number | DR4301-0000-G0100-0000-0000-U0-000-00 |
| Subcategory | Circular Chart Recorders |
| Product Family | DR4300 Circular Chart Recorder |
| Channels | 1 pen |
| Chart Size | 10 in (250 mm), 24‑hour or 7‑day cycle |
| Signal Input | TC, RTD, mV, volts, 4‑20 mA |
| Control Method | Microprocessor-driven stepper motors |
| Power Supply | 100–240 VAC, 50/60 Hz, ~28 VA |
| Enclosure Rating | NEMA 3 / 4X front, rugged plastic door |
| Accuracy | ±0.5% FS (basic), ±0.2% with calibration/display upgrades |
| User Interface | DIP-switch settings (no digital display) |
| Certifications | CE, UL, CSA |
| Mounting | Panel flush or surface mount (cutout ~250 mm diameter) |
| Status | Discontinued |
| Weight | ~16 lbs (7.3 kg) |
Information About DR4301-0000-G0100-0000-0000-U0-000-00
The DR4301-0000-G0100-0000-0000-U0-000-00 series belongs to Honeywell’s DR4300 family of microprocessor-based circular chart recorders. This specific 24-hour, 7-day basic model features a single microprocessor-driven pen for reliable data logging. It supports universal inputs—including TC, RTD, mV, and current signals—configurable via internal DIP switches. Designed in a rugged NEMA 3/NEMA 4X-rated housing, it is CE, UL, and CSA certified and suitable for harsh process environments.
Key Features:
- Single Pen Recorder: Provides analog trace on 10″ charts for one process variable.
- Universal Input: Accepts TC, RTD, mV, volts, or milliamps for flexible signal sources.
- Microprocessor Control: Stepper motors ensure accurate pen and chart movement.
- 24‑Hour / 7‑Day Chart Cycle: Standard selections for round-the-clock monitoring.
- Universal Power Supply: Operates on 100–240 VAC, 50/60 Hz.
- Durable Enclosure: Rated NEMA 3 or 4X for industrial wash-down environments.
- Configurable via DIP Switches: Easy setup without needing software tools.
- Optional Alarm Outputs: Suitable for basic limit control or retransmission options.
- No Digital Display: Simplified interface with chart-only readout.
- Certified for Safety: Meets CE, UL, CSA requirements for global applications.
The DR4301-0000-G0100-0000-0000-U0-000-00 delivers the reliability and precision required for dependable process recording in industrial environments.
