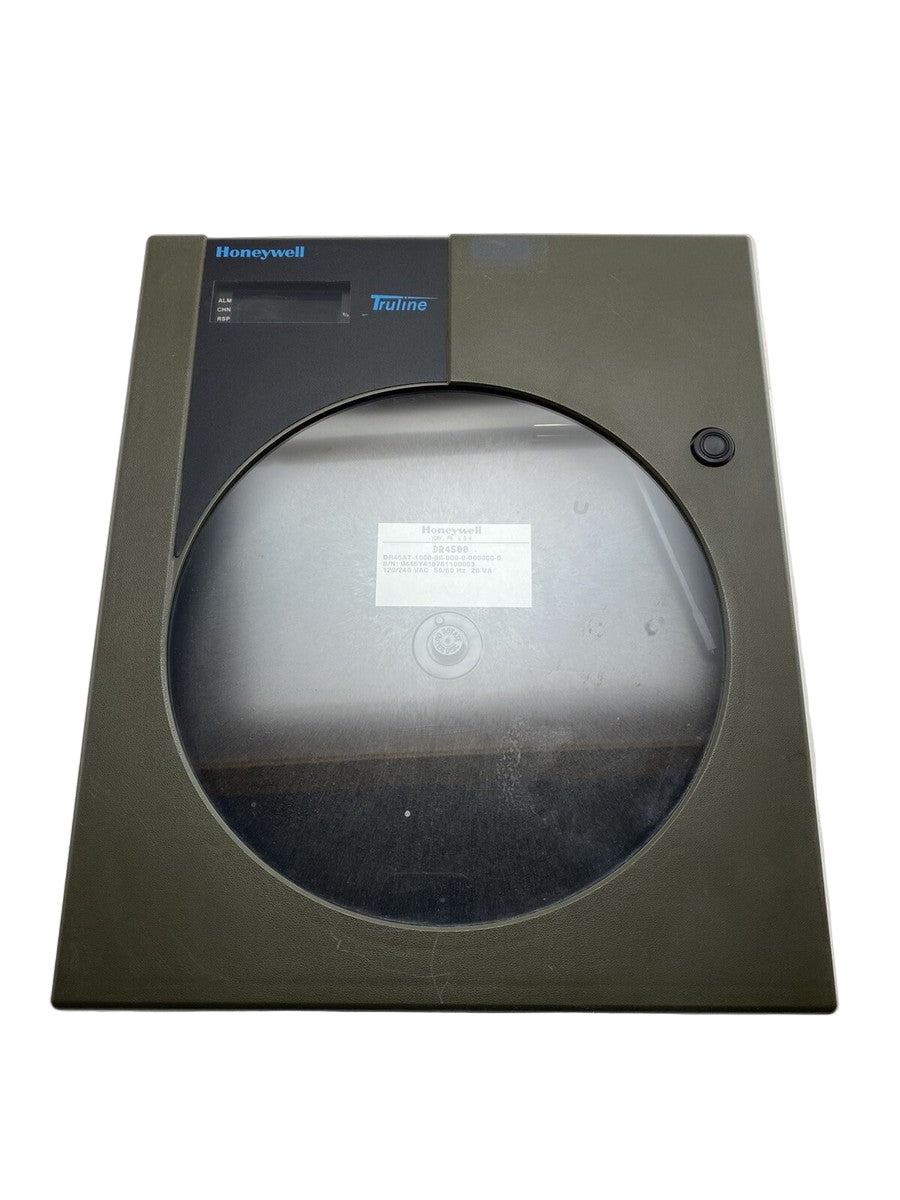

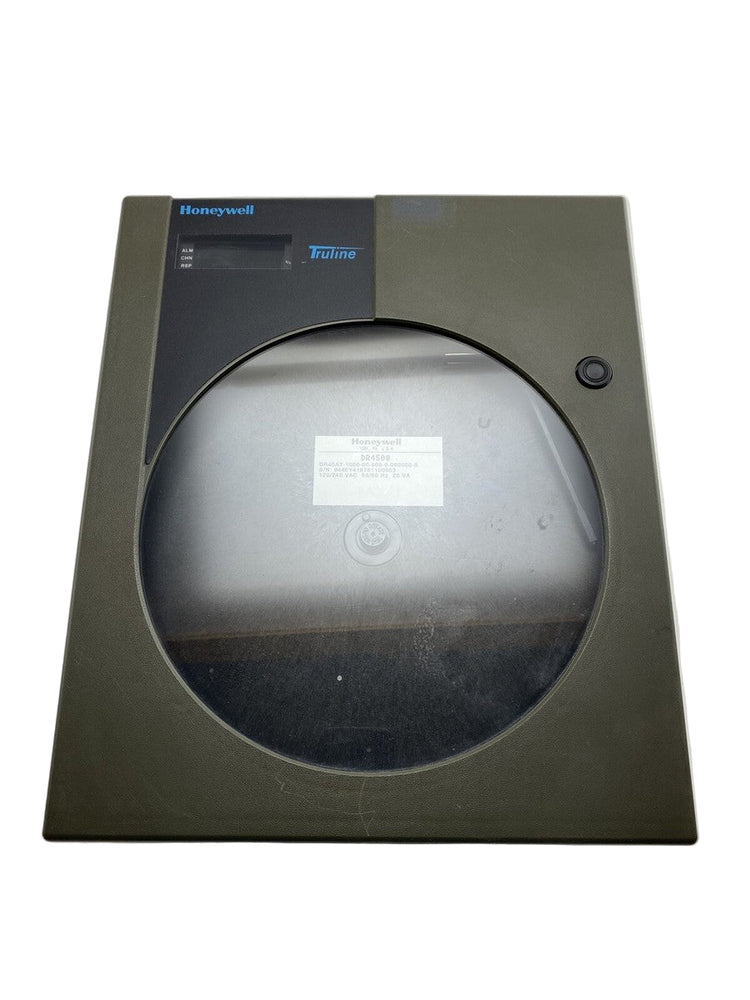

DR45AT-1000-00-001-0-000000-0 | Honeywell Digital Circular Chart Recorder 12" Single-Channel
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: DR45AT-1000-00-001-0-000000-0
Description
The Honeywell DR45AT-1000-00-001-0-000000-0 is a digital circular chart recorder designed for accurate monitoring and recording of industrial process variables. It features a single-pen thermal print system, supports multiple input types, and includes dual alarms and digital inputs for reliable process control documentation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Data Control System |
| Part Number | DR45AT-1000-00-001-0-000000-0 |
| Subcategory | Chart Recorder |
| Series | DR45A Truline |
| Chart Type | 12-inch circular thermal chart |
| Channels | 1 (single-pen model) |
| Input Types | Thermocouple, RTD, 0–5 VDC, 4–20 mA |
| Output | 2 alarm relays, 2 digital inputs |
| Power Supply | 24 VDC for transmitter excitation |
| Accuracy | ±0.05% full scale |
| Display Type | Digital configuration interface |
| Chart Speed | Configurable (adjustable electronically) |
| Communication | Optional RS-485 Modbus (model-dependent) |
| Door Type | Gray door with glass window |
| Door Latch | Standard |
| Illumination | None |
| Mounting | Panel or surface |
| Operating Environment | Industrial and laboratory use |
| Weight | 12.00 lbs |
Information About DR45AT-1000-00-001-0-000000-0
The DR45AT-1000-00-001-0-000000-0 belongs to the Honeywell DR45A Truline series of circular recorders, known for precision, configurability, and rugged design. It accepts thermocouple, RTD, 0–5 VDC, and 4–20 mA inputs, displaying and recording up to four traces on a self-printing 12-inch chart. The unit includes two alarm outputs and two digital inputs for additional control flexibility. Its gray metal housing with a glass window and standard latch ensures durability and ease of access, while the microprocessor-based system provides configurable parameters, automatic scaling, and high accuracy suited for industrial and laboratory environments.
Key Features:
- Digital Circular Recording: Automatically prints trends and time scales directly on a 12-inch heat-sensitive chart.
- Multi-Input Compatibility: Accepts thermocouple, RTD, millivolt, voltage, and 4–20 mA input signals.
- Single-Stylus Design: Provides precise, aligned traces for up to four simultaneous variables.
- Dual Alarm Outputs: Includes two programmable relay alarms for process limit monitoring and safety.
- Two Digital Inputs: Supports external event triggers or control functions.
- 24 VDC Transmitter Power Supply: Provides excitation for up to two transmitters.
- Microprocessor-Based Configuration: Enables flexible setup of chart speed, scaling, and channel parameters without hardware changes.
- Durable Industrial Enclosure: Gray door with glass window and standard latch for visibility and protection.
- High Accuracy: ±0.05% full-scale measurement precision for dependable performance.
- Optional Communications: Supports Modbus RS-485 integration in configurable versions.
The DR45AT-1000-00-001-0-000000-0 delivers the recording precision and reliability required for process verification, quality assurance, and system compliance.
