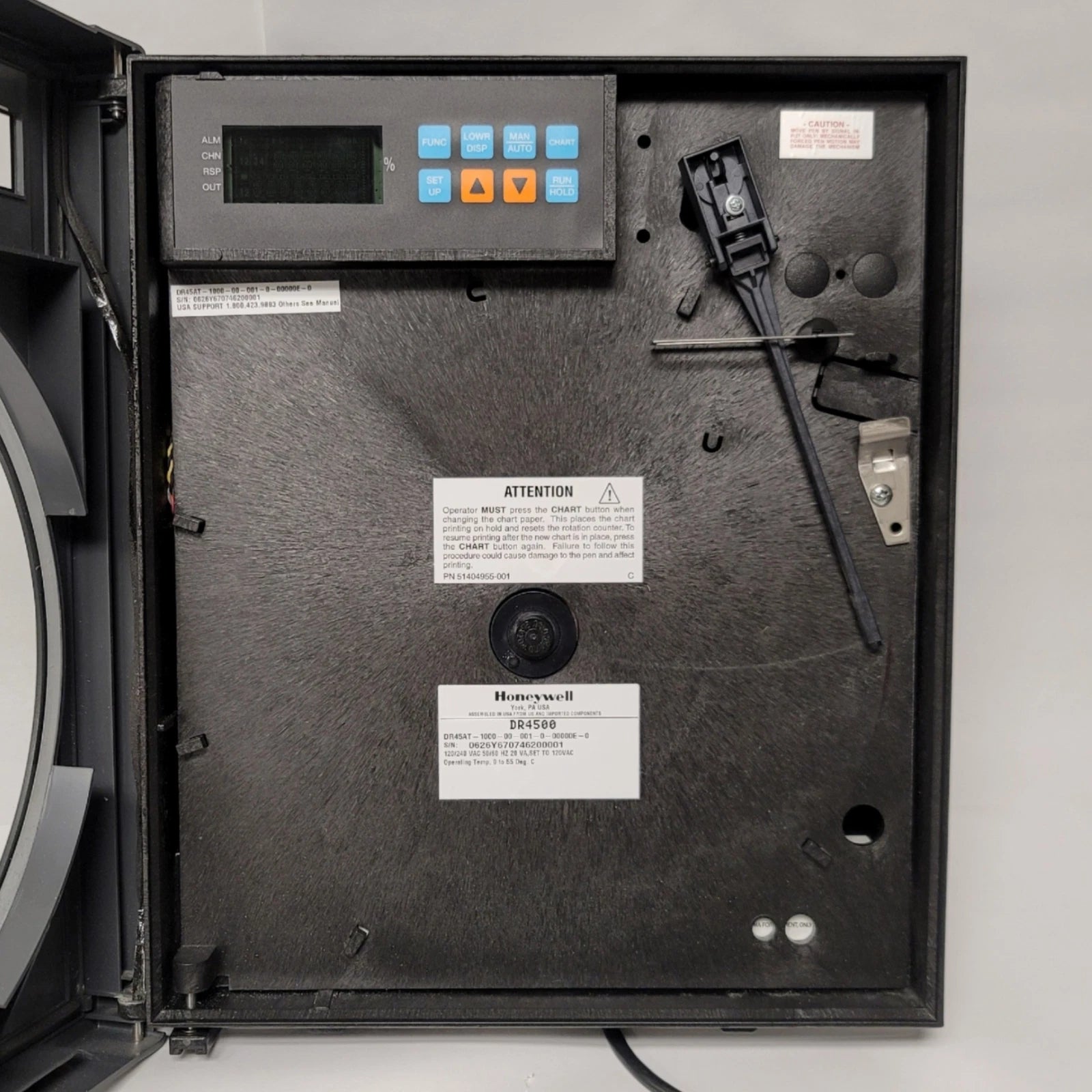

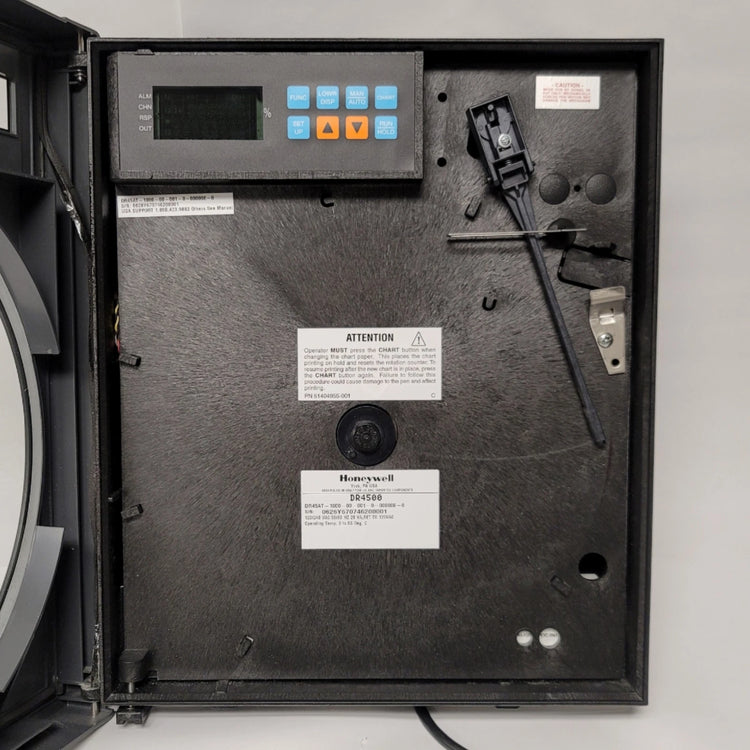

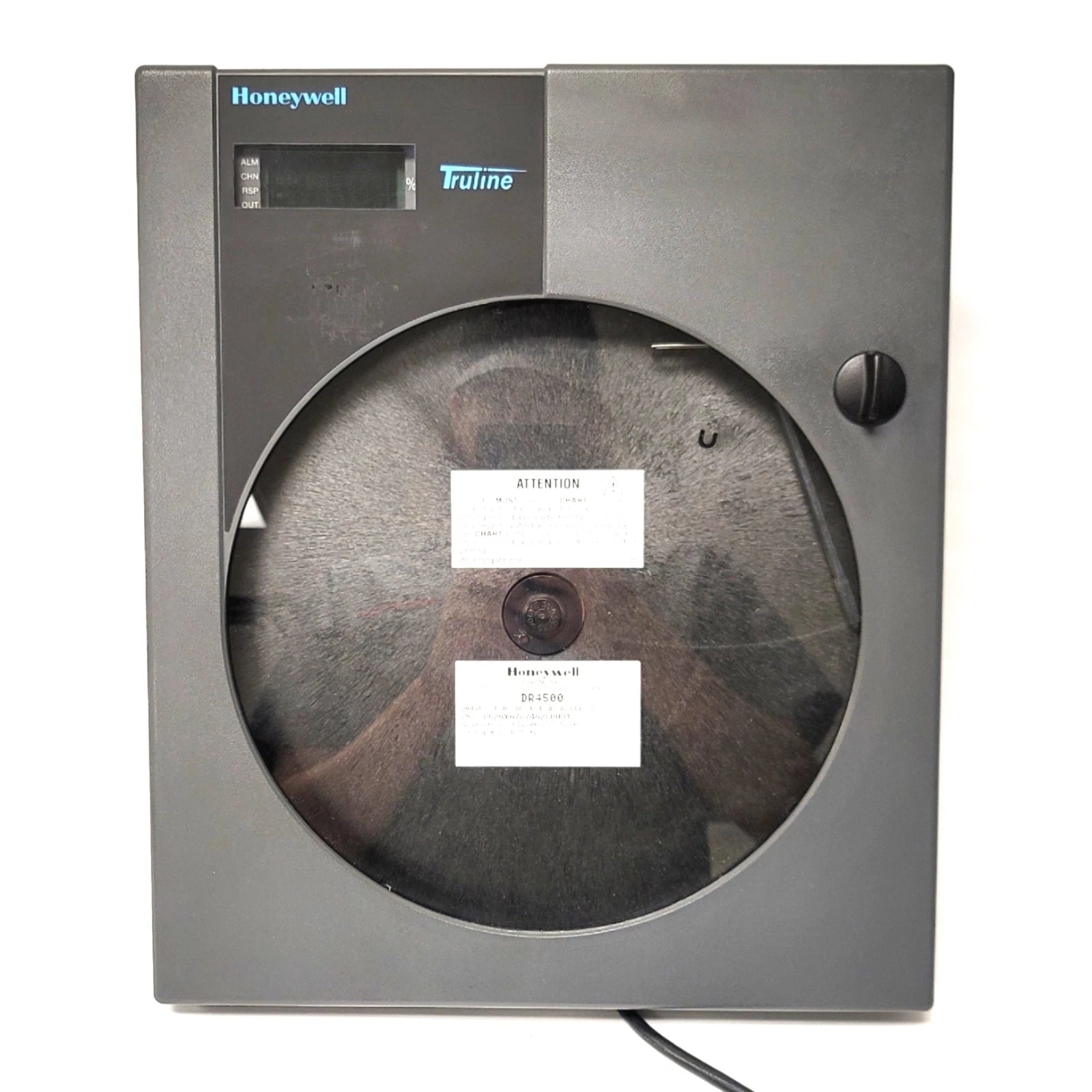

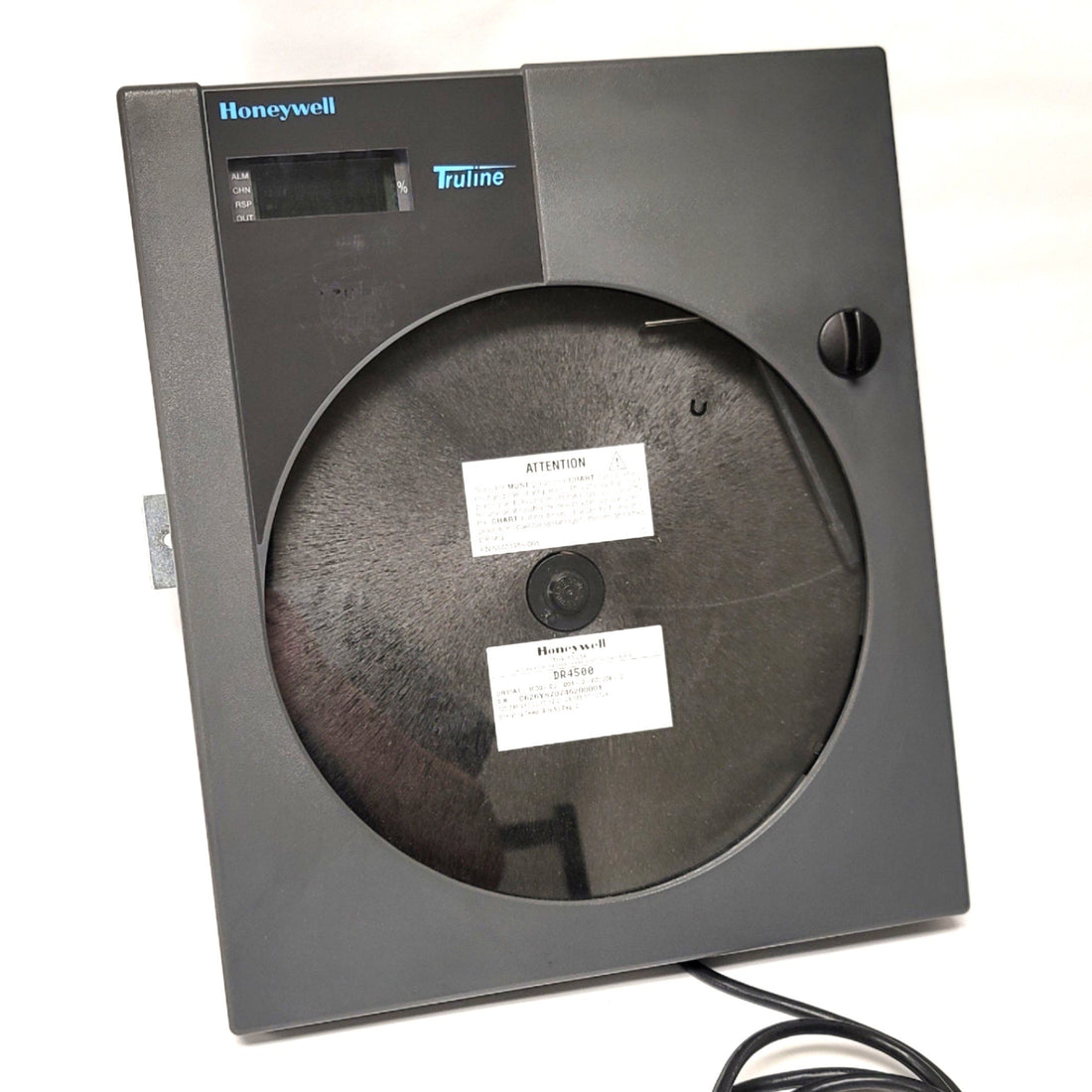

DR45AT-1000-00-001-0-00000E-0 | Honeywell DR4500 Trueline Circular Chart Recorder
- Regular price
- $3,094.00
- Sale price
- $3,094.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DR45AT-1000-00-001-0-00000E-0
Description
The Honeywell DR45AT-1000-00-001-0-00000E-0 is a Trueline series circular chart recorder built for reliable analog data recording in industrial settings. With a 12-inch chart diameter and support for a wide range of inputs, it provides high-accuracy measurement and long-term data tracking.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Data Control System
|
| Part Number | DR45AT-1000-00-001-0-00000E-0 |
| Subcategory | Chart Recorder |
| Series | DR4500 Trueline |
| Chart Diameter | 12 inches |
| Number of Channels | 1 |
| Auxiliary Inputs | 2 Alarms / 2 Digital Inputs |
| Supported Inputs | T/C, RTD, mV, 0–5 VDC, 4–20 mA, Radiamatic |
| Chart Speed Range | 6 to 744 hours |
| Power Requirements | 120/240 VAC, 20 VA (configured to 120V) |

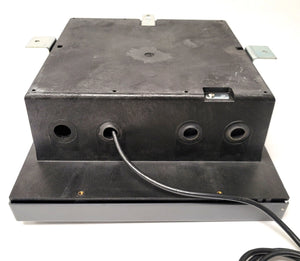

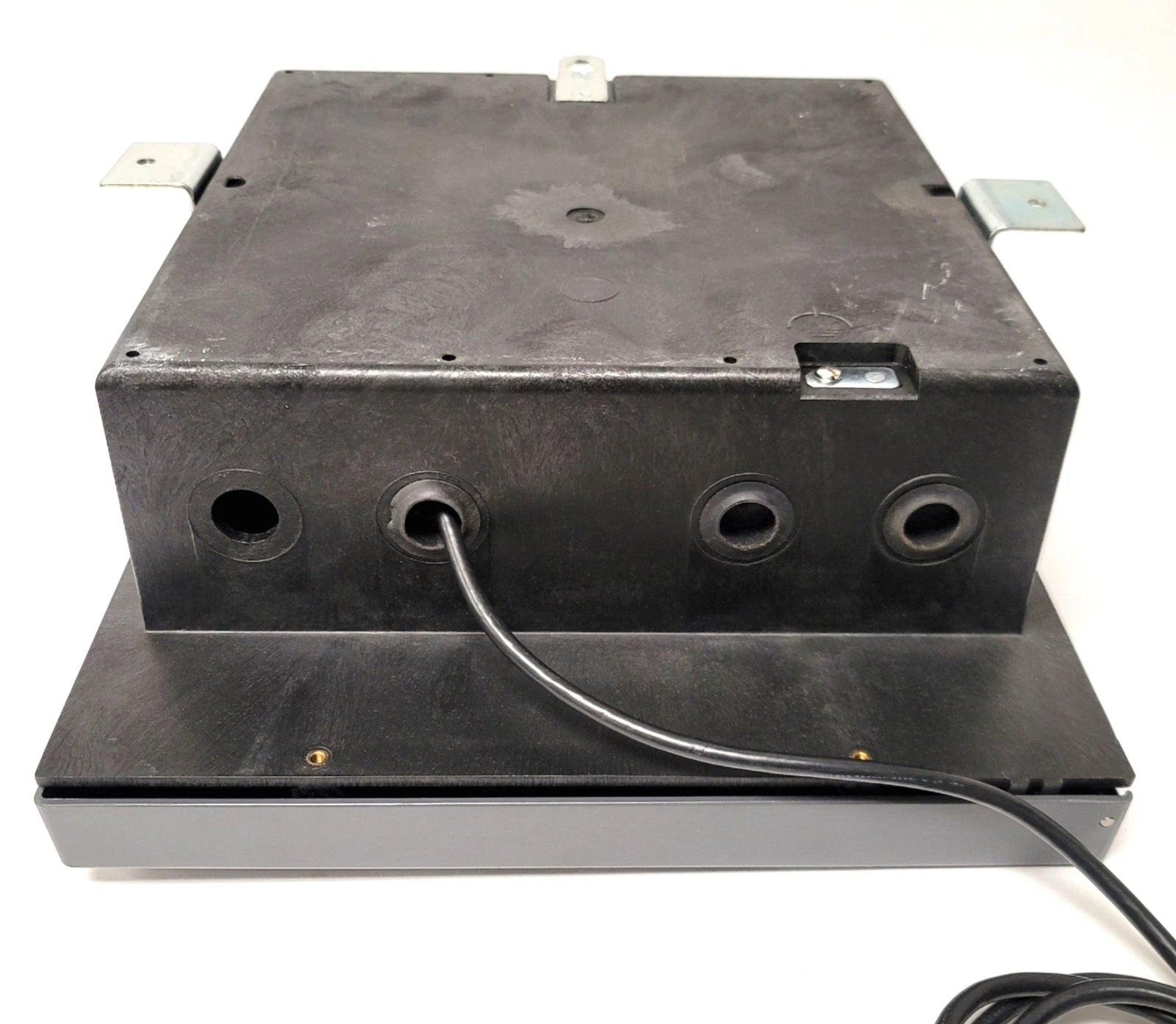

| Mounting | Panel or surface mount |
| Display Type | Analog circular chart |
| Operating Mode | Continuous analog recording |
| Dimensions | Standard chart recorder enclosure (12” chart size) |
| Application | Industrial batch processing, utilities, regulatory documentation |
| Weight | 12.00 lbs (approx. 5.44 kg) |
Information About DR45AT-1000-00-001-0-00000E-0
The DR45AT-1000-00-001-0-00000E-0 is a model from Honeywell’s DR4500 Trueline circular chart recorder family, offering one recording channel and auxiliary inputs for alarms and digital signals. This unit supports a wide input range including thermocouples (T/C), RTDs, millivolts, voltage, current, and Radiamatic sensors. Designed for rugged environments, it accommodates a chart speed adjustable from 6 to 744 hours and operates on 120/240 VAC at 20 VA. With a 12-inch chart and support for event-based recording through digital input triggers, it is ideal for batch processing, utilities, and regulated environments requiring hard-copy documentation.
Key Features:
- Single-Channel Recorder: Records one variable per chart, ideal for focused monitoring.
- Auxiliary Inputs: Includes two alarm inputs and two digital input channels for event control.
- 12-Inch Chart Diameter: Offers large format for clear graphical data representation.
- Wide Input Compatibility: Supports T/C, RTD, mV, 0–5 VDC, 4–20 mA, or Radiamatic sensors.
- Adjustable Chart Speed: Configurable between 6 and 744 hours for short- or long-term logging.
- Flexible Power Support: Operates at 120/240 VAC and consumes 20 VA; factory-set to 120V.
- Rugged Design: Built for harsh or industrial settings requiring physical chart recording.
- Event-Based Recording: Digital inputs allow recording control triggered by external conditions.
- Trueline Series Architecture: Reliable legacy platform with proven industrial deployment.
- Panel or Wall Mounting: Fits control panels or standalone installations with standard dimensions.
The DR45AT-1000-00-001-0-00000E-0 delivers industrial-grade recording precision and input versatility for critical data monitoring applications.
