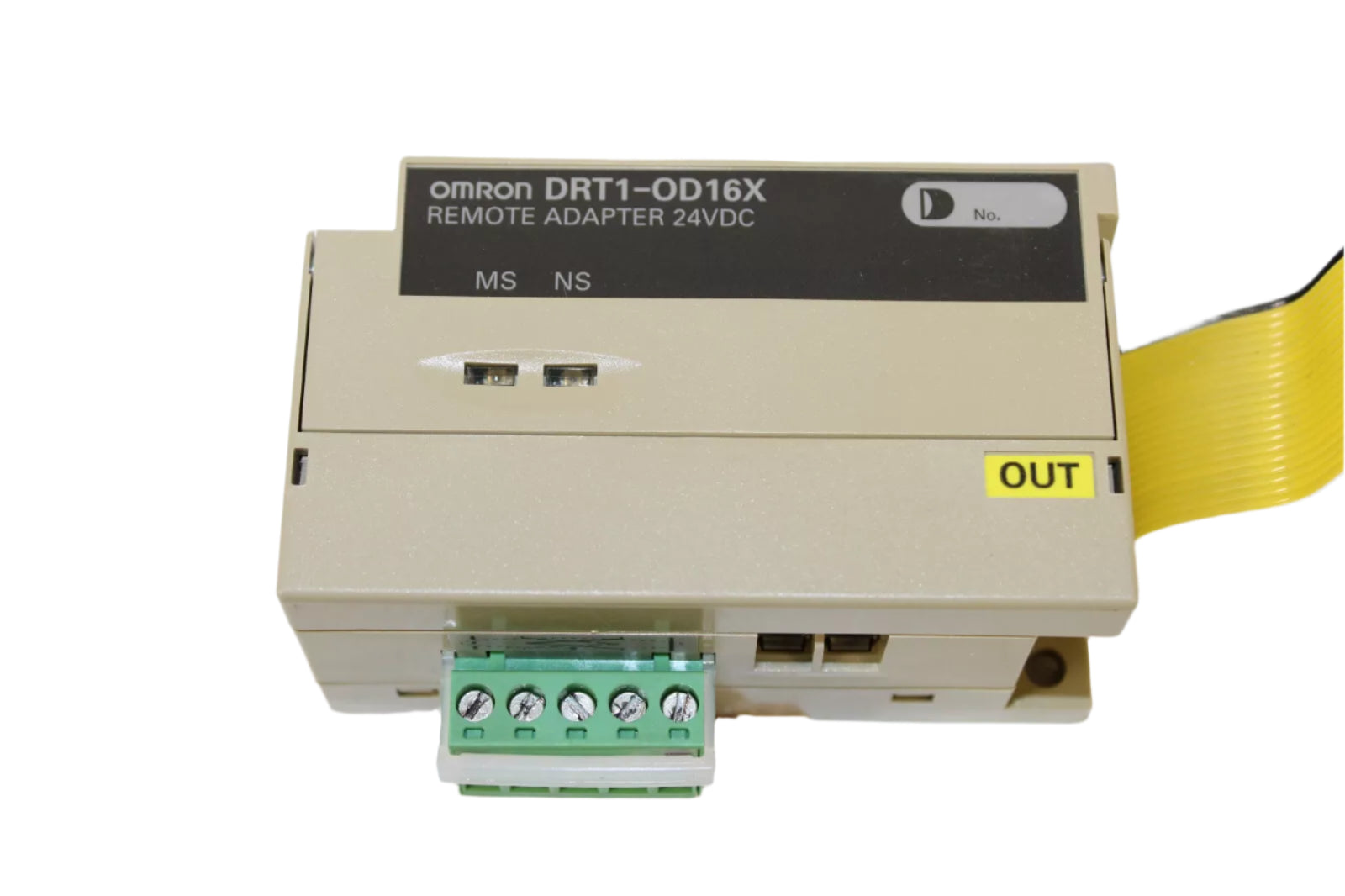

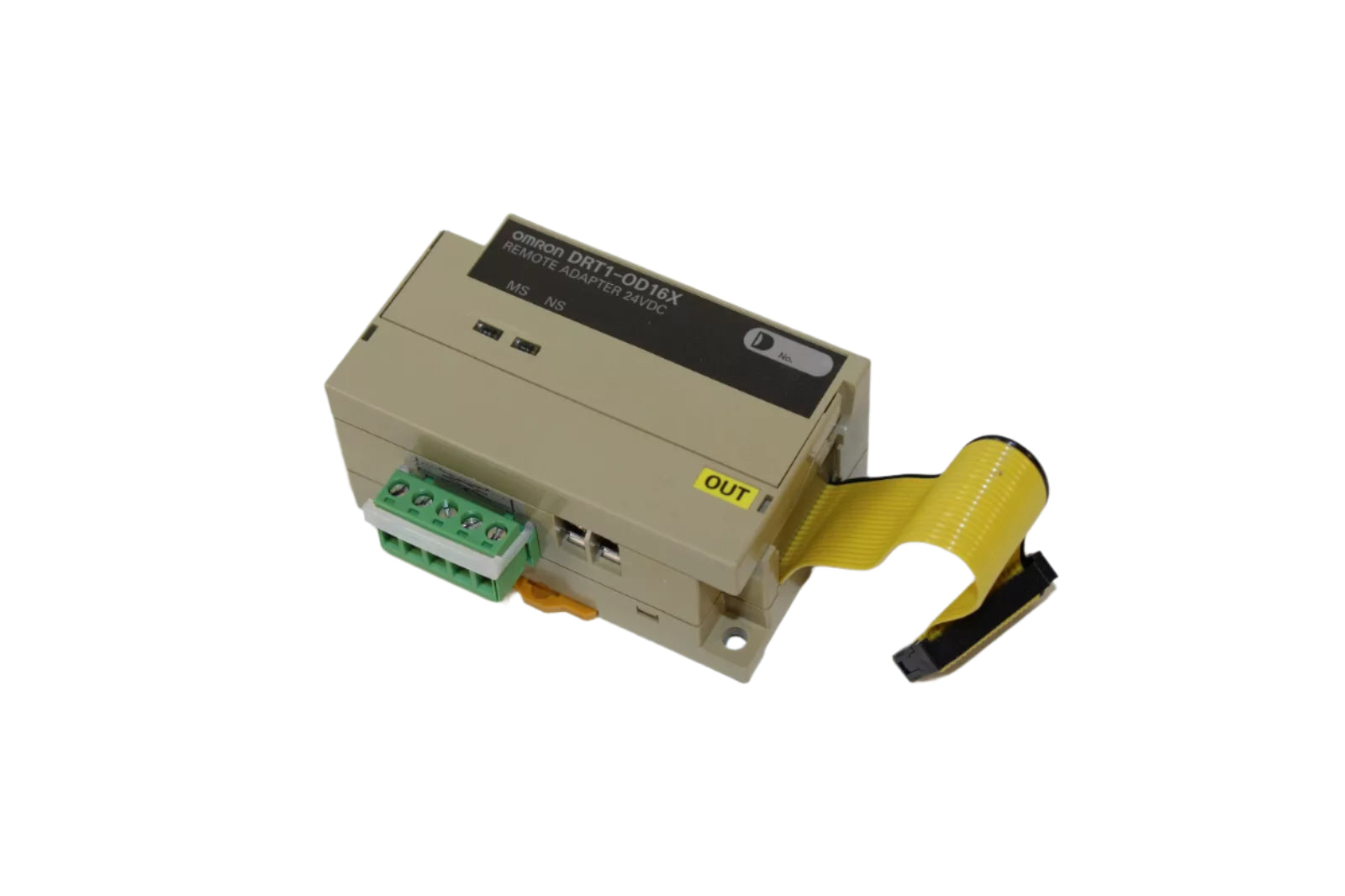

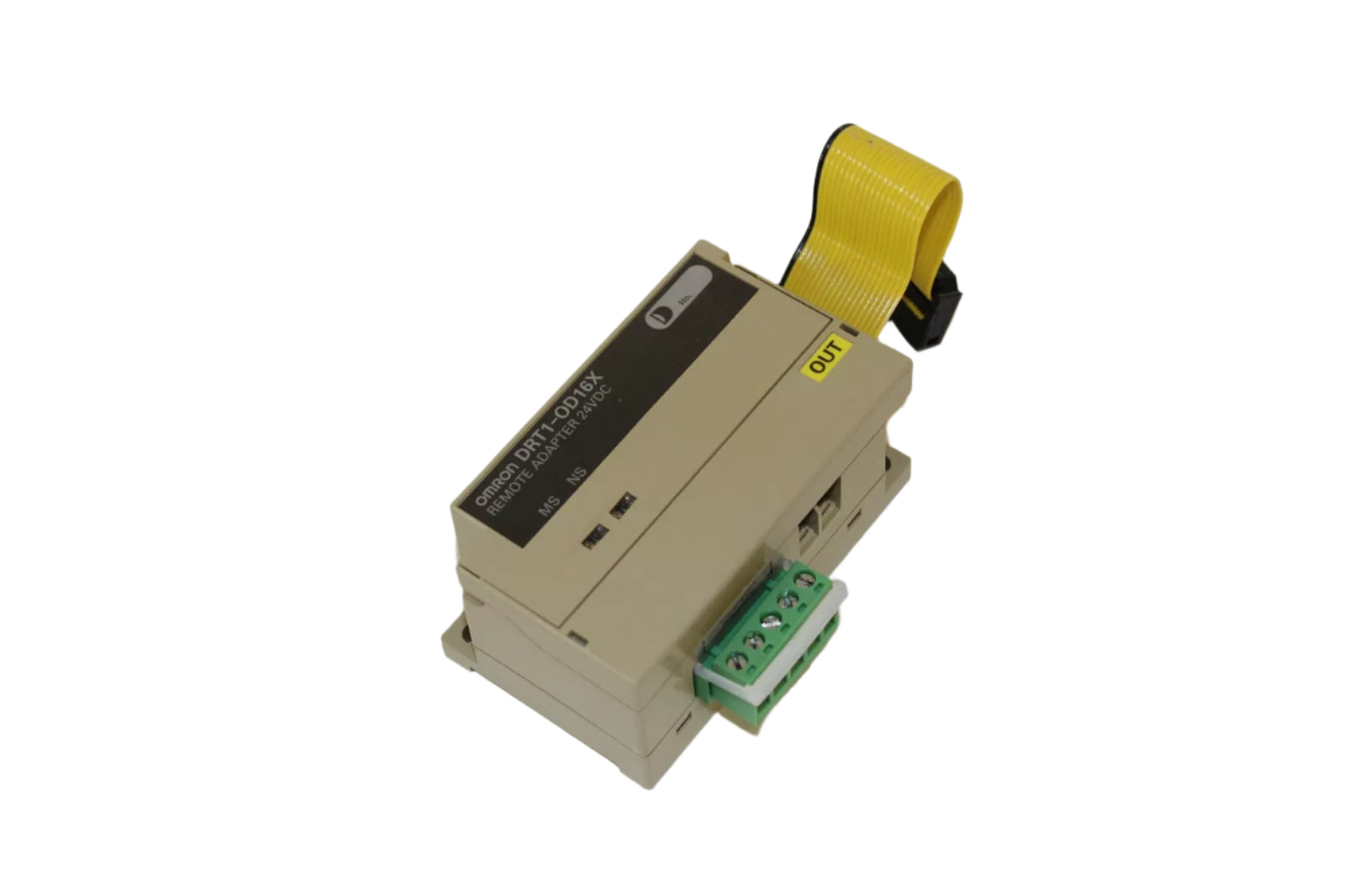

DRT1-OD16X | Omron Remote Adapter
- Regular price
- $607.00
- Sale price
- $607.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DRT1-OD16X
Description
The Omron DRT1-OD16X is a compact DeviceNet remote output adapter designed for industrial automation applications. It features 16 NPN transistor output points, each capable of delivering up to 30 mA at 24 VDC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | DRT1-OD16X |
| Subcategory | PLC Module/Rack |
| Output Points | 16 |
| Voltage Type | DC |
| Output Type | NPN |
| ON Delay Time | 0.5 ms |
| Output Current Rating | 0.3 A per point |
| Operating Voltage | 24 VDC |
| Protection Rating | IP20 |
| Mounting Type | DIN rail |
| Weight | 0.09 lbs |
Information About DRT1-OD16X
The Omron DRT1-OD16X is a compact DeviceNet remote output adapter designed for industrial automation applications. It provides 16 NPN transistor output points, each capable of delivering up to 0.3 A at 24 VDC. The unit features a fast ON delay time of 0.5 milliseconds, ensuring prompt response to control signals .
DO Supply
Key Features:
- Output Type: NPN transistor (open collector)
- Output Points: 16
- Rated Output Current: 0.3 A per point
- Operating Voltage: 24 VDC
- ON Delay Time: 0.5 ms
- Mounting: DIN rail
- Protection Rating: IP20
- Dimensions: Approximately 85 x 50 x 40 mm
The DRT1-OD16X is compatible with Omron's G70D series I/O relay terminals and can directly connect to SMC valves, enhancing its versatility in various automation setups . Additionally, the adapter supports two independent power supplies, providing electrical isolation between the I/O terminals and internal circuits for improved system reliability
