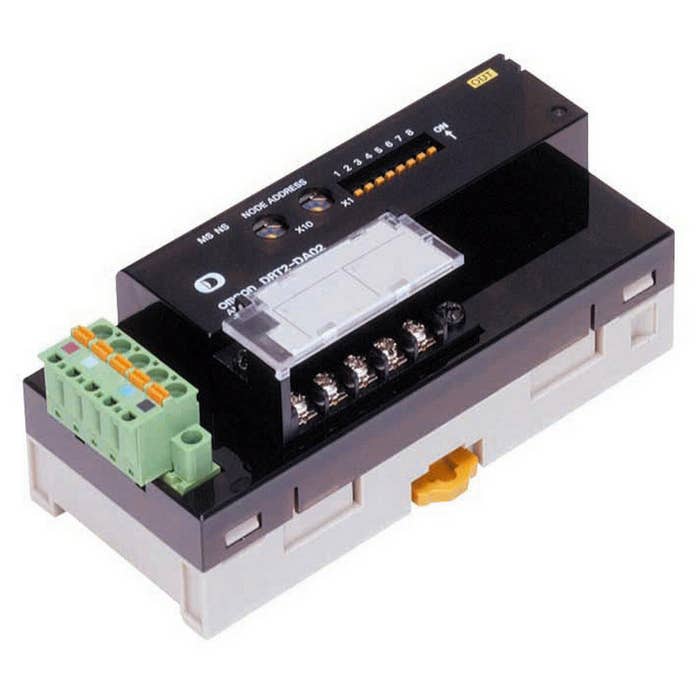

DRT2-DA02 | Omron 2-Channel Analog Output Module 13-Bit
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DRT2-DA02
Description
The Omron DRT2-DA02 is a 2-point analog output Smart Slave I/O terminal designed for DeviceNet systems. Featuring a 13-bit resolution and selectable voltage or current outputs, it provides precise analog signal control for industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | I/O Modules |
| Part Number | DRT2-DA02 |
| Subcategory | Analog Output Modules |
| Series | DRT |
| Output Points | 2 Analog Outputs |
| Output Type | 0–10 V, 0–20 mA |
| Output Resolution | 13-bit |
| Protocol | DeviceNet |
| Power Supply Voltage | 11 to 25 VDC |
| Current Consumption | 120 mA max at 24 VDC |
| Mounting Type | DIN Rail |
| Ingress Protection | IP20 |
| Operating Temperature | -10°C to 55°C |
| Noise Immunity | IEC61000-4-4 compliant |
| Vibration Resistance | 10–150 Hz, 0.7 mm double amplitude |
| Shock Resistance | 150 m/s² |
| Weight | 150 g |
Information About DRT2-DA02
The DRT2-DA02 is part of Omron’s DRT Smart Slave series and serves as a compact analog output terminal for DeviceNet networks. It supports two output channels, configurable for 0–10 V or 0–20 mA, with high 13-bit resolution to ensure accurate signal conversion. Designed for DIN rail mounting, it is built to endure industrial environments with IP20 ingress protection, vibration resistance up to 150 Hz, and shock resistance up to 150 m/s². This unit operates on 11–25 VDC and includes robust noise immunity in compliance with IEC61000-4-4.
Key Features:
-
Dual Analog Outputs: Supports two channels of analog output (voltage or current) for control flexibility.
-
High Output Resolution: Provides 13-bit resolution for precise analog signal delivery.
-
Selectable Output Modes: Configurable for 0–10 V or 0–20 mA output depending on application needs.
-
DeviceNet Smart Slave: Easily integrates into distributed I/O networks using DeviceNet protocol.
-
Robust Industrial Design: Resists vibration (10–150 Hz), shock (150 m/s²), and electrical noise.
-
DIN Rail Mounting: Simplifies installation into standard control cabinets.
-
Low Power Consumption: Operates at 120 mA max at 24 VDC.
-
Wide Operating Temperature: Functions reliably from -10°C to 55°C.
The DRT2-DA02 delivers the reliability and precision required for analog control applications in distributed industrial automation networks.
