DRT2-MD32BV-1 | Omron DRT2 Series DeviceNet Remote I/O Terminal 32-Point PNP 24 VDC
- Regular price
- $764.00
- Sale price
- $764.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DRT2-MD32BV-1
Description

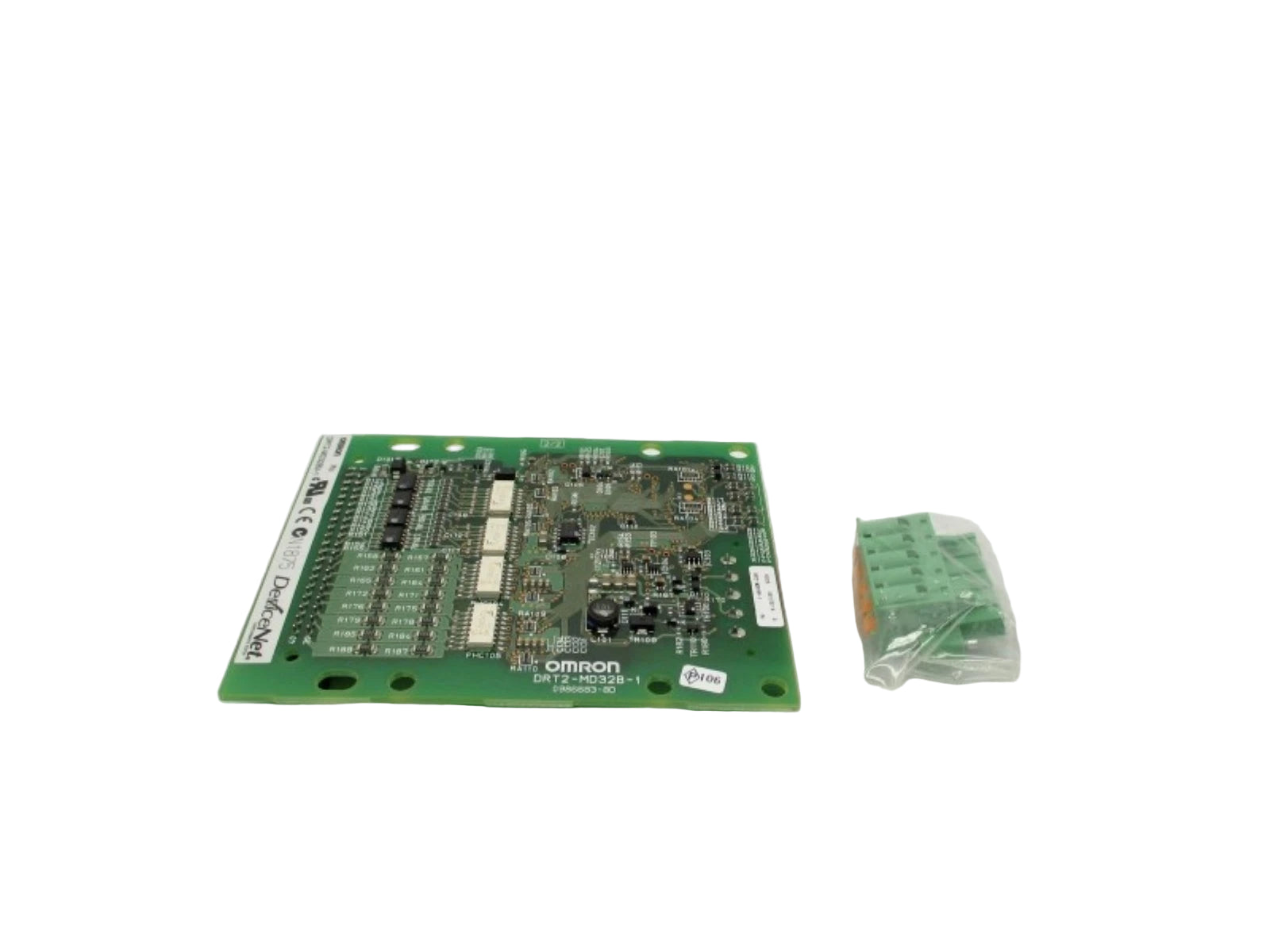

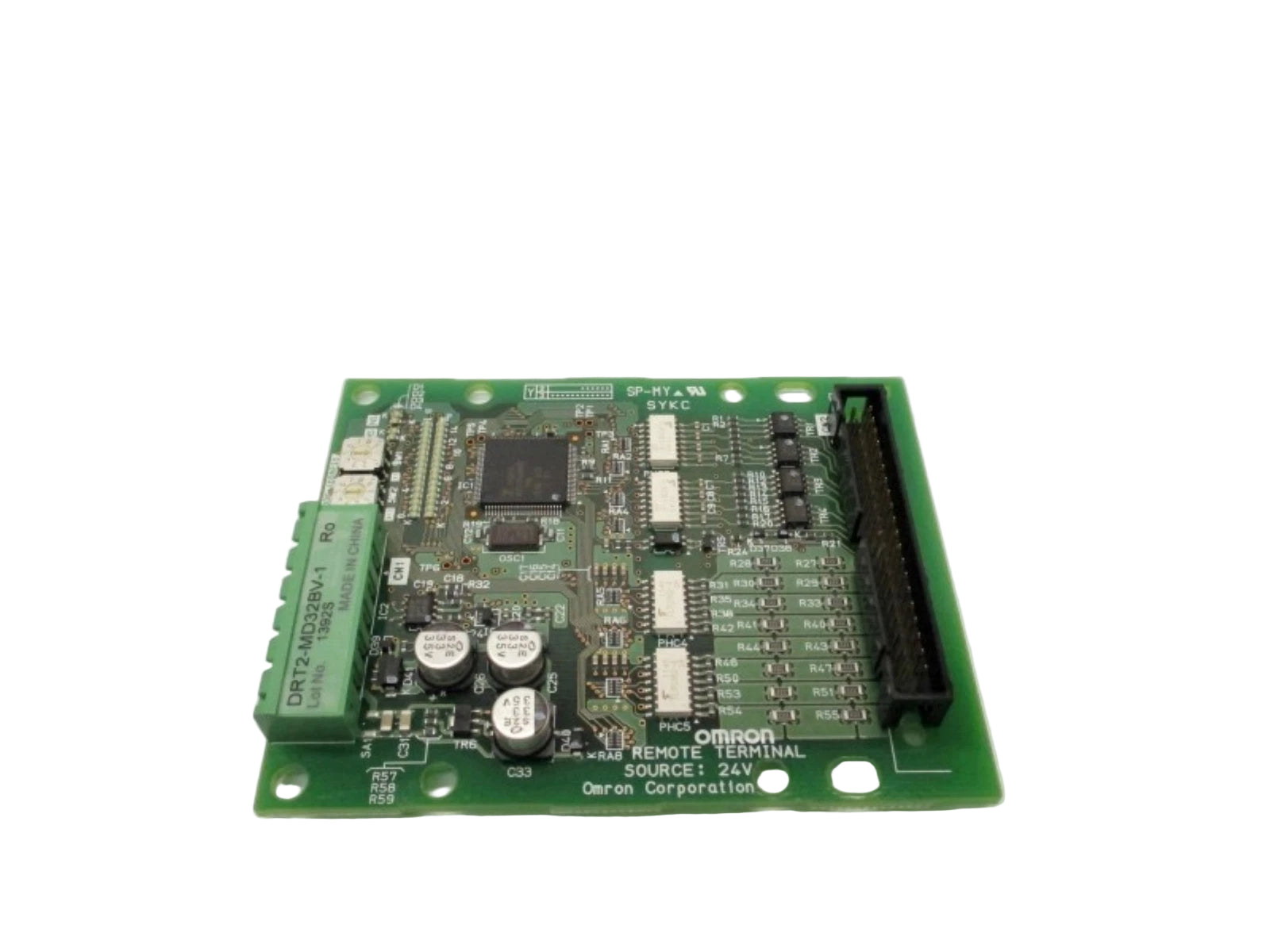

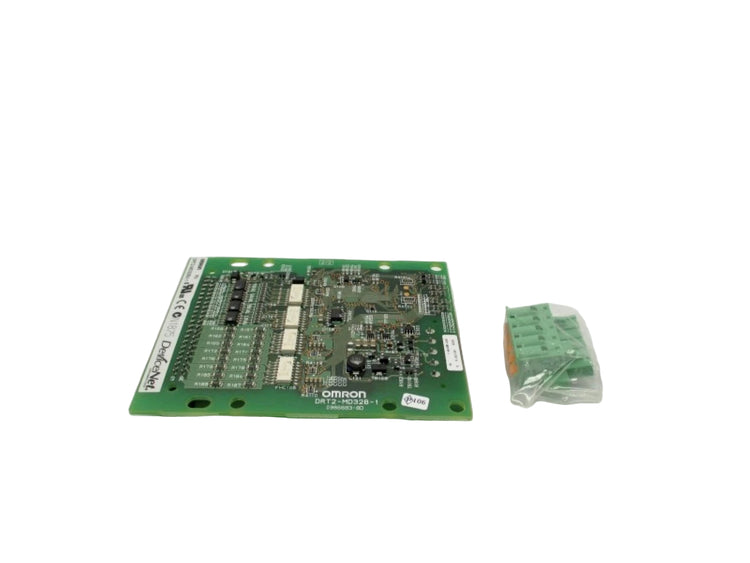

The Omron DRT2-MD32BV-1 Remote Terminal is a DeviceNet I/O module designed to interface 32 DC input and output points for distributed control systems. It enables high-speed, reliable communication between field devices and PLCs, simplifying wiring and reducing panel complexity. With a compact circuit board-style housing and MIL connector interface, this module offers stable performance for industrial automation and process control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | DRT2-MD32BV-1 |
| Subcategory | Remote I/O Terminals |
| Series | DRT2 Series |
| Type | DeviceNet Remote Terminal Unit |
| Communication Protocol | DeviceNet |
| I/O Type | 32-Point (Digital Input/Output) |
| Logic Type | DC Positive-Negative-Positive (PNP) |
| Rated Input Voltage | 24 VDC |
| Input ON Time | 1.5 ms (typical) |
| Input OFF Time | 0.5 ms (typical) |
| Output ON Time | 1.5 ms (typical) |
| Output Current per Point | 0.3 A max |
| Total Output Current | 2 A max |
| Power Consumption | 1.5 W (typical) |
| Connection Type | MIL Connector |
| Mounting Type | Circuit Board / DIN Rail (dependent on configuration) |
| Network Speed | Standard DeviceNet (up to 500 kbps) |
| Diagnostics | I/O status and network error reporting |
| Compatible PLCs | Omron DeviceNet-compatible controllers |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -20°C to +70°C |
| Enclosure Protection | Requires mounting in protective panel (not standalone IP rated) |
| Compliance | CE, UL, cUL |
| Weight | Approx. 0.20 kg (0.44 lb) |
Information About DRT2-MD32BV-1
The DRT2-MD32BV-1 is part of Omron’s DRT2 Series of DeviceNet-based remote I/O terminals, built for distributed input/output integration. It supports 32 I/O points (combined input/output) with PNP-type DC logic, providing flexible configuration for sensors, actuators, and control circuits. The module communicates over the DeviceNet network and provides diagnostic and parameter data directly to compatible PLCs. Designed for efficiency, it reduces wiring by allowing multiple modules to connect on a single communication line, with fast response and minimal latency for real-time control.
Key Features:
- DeviceNet Remote I/O Terminal: Provides 32 digital I/O points for distributed control over a DeviceNet network.
- PNP Logic Configuration: Supports positive-negative-positive DC wiring for standard industrial signal compatibility.
- High-Speed Communication: Delivers reliable data exchange with Omron PLCs and networked devices.
- Compact and Modular Design: Saves panel space while maintaining easy wiring access via MIL connectors.
- Efficient Power Consumption: Operates with low current draw for energy-efficient system integration.
- Built-in Diagnostics: Monitors I/O status and communication conditions to simplify maintenance.
- Flexible Mounting Options: Suitable for use in control panels and distributed automation networks.
- Omron DRT2 Series Reliability: Engineered for stable operation in demanding industrial environments.
The DRT2-MD32BV-1 delivers the reliability and precision required for distributed I/O, machine automation, and DeviceNet-based control systems.
