DRT2-OD08C-1 | Omron Smart Slave

Description

The Omron DRT2-OD08C-1 is a rugged, high-function DeviceNet Smart Slave I/O module designed for reliable digital output control in harsh industrial environments.

Technical Specifications

Information About DRT2-OD08C-1

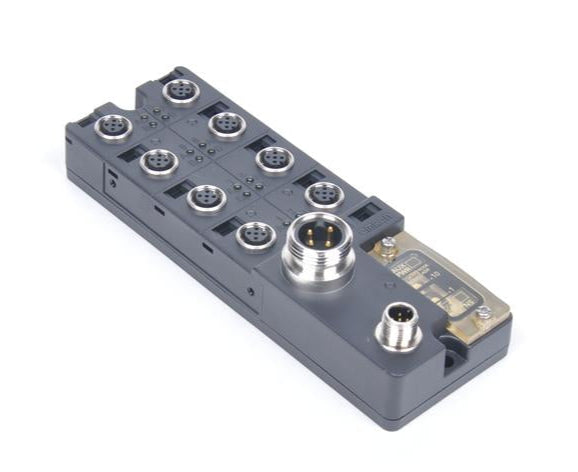

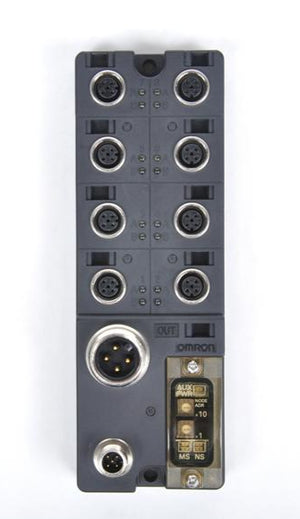

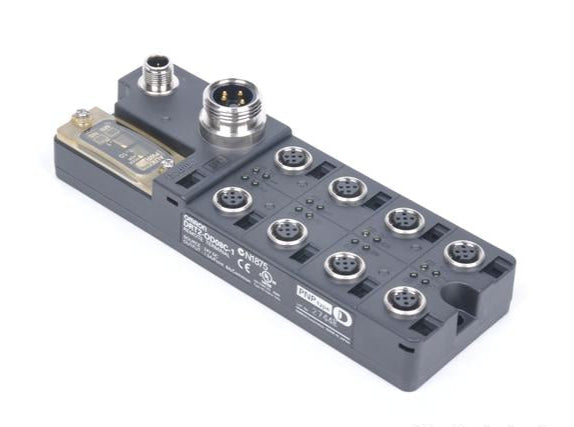

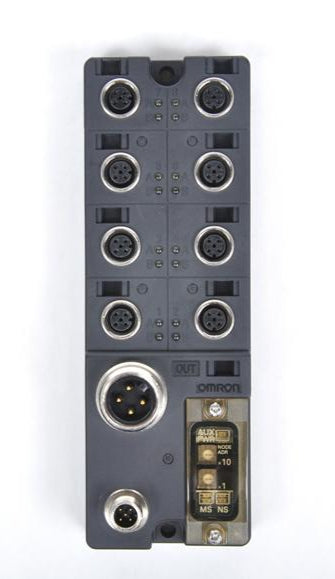

The Omron DRT2-OD08C-1 is an IP67-rated DeviceNet Smart Slave I/O module designed for rugged industrial environments. It provides eight PNP transistor outputs, each capable of delivering up to 1.5 A, with a maximum of 8 A per common. The unit features advanced diagnostic functions, including short-circuit detection and output monitoring, enhancing system reliability and facilitating preventive maintenance. Its M12 connectors allow for quick and secure field wiring, and the module supports panel or surface mounting using M5 screws. With a compact design measuring 175 × 60 × 44 mm and weighing approximately 390 g, the DRT2-OD08C-1 is well-suited for applications requiring robust and intelligent I/O solutions.

Key Features:

• Product Type: Smart Slave I/O Module
• Model: DRT2-OD08C-1
• Output Type: 8 PNP transistor outputs
• Rated Output Current: 1.5 A per point, 8.0 A per common
• Operating Voltage: 24 VDC (20.4 to 26.4 VDC)
• Protection Rating: IP67
• Connectors: 8 × 5-pin M12
• Diagnostics: Short-circuit detection, output monitoring
• Mounting: Panel or surface mount with M5 screws
• Dimensions: 175 × 60 × 44 mm

This module integrates seamlessly into Omron's DeviceNet systems, enhancing system reliability and facilitating proactive maintenance through its smart diagnostic capabilities.
