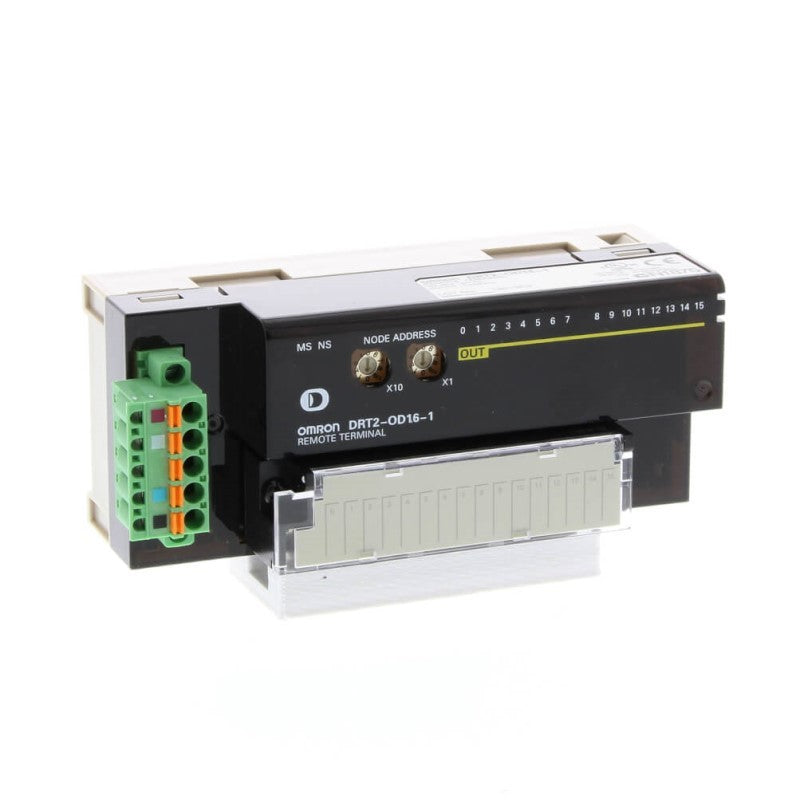

DRT2-OD16-1 | Omron 16-Channel PNP Digital Output Module for DeviceNet Systems
- Regular price
- $393.00
- Sale price
- $393.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DRT2-OD16-1
Description
The Omron DRT2-OD16-1 is a digital output module designed for DeviceNet-based automation systems. With 16 PNP transistor outputs rated at 0.5 A each, it provides precise and reliable control of field devices in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | DRT2-OD16-1 |
| Subcategory | Digital Output Modules |
| Series | DRT |
| Mounting Mode | DIN rail |
| Number of Digital Outputs | 16 |
| Output Current | 0.5 A per channel |
| Digital Output Type | PNP transistor |
| Supply Voltage DC | 24 VDC |
| Permitted Voltage at Output | 0–26.4 V |
| Communication Protocol | DeviceNet |
| Communication Port(s) | DeviceNet Slave |
| Type of Terminals | Screw-clamp |
| Connection Method | 1-wire |
| Short-Circuit Protection | Yes |
| Compliance Standards | cULus (Class I Division 2) |
| Degree of Protection | IP20 |
| Dimensions (H x W x D) | 50 × 115 × 49.7 mm |
| Weight | 200 g |
Information About DRT2-OD16-1
The DRT2-OD16-1 is part of Omron’s DRT series of DeviceNet remote I/O modules, built to deliver dependable performance in distributed control applications. It supports 16 individually isolated PNP transistor outputs, each capable of handling up to 0.5 A at 24 VDC, making it suitable for driving a variety of actuators, indicators, and other field devices. Designed for DIN rail mounting, the unit features screw-clamp terminals for secure wiring and uses a 1-wire connection method for efficient installation. Compliant with cULus standards for Class I Division 2 hazardous locations, it offers IP20 protection and communicates as a DeviceNet Smart Slave for seamless integration into industrial networks.
Key Features:
-
Sixteen Independent PNP Transistor Outputs: Provides control for up to 16 separate devices with precise switching, enabling flexible automation configurations.
-
High Output Capacity per Channel: Each channel supports loads up to 0.5 A at 24 VDC, accommodating a wide range of actuators, solenoids, and indicators.
-
DeviceNet Smart Slave Functionality: Communicates seamlessly with DeviceNet masters, allowing integration into distributed control networks with minimal setup.
-
DIN Rail Mounting Design: Ensures quick installation, easy maintenance, and organized panel layouts in industrial control cabinets.
-
Screw-Clamp Terminal Connections: Offers secure, vibration-resistant wiring for long-term reliability in harsh operating conditions.
-
Short-Circuit Protection on Outputs: Safeguards the module and connected devices from electrical faults, reducing downtime.
-
cULus Hazardous Location Approval: Certified for Class I Division 2 environments, meeting stringent safety requirements.
-
IP20 Degree of Protection: Designed for use in controlled environments while maintaining adequate protection against accidental contact.
-
Compact and Lightweight Housing: Saves panel space and allows easier handling during installation or replacement.
The DRT2-OD16-1 delivers the reliability and precision required for high-density output control in industrial automation systems.
